ElectroVoice EVID-C8.2-G2 Ceiling speaker 8" 70/100V

ElectroVoice EVID-C8.2-G2 Ceiling speaker 8" 70/100V

SoundPro Item: 151580 | Part Number: EVID-C8.2-G2

$289.00
$339.00 $289.00
Your Price Sold out
MSRP: $339.00 | MAP: $289.00

In stock and ready to ship

  • EZ-install system for quick, safe, and reliable installation.
  • Bezel-less design with easy-attach grille.
  • Front baffle wattage tap adjustment.
  • Includes tile bridge and mounting ring for easy installation.
  • UL 1480A, UL 2043 and CSA 22.2 205 certified.
Log in or register for YOUR best price

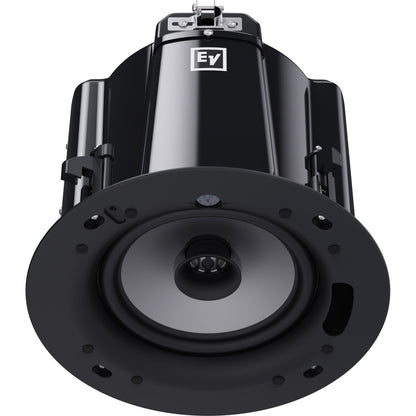

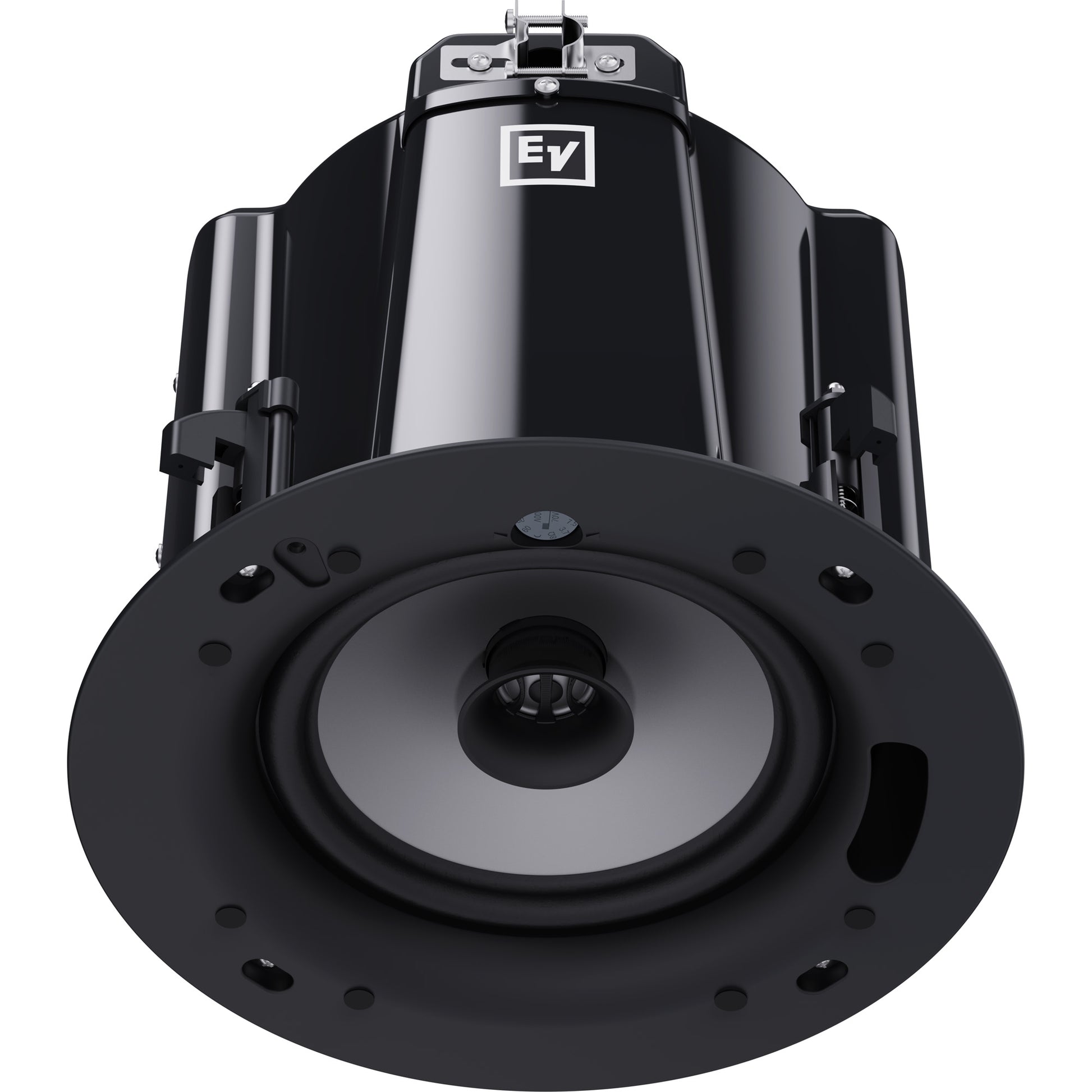

The Electro-Voice EVID-C8.2-G2 is a complete 8-inch coaxial two-way loudspeaker that offers excellent sound quality and outstanding reliability with first-class aesthetics. It includes the EZ-Install system for quick and easy installations that are fast and reliable without compromising on safety.

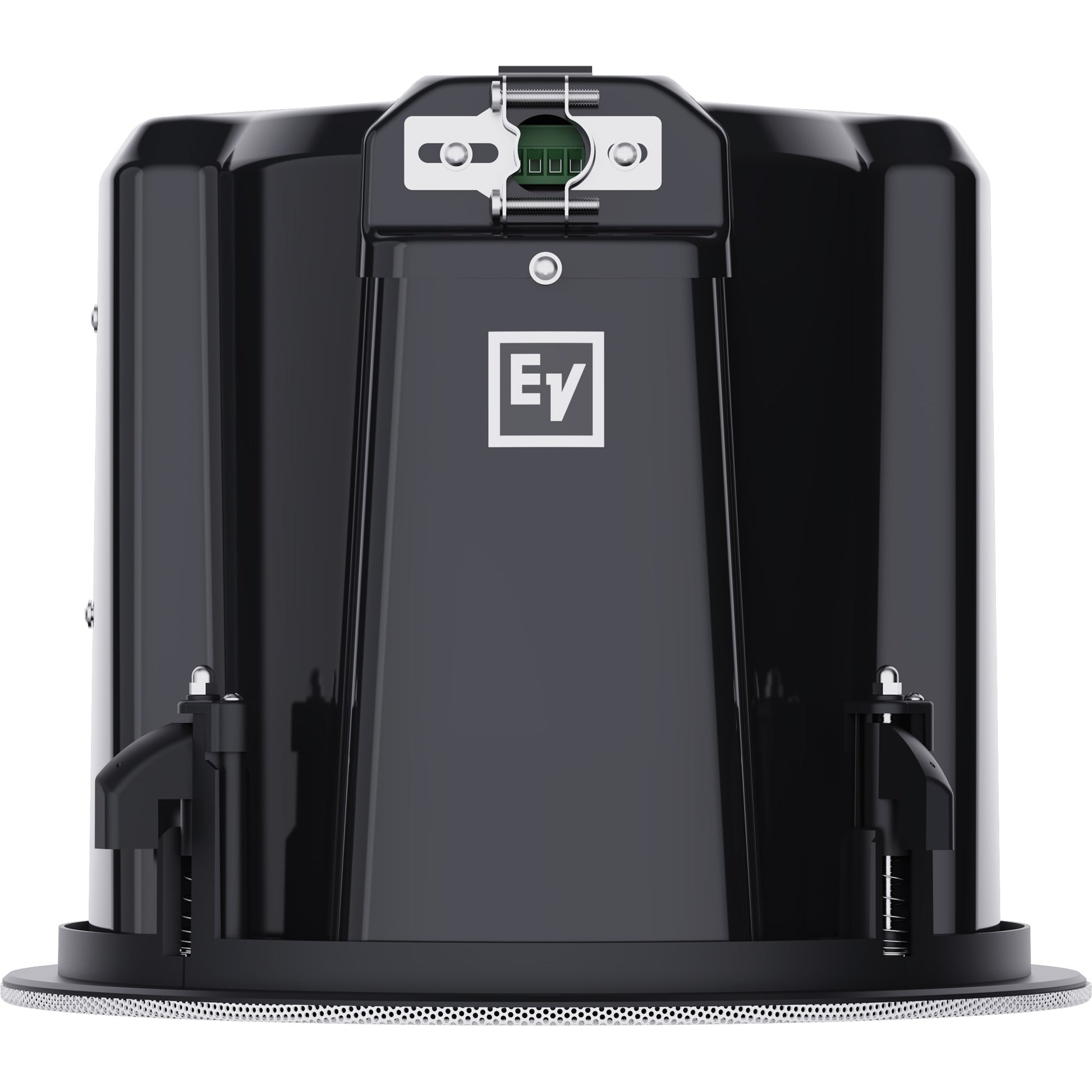

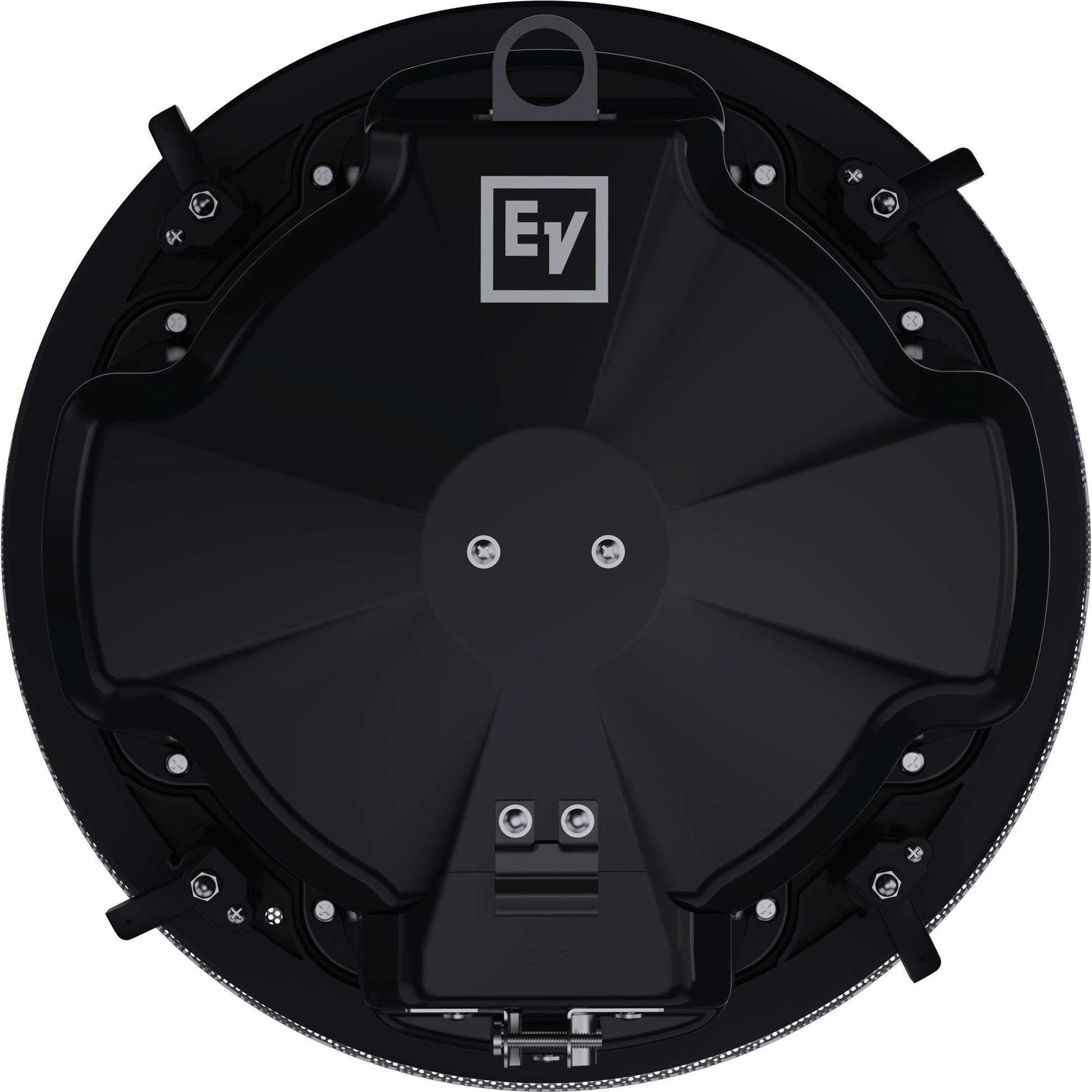

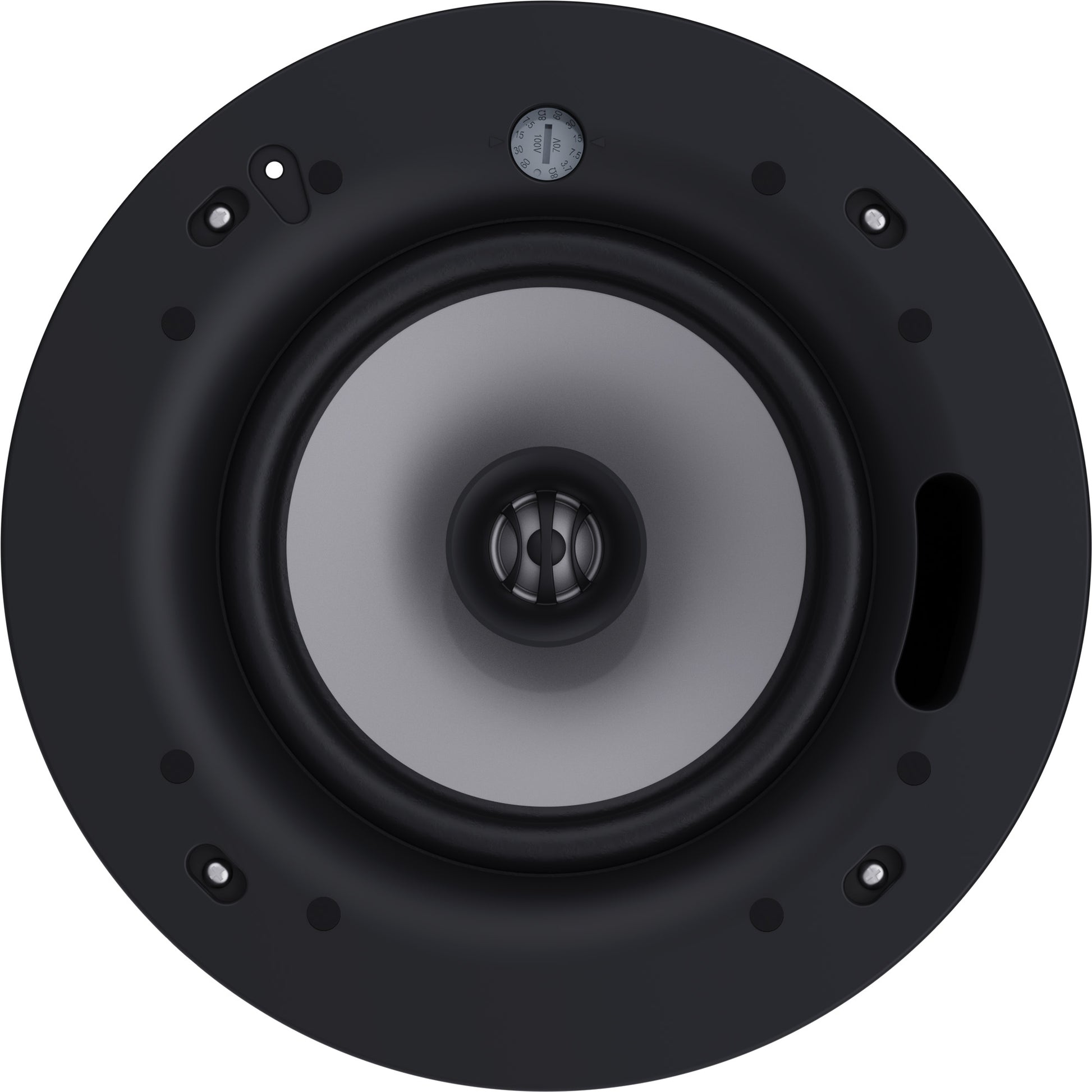

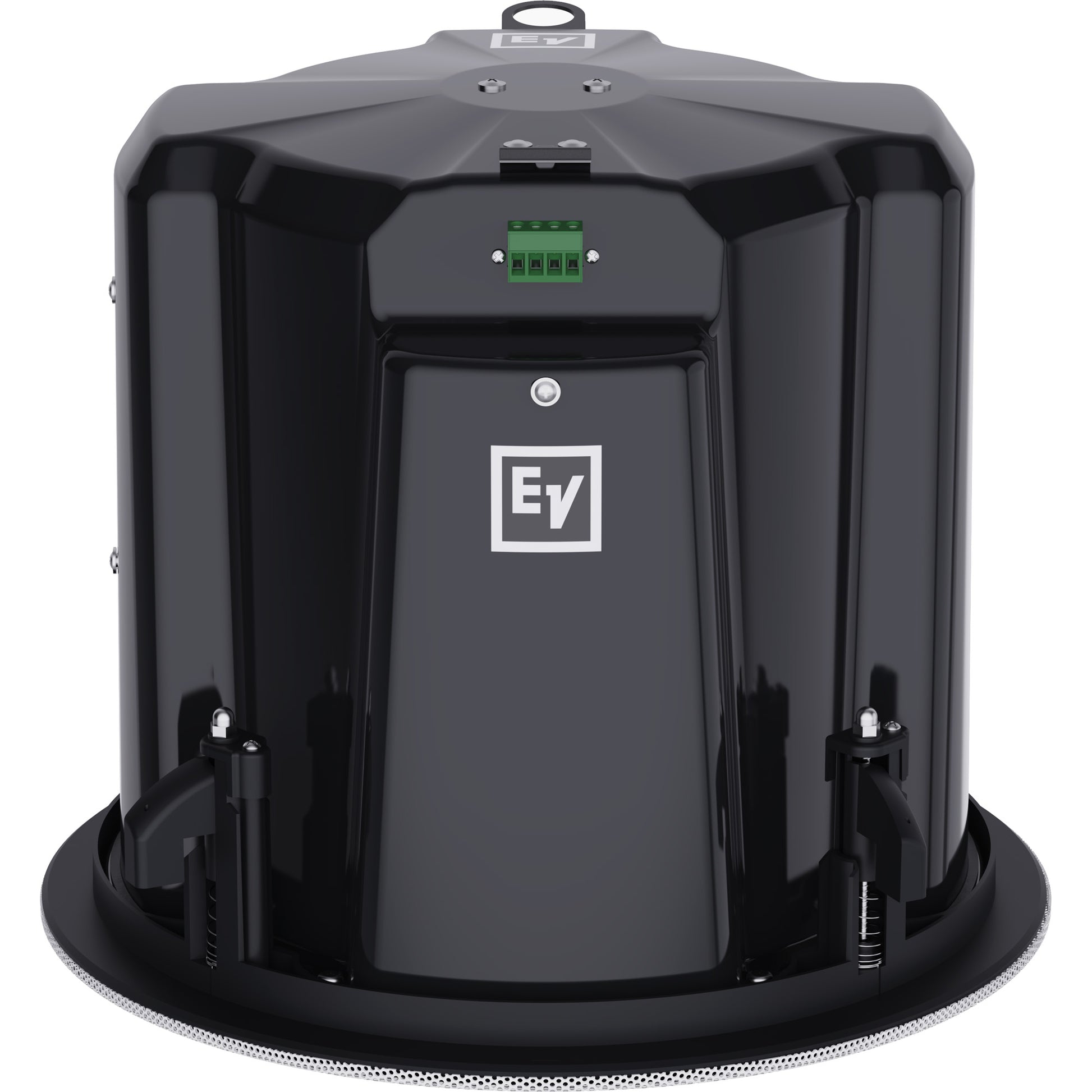

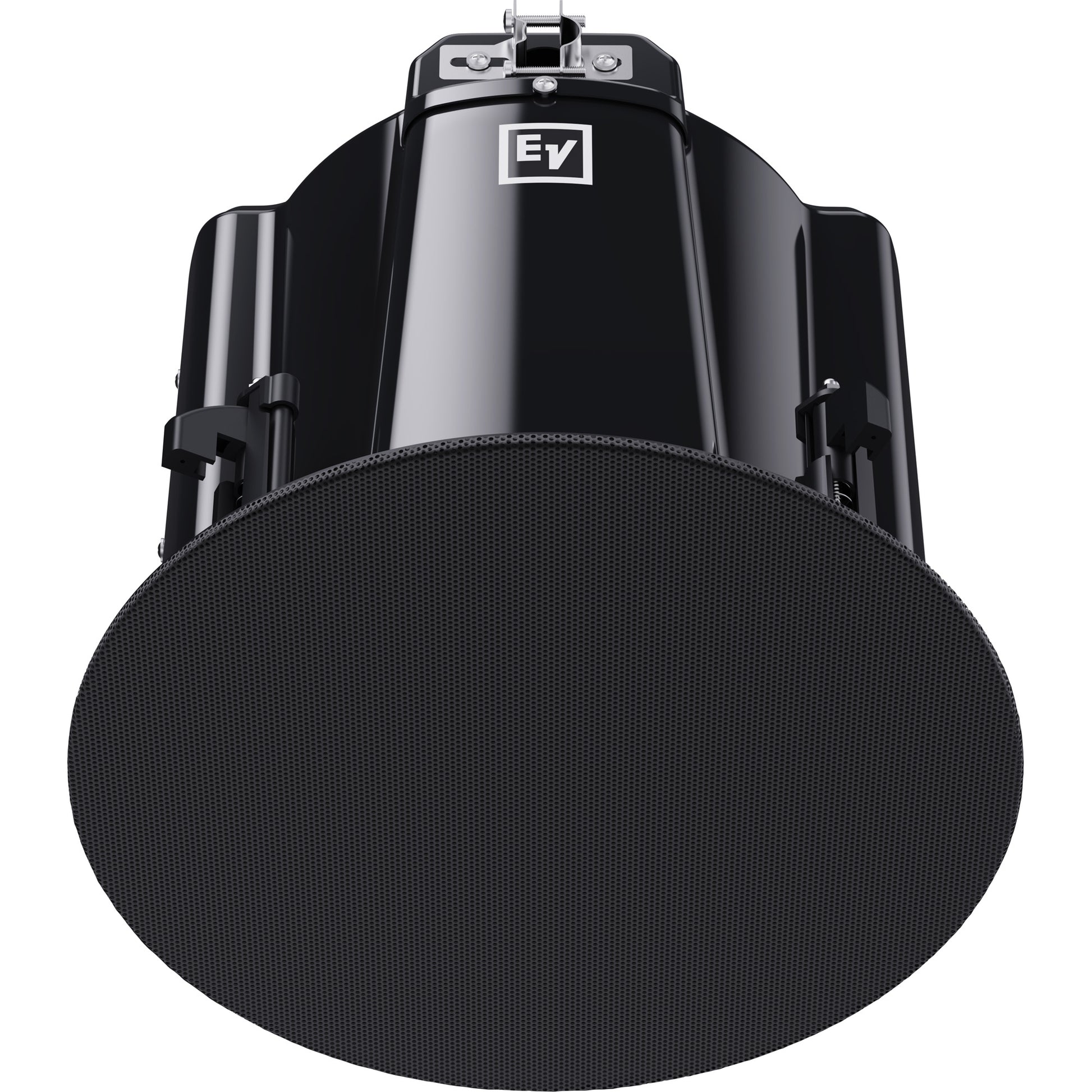

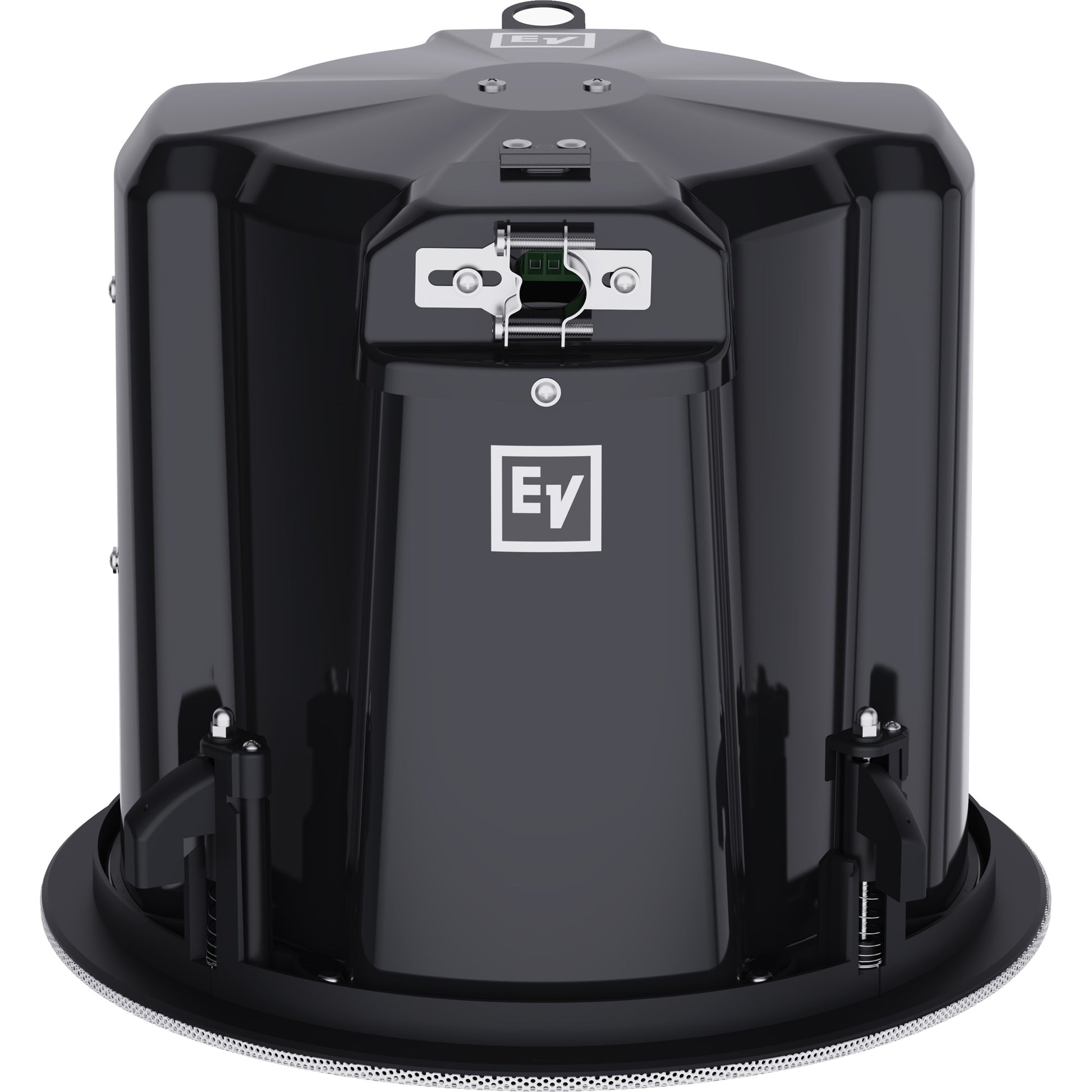

The loudspeaker features a point-source design to improve off-axis response and overall uniform coverage. The EVID-C8.2-G2 utilizes a transformer that offers a selection of 3.8 (70-V only), 7.5, 15, 30 or 60 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8-ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle is constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from heavy gauge coated steel. The low-profile enclosure makes it easy to mount in very tight spaces. A side terminal-cover provides access to a 4-pin terminal block that allows direct connection to the speaker with 12-gauge and 3.3 mm2-wire and provides pass through to additional speakers.

A mounting ring and a tile bridge are included for safe suspension of the EVID-C8.2-G2 ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles.

The wide range of EVID ceiling speakers has been designed to work together as a complete system in a variety of different ceiling constructions, and to be used in combination with other EVID surface-mount and in-wall speakers

View full details

Specifications

Frequency range (-10 dB) (Hz) 1
60 Hz - 20,000 Hz
Maximum SPL (continuous) (dB) 2
110 dB
Maximum SPL (peak) (dB) 2
116 dB
Sensitivity (1 W, 1 m) 3
90 dB SPL 1 W, 1 m
Coverage angle conical (°)
90°
Power handling (continuous) (W) 4
90 W
Power handling (peak) (W) 4
360 W
Long term power handling (continuous) (W) 5
75 W
Long term power handling (peak) (W) 5
300 W
Nominal impedance (Ω) (Low Z)
8 Ω
Recommended high pass (Hz) 6
50 Hz
Transformer taps 70 V line (W)
60 W; 30 W; 15 W; 7.5 W; 3.75 W
Transformer taps 100 V line (W)
60 W; 30 W; 15 W; 7.5 W
LF transducer size (in)
8 in
HF transducer size (in)
1 in
Material
Steel
Grille material
Powder coated steel
Connector type
4-pin Euroblock, Input + Pass through
Wire size (AWG)
12AWG (maximum)
Wire diameter (mm2)
3.3 mm2 (maximum)
Color
White; Customized colors
Color (RAL)
RAL 9003 Signal white
Mounting cutout (in)
10.7 in
Mounting cutout (mm)
272 mm
Dimensions (Ø x D) (in)
11.9 in x 9.8 in
Dimensions (Ø x D) (mm)
302 mm x 249.2 mm
Mounting depth (in)
9.6 in
Mounting depth (mm)
244 mm
Ceiling thickness (in)
0.5 in - 1.5 in
Ceiling thickness (mm)
12.5 mm - 38 mm
Weight (lb) 7
13.20 lb
Weight (kg) 7
6 kg
Shipping weight (lb) 8
22 lb
Shipping weight (kg) 8
10 kg
IP rating
IP34
Weatherization
Indoor
Operating temperature (°F)
32 °F - 122 °F
Operating temperature (°C)
0 °C - 50 °C
