Epson PowerLite 775F 1080p 3LCD Ultra Short Throw Lamp-Free Laser Projector
Epson PowerLite 775F 1080p 3LCD Ultra Short Throw Lamp-Free Laser Projector
SoundPro Item: 138234 | Part Number: POWERLITE 775F PROJECTOR
Usually ships in 5-7 business days
- Best-in-Class Color Brightness5; 4,100 lumens
- Full HD 1080p resolution for exceptional image quality
- No lamps to replace ever with solid-state laser light source
- Convenient ultra short throw design
- Free, easy-to-use content management software
Bring attention-grabbing digital signage to conference rooms, office spaces, hotel lobbies, restaurants and more with the PowerLite® 775F. Featuring Epson’s proprietary 3-chip 3LCD technology, this flexible display is capable of projecting onto nearly any surface, delivering impressively bright, sharp and colorful Full HD images with 4,100 lumens of color and white brightness1. With its intelligent ultra short throw design, sleek black casing and 360-degree placement capabilities, the PowerLite 775F can be placed nearly anywhere to deliver an incredibly large image size up to 150". Offering a convenient Wake-On Sync function, the PowerLite 775F is ready to display in seconds and supports 16:9 as well as ultra wide 21:9 and 16:6 aspect ratios for greater flexibility in the design and delivery of digital content. Engineered for reliability, it includes a virtually maintenance-free, 20,000-hour laser light source, with no lamps to replace—ever2. The PowerLite 775F comes with wireless connectivity with casting capability3 for convenient content sharing and includes free downloadable content management software4 for dynamic digital signage design.
- Projection SystemRGB liquid crystal shutter projection system
- Driving Method Poly-Silicon TFT Active Matrix
- Pixel Number 2,073,600 dots (1920 x 1080) x 3
- Color Brightness Color Light Output: 4,100 lumens
- White Brightness White Light Output: 4,100 lumens
- Aspect Ratio 16:9 (native); 16:6, 4:3, 16:10, 21:9
- Image Size (Projection Distance)
- Without Mount
- 49" – 123" (12.8" – 35.2") 4:3
- 60" – 150" (12.8" – 35.2") 16:9
- 55" – 139" (12.8" – 35.2") 16:10
- 56" – 140" (12.8" – 35.2") 16:6
- 57" – 142.5" (12.8" – 35.2") 21:9
- With ELPMB62 Mount
- 58" – 117" (15.5" – 33.6") 4:3
- 71" – 143" (15.5" – 33.6") 16:9
- 65" – 132" (15.5" – 33.6") 16:10
- 66" – 133" (15.5" – 33.6") 16:6
- 67" – 135" (15.5" – 33.6") 21:9
- Without Mount
- Display Resolution 1080p (1920 x 1080)
- Light Source Laser Diode
- Laser Light Source Life
- Normal Mode: Up to 20,000 hours
- Extended Mode: Up to 30,000 hours
- Throw Ratio Range0.25 (Zoom: Wide), 0.35 (Zoom: Tele)
- Size (Projected Distance)
- 60" – 150" [12.8" – 35.2"] (Zoom: Wide) 16:9
- 56" – 140" [12.8" – 35.2"] (Zoom: Tele) 16:6
- Keystone Correction Manual
- Vertical: ±3 degrees;
- Horizontal: ±3 degrees
- Dynamic Contrast Ratio Over 2,500,000:1
- Color Reproduction Up to 1.07 billion colors
- Foot Adjuster
- Vertical: -0.8 to +0.8 degrees
- Horizontal: -0.8 to +0.8 degrees
- ModesDynamic, Presentation, Cinema, sRGB, DICOM SIM, Multi-Projection
- Projection Lens
- Type Digital zoom, Focus (manual)
- F-Number 1.6
- Focal Length 3.7 mm
- Zoom Ratio 1.00 – 1.35 (digital zoom)
- Software
- In addition to compatibility with Epson’s standard suite of software, this product has a direct playback function via USB.
- Works with:
- - Epson® Projector Content Manager Software (visit our support pages for the latest version)
- - Epson Creative Projection App5

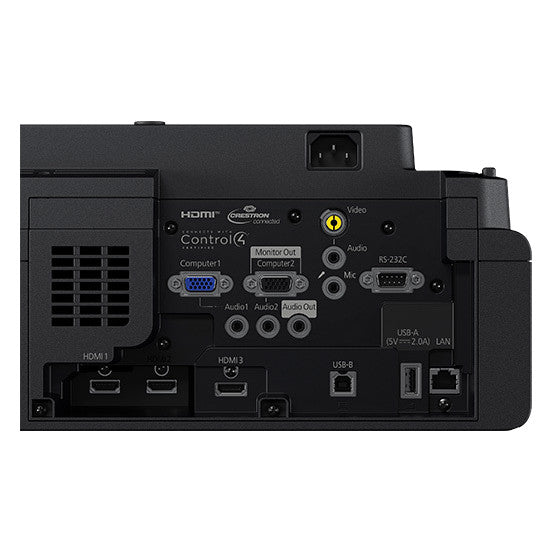

- Interfaces
- 3x HDMI®
- 1x Analog VGA 15-Pin (in)
- 1x RCA Composite
- 1x Analog VGA 15-Pin (input/monitor out)
- 3x Stereo Mini In
- 1x Stereo Mini Out
- 1x RS-232C Control Port
- 1x USB Type-A (powered 5 V, 2 A)
- 1x USB Type-A for Wireless Adapter
- 2x USB Type-B (USB display with audio)
- 1x Wired LAN RJ-45
- Wireless Support for Built-In WLAN Adapter: Wireless
- 802.11 b/g/n/ac
- IEEE 802.11 b (2.4 GHz): 11 Mbps*
- IEEE 802.11 g (2.4 GHz): 54 Mbps*
- IEEE 802.11 n (2.4 GHz): 72.2 Mbps*
- IEEE 802.11 a (5 GHz): 54 Mbps*
- IEEE 802.11 n (5 GHz): 150 Mbps*
- IEEE 802.11 ac (5 GHz): 325 Mbps*
- Speaker16 W monaural
- Operating Temperature 32°F to 104°F (0°C to 40°C) (20% – 80% humidity, no condensation)
- Power Supply Voltage 100V – 240V AC ±10%, 50/60 Hz
- Power Consumption
- Normal Mode: 277W
- Quiet Mode: 214W, Quiet Mode Extended: 208W
- Standby Mode: 2.0W
- Energy-Saving Mode: 0.5W
- Fan Noise
- Normal Mode: 37 dB
- Quiet Mode: 27 dB
- Security Enterprise-Level Security Encryption
- Country of Origin China
- Dimensions (WxDxH)
- Projector (Including Feet): 14.1x6.4x15.6"
- Weight: 12.5 lbs
- Remote Control
- Features Source Search, HDMI, Computer, USB, LAN, ID, Default, User, E-Zoom, Color Mode, Aspect, A/V Mute, Split, Freeze, Home, Auto, ESC, Menu, Volume, User, Right, Left, Up, Down Arrows
- Operating Angle
- Front: Right/Left: -30 to +30 degrees
- Upper/Lower: 0 to +60 degrees
- Rear: Right/Left: -55 to +55 degrees
- Upper/Lower: +75 to +15 degrees
- Operating Distance: 20 ft (6 m)
- Eco Features
- RoHS compliant
- End-of-life options available6
- Epson America, Inc. is a SmartWay® Transport Partner7
- Limited Warranty and Service
- Warranty: Three-year limited or 20,000 hours, whichever comes first, in the U.S. and Canada
- Service: Whole unit exchange, usually Next-Business-Day8
- Toll-free telephone support, Monday through Friday
- Epson ConnectionSM
- Pre-Sales Support (U.S. and Canada): 800-463-7766
- Website: www.epson.com
- Epson PreferredSM Plus Extended Service Plan9
- 1-Year Next-Business-Day Whole Unit Exchange8 EPPEXPF1
- 2-Year Next-Business-Day Whole Unit Exchange8 EPPEXPF2
- (available for up to a total of 5 years of continuous coverage)
- Notes
- [1] Color brightness measured per IDMS 15.4. Additional colors and picture modes tested. Top-selling Epson 3LCD projectors vs. comparable top-selling 1-chip DLP projectors based on NPD sales data for October 2019 – September 2020. COLOR BRIGHTNESS WILL VARY BASED ON USAGE CONDITIONS.
- [2] Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
- [3] No required maintenance for the light source for up to 30,000 hours (Extended Mode) or 20,000 hours (Normal Mode). Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.
- [4] Consult your user manual for split screen input combinations.
- [5] Internet connection required for download. Data usage fee may apply.
- [6] For convenient and reasonable recycling options, visit www.epson.com/recycle
- [7] SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
- [8] Expedited shipping not available in all areas. Orders must be placed and processed by 1 p.m. Pacific Time, Monday through Friday, excluding holidays. See limited warranty or service plan for details.
- [9] Product comes with a 3-year limited warranty with the option to purchase Extended Service Plans up to a total of 5 years of continuous coverage. Extended Service Plan can be purchased at any time that you are covered under an Epson limited warranty or Epson Extended Service Plan. See individual service plan for details.
