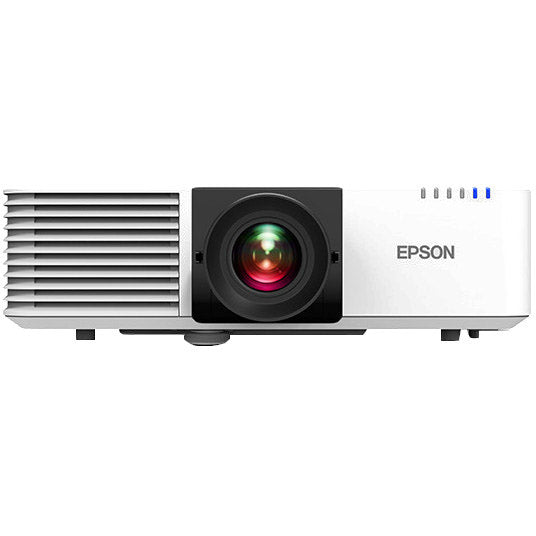

Epson PowerLite L570U WUGXA 3LCD Laser Projector

Epson PowerLite L570U WUGXA 3LCD Laser Projector

SoundPro Item: 140939 | Part Number: V11HA98020

$3,149.00
$3,149.00 $3,149.00
Your Price Sold out
MSRP: $3,149.00 | MAP: $3,149.00

Usually ships in 5-7 business days

  • Best-in-Class Color Brightness4; 5,200 lumens2
  • WUXGA with 4K Enhancement1 for clear, detailed images
  • 20,000-hour, virtually maintenance-free laser light source and air filter3
  • Picture up to 500" diagonal in 16:10, plus ultra wide 16:6 and 21:9
Log in or register for YOUR best price

The versatile PowerLite L570U laser projector brings strikingly clear images to meeting rooms, classrooms and beyond. This conveniently lightweight, compact projector offers native WUXGA with 4K Enhancement1 and 5,200 lumens of brightness2, providing smooth, detailed images—even up close. The flexible display can switch between a variety of aspect ratios, including standard 16:10 up to 500'', plus ultra wide 21:9 that provides for a more immersive experience—ideal for hybrid work environments as well as classrooms. The more information that needs to be displayed on a single screen, the more critical the need for a larger display and higher resolution.

Simple to install, the PowerLite L570U is easy to operate from start to finish. Designed with convenience in mind, this projector features a 20,000-hour virtually maintenance-free laser light source and air filter3. Plus, simplify complex multi-projector applications with the optional attachable PixAlign™ camera.

View full details
  • Projection SystemRGB liquid crystal shutter projection system
  • Projection Method Front/rear/ceiling mount
  • LCD Size 0.67" (C2 Fine)
  • Driving Method Poly-Silicon TFT Active Matrix
  • Pixel Number 2,304,000 dots (1920 x 1200) x 3
  • Native Resolution 1920 x 1200 (WUXGA) 4KE1
  • Resize 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050
  • Aspect Ratio 16:10
  • Pixel Arrangement Cross stripe
  • Color Brightness3 Color Light Output: 5,200 lumens
  • White Brightness3 White Light Output: 5,200 lumens
  • Contrast Ratio Up to 2,500,000:1
  • Brightness Uniformity (Typical) 86%
  • Color Reproduction Up to 1.07 billion colors
  • Size (Projected Distance) 50" – 500"
  • Projected Distance 80" screen 2.33 m – 3.78 m
  • Lens Shift (Manual) Vertical: ±50%; Horizontal: ±20%
  • Keystone Correction Vertical: ±30 degrees; Horizontal: ±30 degrees
  • Light Source Laser Diode
  • Laser Light Source Life4 Normal: 20,000 hours; Quiet: 20,000 hours; Extended: 30,000 hours
  • Operating Temperature 32°F to 113°F (0°C to 45°C)
  • Power Supply Voltage 100V – 240V ±10%, 50/60 Hz AC
  • Auto Power On Signal Detection on HDMI/Plug-In Detection
  • Sleep Mode Yes (with timer)
  • HDMI CEC Control Yes
  • Power Consumption
    • 323W (Normal)
    • 250W (Quite)
    • 242W (Extended)
    • 2.0W Standby (Communication on)
    • 0.5W Standby (Communication off)
  • Fan Noise 31 dB (Normal Mode); max. 23 dB (ECO Mode)
  • Security Security cable hole, Kensington lock provision
  • A/V Mute Yes
  • Camera Yes
  • Speaker(s) 10W (mono)
  • Split Screen5 Yes (up to 2 screens)
  • Content Playback Yes
  • Quick Corner® Yes
  • Corner Wall Yes
  • Curved Surface Yes
  • Edge Blending Yes
  • Screen Sharing Yes
  • Projection Lens (Standard)
    • Type: Optical Zoom (manual)/Focus (manual)
    • F-Number: 1.5 – 1.7
    • Focal Length: 20.0 mm – 31.8 mm
    • Zoom Ratio: 1.00 – 1.6x (optical)
    • Throw Rate Range: 1.35 – 2.20 (optical)
    • Lens Cover: Lens cap (without string)
  • Interfaces
    • HDMI (HDCP 2.3) x 2
    • HDMI Out x 1
    • HDBaseT x 1
    • Variable Audio Out: Mini Stereo x 1
    • USB Connector Type A x 1
    • USB Connector Type B x 1
    • Serial: RS-232C x 1
    • Wired LAN RJ-45 x 1
  • Effective Scanning Frequency Range (Digital)
    • Pixel Clock: 25.1 MHz – 594 MHz
    • Horizontal: 26 kHz – 135 kHz
    • Vertical: 23.98/24/25/29.97/30/50/59.94/60 Hz
  • Dimensions (WxDxH)
    • Excluding Feet: 17.32x11.97x4.80"
    • Including Feet: 17.32x12.59x5.35"
    • Weight: 18.7 lbs
  • Remote Control
    • Features Source Search, HDMI, USB, Computer, LAN, Power, Aspect, Color Mode, Volume, E-Zoom, A/V Mute, Freeze, Menu, Home, Auto, Enter, Esc, Default
    • Operating Angle Rear: Right/Left: -55 to +55 degrees; Upper/Lower: +75 to +15 degrees; Front: Right/Left: -30 to +30 degrees; Upper/Lower: 0 to +60 degrees
    • Operating Distance 19.7 ft (6 m)
  • Eco Features
    • RoHS compliant
    • Recyclable product8
    • Epson America, Inc. is a SmartWay® Transport Partner9
  • Support
    • Epson ConnectionSM
      • Pre-sales support: U.S. and Canada 800-463-7766
      • Internet website: www.epson.com
    • Service Programs: The projector has a limited warranty of 3 years. Epson Road Service program with free Next-Business-Day replacement10, PrivateLine® dedicated toll-free support (U.S. and Canada only)
  • Notes
    • [1] 4K Enhancement Technology shifts each pixel to surpass Full HD resolution on screen.
    • [2] Color brightness measured per IDMS 15.4. Additional colors and picture modes tested. Top-selling Epson 3LCD projectors vs. comparable top-selling 1-chip DLP projectors based on NPD sales data for October 2019 – September 2020. COLOR BRIGHTNESS WILL VARY BASED ON USAGE CONDITIONS.
    • [3] Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
    • [4] No required maintenance for the light source and filter up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 – 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.
    • [5] Consult your user manual for Split Screen input combinations.
    • [6] For wireless functionality, including via the Epson iProjection App, the projector must be configured on a network, either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owner’s manual to determine if a wireless LAN module must be purchased separately to enable a wireless connection. Not all Epson projectors are able to be networked. The Epson iProjection App does not support all files and formats. See www.epson.com for details.
    • [7] Internet connection required for download. Data usage fee may apply.
    • [8] For convenient and reasonable recycling options, visit www.epson.com/recycle
    • [9] SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
    • [10] Expedited shipping not available in all areas. Road Service orders must be placed and processed by 3 p.m. Eastern Time for Next-Business-Day delivery.
