ETC 7186A1232 Echo Station Power Supply DIN Mount

ETC 7186A1232 Echo Station Power Supply DIN Mount

SoundPro Item: 202373 | Part Number: 7186A1232

$325.00
$325.00 $325.00
Your Price Sold out
MSRP: $325.00 | MAP: $325.00

Usually ships in 5-7 business days

  • Provides EchoConnect Power For Distributed Control
  • Supports Up To 500 M Of Control Wiring
  • Topology-Free Wiring Simplifies Installation
  • Polarity-Independent Network Reduces Wiring Errors

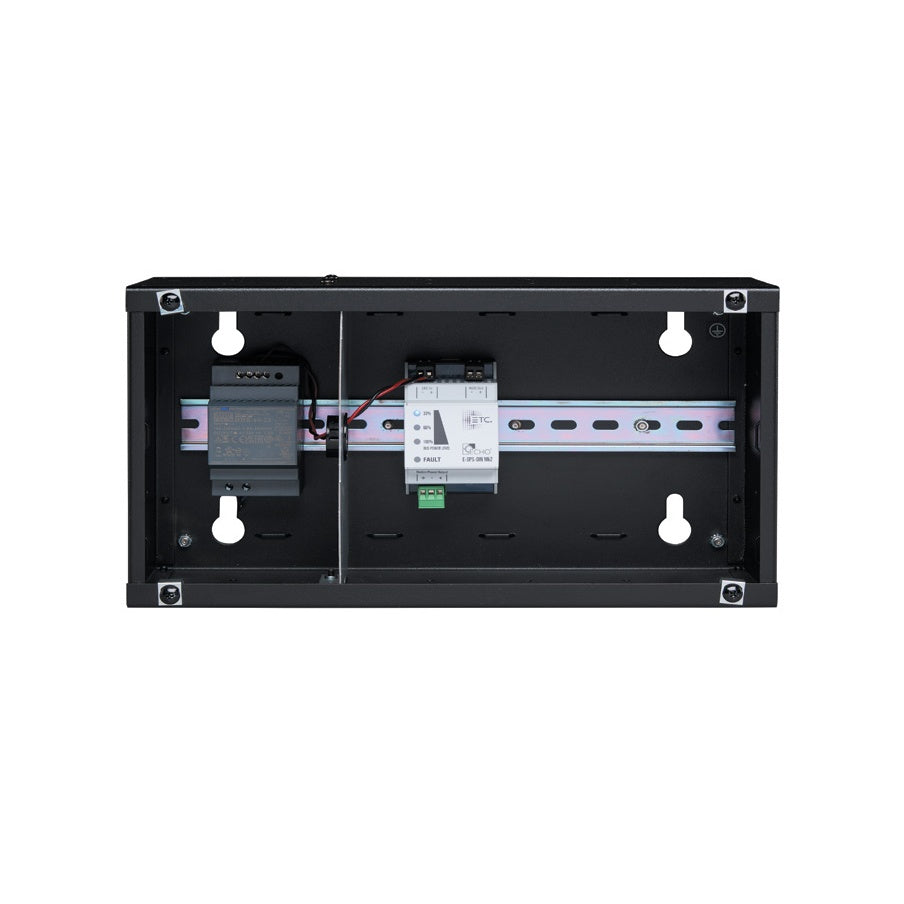

  • DIN-Rail Format Fits Structured Control Panels
  • Includes 60 W 24 V Supply For Aux Power
Log in or register for YOUR best price

The ETC 7186A1232 Echo Station Power Supply is built for distributed Echo Control installations that need dependable EchoConnect power in a compact DIN-rail format. It is intended for use with EchoConnect-enabled stations, responsive controls, and Echo power controllers in projects where clean integration and flexible field wiring matter. Typical applications include worship spaces, schools, hospitality environments, healthcare facilities, offices, conference rooms, meeting rooms, and retail settings.

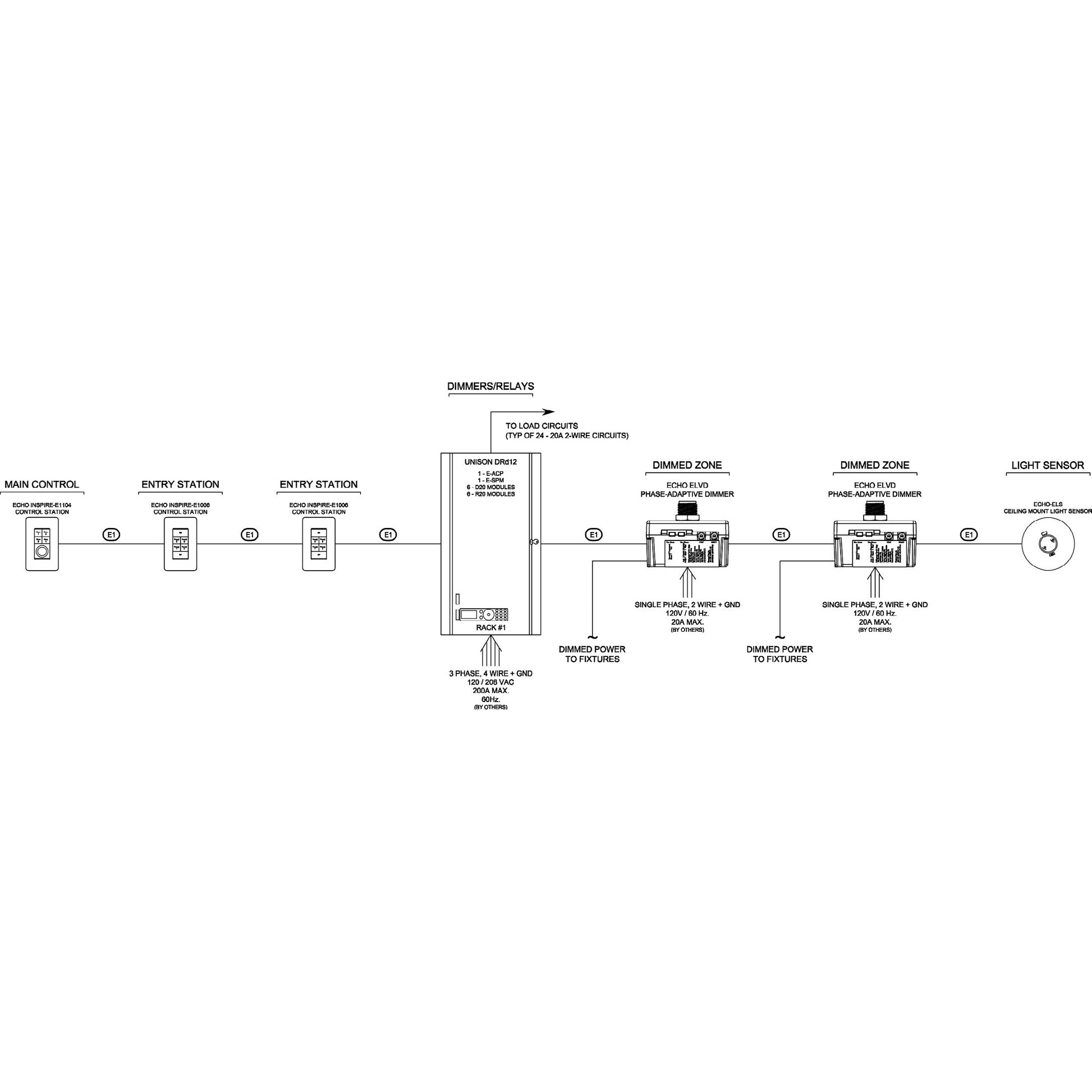

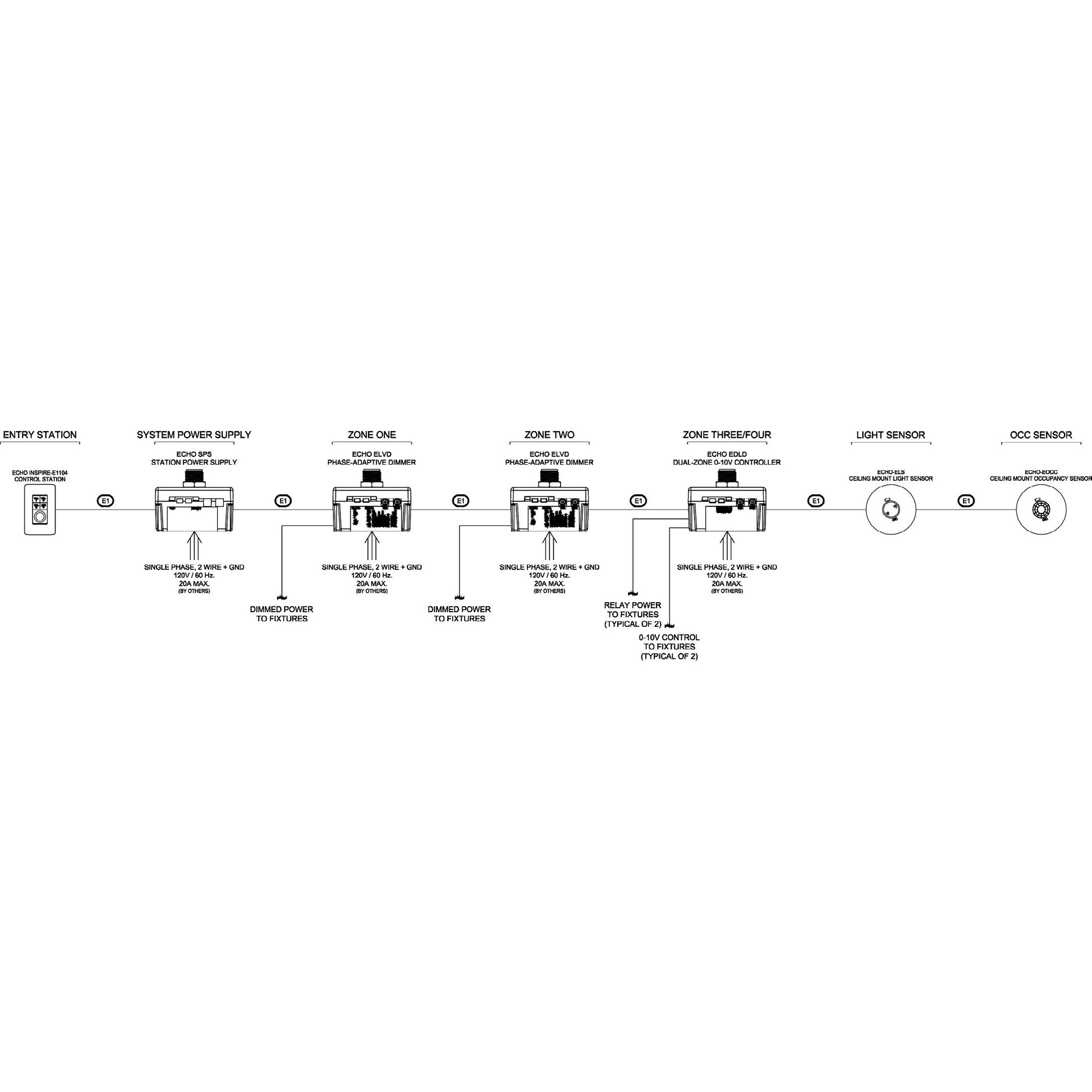

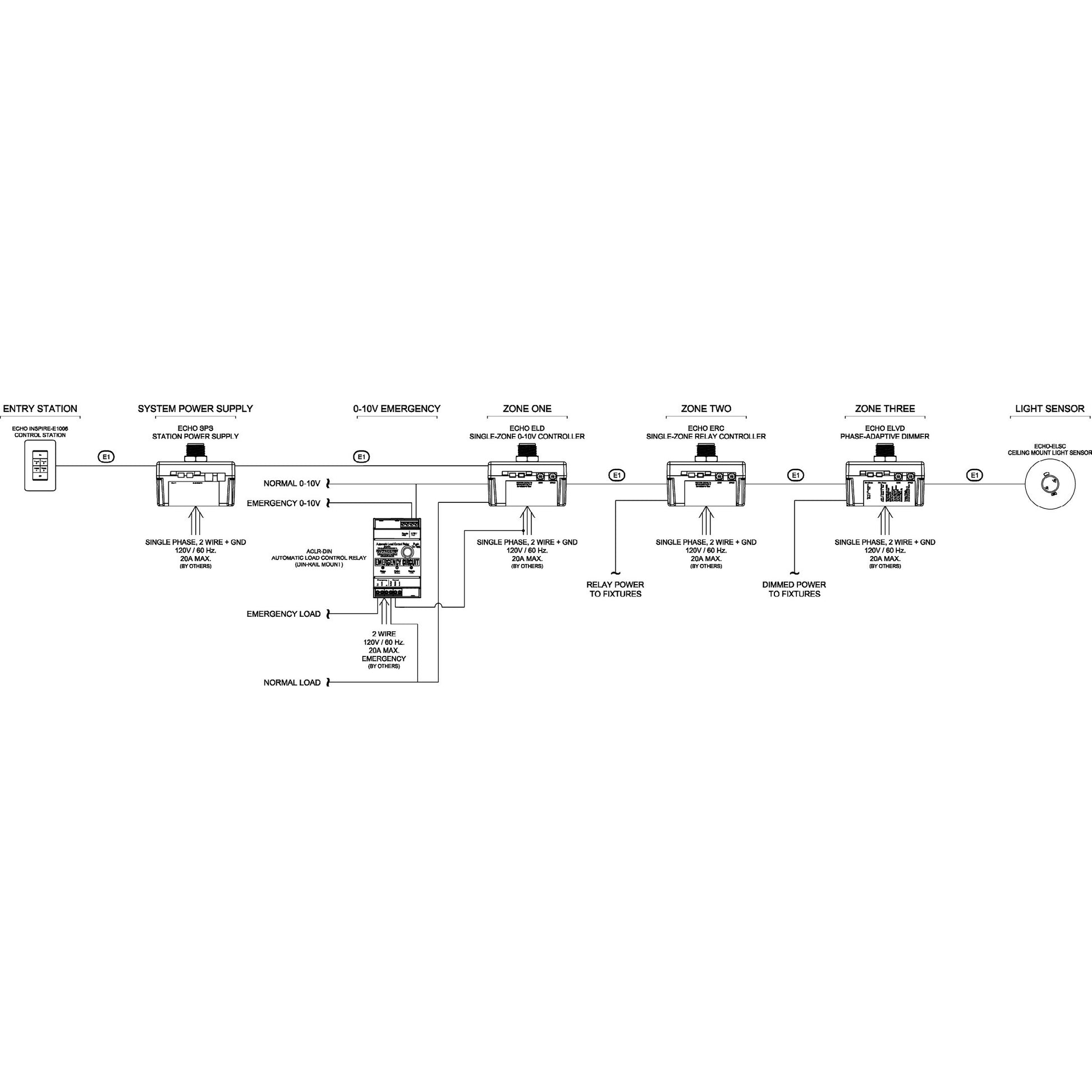

This model supports topology-free, polarity-independent EchoConnect wiring, making it easier to adapt to real-world infrastructure when control stations need to be placed where users actually need access. Installers can use bus, homerun, or mixed wiring layouts, and the unit supports up to 500 m of control wiring per system. The E-SPS-DIN Mk2 format also includes a 60 W, 24 V power supply, making it suitable for installations that require auxiliary device power within the control system design.

For integrators standardizing on ETC architectural control, this power supply offers a practical way to support Echo family devices in DRd enclosures, relay-panel-based systems, and Sensor3 power control environments where DIN mounting is preferred.

Downloads

View full details

Specifications

Electrical
Input Voltage
100–240 V
Frequency
50/60 Hz
Power Input
Two-wire+GND
Control Network
EchoConnect two-wire low-voltage Class 2 wiring
Wiring Topology
Bus, homerun or combination
Max Control Wiring
500 m (1640 ft)
Optional Wiring
Cat5 or better using Belden 1583A or equivalent
Included Power Supply
60 W, 24 V
Capacity
Stations And Responsive Controls
Up to 6
Power Controllers Or Panels
Up to 6
Thermal
Ambient Temperature
0°C to 50°C (32°F to 122°F)
Ambient Humidity
5%–95% non-condensing
Dimensions
Height
92 mm (3.6 in)
Width
54 mm (2.1 in)
Depth
61 mm (2.4 in)
Weight
0.5 kg (1.0 lb)
Shipping Weight
0.7 kg (1.5 lb)
Compliance
Listings
cULus Listed
Compliance
CE Compliant
