ETC ColorSource Linear 1 Pearl LED Wash Light | Color: White
ETC ColorSource Linear 1 Pearl LED Wash Light | Color: White
SoundPro Item: 126299 | Part Number: CSLINEARPRL1-1
Usually ships in 5-7 business days
- 2700K to 6500K variable white light
- Homogenized optics
- Simple user interface with seven-segment display
- powerCON® in and thru power connections
- DMX in and thru (5-pin XLR)
- RDM or local configuration
- LED droop compensation for consistent output
- Optically calibrated
- Tour-ready, aluminum housing

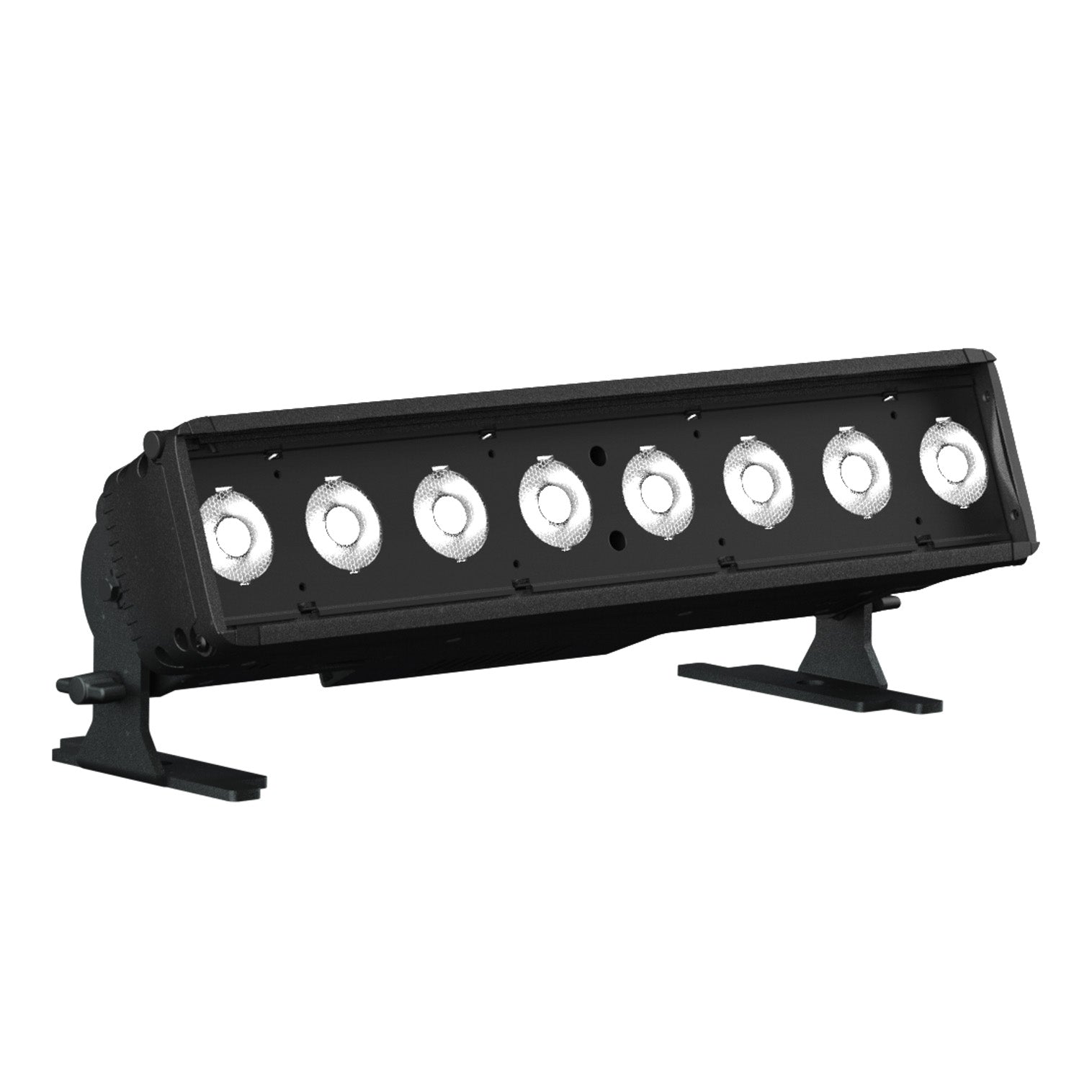

ETC's ColorSource Linear 1 Pearl LED Wash Light is a variable white-light LED wash fixture that utilizes a mix of two different white LEDs-a mix that lets you set the color temperature anywhere between 2700 K and 6500 K. The Pearl array provides the same high-quality construction and great feature set as its full color siblings, including an impressively bright output and simple user interface.
Designed for installations that depend heavily on white light such as studios, houses of worship, and architectural installations, this array features flicker-free operation and a smooth dimming curve.
- Source
- LED details: 40 / 80 / 160 Lumileds LUXEON® Z LEDs
- Max lumens: 5,649 (per segment)
- Lumens per watt: 50
- L70 rating (hours to 70% output): >60,000 hours
- Color
- Color temperature range: Warm white, cool white
- Color temperature range: 2700-6500K
- Calibrated array: Yes
- Red shift: No
- Optical
- Beam angle range: 15° (Secondary lenses available for multiple beam-spread options)
- Gate Size: 80mm
- Aperture size: NA
- Pattern projection: No
- Pattern size: NA
- Pattern size: NA
- Control
- Input method: DMX-512 via 5-pin XLR connector
- Protocols: DMX, RDM
- RDM configuration: Yes

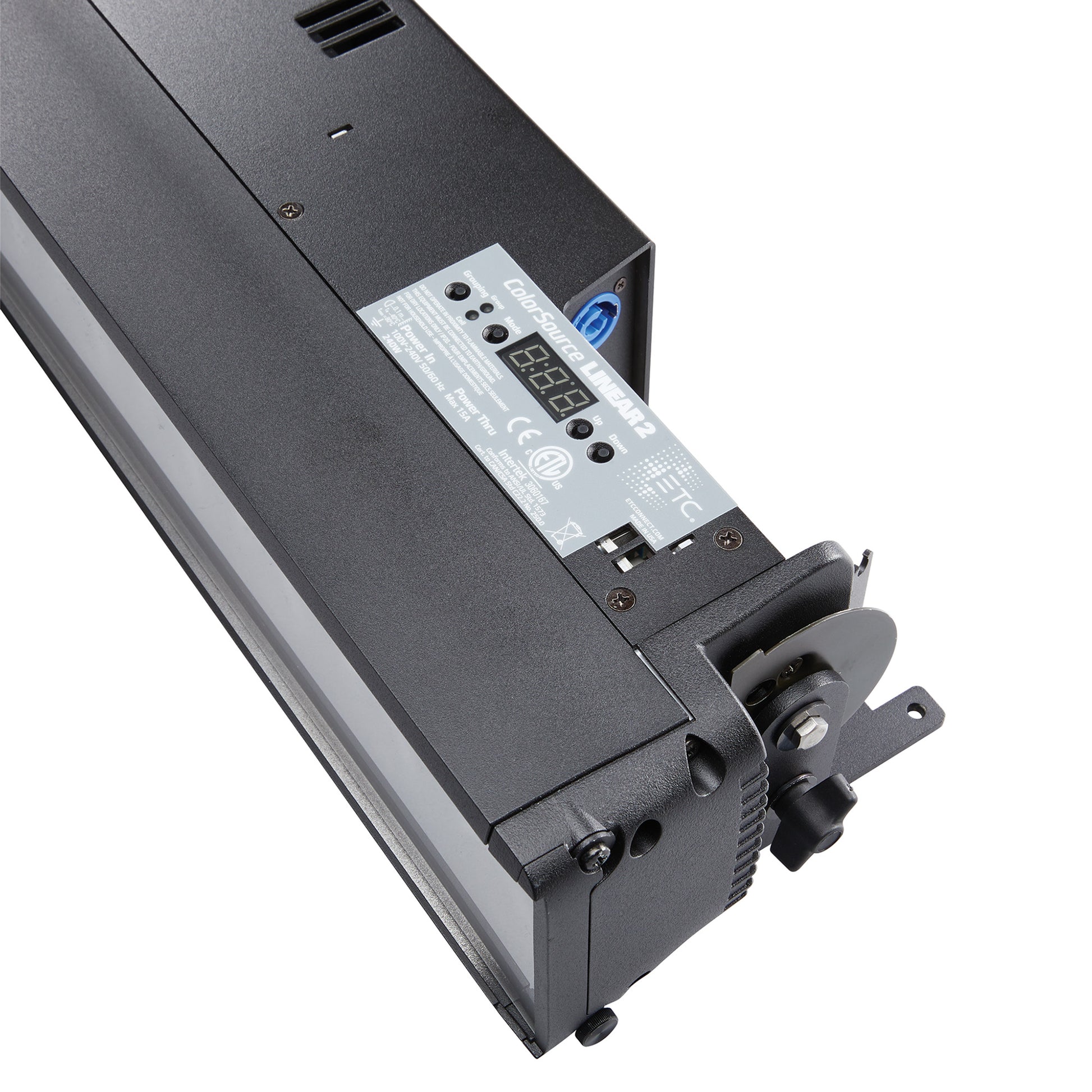

- UI type: 7-segment address display and buttons
- Local control: Yes
- Onboard presets: Yes (12)
- Onboard sequences: No
- Onboard effects: No
- Fixture-to-fixture control: Yes
- Notes: 15-bit virtual dimming engine
- Electrical
- Voltage range: 100-240 VAC; 50/60Hz
- Input method: powerCON in and thru
- Inrush (first half-cycle): 35A / 35.6A / 67.5A at 120V; 49A / 85.6A / 153A at 240V
- Fixtures per circuit: 10 Cells (20 A switched circuit, R20 module or similar)
- Wattage typical (typical/standby): (1) 113W / 1.5W, (2) 219W / 3W, (4) 444W / 5.3W at 120V; (1) 112W / 2.6W, (2) 214W / 2.6W, (4) 431W / 4.7W at 240V
- Current draw: 0.95A / 1.83A / 3.74A at 120V; 0.50A / 1.00A / 1.90A at 240V
- Thermal
- Ambient operating temp: 0°-40°C (32°-104°F)
- Fan (controllable): Yes (no)
- Droop compensation: Yes
- dB range: 24.2 / 28.4 / 31 dBa average at 1 m
- BTUs/hour (120V/240V): 385 / 747 / 1,514
- Physical
- Materials: Die-cast, all metal housing
- Color options: Black, white, silver, or custom color
- Mounting options: Yoke (1 cell - optional), or floor trunnions
- IP rating: IP20
- Weight: 2.9 kg (6.4 lbs) / 9.12 kg (20.1 lbs) / 17.01 kg (37.5 lbs)
- Warranty
- Fixture: 5 yrs
- LED array: 10 yrs
- Regulatory & Compliance
- Approved regulatory standards: cETLus Listed; Conforms to UL 1573 Listed; Conforms to UL 924 Listed; Certified to CSA C22.2 No. 166 Listed; Certified to CSA C22.2 No. 141 Listed; CE Compliant; EAC Compliant
- Dimensions (LxWxH)6.04x19.61x4.29" (153x499x109mm)
