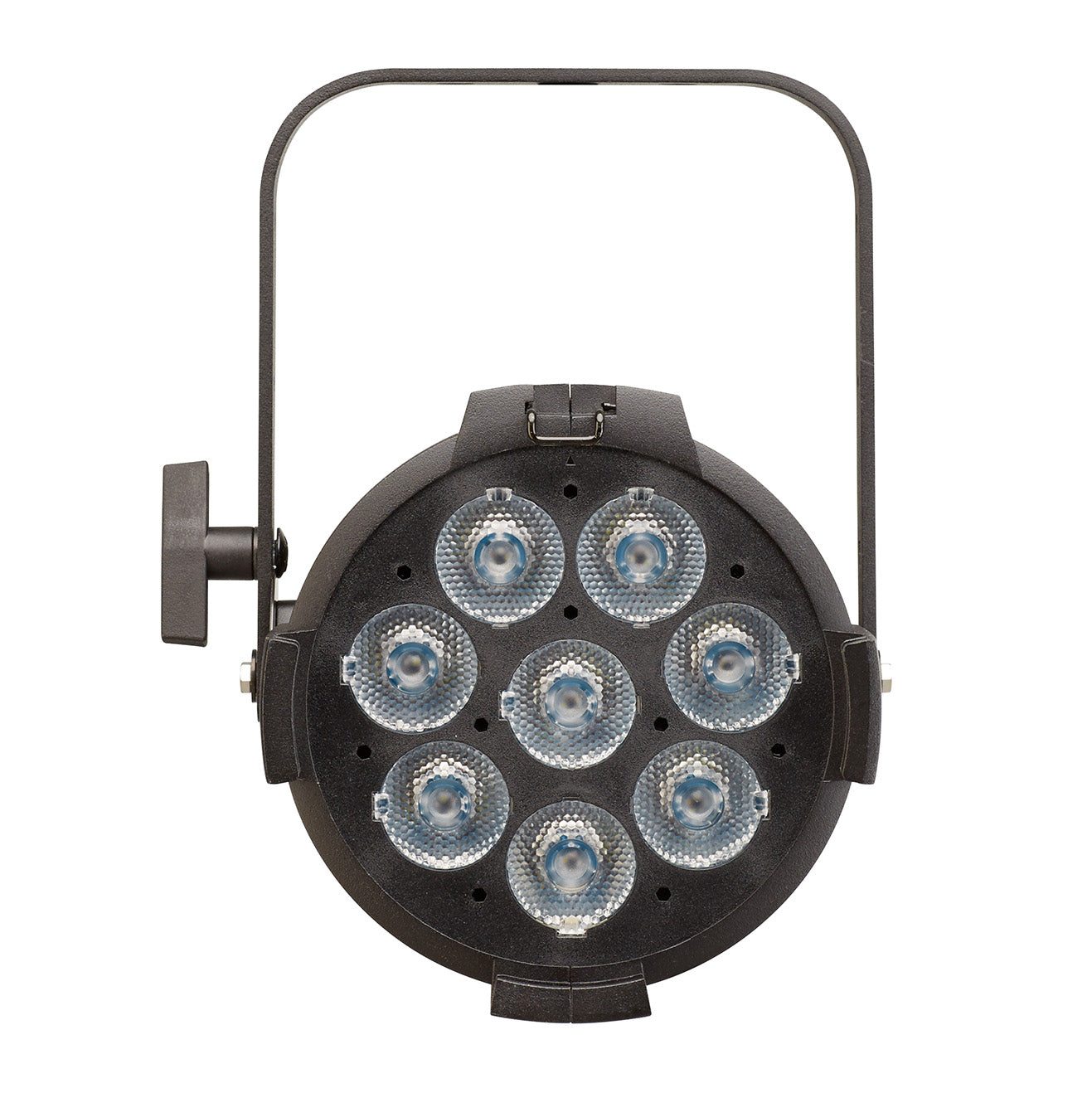

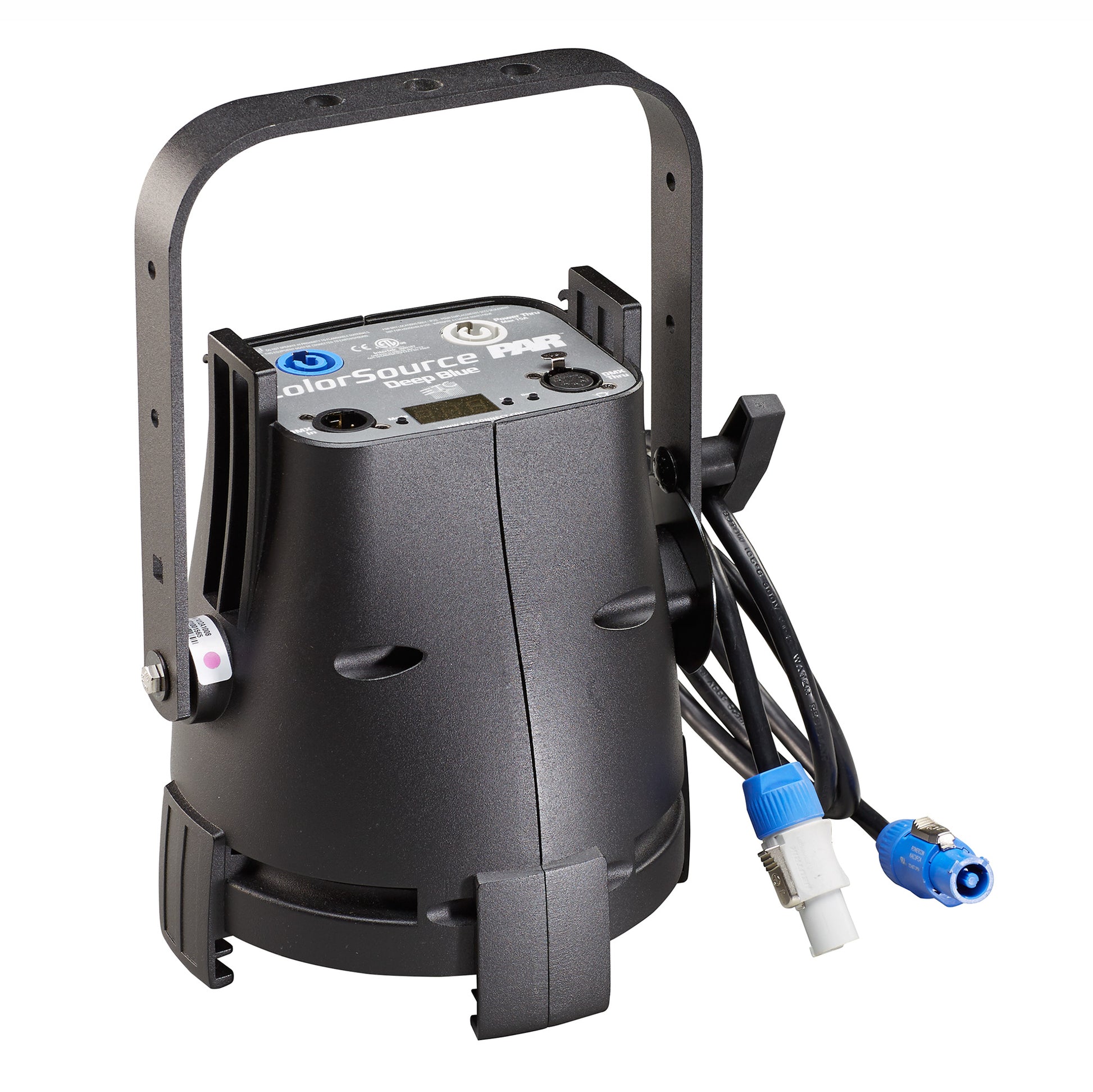

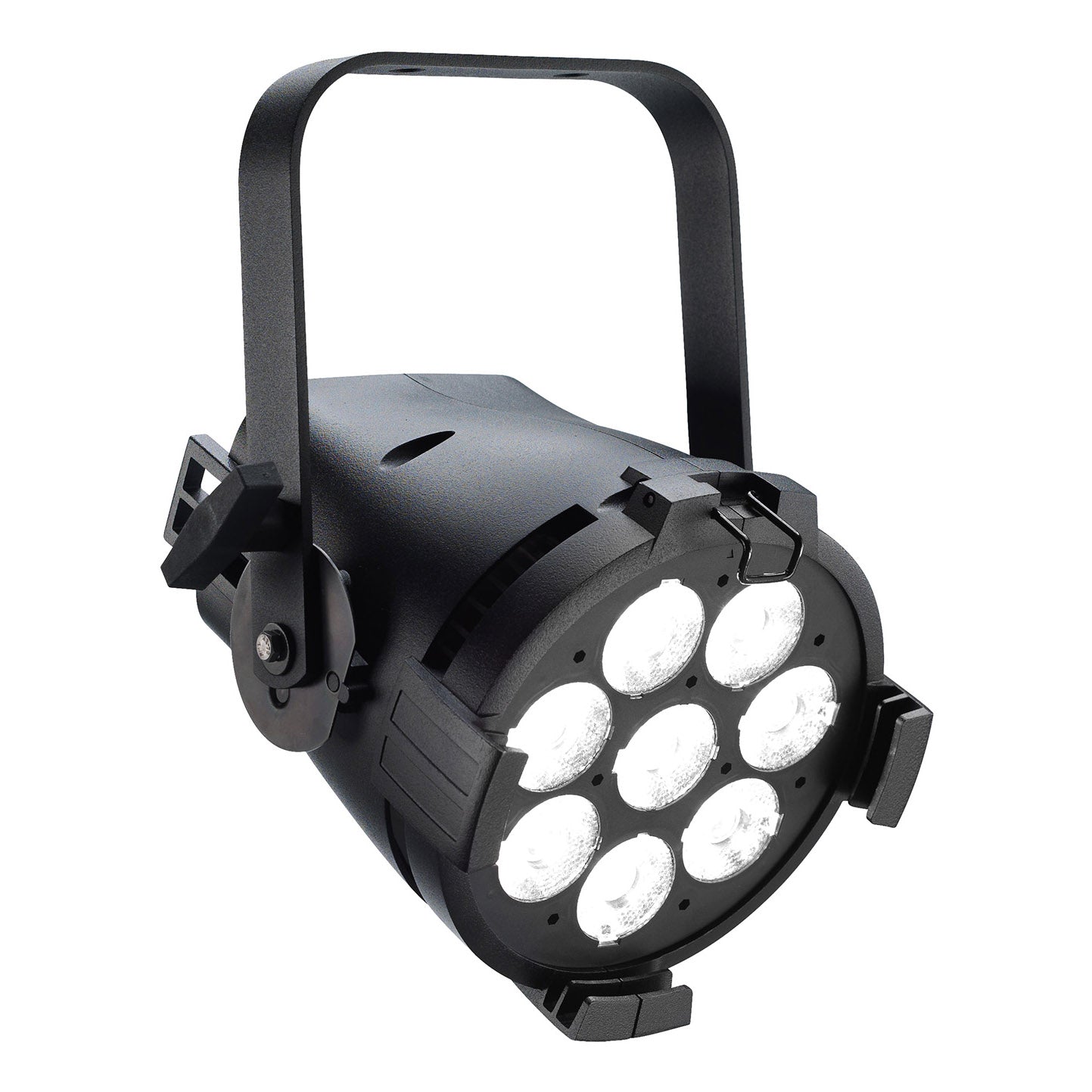

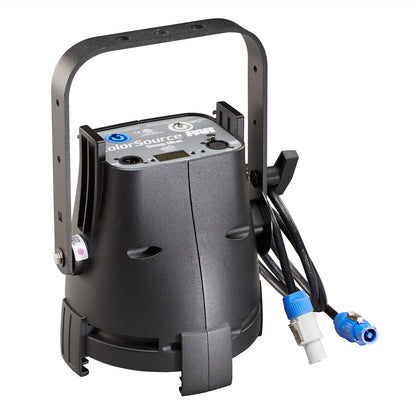

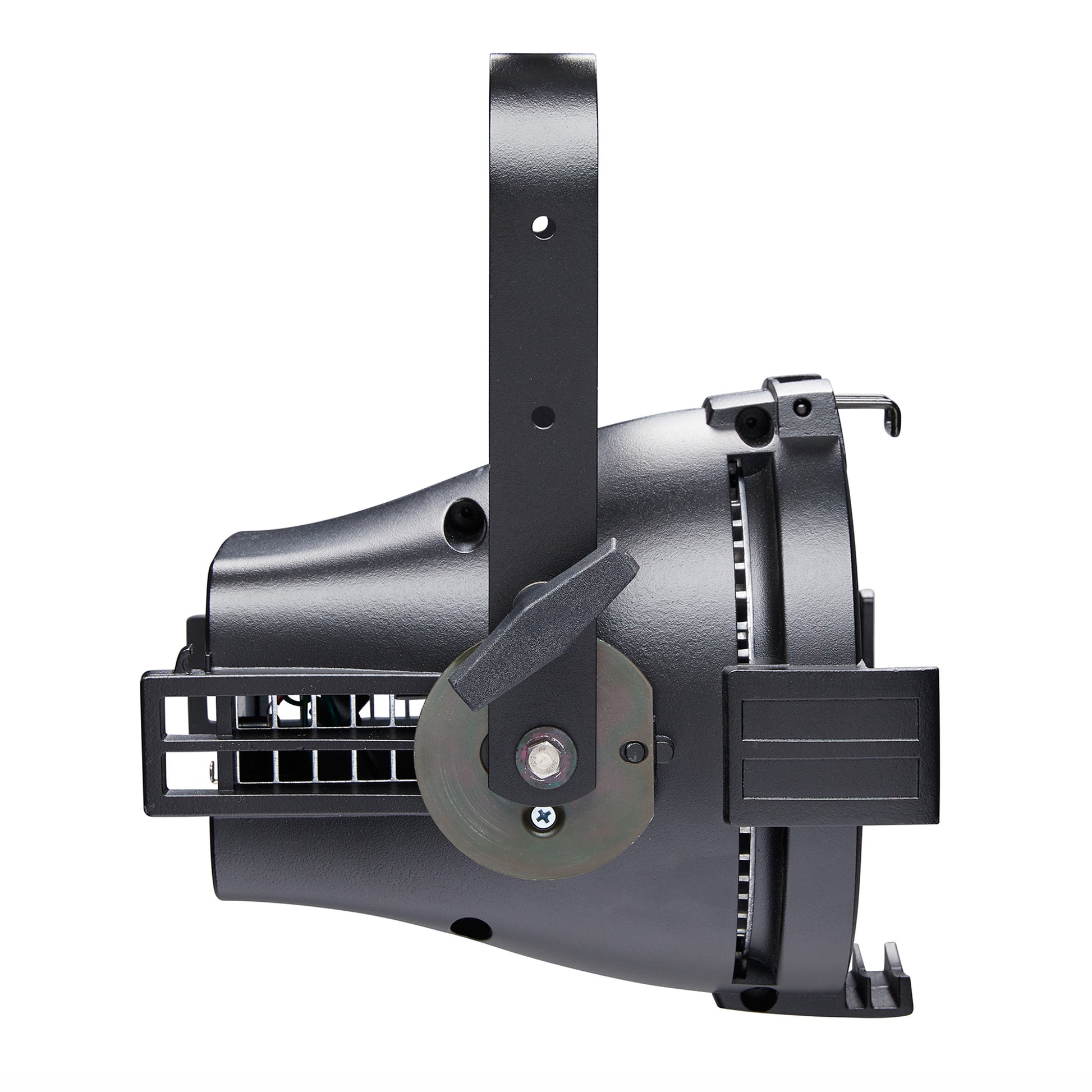

ETC ColorSource PAR Pearl | Color: Silver
ETC ColorSource PAR Pearl | Color: Silver
SoundPro Item: 126290 | Part Number: CSPARPRL-5
Usually ships in 5-7 business days
- Available in black, white, or silver finishes (only black pictured)
- Variable CT from 2700K to 6500K
- Homogenized optics
- Simple user interface with seven-segment display

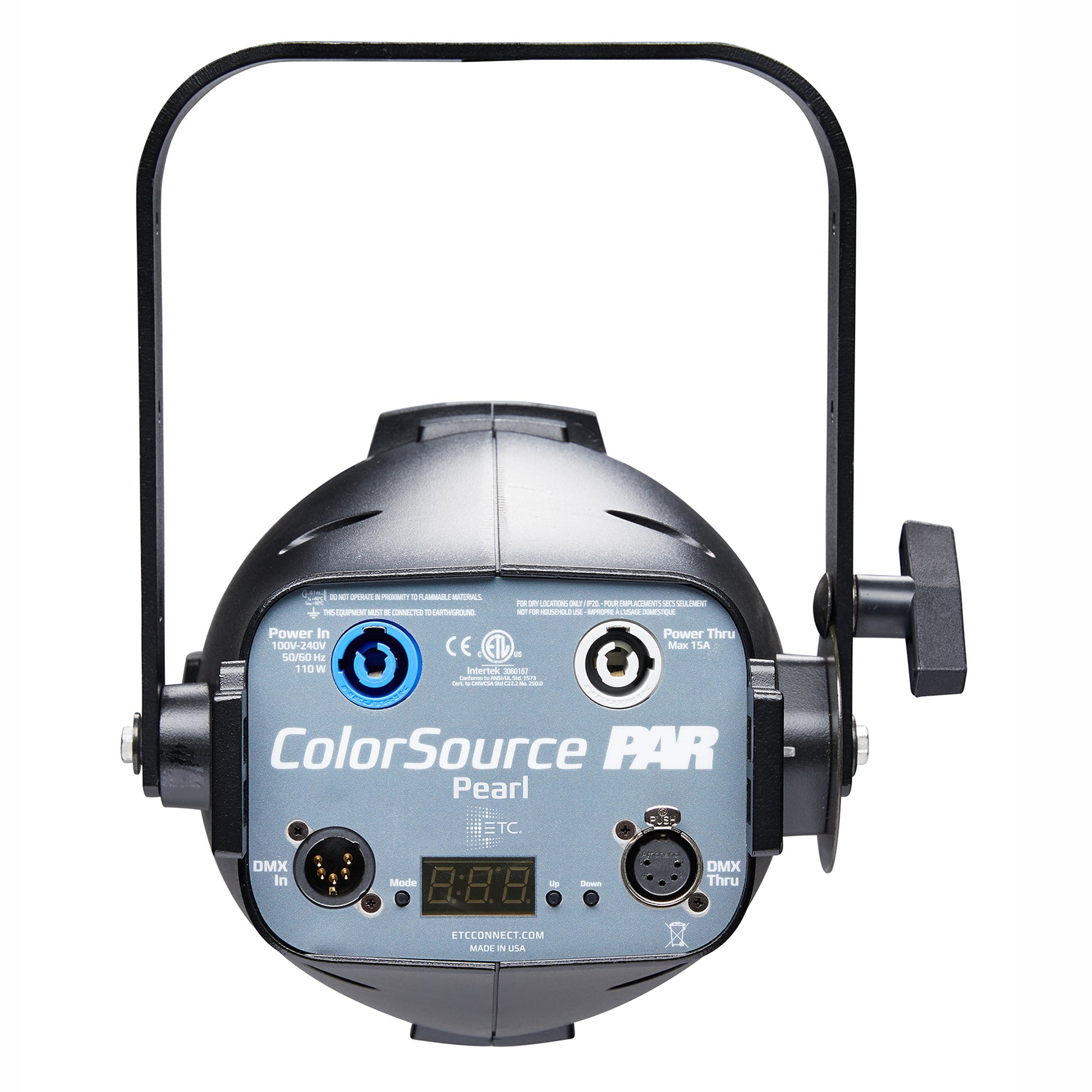

- powerCON in and thru
- 5-pin XLR
- LED droop compensation
- Optically calibrated
- Tour-ready, aluminum housing
ColorSource PAR Pearl is a variable white-light LED wash fixture that utilizes a mix of two different white LEDs. This mixture enables you to set the color temperature anywhere between 2700 K and 5600 K. The Pearl array provides the same great feature set and high-quality construction as its full color siblings, including an impressively bright output and simple user interface.
Designed for installations that depend heavily on white light such as studios, houses of worship, and architectural installations, this array features flicker-free operation and a smooth dimming curve.
- Source
- LED details: 40 Lumileds LUXEON® Z LED
- Max lumens: 5709
- Lumens per watt: 50
- L70 rating (hours to 70% output)*: >60,000 hours
- Color
- Colors used: Warm white, cool white
- Color temperature range: 2700K-6500K
- Calibrated array: Yes
- Red shift: No
- Optical
- Beam angle range 15°
- Gate size: N/A
- Aperture size: 7.5 in / 190 mm
- Pattern projection: No
- Pattern size: N/A
- Camera flicker control/Hz range: 1,200 Hz (default); 25,000 Hz (via RDM)
- Control
- Input method: DMX512 via 5-pin XLR connector
- Protocols: DMX512/RDM
- Modes (footprint): 3 modes
- RDM configuration: Yes
- UI type: Seven-segment address interface
- Local control: Yes
- Onboard presets: Yes (12)
- Onboard sequences: Yes (5)
- Onboard effects: No
- Fixture-to-fixture control: Yes
- Notes: Local level control via UI
- Electrical
- Voltage range 100-240 VAC 50/60 Hz
- Input method powerCON power in and thru
- Inrush
- 35A at 120V (First half-cycle)
- 49A at 230V (First half-cycle)
- Fixtures per circuit* (All measurements are for 120V, 60 Hz. Results may vary in different regions.): 10 (20 A switched circuit, R20 module or similar)
- Wattage typical
- 114W / 1.6W at 120V
- 112W / 1.5W at 230V
- Current draw
- 0.96A at 120V
- 0.50A at 230V
- Thermal
- Ambient operating temp: 0°-40°C (32°-104°F)
- Fan (controllable): Yes (No)
- Droop compensation: Yes
- dB range: 24.8 dBA average at 1 m
- BTUs/hour: 389
- Physical
- Materials: Die-cast, all metal housing
- Color options: Black, white, silver, or custom color
- Mounting options: Yoke, floor stand yoke (available as an accessory)
- IP rating: IP20
- Weight: 3.77 kg (8.3 lbs)
- User interface: Seven-segment, three-button interface
- Warranty
- Fixture 5 years
- LED array 10 years
- Regulatory and Compliance: Approved regulatory standards
- cETLus Listed
- Conforms to UL 1573 Listed
- Conforms to UL 924 Listed
- Certified to CSA C22.2 No. 166 Listed
- Certified to CSA C22.2 No. 141 Listed
- CE Compliant
- EAC Compliant
- Dimensions (HxWxD)12.2x7.98x9.45" (310x203x240mm)
- Weight8.3 lbs (3.8kg)
- Shipping Weight10.1 lbs (4.6kg)
