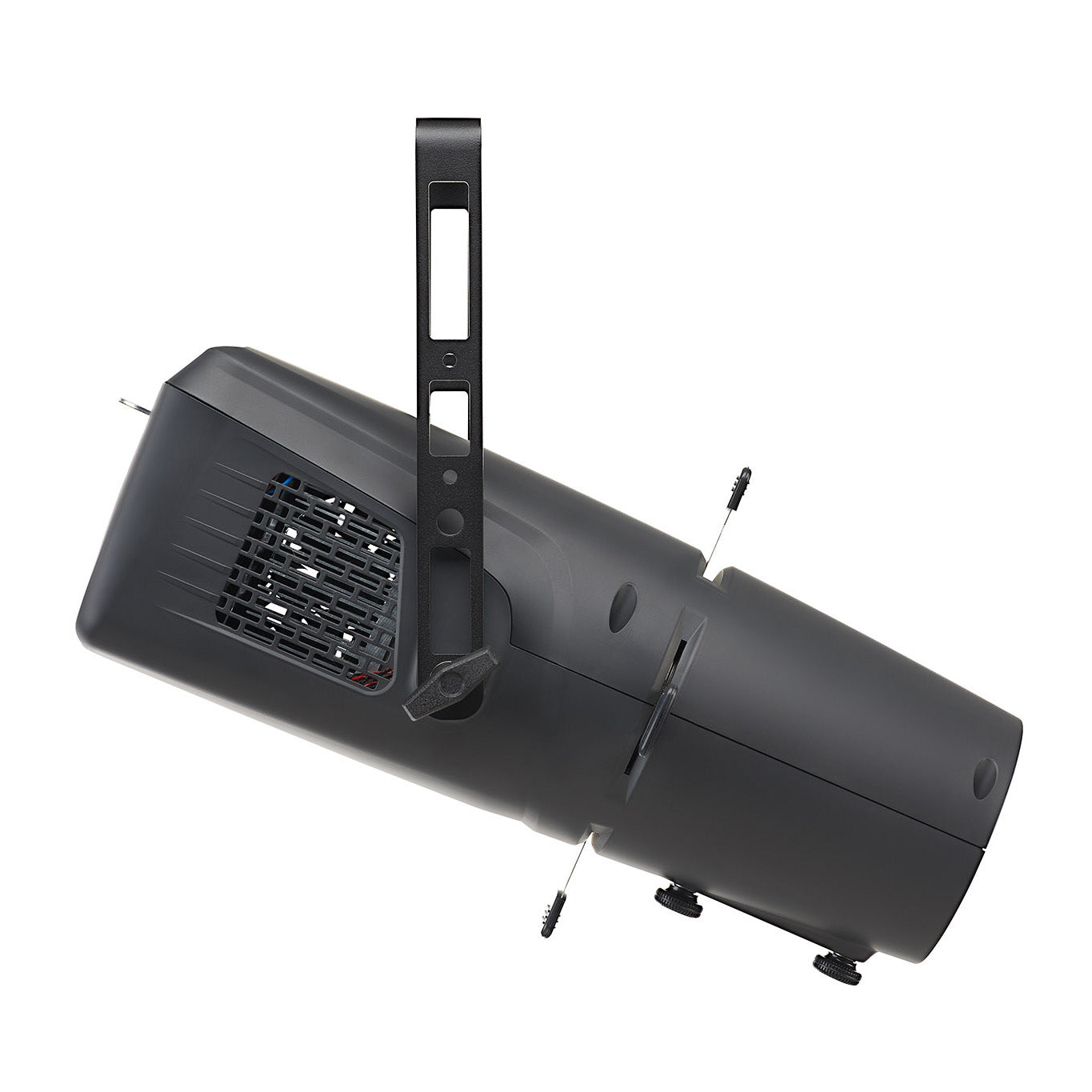

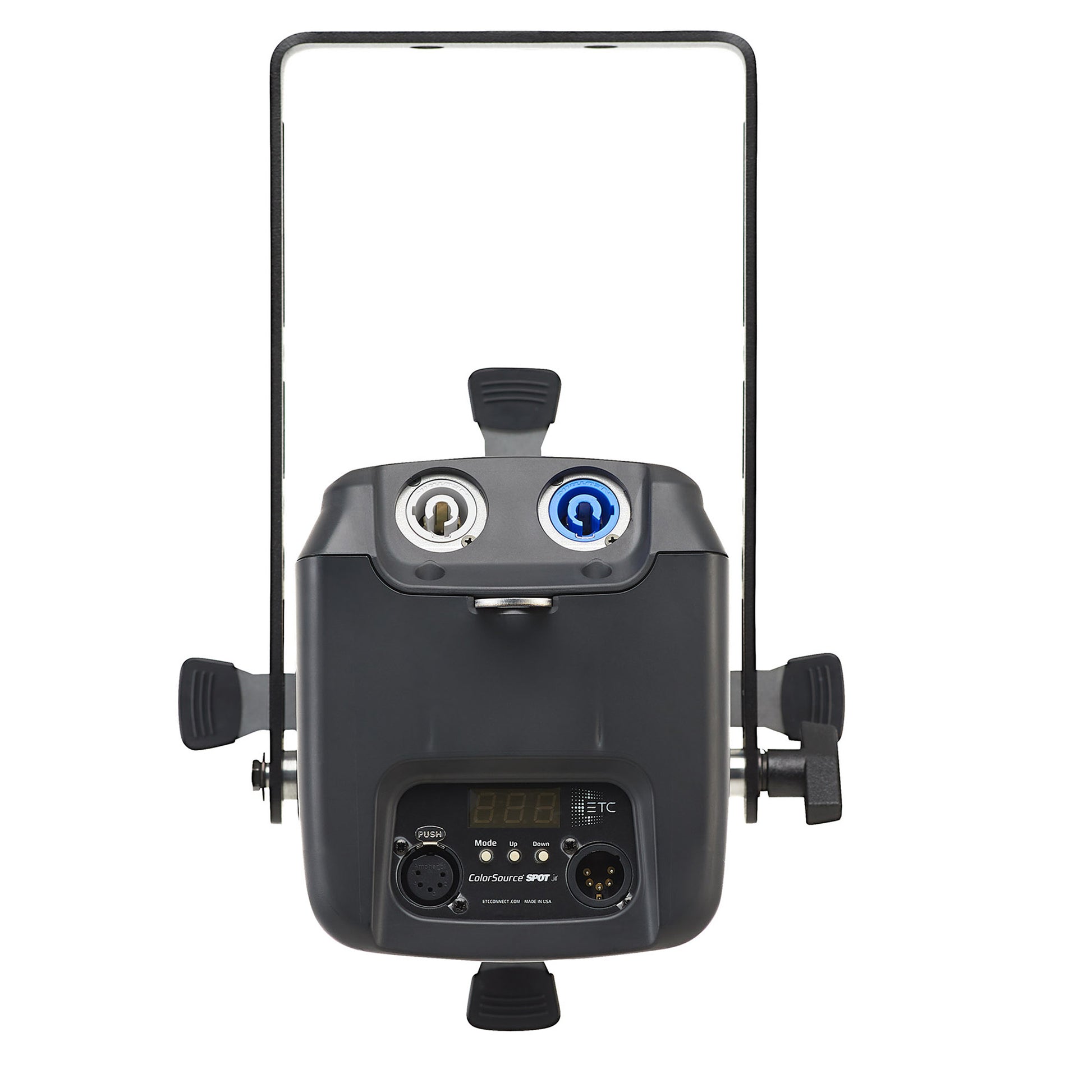

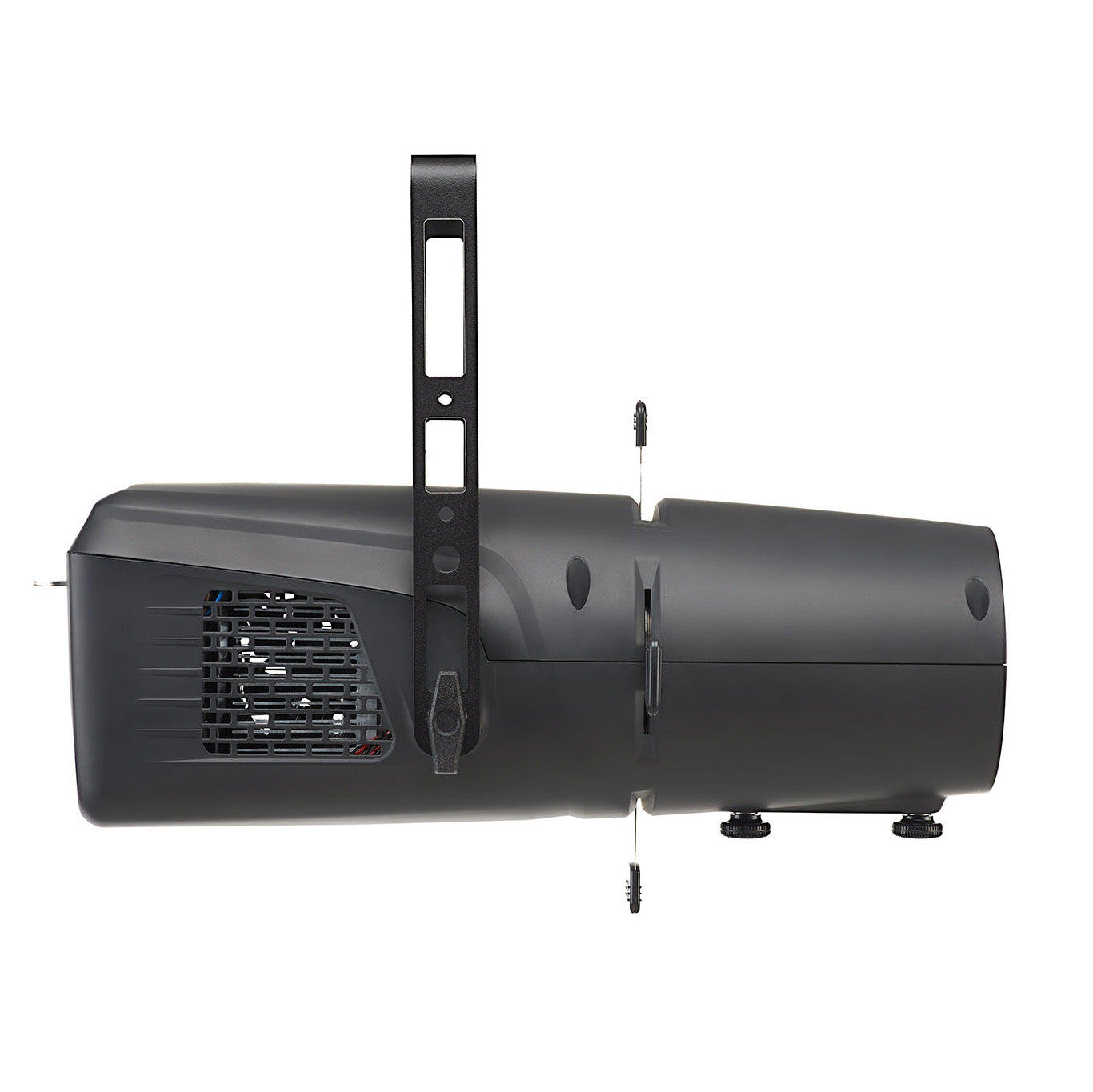

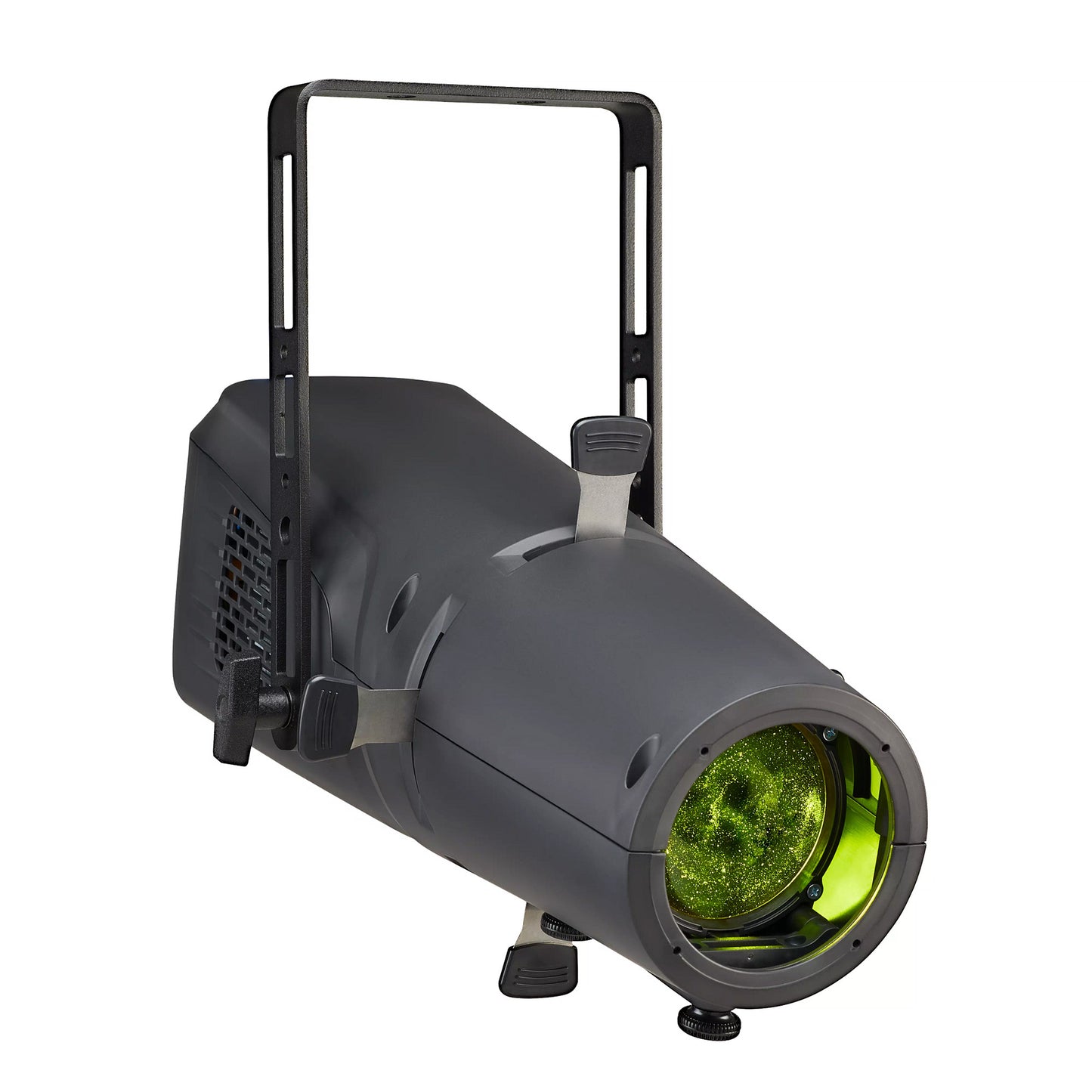

ETC ColorSource Spot jr Deep Blue LED Wash Light | Color: White
ETC ColorSource Spot jr Deep Blue LED Wash Light | Color: White
SoundPro Item: 126269 | Part Number: CSSPOTJRDB2550-1
Usually ships in 5-7 business days
- Deep Blue's indigo LED provide rich, saturated blues and magentas
- Simple user interface with seven-segment display
- powerCON® in and thru
- DMX/RDM in and thru (5-pin XLR)
- LED droop compensation
- Optically calibrated
- Built-in zoom
The ETC ColorSource Spot jr Deep Blue LED Wash Light delivers deep, saturated blues and magentas.
ColorSource Spot jr gives you more of what you love at a fraction of the cost AND a fraction of the size. This fixture uses the same color technology as other ETC fixtures including droop compensation, extensive third-party lifetime testing, and comprehensive factory color calibration.
ColorSource Spot jr is available in both original and Deep Blue arrays. With 5,700 lumens of brightness coming out of this light-weight fixture, ColorSource Spot jr fits any need.
- Source
- LED details: 52 Lumileds LUXEON® C LED
- Max lumens: 5,649 (per segment)
- Lumens per watt: 50
- L70 rating (hours to 70% output): >54,000 hours (both variants)
- Color
- Color temperature range: Red, green, indigo, lime
- Color temperature range: 2700-6500K
- Calibrated array: Yes
- Red shift: No
- Optical
- Beam angle range: Built in 25-50 degree zoom
- Gate Size: 80mm
- Aperture size: 6.25”-14”
- Pattern projection: Yes
- Pattern size: M (OD 66 mm, ID 48 mm), up to 2.03 mm (0.080 in) thick
- Pattern size: M (OD 66 mm, ID 48 mm), up to 2.03 mm (0.080 in) thick
- Control
- Input method: DMX-512 via 5-pin XLR
- Protocols: DMX512/RDM
- RDM configuration: Yes
- UI type: Seven-segment, three-button interface
- Local control: Yes
- Onboard presets: Yes (12)
- Onboard sequences: Yes (5)
- Onboard effects: No
- Fixture-to-fixture control: Yes
- Notes: 15-bit virtual dimming engine
- Electrical
- Voltage range: 100-240 VAC; 50/60Hz
- Input method: powerCON in and thru
- Inrush: 35A at 120V (First half-cycle); 45A at 240V (First half-cycle)
- Fixtures per circuit: 7 fixtures (15 A power thru connector) or 8 fixtures (R20 module or similar)
- Wattage (typical/standby): 166W / 2.6W at 120V; 162W / 2W at 240V
- Current draw: 1.40A at 120V; 0.73A at 240V
- Thermal
- Ambient operating temp: 0°-40°C (32°-104°F)
- Fan (controllable): Yes (no)
- Droop compensation: Yes
- dB range: 20.2 dBa
- BTUs/hour: 549
- Physical
- Materials: ABS plastic
- Color options: Black or white
- Mounting options: Yoke
- IP rating: IP20
- Weight: 5.4 kg (12 lbs)
- Warranty
- Fixture: 5 yrs
- LED array: 10 yrs
- Regulatory & Compliance
- Approved regulatory standards: cETLus Listed; Conforms to UL 1598 Listed; Certified to CSA C22.2 No. 250 Listed; CE Compliant; EAC Compliant
- Dimensions (LxWxH)18.12x10.17x13.03" (460x258x331mm)
