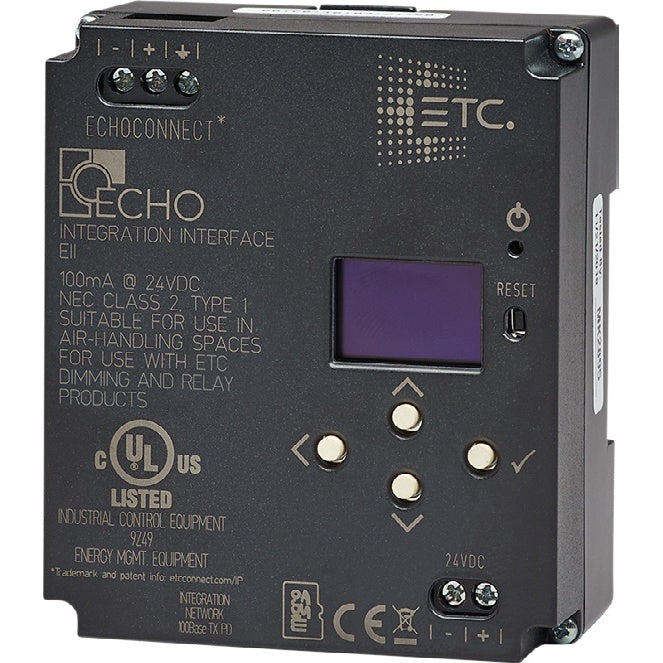

ETC EII Echo Integration Interface

ETC EII Echo Integration Interface

SoundPro Item: 127463 | Part Number: EII

$504.00
$630.00 $504.00
Your Price Sold out
MSRP: $630.00 | MAP: $504.00

Usually ships in 5-7 business days

  • Supports UDP Integration For System Connectivity
  • Reports Echo Status For Better Monitoring
  • Enables External Control Of Presets And Zones
  • Subscription Addresses Improve Network Security
  • DIN-Rail Design Supports Clean Installation
  • PoE Or 24 VDC Adds Power Flexibility
Log in or register for YOUR best price

The ETC EII Echo Integration Interface extends an Echo control system with bidirectional UDP communication, making it easier to coordinate lighting actions with broader AV and building control workflows. In integrated spaces where lighting presets need to respond alongside audio and video events, the EII provides a practical link between Echo and third-party systems using predefined UDP string commands.

This interface is well suited for auditoriums, theaters, hospitality spaces, conference rooms, houses of worship, education facilities, and sports venues that need synchronized control across multiple technologies. External systems can send commands, request system information, or subscribe to updates, helping operators and programmers build more connected room behavior without changing the underlying Echo ecosystem.

For installation, the unit supports PoE or 24 VDC power and connects to two-wire EchoConnect control networks using low-voltage Class 2 wiring. A DIN enclosure, onboard display, four-button interface, and MicroSD card slot support straightforward setup, identification, and firmware maintenance in installed AV lighting control environments.

Downloads

View full details

Specifications

Functional
Protocol Support
User Datagram Protocol (UDP) strings
Status Reporting
Zones, Presets, Sequences
External Control
Zones, Presets, Sequences
Mechanical
Interface
Four-button interface and onboard display
Enclosure
Five unit wide DIN enclosure
DIN Standard
DIN43880 (35/7.5 rail)
Construction
Injection-molded black ABS plastic
Electrical
Power
PoE or 24 VDC
Ethernet Compliance
IEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3af PoE
Control Network
Two-wire EchoConnect through low-voltage Class 2 wiring
Wiring
Belden 8471 or equivalent and one #14 ESD drain wire
Auxiliary Power Wiring
Two #16 AWG wires for 24VDC auxiliary power when required
Optional Ethernet Wire
Belden 1583A or equivalent when used with Cat5 termination accessories
Topology
Bus, loop, homerun, or any combination
Maximum Control Wiring
500 m (1,640 ft)
Maximum Cat5 Distance
300 m (1,000 ft)
Firmware Maintenance
MicroSD card slot
Thermal
Ambient Temperature
0° to 50° C (32° to 122° F)
Ambient Humidity
5–95% non-condensing
Regulatory And Compliance
cULus
Listed
CE
Compliant
RoHS
Compliance
WEEE
Yes
