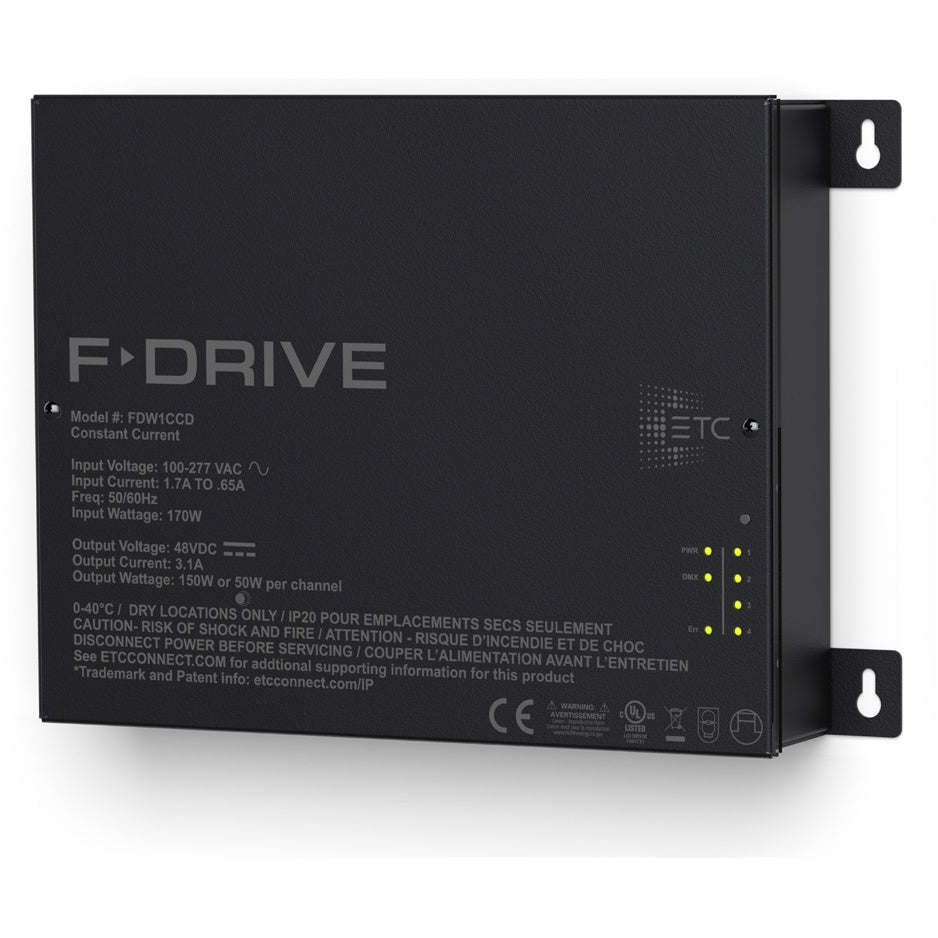

ETC FDW1CCD Constant Current LED Driver 4-Output

ETC FDW1CCD Constant Current LED Driver 4-Output

SoundPro Item: 200842 | Part Number: FDW1CCD

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Four Addressable Outputs For Zoned Fixture Control
  • DMX And RDM Support For Remote Configuration
  • RJ45 And Terminal Outputs Simplify Wiring Options
  • Handles Up To 14 AWG For Installation Flexibility
  • Convection Cooling Supports Quiet Installed Use
Log in or register for YOUR best price

The ETC FDW1CCD is an F-Drive constant current LED driver designed for low-voltage lighting systems that need centralized power and control in a compact enclosure. It provides four individually addressable outputs and supports DMX-512 input with RDM configuration, making it well suited for projects where fixture behavior must be managed remotely without local user interface hardware. RJ45 and two-position terminal connectors per output give installers flexibility when integrating ETC luminaires and compatible third-party fixtures.

This model is intended for installed environments such as schools, houses of worship, conference centers, themed spaces, retail, hospitality, cruise ships, and other entertainment venues. The steel enclosure is built for dry-location use and supports multiple mounting approaches, including interior mounting holes and external mounting strips. A removable cable cutout plate also simplifies contractor prep during installation. With convection cooling, high power factor, and support for adjustable 200-700 mA drive current via RDM, the FDW1CCD fits projects that require controllable constant current distribution with organized wiring and dependable system-level integration.

Downloads

View full details

Specifications

Control
Protocols
DMX and RDM
RDM Configuration
Yes
UI Type
None
DMX Footprint
See data sheet table on page 3
Local Control
No
Input Method
DMX-512 via terminal connections
Electrical
Power Factor
> 0.9
Output Connector
RJ45 and terminal connectors
Inrush
15 A at 120 V (first half-cycle); 27 A at 240 V (first half-cycle)
Output Cards
Voltage Input
100-277 VAC 50/60 Hz
Output
200–700 mA drive current adjustable via RDM, Auto-sensing 12–48 VDC maximum
Output Wattage Max Per Circuit
33 W (up to card limit)
Max Luminaire Load Per Driver
134 W
Output Connector
RJ45 and terminal connectors
Max Input Current Per W1 Unit
3.1 A
Max Input Wattage Per W1 Unit
170 W
Thermal
Ambient Operating Temperature
0°–40°C (32°–104°F)
Fan (Controllable)
Convection cooled
BTUs/Hour (120 V/240 V)
581 BTU/hr
Physical
Materials
Steel enclosure, fine-textured, scratch-resistant powder coat paint
Color Options
Equinox grey
Mounting Options
Four mounting holes on the interior of the enclosure or external mounting strips for mounting without removing front cover
Cable Cutout
Removable plate for contractor hole punching/drilling
IP Rating
IP-20 (dry location)
Humidity
5–95% non-condensing
Weight
3.03 kg (6.7 lb)
Warranty
Driver
5 years
Website
etcconnect.com/Support/Warranty.aspx
Regulatory And Compliance
Standard Version
cULus listed to UL 8750 and CSA C22.2 No. 250.13
Emergency Version
cULus listed to UL 8750 and CSA C22.2 No. 250.13
Emergency Version Additional
cULus listed to UL 924 and CSA C22.2 No. 141
Certification
Certified by Lloyd’s Registry
Air Handling Suitability
Suitable for use in air handling systems by NEC 300.22(C)(3)
