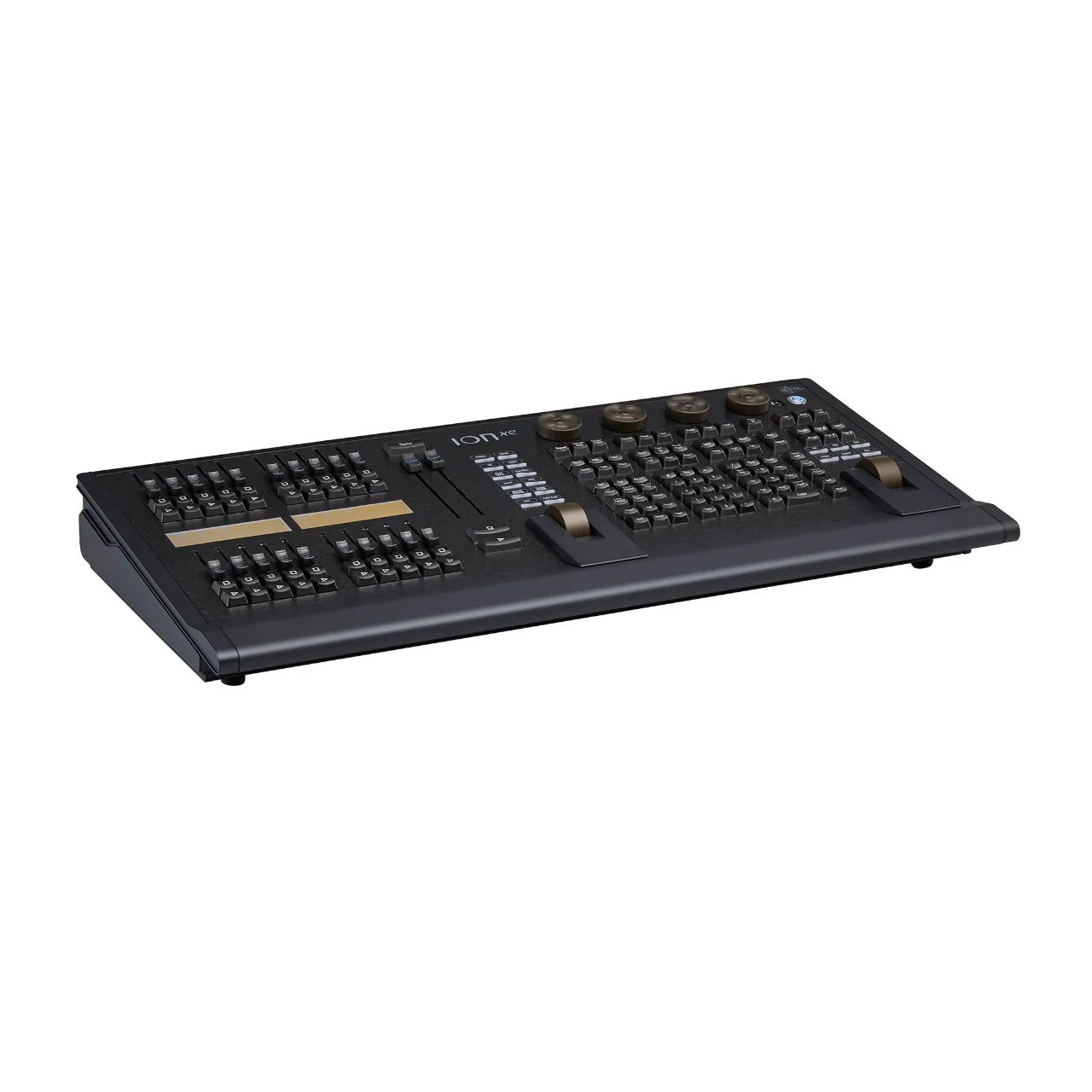

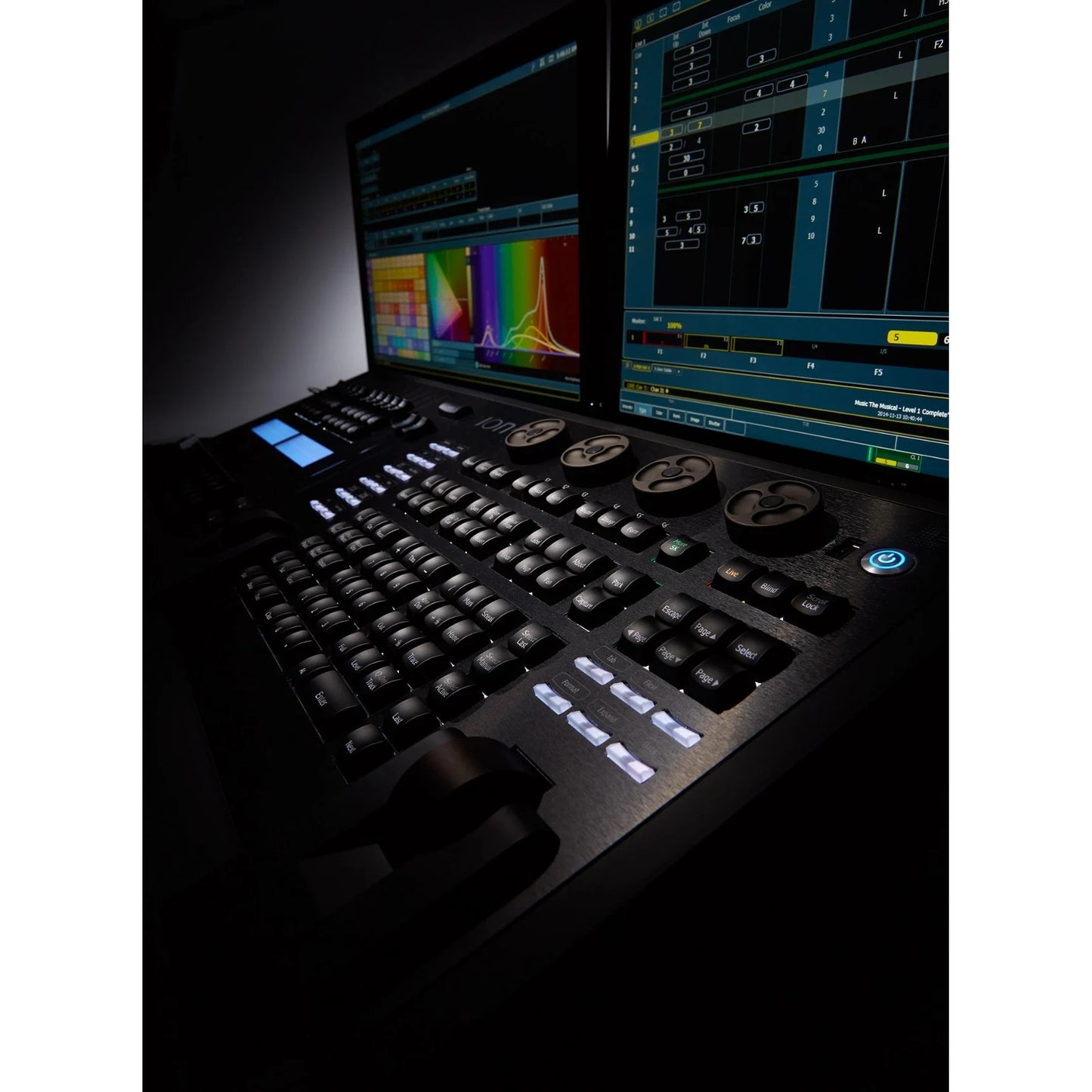

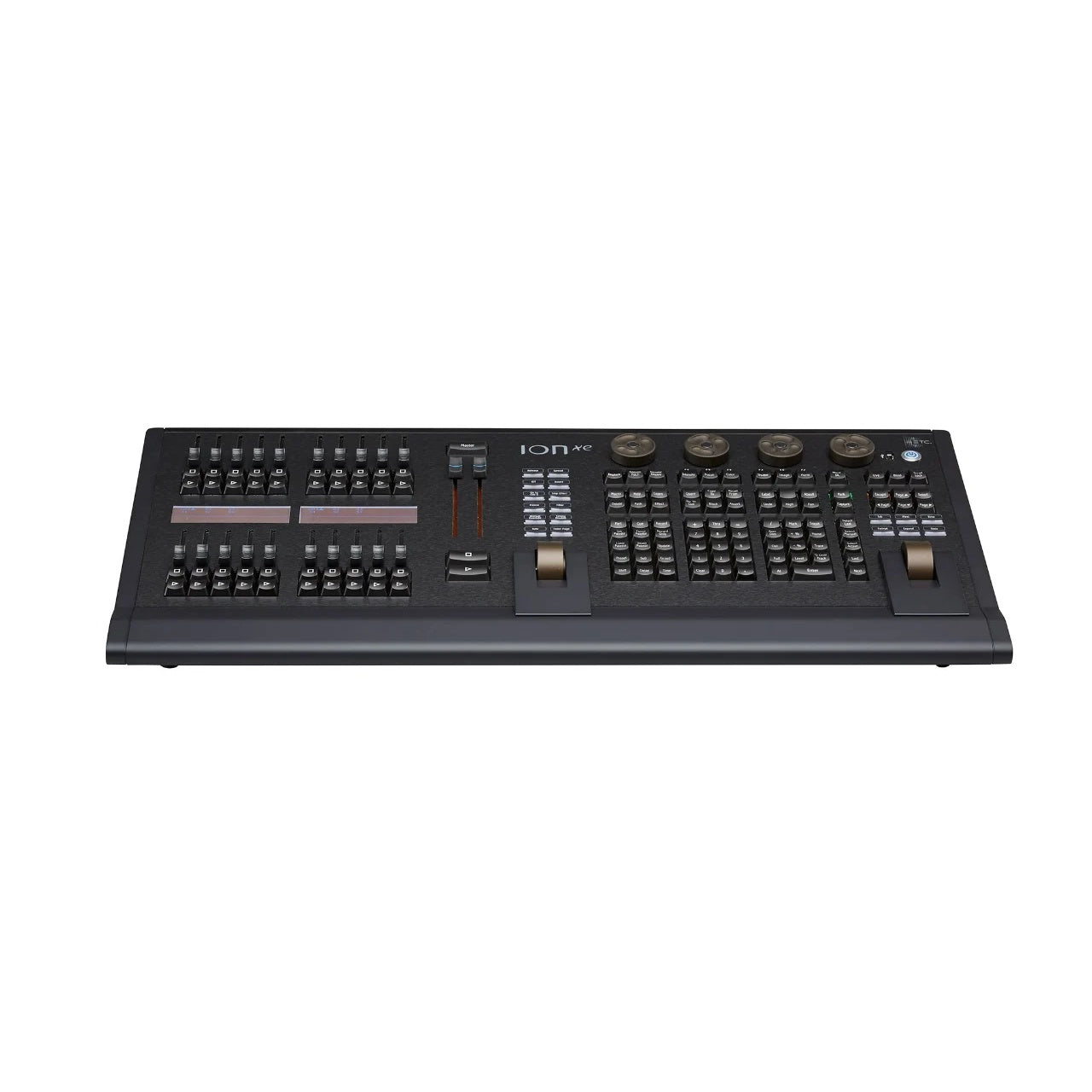

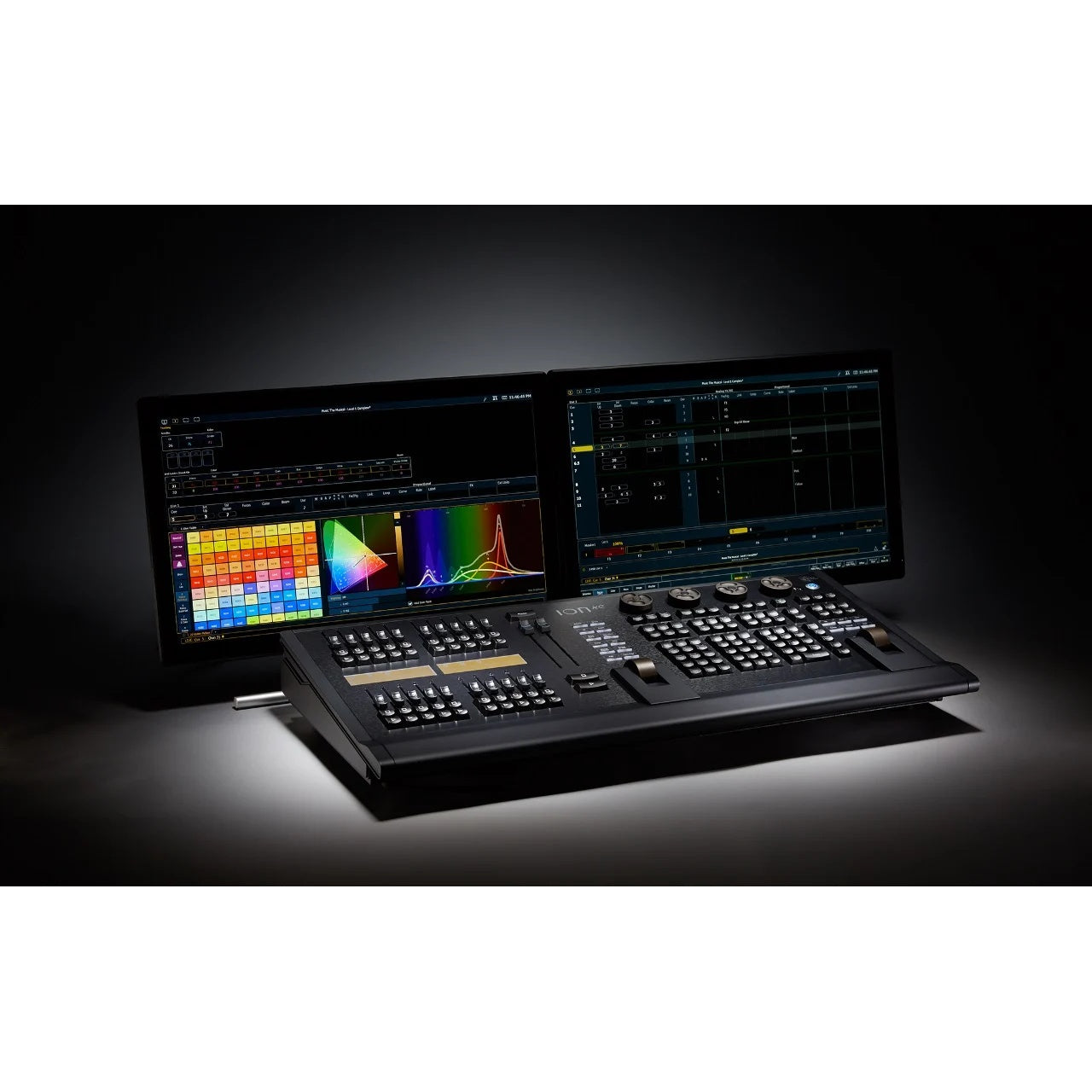

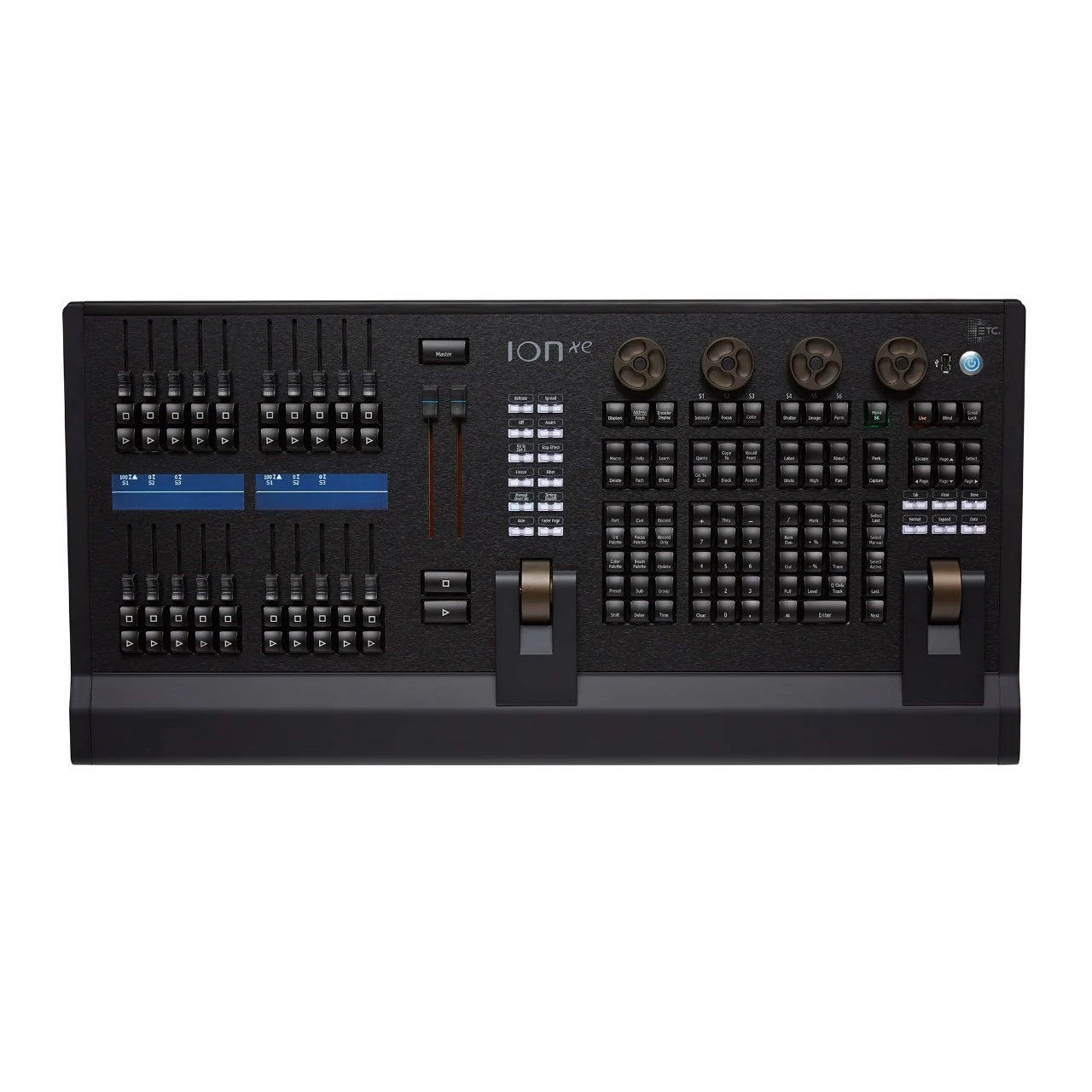

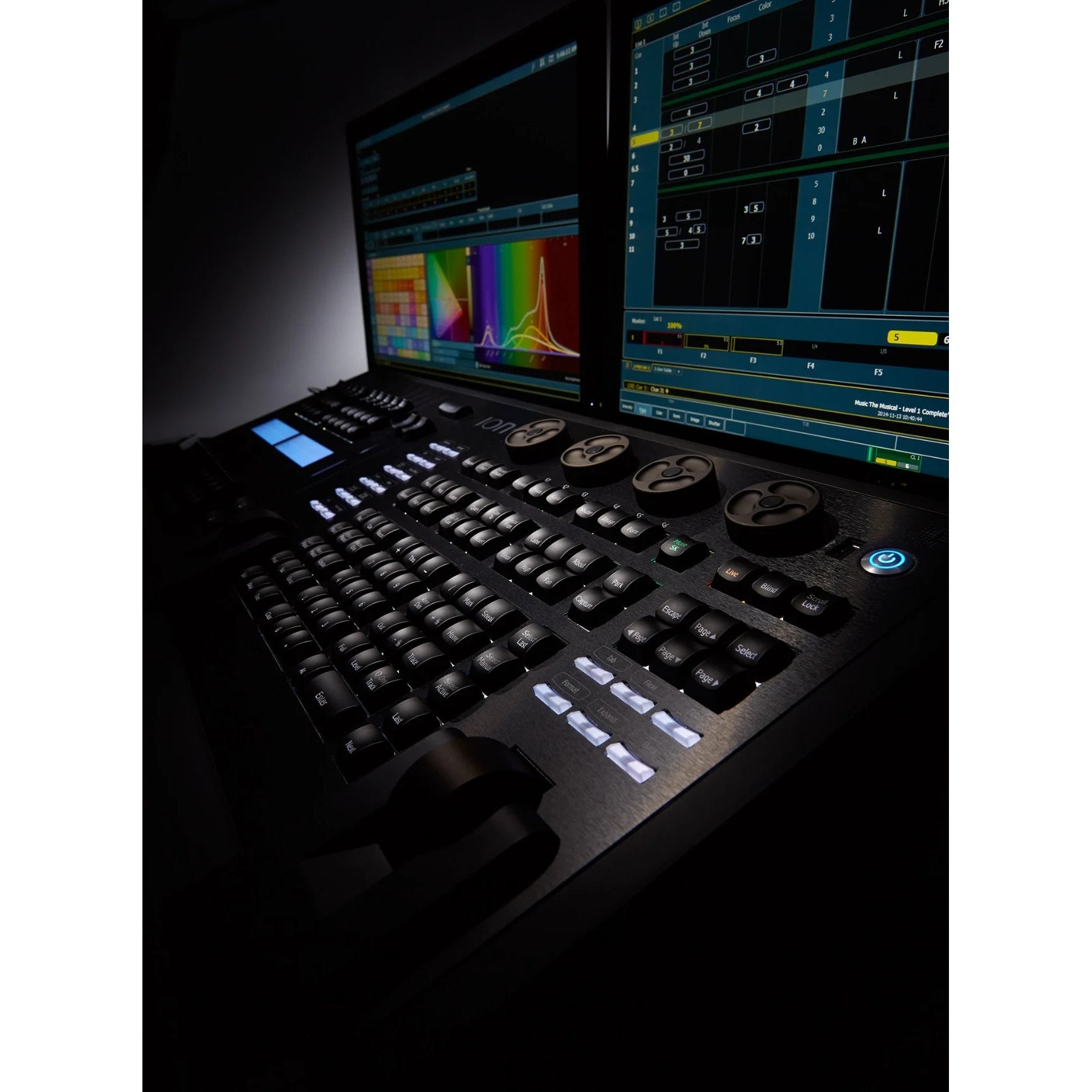

ETC ION XE 20 2K-US Lighting Console With 20 Faders

ETC ION XE 20 2K-US Lighting Console With 20 Faders

SoundPro Item: 113622 | Part Number: ION XE 20 2K-US

$17,090.00
$17,090.00 $17,090.00
Your Price Sold out
MSRP: $17,090.00 | MAP: $17,090.00

Usually ships in 5-7 business days

  • 20 Faders Support Hands-On Manual Playback
  • Dual LCDs Improve Fader Page Visibility
  • Dual Monitor Support Expands Programming Workspace
  • Four DMX/RDM Ports Simplify System Integration
  • Gigabit Ethernet Supports Networked Show Control
  • Backlit Keypad Speeds Operation In Dark Venues
  • Included Accessories Help Faster System Setup
Log in or register for YOUR best price

The ETC ION XE 20 2K-US is a compact lighting console built for programmers and operators who need substantial hands-on control in a smaller footprint. As part of the Eos Family, it combines familiar syntax, advanced color tools, Magic Sheets, Augment3d visualization, and multi-user workflow support for live production, installed systems, and educational venues. Twenty non-motorized faders with dedicated displays make manual playback and page-based control straightforward, while the backlit keypad, encoders, and high-resolution level wheel support efficient programming sessions.

This console is well suited for theaters, houses of worship, schools, and portable production setups that need professional show control with modern networking. It supports dual external DisplayPort monitors, sACN and Art-Net output, four DMX-512/RDM ports, Gigabit Ethernet, MIDI and timecode integration, and a wide range of USB connectivity for peripherals and removable media. Included accessories such as active DisplayPort to DVI adapters, Littlite, dust cover, keyboard, mouse, and Augment3d AR target kit help streamline deployment.

Downloads

View full details

Specifications

Hardware And Interfaces
External Monitor Support
Two external DisplayPort monitors
Supported Monitor Resolution
1920x1080 minimum, 3840x2160 maximum
Touch Support
Optional single-touch or multi-touch with DDC/CI support
Faders
20 45mm standard faders
Fader Pages
100 10-fader pages
Internal Displays
Two internal monochromatic LCD displays
Main Playback
Two 100mm standard faders
Encoders
Four
Intensity Control
Dedicated high-resolution intensity level wheel
Keypad
Backlit Eos keypad
Included Keyboard
USB keyboard
Drive
Solid-state hard drive
Power Input
100–240 VAC at 50/60 Hz
Ethernet Ports
Two individually configurable Gigabit Ethernet ports, RJ45
WiFi Adapter
One 802.11ac WiFi Ethernet adapter
Bluetooth
Bluetooth 5.1
Network Protocols
sACN and Art-Net
DMX Ports
Four DMX-512 / RDM 5-pin XLR ports
Contact Closure
Via D-Sub connector
USB Ports
5 USB-A ports, 2 USB-C ports
Littlite Port
One XLR port
Lock Port
One Kensington lock port
Additional Control Interfaces
MIDI In and Out, SMPTE timecode, Analog/Serial Inputs, OSC, UDP
Electrical And Thermal
Power Consumption
Approximately 2 A at 120 V or 230/240 V
Ambient Temperature
0°C to 35°C (32°F to 95°F)
Humidity
Up to 90% non-condensing
Regulatory And Compliance
Compliance
CE, cETLus, UKCA, FCC, RoHS, WEEE
Included Accessories
Mouse
Three-button scroll mouse and mousepad
Keyboard
Alpha-numeric keyboard
Power Cord
Locking regionalized IEC power cord
Display Adapters
Two active DisplayPort to DVI adapters
Littlite
One 18-inch LED gooseneck Littlite
AR Kit
Augment3d AR target kit
Cover
Dust cover
Dimensions And Weight
Height
107 mm / 4.2 in
Width
744 mm / 29.3 in
Depth
362 mm / 14.2 in
Weight
7.35 kg / 16.6 lb
Shipping Dimensions And Weight
Shipping Height
197 mm / 7.8 in
Shipping Width
927 mm / 36.5 in
Shipping Depth
470 mm / 18.5 in
Shipping Weight
9.98 kg / 20.4 lb
