• ETC Source Four LED Series 2 Lustr Ellipsoidal
1 1

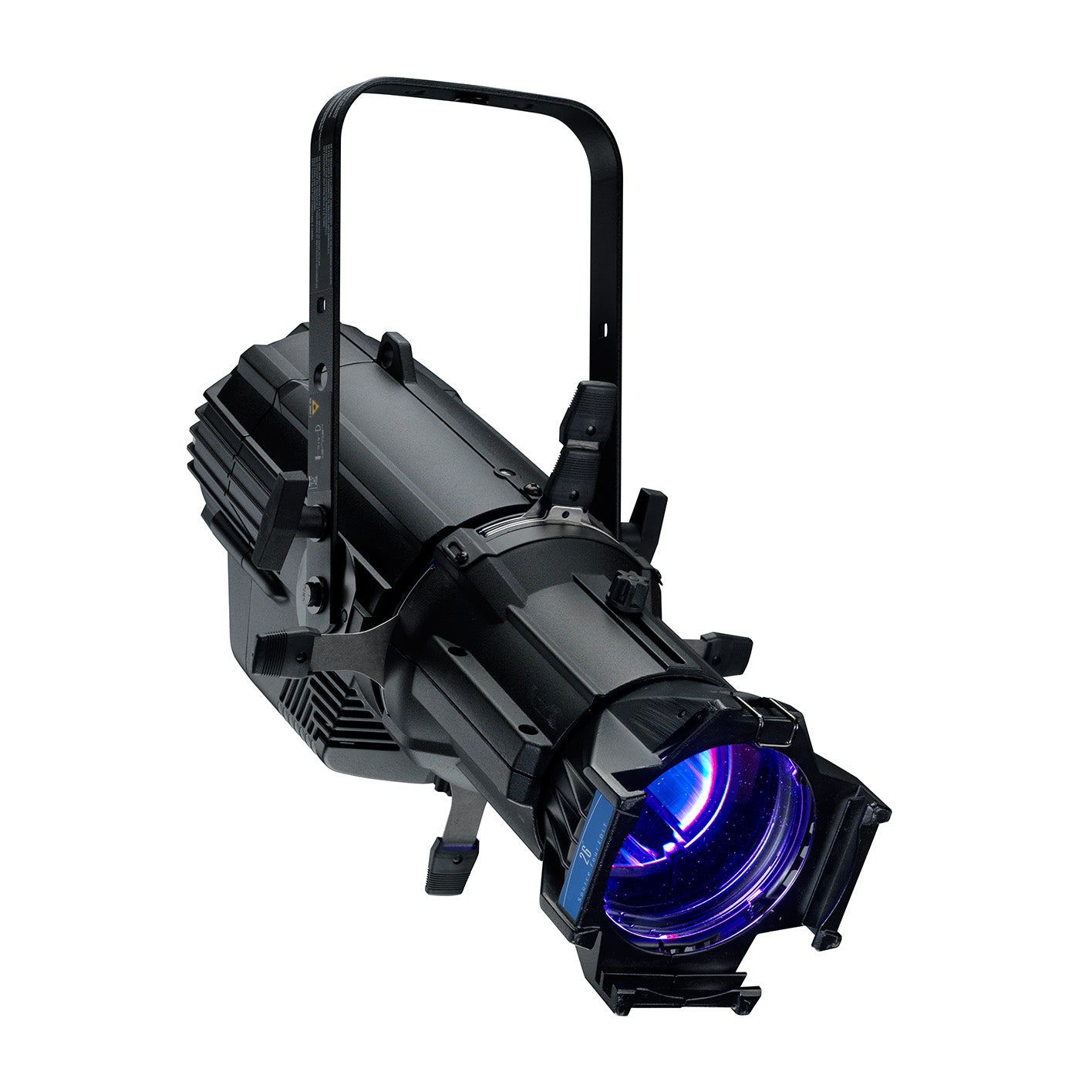

ETC Source Four LED Series 2 Lustr Ellipsoidal | Color: White, Shutter Barrel: Included

ETC Source Four LED Series 2 Lustr Ellipsoidal | Color: White, Shutter Barrel: Included

SoundPro Item: 126229 | Part Number: S4LEDS2LS-1

$2,770.00
$2,770.00 $2,770.00
Your Price Sold out
MSRP: $2,770.00 | MAP: $2,770.00

Usually ships in 5-7 business days

  • Up to nine fixtures (15A max) may be linked via power thru connector (10 fixtures total per circuit) when used with R20 Relay Module or Unison Echo Relay Panel
  • Multiple control options, including Direct, RGB, HSIC, and console-free modes
  • 15-bit virtual dimming engine for smooth fades and minimal color shift during dimming
  • ETL Listed to UL1573; IP20 rated
  • Positive locking double-clutch fixture body
  • Slot for glass or stainless-steel patterns and soft-focus diffuser
  • Wide accessory slot with sliding cover for motorized pattern device or iris
Log in or register for YOUR best price

Source Four LED Series 2 Lustr luminaires are based on the x7 Color System, utilizing seven colors including high-output lime to achieve true, usable broad-spectrum color with a depth and feel beyond any RGB fixture.

We put a twist of lime in the luminaire and mixed it all up. ETC's x7 Color System™ combines a balanced recipe of up to seven colors to create evocative color mixes. The Source Four LED Series 2 Lustr array takes the idea even further, with the addition of a lime-green LED emitter. Lime green increases the luminaire's lumen output in open white and lighter tints to make them brighter and livelier. The lime also enriches color-rendering by better marrying the red and blue ends of the color spectrum, for truer-to-life light that fills in the gaps ordinary LEDs leave behind.

ETC also added more red to the x7 Color System in the Source Four LED Series 2 Lustr array. Working in unison with the lime-green emitter, the extra red means the luminaire can produce ambers, straws and pinks up to three hundred percent as bright as those from the original Source Four LED™. The deeper, richer color from the Source Four LED Series 2 Lustr array will evoke the strongest audience reaction to your sunset, moonlight and dramatic scenes.

View full details
  • Source
    • LED details: 60 Lumileds LUXEON® Rebel LED
    • Max lumens: 8667
    • Lumens per watt: 51.9
    • L70 rating (hours to 70% output): 50,000 hours
  • Color
    • Colors used: : Red, Amber, Lime, Green, Cyan, Blue, Indigo
    • Color temperature range: 2,700-6,500K
    • Calibrated array: Yes
    • Red shift: Yes (can be disabled)
  • Optical
    • Beam angle range: Swappable lens tubes between 5°-90°
    • Gate Size: 80mm
    • Aperture size: 6.25-14 in (depending on lens tube)
    • Pattern projection: Yes
    • Pattern size: A or B
    • Camera flicker control/Hz range: 900-25,000 Hz
    • Notes: Can be used with LED CYC and Fresnel adapters
  • Control
    • Input method: DMX512 via 5-pin XLR
    • Protocols: DMX-512/RDM
    • RDM configuration: Yes
    • UI type: LCD
    • Local control: No
    • Onboard presets: Yes
    • Onboard sequences: Yes
    • Onboard effects: No
    • FixtureLink: Yes
    • Notes: 15-bit virtual dimming engine
  • Electrical
    • Voltage range: 100-240 VAC 50/60 Hz
    • Input method: Neutrik powerCON in and thru, requires power from a non-dimmable source
    • Inrush: 50A at 120V (First half-cycle); 107A at 240V (First half-cycle)
    • Fixtures per circuit: 9 Lustr or 7 Daylight HD/Tungsten HD (15 A via power thru connector); 10 Lustr or 8 Daylight HD/Tungsten HD (via R20 module or Echo Relay Panel)
    • Wattage typical: 167
    • Current draw: 1.44A at 120V; 0.78A at 240V
  • Thermal
    • Ambient operating temp: 0°-40°C (32°-104°F)
    • Fan (controllable): Yes (yes)
    • Droop compensation: Yes
    • dB range: 22.5 dBA average at 1 m
    • BTUs/hour: 569
  • Physical
    • Materials: Die-cast, all metal housing
    • Color options: Black, white, silver, or custom color
    • Mounting options: Yoke, cyc floor stand (sold separately)
    • IP rating: IP20
    • Weight: With barrel: 8.3 kg (18.3 lbs); Without barrel: 6.5 kg (14.3 lbs)
  • Warranty
    • Fixture: 5 yrs
    • LED array: 10 yrs
  • Regulatory & Compliance
    • Approved regulatory standards: cETLus Listed; Conforms to UL1573; Certified to C22.2 C22.#166; CE Compliant
  • Dimensions (LxWxH)24.8x13.3x17.1" (631x338x434mm)
