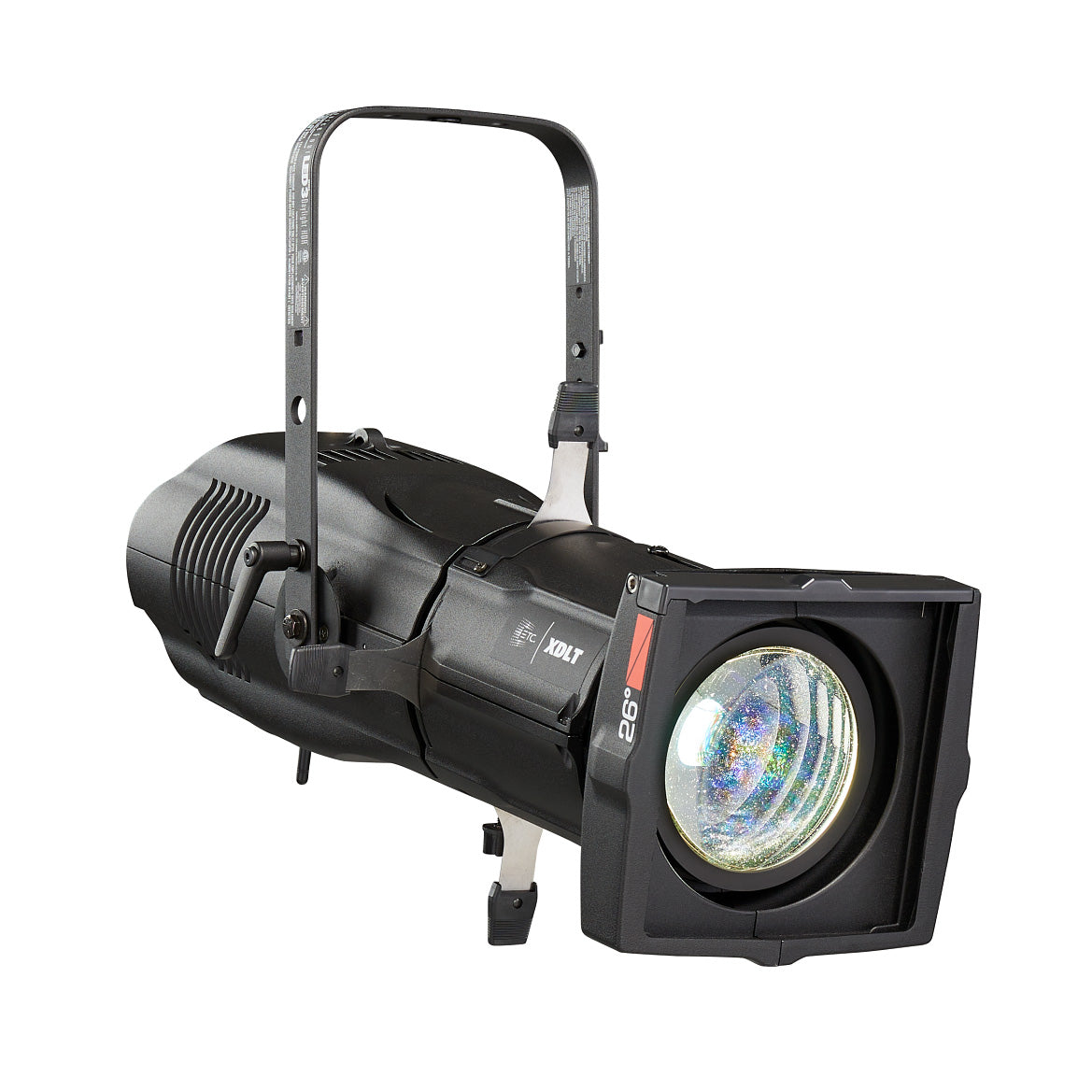

• ETC Source Four LED Series 3 Lustr Ellipsoidal

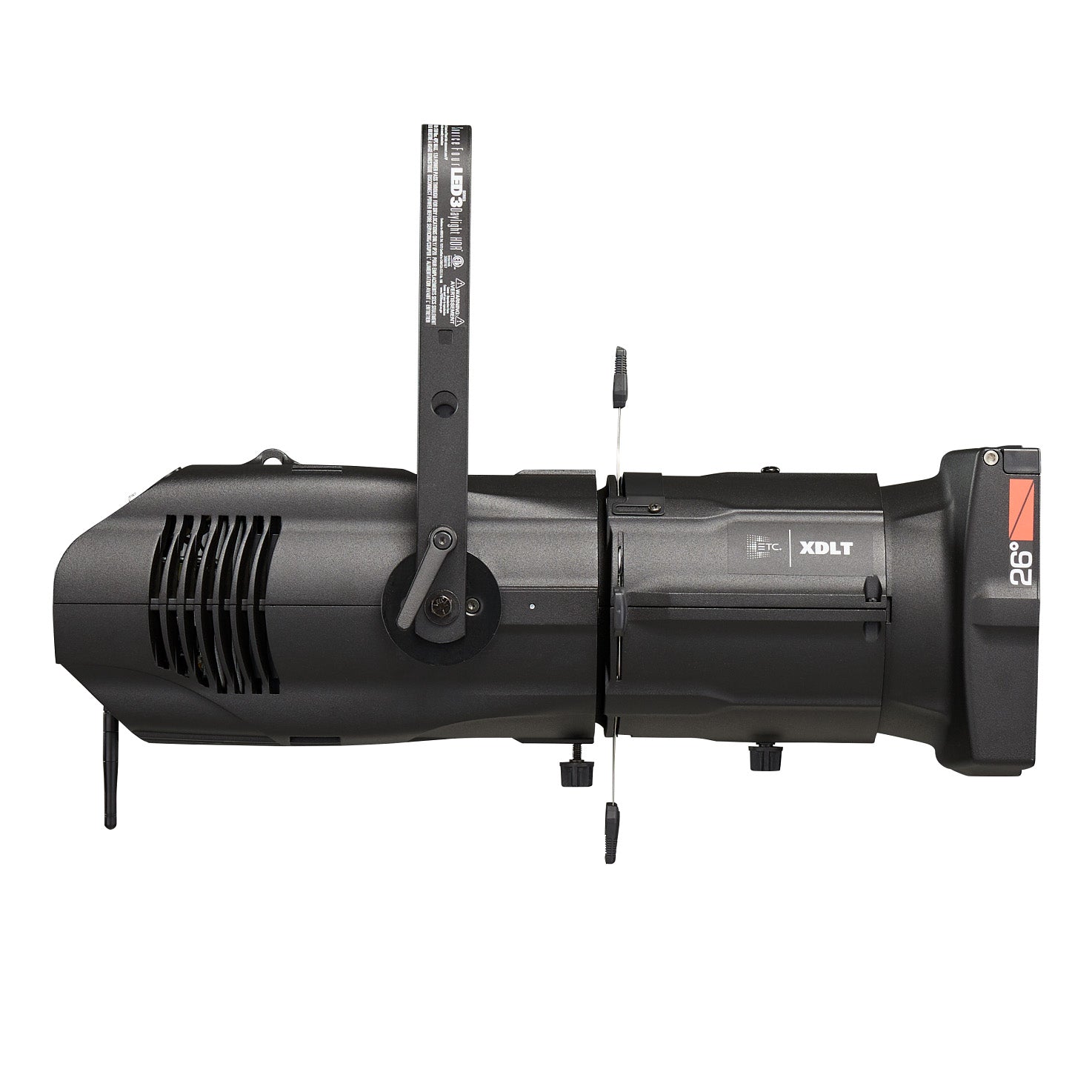

  • ETC Source Four LED Series 3 Lustr Ellipsoidal right

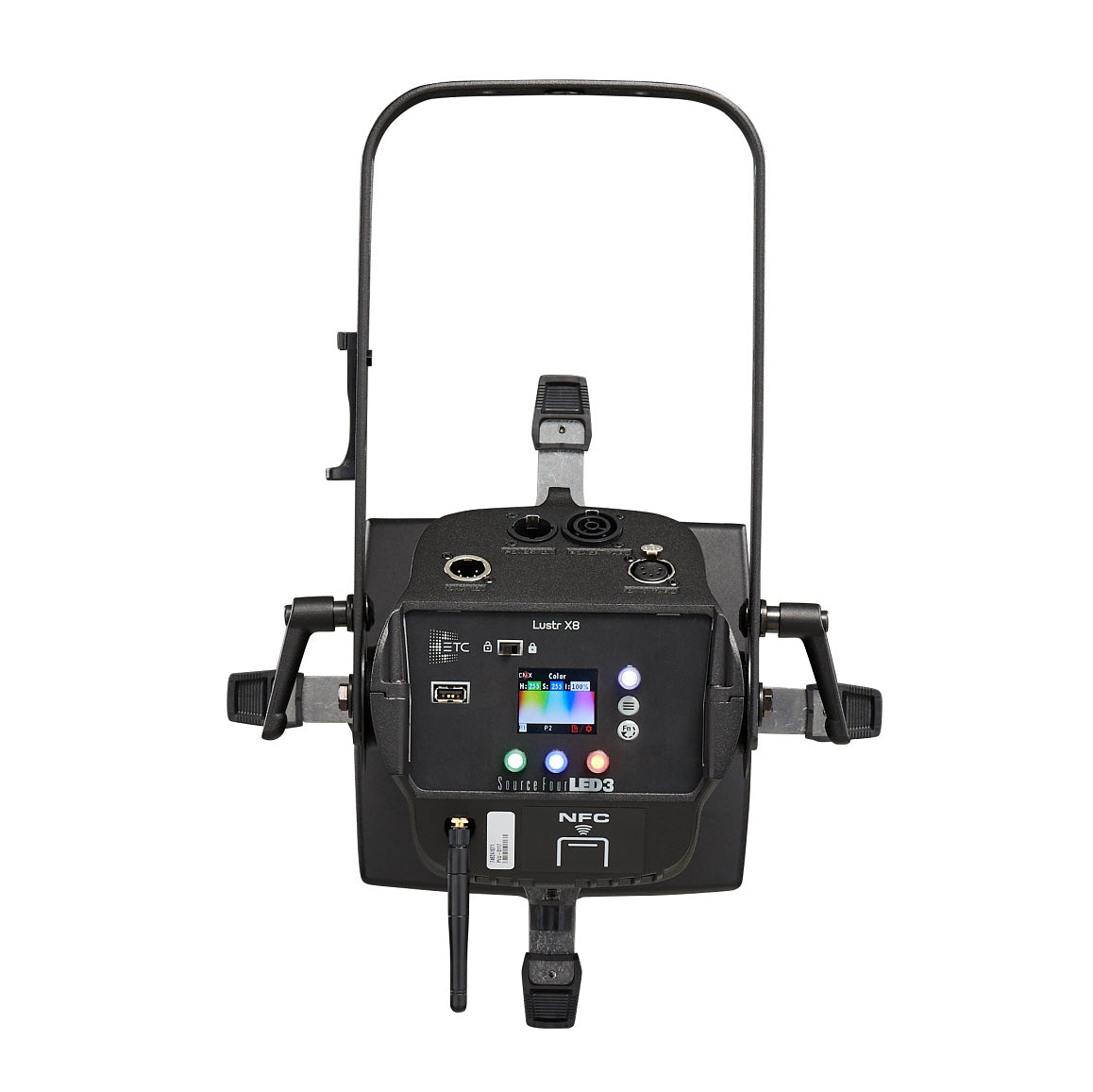

  • ETC Source Four LED Series 3 Lustr Ellipsoidal back

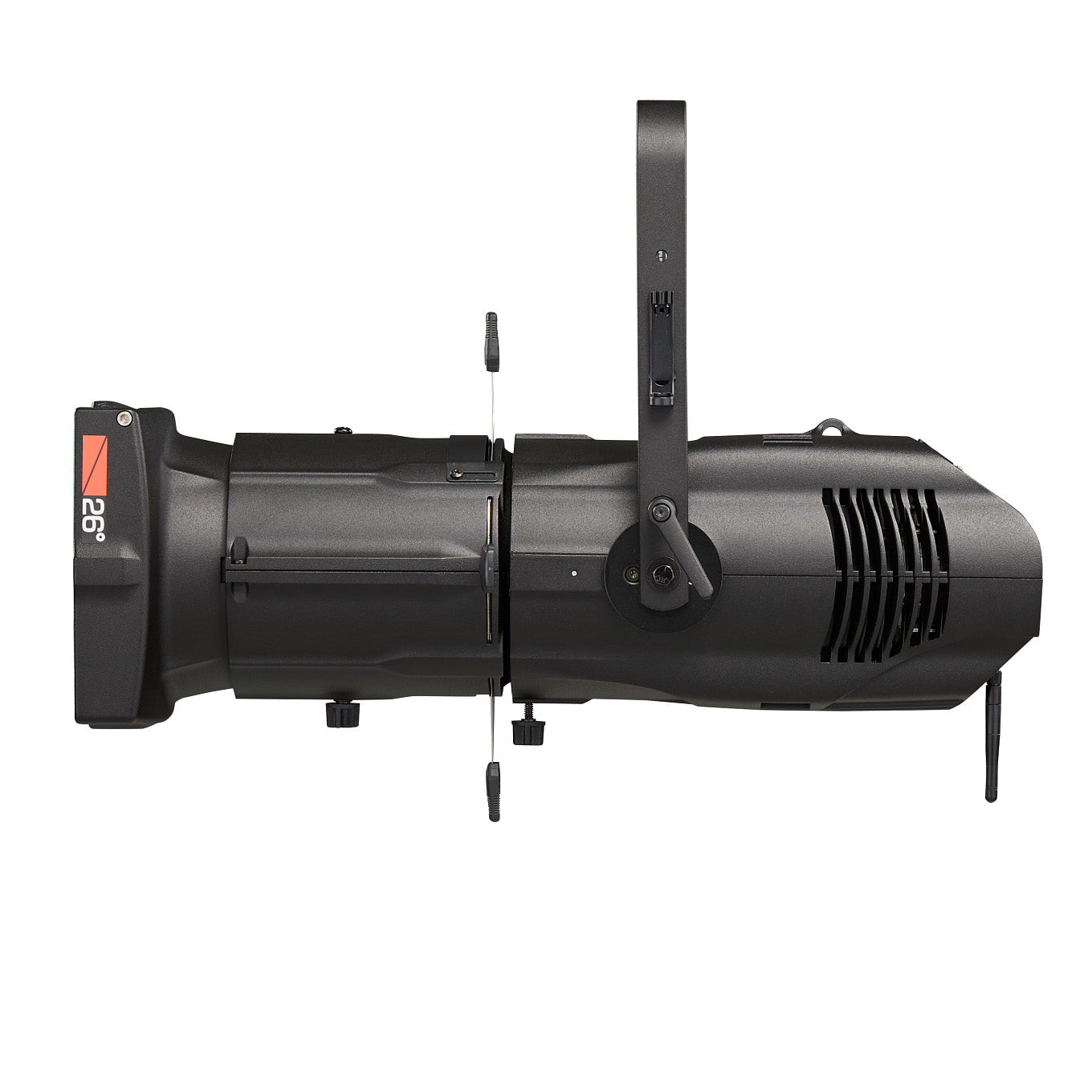

  • ETC Source Four LED Series 3 Lustr Ellipsoidal left
1 4

ETC Source Four LED Series 3 Lustr Ellipsoidal | Color: Silver, Shutter Barrel: Included

ETC Source Four LED Series 3 Lustr Ellipsoidal | Color: Silver, Shutter Barrel: Included

SoundPro Item: 126219 | Part Number: S4LEDS3LS-5

$3,025.00
$3,025.00 $3,025.00
Your Price Sold out
MSRP: $3,025.00 | MAP: $3,025.00

Usually ships in 5-7 business days

  • Available in black, white, and silver finishes (only black pictured)
  • DEEP RED Over a decade of research brings the addition of the deep red LED to Series 3. This LED expands the gamut for richer colors, healthier skin tones, and a higher quality white light.
  • WIRELESS CONTROL Activate wireless DMX functionality with City Theatrical’s Multiverse transmitter and configure your fixtures via NFC using the Set Light app.
  • XDLT LENS TUBES Increase fixture brightness and improve pattern projection clarity and contrast when used with XDLT lens tubes. (shown in main image, sold separately)
Log in or register for YOUR best price

Over a decade of research comes together in the ETC Source Four LED Series 3 Lustr Ellipsoidal.

ETC brings the eight-color Lustr X8 array and the tunable white light Daylight HDR array to the professional stage with this fixture. The deep red LEDs in both arrays reveal richer skin tones, bring a deeper dimension to your scenery, and add warmth to sunsets and firelight. Additional features include wireless DMX/RDM through City Theatrical’s Multiverse® technology, contactless programming and control using NFC and ETC’s Set Light app, and an intuitive user interface featuring a color picker and action-responsive backlit encoders.

View full details
  • Source
    • LED details: 90 Lumileds LUXEON® C and CZ
    • Max lumens: 10,889
    • Lumens per watt: 35
    • L70 rating (hours to 70% output): >54,000
  • Colors
    • Colors used: Deep Red, Red, Amber, Lime, Green, Cyan, Blue, Indigo
    • Color temperature range: 1900-10450K
    • Calibrated array: Yes
    • Red shift: Yes (selectable)
  • Optical
    • Beam angle range: Swappable lens tubes between 5°-90°
    • Gate size: 80 mm
    • Aperture size: 6.25-17.5 in (depending on lens tube)
    • Pattern projection: Yes
    • Pattern size: A or B
    • Camera flicker control/Hz range: 5 kHz, 25 kHz (Can be used with LED CYC and Fresnel adapters)
  • Control
    • Input method: 5-Pin XLR, Multiverse wireless and NFC
    • Protocols: DMX-512, RDM, City Theatrical Multiverse, NFC
    • Modes (footprint): 5 modes (1-12 channels)
    • RDM configuration: Yes
    • UI type: Full color display
    • Local control: Yes
    • Onboard presets: Yes (12)
    • Onboard sequences: Yes
    • Onboard effects: No
    • FixtureLink: Yes
    • Notes: 15-bit virtual dimming engine
  • Electrical
    • Voltage range: 100-240 VAC 50/60 Hz
    • Input method: AC via Neutrik powerCON TRUE1 TOP
    • Inrush: 40A at 120V (First half-cycle); 80A at 230V (First half-cycle)
    • Fixtures per circuit*: 5 (link up to 4 via Power Thru connector); Note: TRUE1 connector rated for 20A (120V/60 Hz) and 16A (240V/50 Hz)
    • Wattage typical Direct at Full (Idle): 307 (6.3) W at 120V; 305 (4.7) W at 230V
    • Current draw: 2.6A at 120V; 1.35A at 230V
  • Thermal
    • Ambient operating temp: 0°C to 40°C (32°F to 104°F)
    • Fan (controllable): Yes (yes)
    • Droop compensation: Yes
    • dB range: 34 dBA average at 1 m
    • BTUs/hour: 1047
  • Physical
    • Materials: Die-cast, all metal housing
    • Color options: Black, white, silver, or custom color
    • Mounting options: Yoke, cyc floor stand (sold separately)
    • IP rating: IP20
    • Weight:8.9 kg (19.6 lbs) with barrel, 6.8 kg (14.9 lbs) without barrel
    • Notes: Positive locking double-clutch fixture body; Slot for glass or stainless steel patterns and soft focus diffuser; Wide accessory slot with sliding cover for motorized pattern device or iris
  • Warranty
    • Fixture: 5 yrs
    • LED array: 10 yrs
  • Regulatory and ComplianceApproved regulatory standards: cETLus Listed, Conforms to UL1573, Certified to C22.2 C22.#166, CE Compliant
  • Dimensions (LxWxH)28.4x13.4x18.9" (721x340x478mm)
