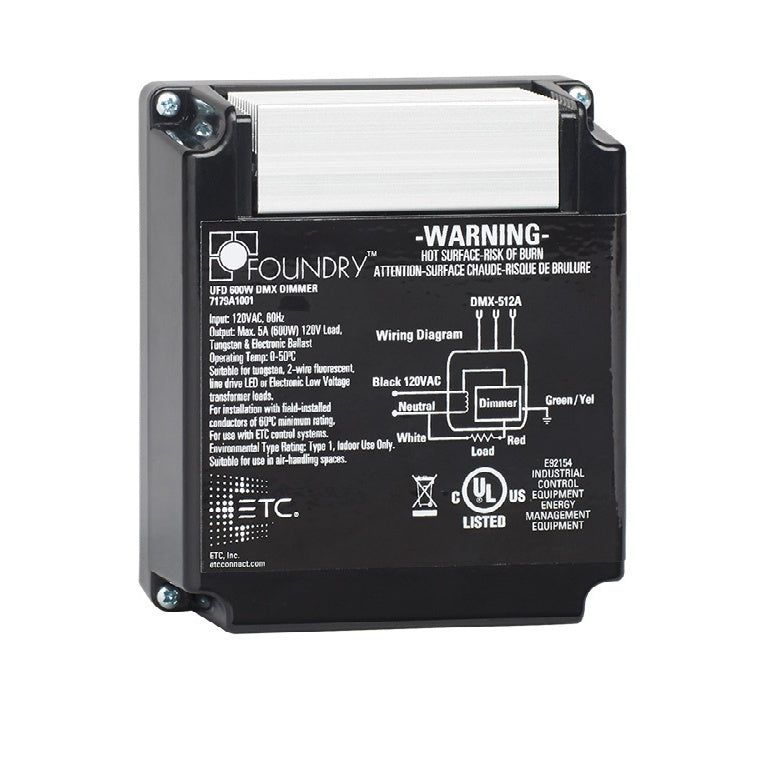

ETC UFD Unison 600W 120V DMX Dimmer Junction Box Mount

ETC UFD Unison 600W 120V DMX Dimmer Junction Box Mount

SoundPro Item: 127309 | Part Number: UFD

$320.00
$320.00 $320.00
Your Price Sold out
MSRP: $320.00 | MAP: $320.00

Usually ships in 5-7 business days

  • DMX And RDM Support For Flexible System Setup
  • Junction Box Mounting Saves Space In Installations
  • Phase Options Match A Range Of Load Types
  • Button Interface Speeds Local Commissioning Tasks
  • Optically Isolated Input Improves Signal Protection
Log in or register for YOUR best price

The ETC UFD is a single-channel dimmer designed for installed lighting systems that need compact DMX-controlled line dimming at the point of load. Built for junction box mounting, it suits projects where discreet control is needed for individual fixtures or small zones in spaces such as meeting rooms, hospitality venues, classrooms, retail environments, and worship facilities. With support for 120 or 277 VAC models, the UFD fits a range of commercial and institutional electrical infrastructures.

Control and setup are flexible for integrators and technicians working in managed lighting networks. The unit supports USITT DMX512-A and RDM, allowing addressing and remote configuration through compatible ETC and third-party controllers. Local setup is also available through the onboard button interface and LED indicators, which helps during commissioning or service calls. The optically isolated DMX input and integrated DMX/RDM termination support reliable signal handling in distributed installations.

For load handling, ETC offers both phase-adaptive and forward phase variants. The phase-adaptive version defaults to reverse phase and can automatically switch to forward phase depending on load type, while the forward phase model is intended for magnetic loads. This makes the UFD a practical solution for applications using tungsten, line-voltage LED, electronic low voltage, incandescent, fluorescent, and other general-purpose lighting or plug loads within its rated capacity.

Downloads

View full details

Specifications

Electrical
Load Capacity
600 W
Power Input
120 or 277 VAC, 50/60 Hz
Minimum Load
1 W
Control
Protocol Support
USITT DMX512-A (ANSI E1.11)
RDM Support
ANSI E1.20
DMX Addressing
Manual configuration on controller
Remote Configuration
Via RDM controllers
DMX Input Port
Isolation
Optically-isolated from dimmer electronics
Fault Voltage Withstand
Up to 250 VAC
Termination
Integrated DMX/RDM termination
Mechanical
Construction
Injection-molded ABS plastic
Interface
Button interface and LED indicators
Mounting
Half-inch conduit knockout mounted
Thermal
Ambient Temperature
0 to 50°C (32–122°F)
Humidity
5–95% non-condensing
Compliance
Listing
cULus Listed
Conformance
UL 508 and UL 2043
Dimensions
Height
2.0 in (51 mm)
Width
3.5 in (89 mm)
Depth
3.0 in (77 mm)
Weight
0.75 lb (0.34 kg)
