Electro-Voice EVID-C6.2-G2 Ceiling Speaker 70/100V | Color: White

Electro-Voice EVID-C6.2-G2 Ceiling Speaker 70/100V | Color: White

SoundPro Item: 151577 | Part Number: EVID-C6.2-G2

$259.00
$300.00 $259.00
Your Price Sold out
MSRP: $300.00 | MAP: $259.00

In stock and ready to ship

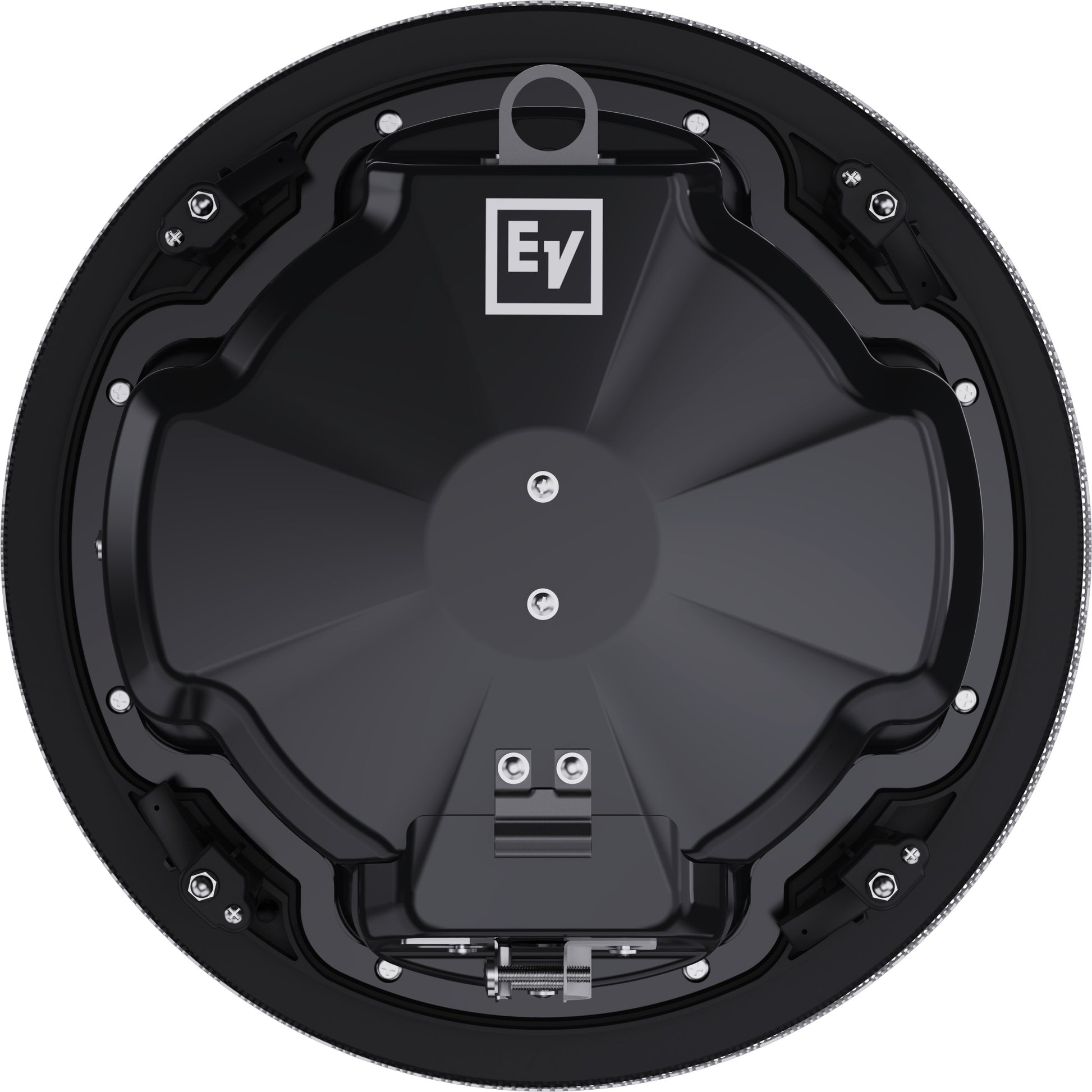

  • SwiftLock Mounting System - Supports quick, safe, and reliable ceiling installation.
  • Front Baffle Tap Selector - Allows convenient wattage tap adjustment from the speaker face.
  • 70V/100V Transformer with 8-Ohm Bypass - Supports distributed audio systems or low-impedance operation.

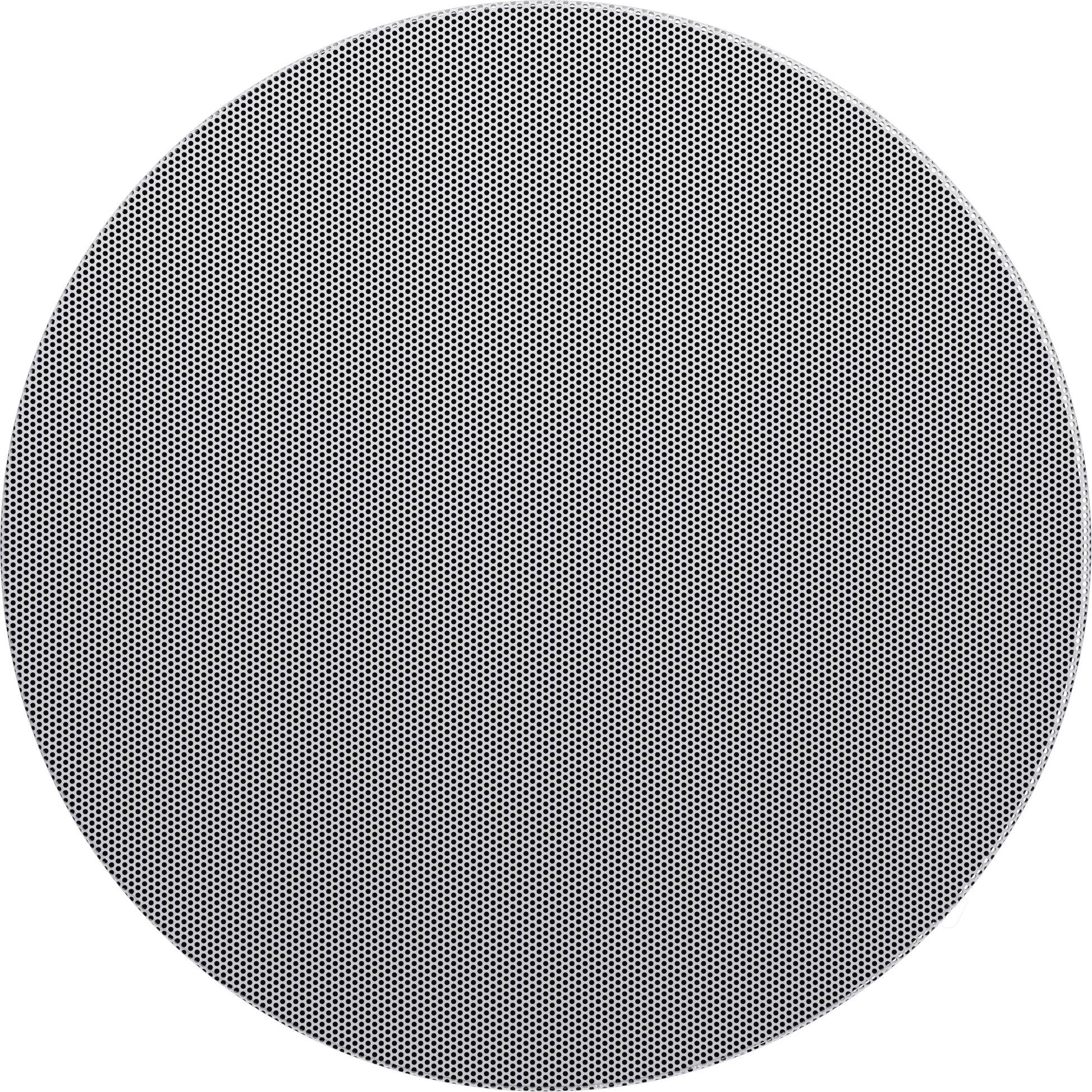

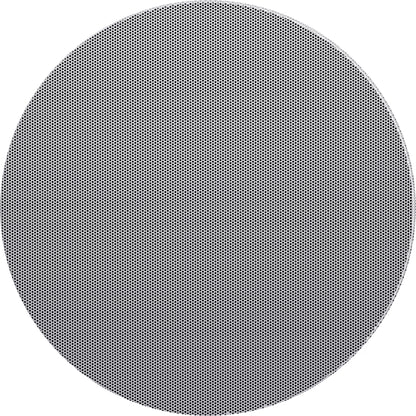

  • Bezel-Less Grille Design - Provides a clean installed appearance with an easy-attach grille.
  • Included Mounting Hardware - Tile bridge and mounting ring are supplied for drop-ceiling installation.
  • Low-Profile Enclosure - Helps fit the speaker in tight ceiling spaces.

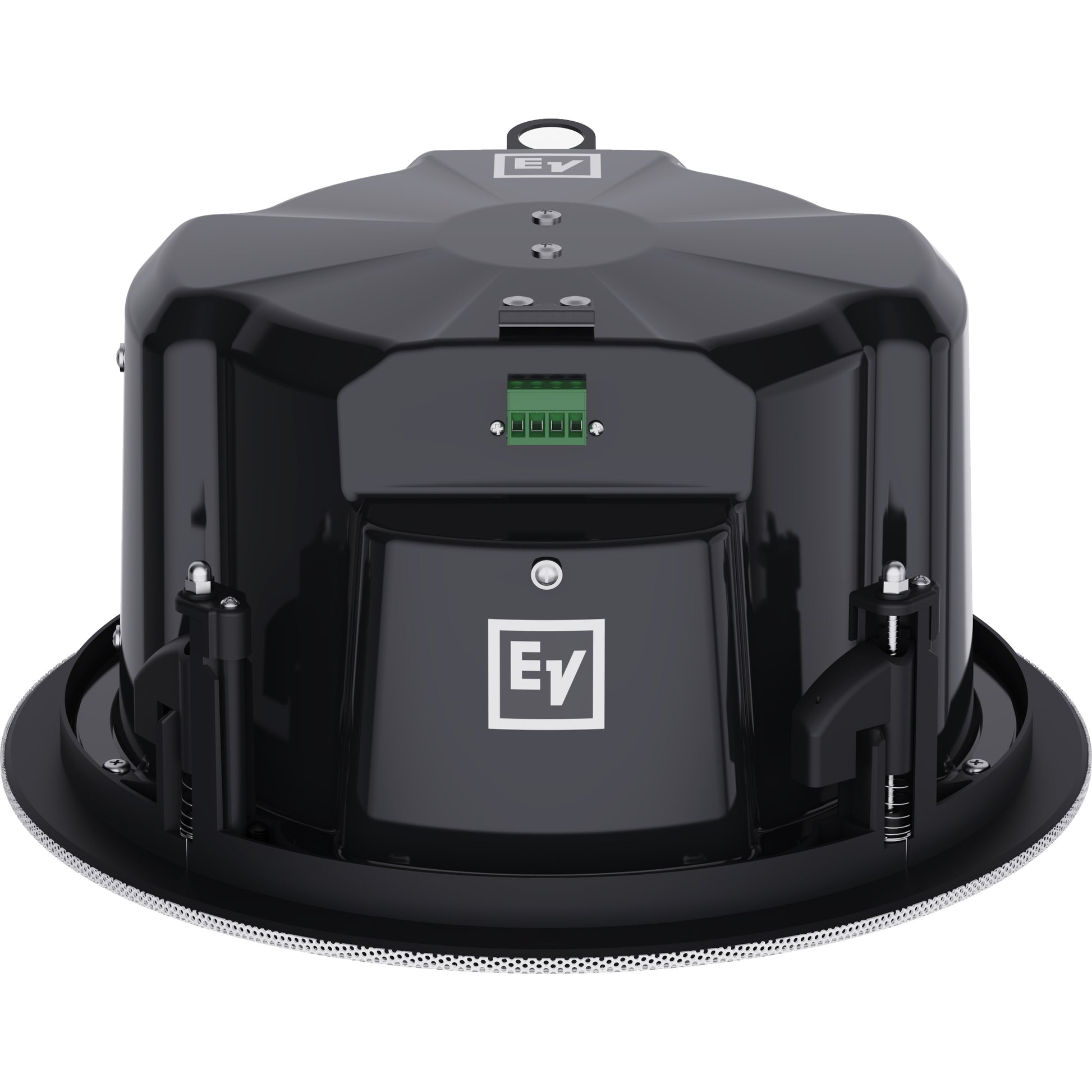

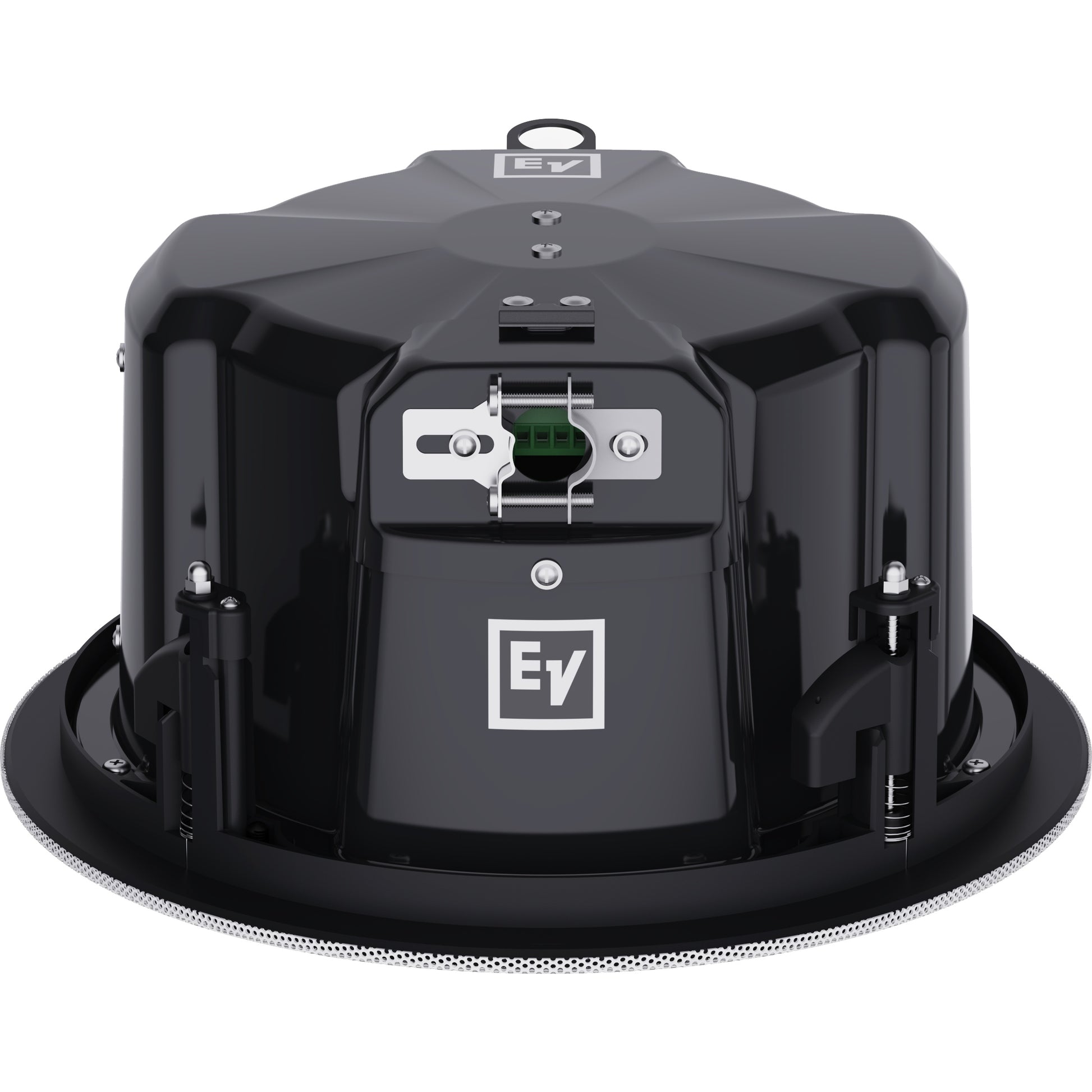

  • 4-Pin Euroblock Connection - Supports direct wiring and pass-through to additional speakers.
Log in or register for YOUR best price

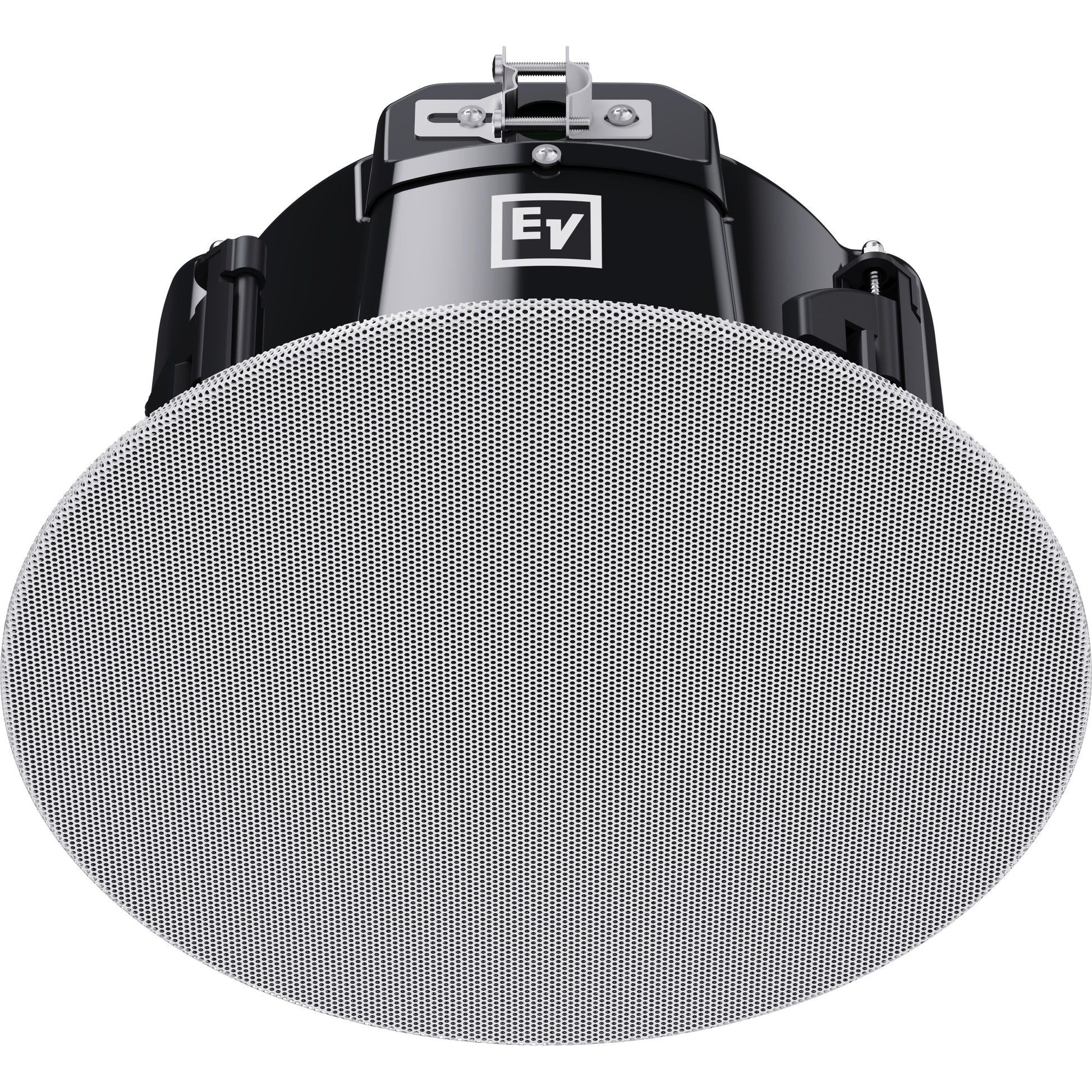

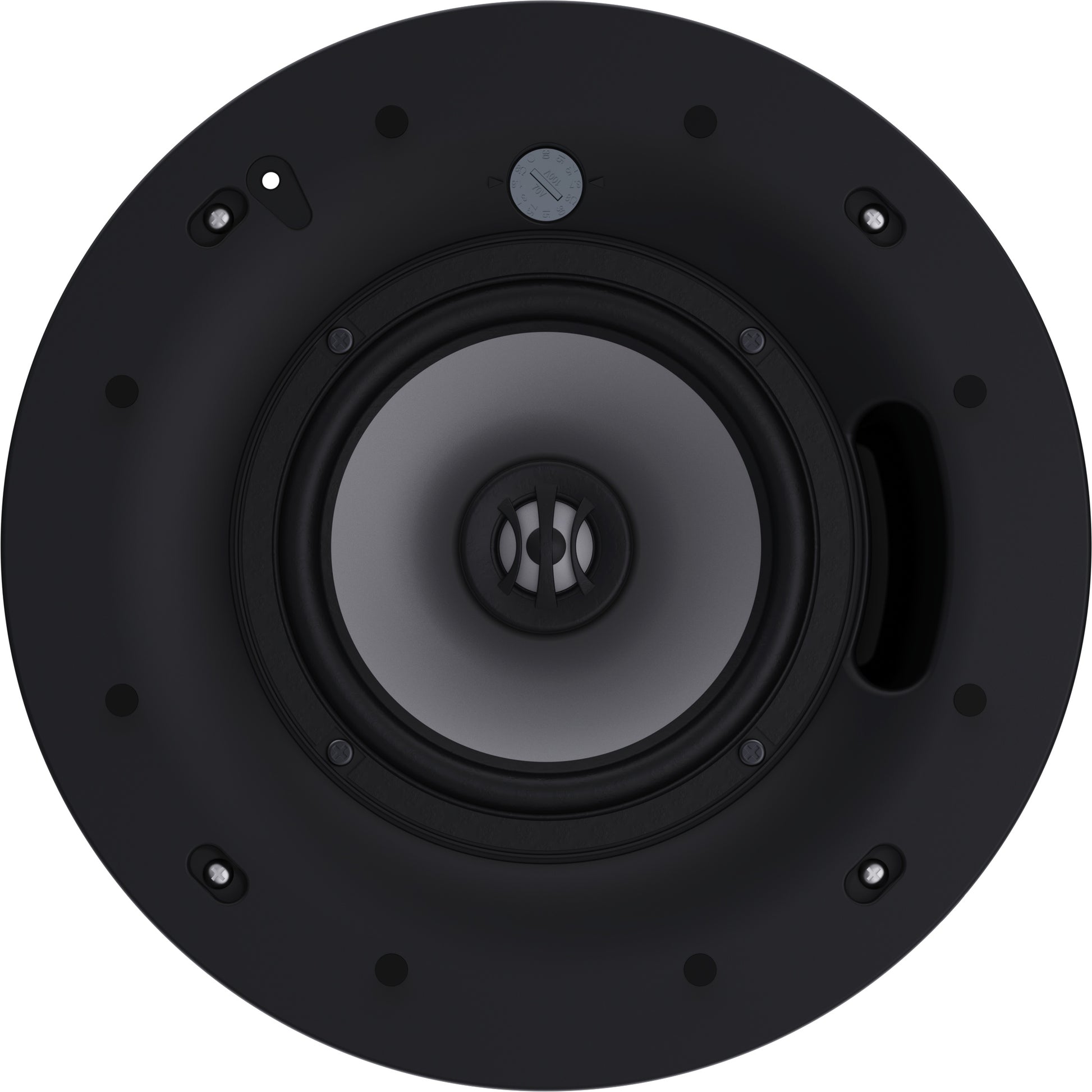

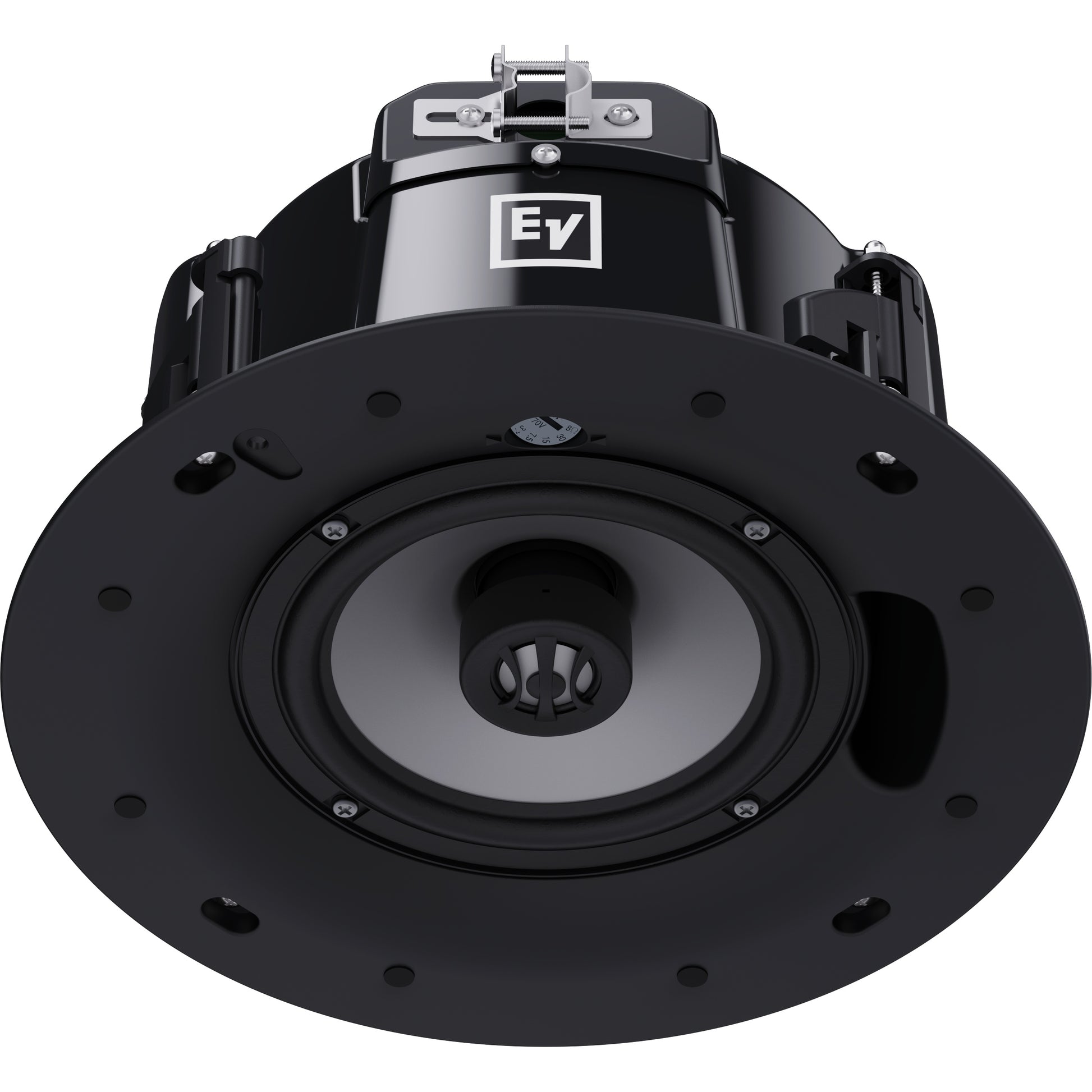

The Electro-Voice EVID-C6.2-G2 is a 6.5-inch coaxial two-way ceiling speaker designed for distributed audio systems. It supports 70V/100V operation with selectable transformer taps and an 8-ohm bypass.

SwiftLock mounting, a front baffle tap selector, and the included tile bridge and mounting ring support efficient installation. Its low-profile enclosure, bezel-less design, and easy-attach grille suit finished ceiling environments.

View full details

Specifications

Performance
Frequency Range (-10 dB)
65 Hz - 20,000 Hz
Maximum SPL (Continuous)
109 dB
Maximum SPL (Peak)
115 dB
Sensitivity (1 W, 1 m)
90 dB SPL 1 W, 1 m
Coverage Angle Conical
110u00b0
Power Handling (Continuous)
80 W
Power Handling (Peak)
320 W
Long Term Power Handling (Continuous)
70 W
Long Term Power Handling (Peak)
280 W
Recommended High Pass
60 Hz
Electrical
Nominal Impedance (Low Z)
8 ohm
Transformer Taps 70 V Line
30 W; 15 W; 7.5 W; 3.75 W; 1.88 W
Transformer Taps 100 V Line
30 W; 15 W; 7.5 W; 3.75 W
Transducers
LF Transducer Size
6 in
HF Transducer Size
1 in
Construction & Connectivity
Material
Steel
Grille Material
Powder coated steel
Connector Type
4-pin Euroblock
Wire Size
12AWG (maximum)
Wire Diameter
3.3 mm2 (maximum)
Color
White; Customized colors
Color (RAL)
RAL 9003 Signal white
Mounting & Dimensions
Mounting Cutout (in)
10.7 in
Mounting Cutout (mm)
272 mm
Dimensions (u00d8 x D) (in)
11.9 in x 6 in
Dimensions (u00d8 x D) (mm)
302 mm x 153.8 mm
Mounting Depth (in)
5.9 in
Mounting Depth (mm)
163 mm
Ceiling Thickness (in)
0.5 in - 1.5 in
Ceiling Thickness (mm)
12.5 mm - 38 mm
Weight
9 lb
Weight (kg)
4.1 kg
Shipping Weight
22 lb
Shipping Weight (kg)
10 kg
Environmental & Compliance
IP Rating
IP34
Weatherization
Indoor
Operating Temperature (u00b0F)
32 u00b0F - 122 u00b0F
Operating Temperature (u00b0C)
0 u00b0C - 50 u00b0C
Safety Agency Ratings
UL 1480A, safe for use in airhandlingspaces per UL 2043, CSA22.2 205 certified, IEC 62638"
