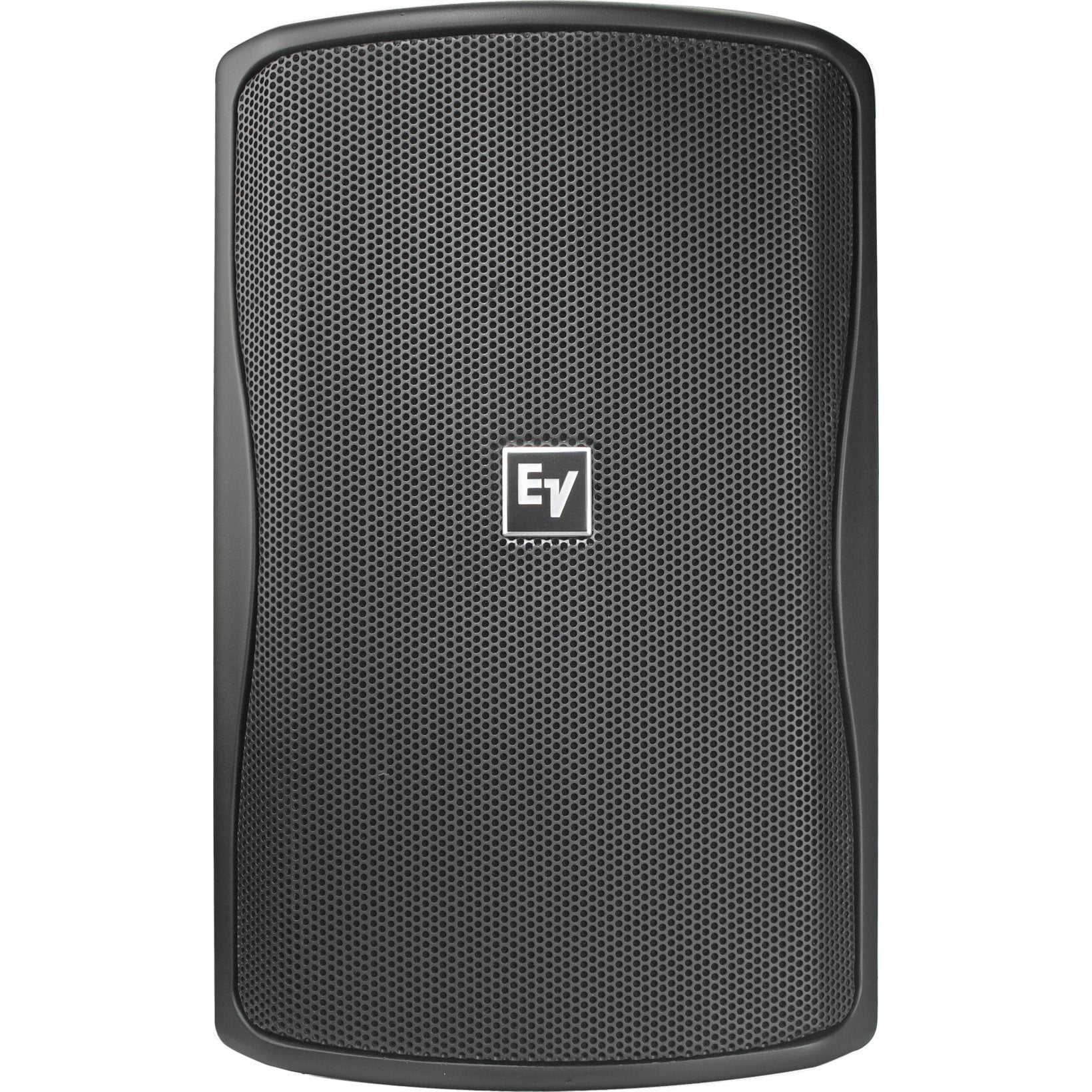

Electro-Voice ZX1i-90T Full Range Indoor/Outdoor Loudspeaker| Color: Black

Electro-Voice ZX1i-90T Full Range Indoor/Outdoor Loudspeaker| Color: Black

SoundPro Item: 74023 | Part Number: ZX1I-90T

$948.00
$948.00 $948.00
Your Price Sold out
MSRP: $948.00 | MAP: $948.00

In stock and ready to ship

  • Integrated QuickSAM Heavy-Duty Strong-Arm
  • Mounting Bracket Included
  • Patented ASC (Automatic Saturation
  • Compensation) on Transformer Versions
  • EV8L 8 inch Weatherized Cone High-Output LF
  • Transducer
  • DH2005 1 inch Exit True Compression Driver
  • EN54-24 type B certification 1438/CPR/0323
  • with TC-ZX1i cover (Sold separately) installed
Log in or register for YOUR best price
View full details

Specifications

Frequency Response (-3 dB)
60 Hz - 20 kHz
Frequency Range (-10 dB)
48 Hz - 20 kHz
Rec. Hi-pass Frequency
40 Hz
Axial Sensitivity
94 dB (1W/1m)
Max Calculated SPL
123 dB
Coverage (H x V)
90 x 50
Rated System Power
200 W Cont., 400 W Prog., 800 W Peak
LF Transducer
EV8L, 203 mm (8 in) Driver
HF Transducer
DH2005, 25 mm (1 in) Exit Compression Driver
Crossover Frequency
1.7 kHz
Nominal Impedance
8 ?
Minimum Impedance
6 ?
Connectors
4-Pin Phoenix Connector
Enclosure Material
ABS resin
Suspension
Integrated QuickSAM Heavy-Duty Strong-Arm Mounting Bracket
Grille
Polyester Powder Coated, 18GA Galvanized Steel
"T" Version Wattage Taps
"70V - 6, 12.5, 25, 50, 100, 8 ? by
p0V - 12.5, 25, 50, 100, 8 ? bypass"
Dimensions (H x W x D)
451 mm x 282 mm x 263 mm (18 in x 11 in x 10 in)
Net Weight
8.4 kg (18.5 lb) without Transformer
10.4 kg (23.0 lb) with Transformer
Shipping Weight
10.2 kg (22.5 lb) without Transformer
12.3 kg (27.0 lb) with Transformer
