Specifications
Electrical
THD+N
-100dB @ 8dB gain
Analog to Digital Converter THD+N
-110dBDynamic Range: 120dB
Digital to Analogue Converter THD+N
-115dBDynamic Range: 130dB (A-Weighted)
Audio
Phantom Power
Yes
Auto Gain
Yes

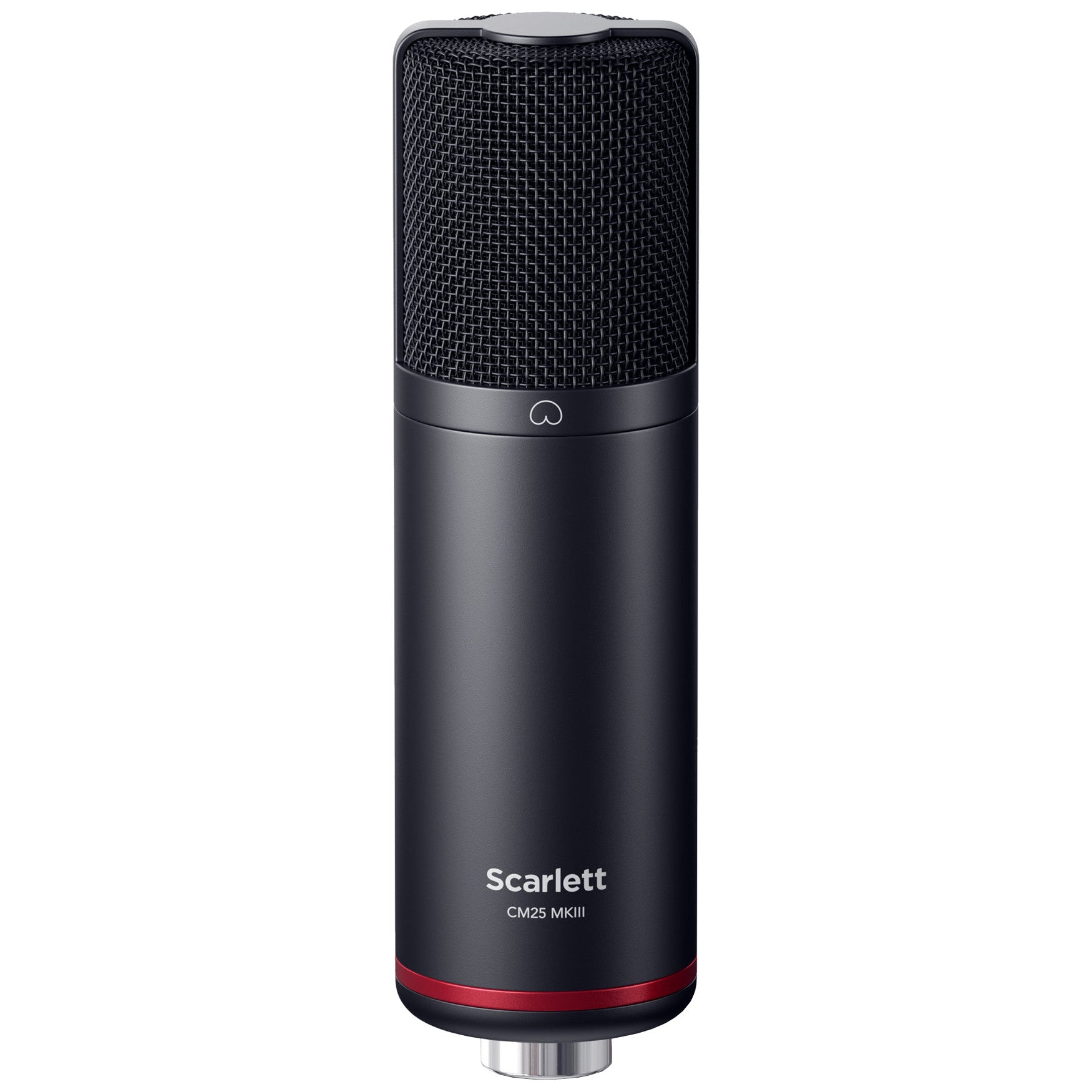

Microphone
CM25 MKIII Condenser
Frequency Response
20-20kHz ± 0.06dB
Maximum Input Level
16dBu
Impedance
3kΩ
Maximum Output Level
16dBu
Connectivity
Instrument Inputs
2
Line Inputs
2
Line Outputs
2
Headphone Outputs
1
XLR Cable
3m
Power USB
900mAExternal (Optional): 4.5W
Construction
Form Factor
Desktop
Controls
Protocol
USB 2.0
General
Number of Microphone Preamps
2
Air Mode
Yes
Clip Safe
Yes
Loopback
Yes
Connectivity
USB Type-C
Simultaneous I/O
4 x 2 (including Loopback inputs)
A/D Resolution
24-bit/192 kHz
Bus Powered
Yes (900mA)

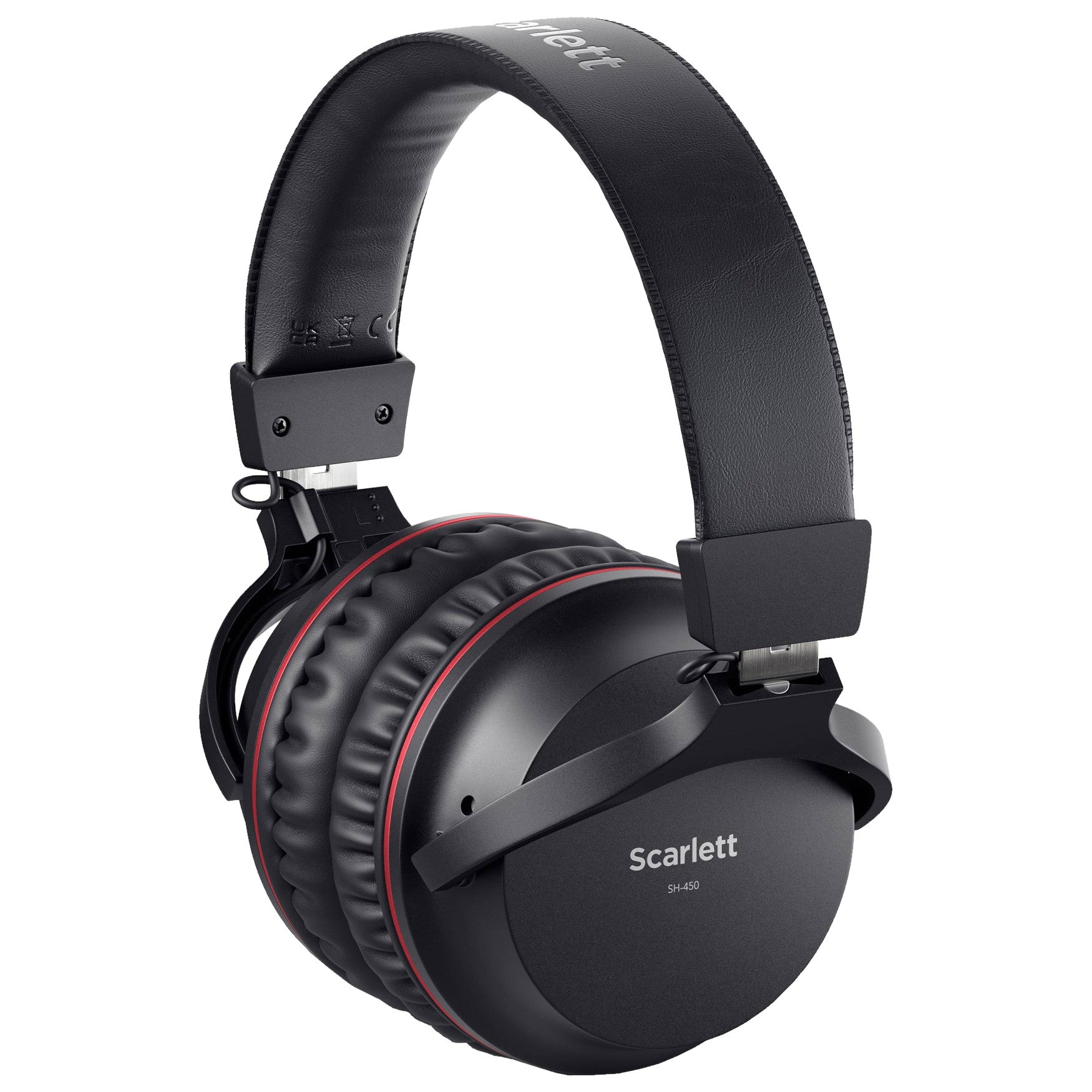

Headphones
SH-450 Closed-back
Supported Sample Rates
44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Dynamic Range
116dB (A-Weighted)
Noise EIN
-127dBu (A-Weighted)
DSP Engine
Gain Range
69dB
