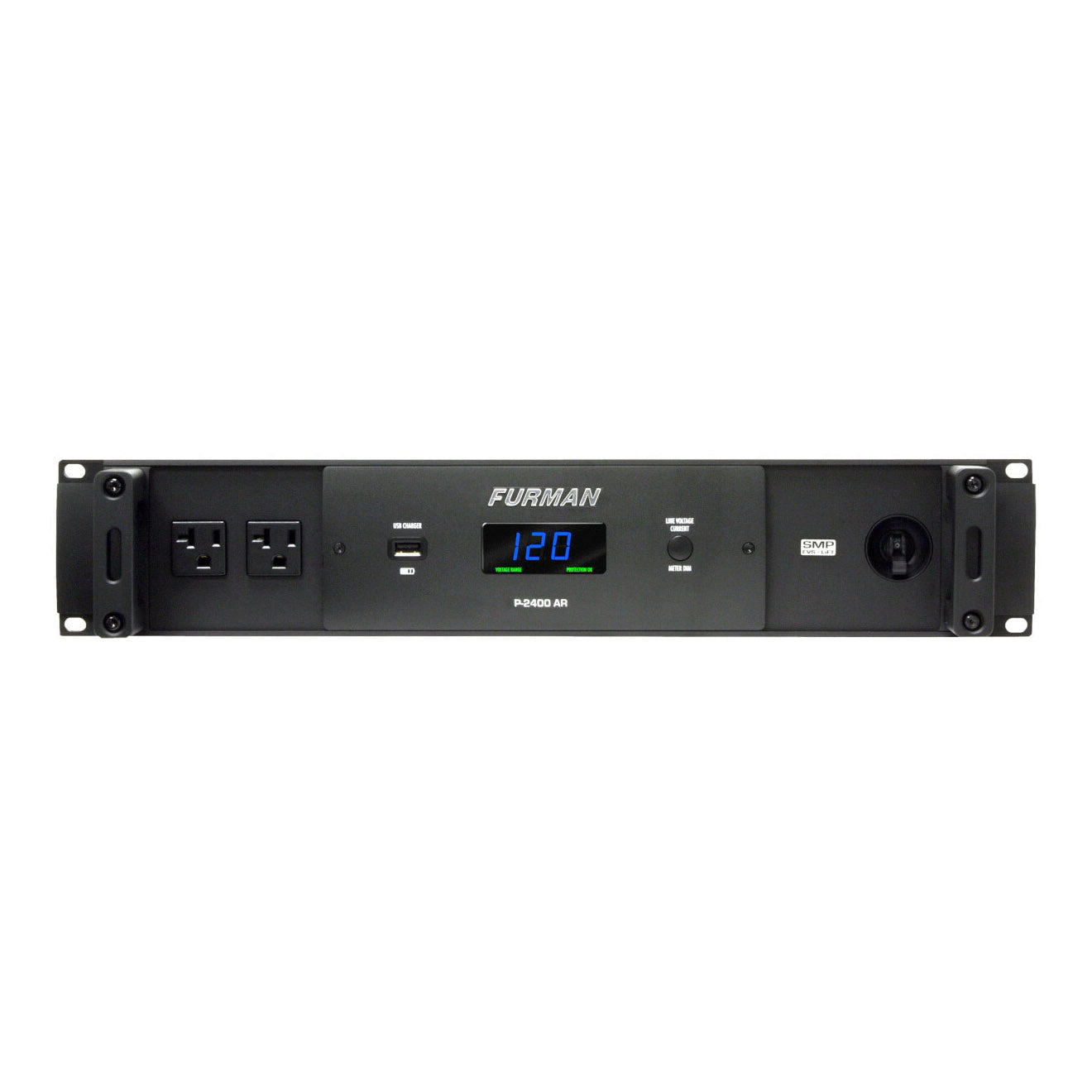

Furman P-2400 AR 20A Voltage Regulator/Power Conditioner
Furman P-2400 AR 20A Voltage Regulator/Power Conditioner
SoundPro Item: 29082 | Part Number: P-2400 AR
Usually ships in 5-7 business days
- True RMS Voltage Regulation
- Surge Protection
- Noise Filtration
- Voltage Protection
- Diagnostic Lights
- Voltmeter / Ammeter
- Isolated Banks
- USB Charger
- 20 Amp Rating
- 14 Total Outlets
The 20 amp P-2400 AR delivers a stable 120 volts of AC power to protect equipment from problems caused by AC line voltage irregularities such as sags, brownouts, or overvoltages - all of which can cause sensitive electronic equipment to malfunction or sustain damage.
The P-2400 AR accepts input voltage between 97V-137V and transforms it to a constant output of 120V, ±5V. Voltages beyond that range may also be converted to usable levels, depending on the range variance. With its robust 20A capacity, the P-2400 AR is ideal for high-current equipment such as power amplifiers or powering A/V racks in large installations.
Additionally, the P-2400 AR is a full-featured power conditioner that filters and purifies AC power, reducing line noise and ensuring optimum performance. Not only will your equipment perform better with Furman's Linear Filtering Technology (LiFT), but it will also be fully protected by our exclusive Series Multi-Stage Protection (SMP) and Extreme Voltage Shutdown (EVS). This circuitry provides the highest level of power protection available.
- General
- Family: Prestige Series
- Line Voltage: 120 (Volts)
- Number of Outlets: 14
- Number of Isolated Banks: 2
- Outlet Descriptions: All 14 outlets regulated and conditioned – 12 on the rear panel and 2 on the front
- Rack Mountable: Yes
- Rack Ears Included: Yes
- Front Panel Meter(s): LED voltmeter/ammeter displays incoming voltage and input current draw
- Front Media Light(s): No
- ControlFront panel
- – On/Off switch
- – Voltage meter dimmer button
- Voltage Regulation: Regulation capture range:97 VAC to 137 VAC
- Compliancec: ETLus
- USB Charging: 1 front panel USB charger
- Low Voltage Trigger: N/A
- AC Power Cord: 10 ft. captive 3/12 AWG, black cord with NEMA 20 plug
- Dimensions (WxDxH): 19x12x3.5"
- Weight: 39 lbs
- Power Consumption: 13 Watts
- AC Protection
- AC Protection Technology: True RMS Voltage Regulation
- Extreme Voltage Shutdown
- Non-sacrificial protection with zero ground contamination
- Under-Voltage Shutoff: 90V
- Over-Voltage Shutoff: 145 VAC
- Maximum Current Rating: 20 (Amps)
- Initial Clamping Level: 188 VAC peak @ 3,000 Amps
- Filtration
- Filtration Technology: LiFT
- Filtration Rating
- 10 dB @ 10KHZ
- 40 dB @ 100 KHZ
- 50 dB @ 500KHZ
- Signal Line Protection: No
- Shipping Info
- Dimensions (LxWxH): 23.9x22.8x10.4"
- Weight: 45.4 lbs
- Response Time1 Nanosecond
- Maximum Surge Current6,500 AMPS
