Specifications
Audio
Band
UHF
Frequency Band
524-547 MHz (CODE B)
Transmission
Mono
Audio Quality
24-bit / 48 kHz
Frequency Response
20 Hz – 20 kHz (dependent on mic/input)
Dynamic Range
110 dB
Sensitivity
-88 dBm
T.H.D.
0.2%
Latency
<3 ms
Channels
20
Performance
Operating Range
Up to 100 ft (30 m)
RF Output Power
10 mW
Battery Life
Approx. 5 hours

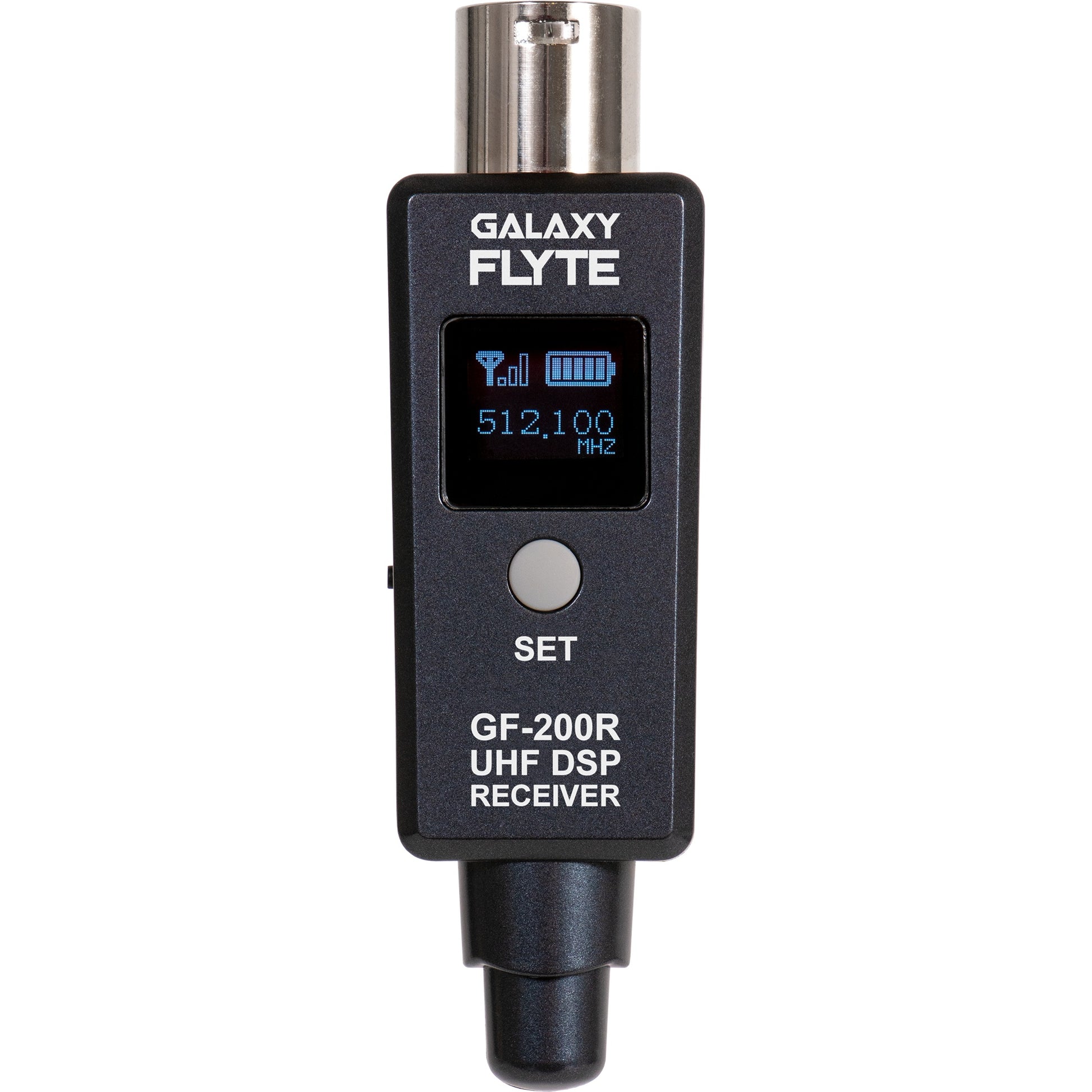

Receiver (GF-200R)
Connector
XLR Male
LCD Display
Frequency, Battery Life, RF Power
Power Supply
3.7V 1000mA Lith-Ion internal battery
Battery Life
About 5 Hrs. dependent on power setting
Dimensions
Receiver Length
1.21"
Receiver Width
0.95"
Receiver Height
4.1"
Weight
Receiver Weight
1.84 oz (52g)
Product Weight
0.115 lbs
Shipping
Package Length
7.25"
Package Width
5.25"
Package Height
3.5"
Package Weight
1 lbs
Included Items
What's In The Box
Receiver only
