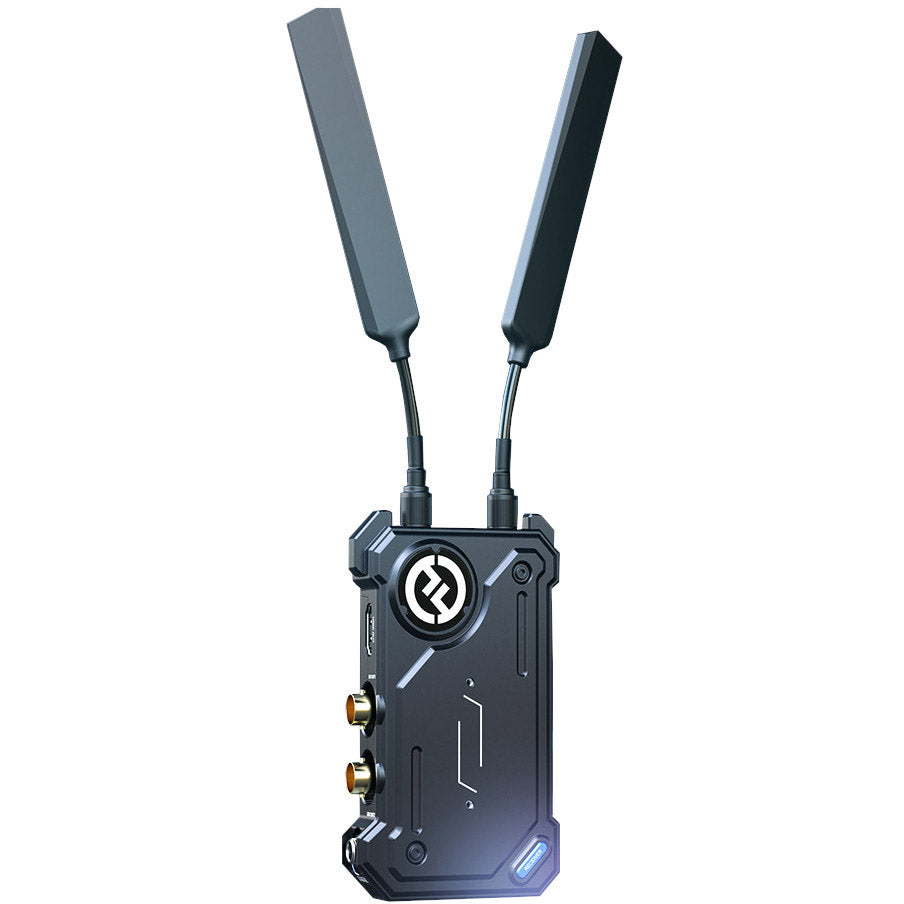

- Transmitter
- Interfaces
- Antenna Interface (RP-SMA Male)
- HDMI Input (Type A Female)
- SDI Input
- SDI Loopout
- DC Input
- USB-C
- Power Supply
- DC Power Input: 6~16V
- USB-C Power Supply: 5V/2A
- Battery Power Supply: 6-16V
- Power: <9W
- Weight: 214g (without exterior antenna)
- Dimensions (LxWxH): 115x70x32mm (battery plate excluded)
- Input/Output Video Format
- HDMI
- 480p60576p50720p50/59.94/60
- 1080i50/59.94/60
- 1080p23.98/24/25/29.9p301080p50/59.94/60
- SDI
- 1080p60/59.94/50 (Level A)
- 1080p60/59.94/50 (Level B)
- 1080i60/59.94/50
- 1080p30/29.97/25/24/23.981080psf25
- 720p60/59.94/50
- 1080psf24/23/.98
- Frequency: 5.1GHz~5.8GHz
- Transmission Power: Maximum 22dBm
- Receiver Sensitivity: /
- Transmission Latency: As low as 40ms
- Bandwidth: 20MHz
- HDMI
- Interfaces
- Receiver
- Interfaces
- Antenna Interface (RP-SMA Male)
- HDMI Input (Type A Female)
- SDI Output*2
- DC Input
- USB-C
- Power Supply
- DC Power Input: 6~16V
- USB-C Power Supply: 5V/2A
- Battery Power Supply: 6-16V
- Power: <9W
- Weight: 210g (without exterior antenna)
- Dimensions (LxWxH): 115x70x32mm (battery plate excluded)
- Input/Output Video Format
- HDMI
- 480p60
- 576p50
- 720p50/60
- 1080i50/60
- 1080p24/25/30
- 1080p50/60
- SDI
- 1080p60/50 (Level A)
- 1080i60/50
- 1080p30/25/24
- 1080psf25/24
- 720p60/50
- HDMI
- Frequency: 5.1GHz~5.8GHz
- Transmission Power: /
- Receiver Sensitivity: -80dBm
- Transmission Latency: As low as 40ms
- Bandwidth: 20MHz
- Interfaces
