Specifications
Performance
Latency
0.06s (1080p60 in laboratory conditions)
Range
1,300' (400m) (open, interference-free environment)
Bandwidth
20 MHz (Broadcast: 40 MHz)
Audio/Video
HDMI Output Format
720p50/60, 1080i50/60, 1080p24/25/30, 1080p50/60, 4K30/25/24
Connectivity
HDMI Output
HDMI 1.4b
USB-C
USB 2.0 OTG
DC Input
2.0mm Core Socket
Antenna
SMA Male
Electrical
USB-C Power
5V/2A (not supported in Broadcast mode)
Battery Voltage Range
6.8 – 8.4V
DC Voltage Range
6 – 16V
Power Consumption
< 4W
RF
5 GHz Frequency Band
5.150 – 5.250 GHz, 5.250 – 5.350 GHz, 5.470 – 5.725 GHz, 5.725 – 5.850 GHz
2.4 GHz Frequency Band
2.412 – 2.484 GHz
Receiver Sensitivity
-85 dBm (Broadcast: -80 dBm)
Dimensions
L x W x H
109 x 62.3 x 33.4mm (4.3" x 2.45" x 1.3")
Weight
Net Weight
192g

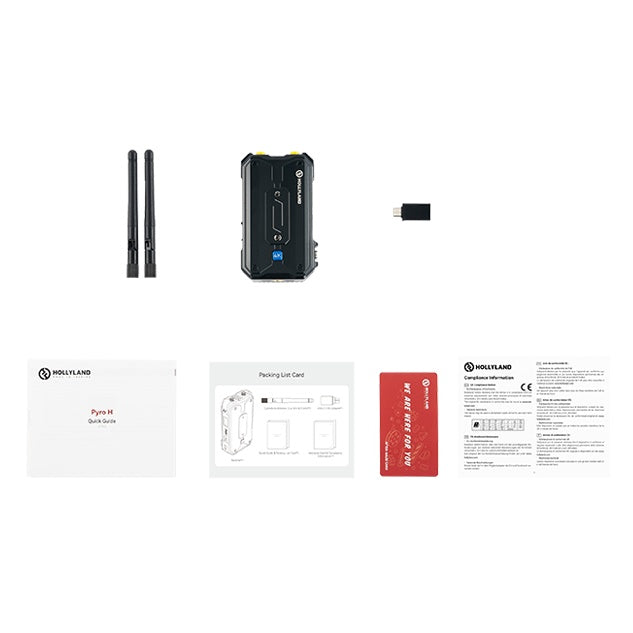

Included Items
Cylindrical Antenna (2.4GHz & 5GHz)
2
USB-C OTG Adapter
1
Quick Guide
1
Warranty Card
1
Packing List Card
1
Compliance Information
1
