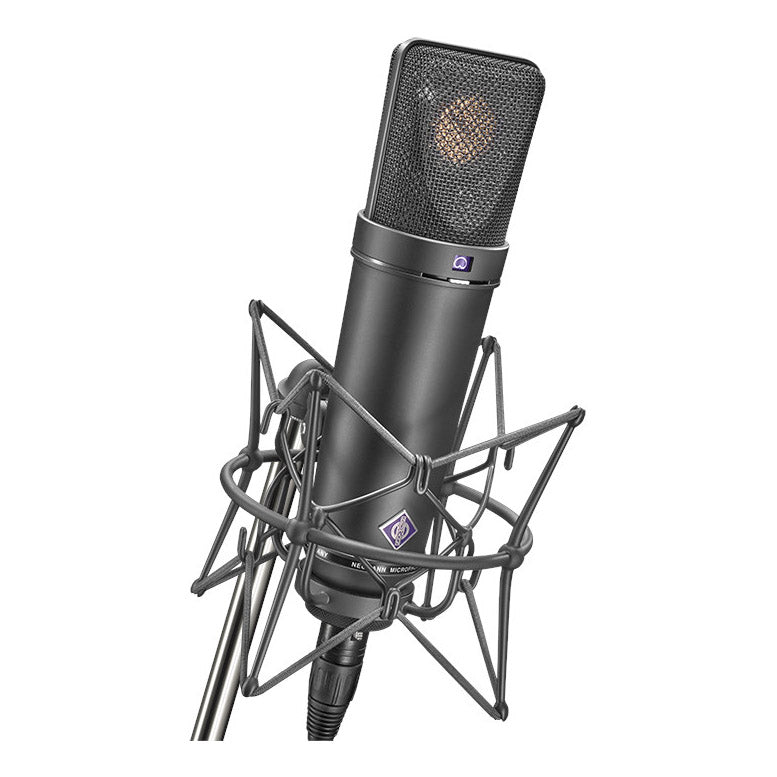

Neumann U 87 Ai Set Z Multi-Pattern Condenser Microphone | Color: Black
Neumann U 87 Ai Set Z Multi-Pattern Condenser Microphone | Color: Black
SoundPro Item: 34542 | Part Number: U 87 AI MT SET Z
Usually ships in 5-7 business days
- The most widely used studio microphone for 50 years
- Balanced frequency response
- Three polar patterns: omni, cardioid, figure-8
- Switchable low cut and pad
- Very low self-noise
- Classic sound
The U 87 presents a wide range of features and versatility that make it to one of the most desirable mics available. Our users are recognising the microphone immediately by its distinctive design. Well-known for its warm and well balanced characteristics - your perfect choice as vocal microphone for all types of music and speech. The usage as main microphone for orchestra recordings or as spot mic for single instruments make it the most general-purpose microphone - in studios, for broadcasting, film and television.
The U 87 is equipped with a large dual-diaphragm capsule with three directional patterns: omnidirectional, cardioid and figure-8. These are selectable with a switch below the headgrille. A 10 dB attenuation switch is located on the rear. It enables the microphone to handle sound pressure levels up to 127 dB without distortion. Furthermore, the low frequency response can be reduced to compensate for proximity effect.
- Transducer TypeCondenser
- Polar Patterns (selectable)Cardioid, Figure-8, Omnidirectional
- Frequency Range20 Hz - 20 kHz
- Rated Output Impedance200 ohms
- Rated load impedance 1 kohms
- Sensitivity at 1 kHz into 1 kohm 20/28/22 mV/Pa ± 1 dB (Omni/cardioid/8)
- Equivalent noise level, CCIR 1 26/23/25 dB (Omni/cardioid/8)
- Equivalent noise level, A-weighted 2 15/12/14 dB-A (Omni/cardioid/8)
- Maximum SPL for THD 0.5% 3 117 dB (cardioid)
- Maximum SPL for THD 0.5% with preattenuation 4 127 dB
- Signal-to-noise ratio, CCIR (re. 94 dB SPL) 5 68/71/69 dB (Omni/cardioid/8)
- Signal-to-noise ratio, A-weighted (re. 94 dB SPL) 6 79/82/80 dB (Omni/cardioid/8)
- Maximum output voltage -6 dBu
- Supply voltage (P48, IEC 61938) 48 V ± 4 V
- Current consumption (P48, IEC 61938) 0.8 mA
- Matching connector XLR 3 F
- Weight 500 g
- Diameter 56 mm
- Length 200 mm
- Notes
- 1) according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
- 2) according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
- 3) measured as equivalent el. input signal
- 4) measured as equivalent el. input signal
- 5) according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
- 6) according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
