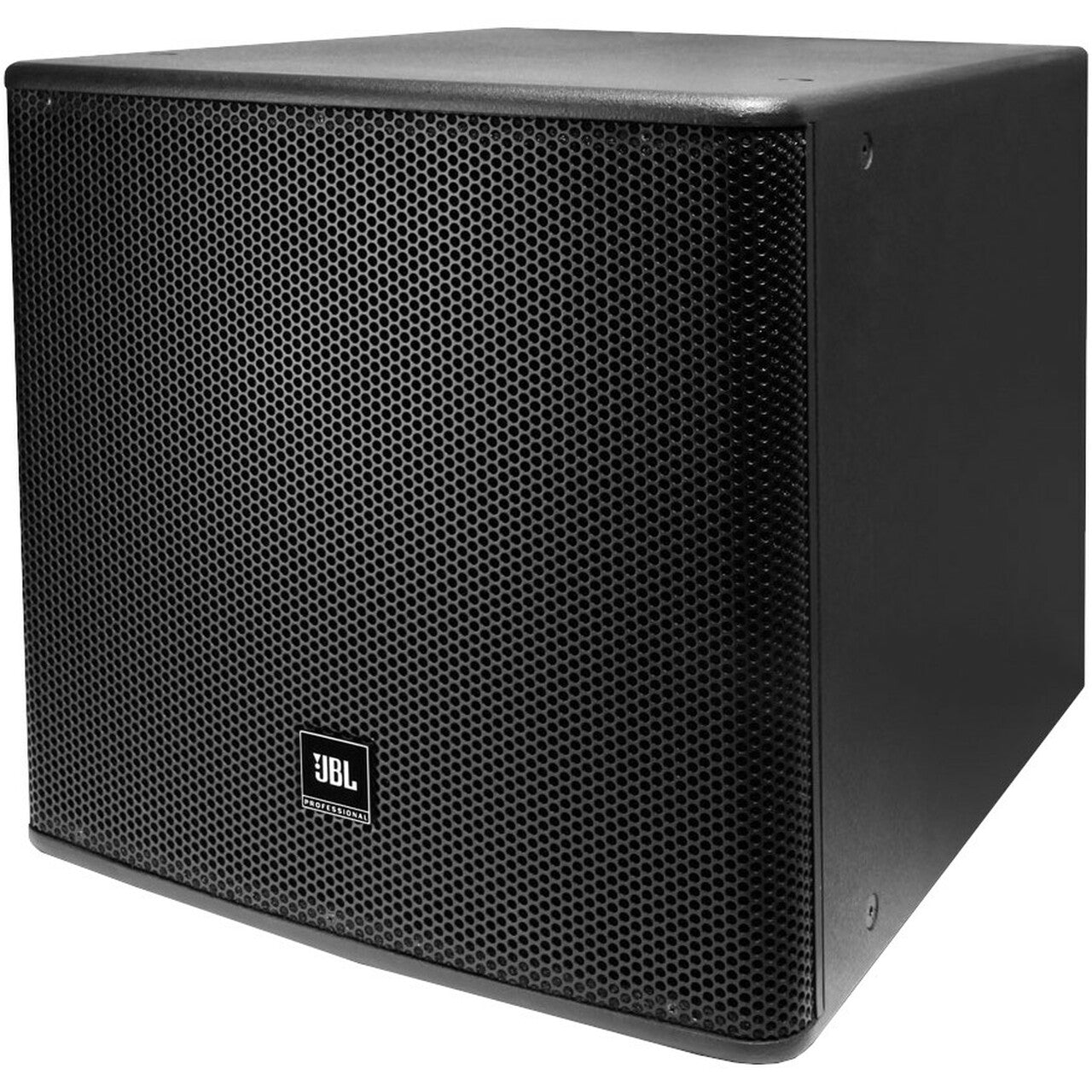

JBL AC118S 18-Inch High Power Subwoofer | Color: Black
JBL AC118S 18-Inch High Power Subwoofer | Color: Black
SoundPro Item: 43231 | Part Number: AC118S
Usually ships in 5-7 business days
- High power and long excursion driver for lower frequency reproduction
- High sensitivity with lower power compression
- Large port for high output and low-frequency reinforcement
- Multiple Attachment Points for Ultimate Flexibility
- Robust 18 mm multiply hardwood with textured black finish
AC118S is a high power subwoofer system comprised of one 459 mm (18 in) low frequency driver in a vented, front-loaded configuration for extended bandwidth. The rectangular cabinet is fitted with M10 threaded suspension points for ultimate flexibility.
As a part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications, AC118S provides a natural low-frequency sound quality.
- Frequency Range (-10dB) 32 Hz - 250 Hz
- Frequency Response (±3 dB) 40 Hz - 250 Hz
- System Sensitivity (1w @ 1m) 95 dB
- Nominal Impedance 8 ohms
- Maximum SPL (1m) 122 dB (128 dB peak)
- System Power Rating
- 600W (2400W peak), 2 hrs (AES rated)
- 450 W/900 W/1800 W (Continuous/Program/Peak) (IEC rated)
- LF Driver 1x 18″ woofer (P/N: 5021800), 457.2 mm (18 in) driver with 75 mm (3 in) voice-coil
- Input Connector Dual Neutrik NL4MP connectors plus covered barrier trip terminals
- Enclosure 18 mm multi-ply hardwood plywood
- Grille Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
- Finish Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
- Suspension Attachment 12 x M10 threaded suspension points
- Dimensions (H x W x D) 548 mm x 561 mm x 720 mm 21.5 in x 22.0 in x 28.3 in
- Net Weight (each) 32.3 kg (71.2 lbs)
- Nominal LF Driver Impedance8 ohms
