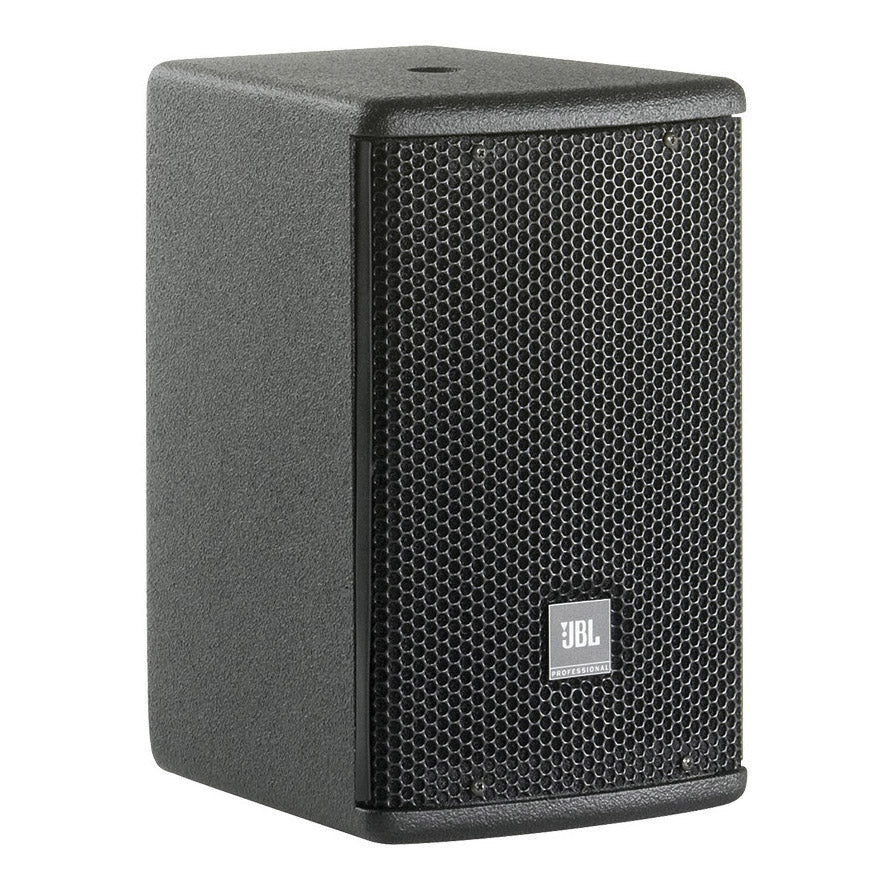

JBL AC15 5.25-Inch Surface Mount Install Speaker | Color: Black
JBL AC15 5.25-Inch Surface Mount Install Speaker | Color: Black
SoundPro Item: 50130 | Part Number: AC15
Usually ships in 5-7 business days
- Priced individually sold in quantities of 2
- Ultra compact enclosure
- 135 mm (5.25 in) LF transducer
- 90° x 90° waveguide with 25 mm (1 in) dome tweeter
- Dual Neutrik NL4 connectors plus screw terminals
- Multiple Attachment Points for Ultimate Flexibility

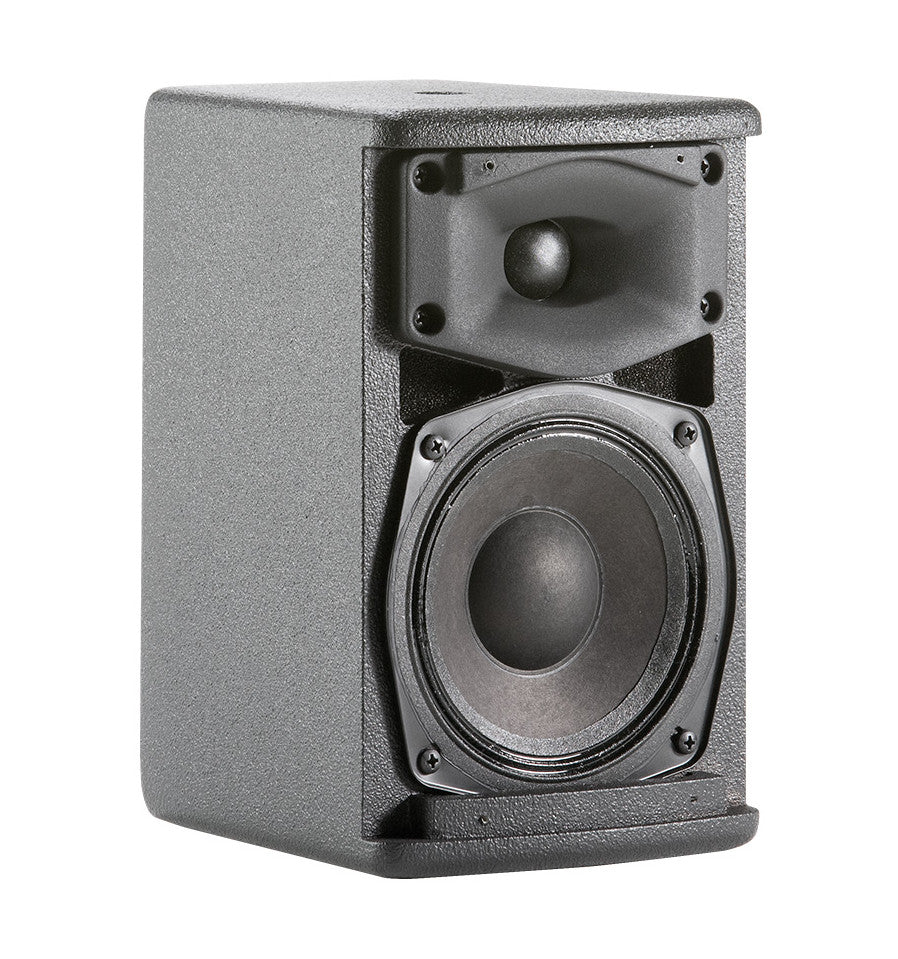

The AC15 is an ultra-compact full-range loudspeaker system designed to provide maximum bandwidth and SPL in a single system package and yet be visually unobtrusive. The enclosure design allows for installation very close to walls and ceilings making it an ideal choice for under balcony, column, or wall mounting. The high frequency device is a 1" dome tweeter integrated into a newly designed 90° x 90° waveguide providing even coverage throughout the intended usage area. The combination exhibits smooth power response resulting in extremely natural voicing. The AC15 utilizes a 5.25" Symmetrical Field Geometry (SFG™) LF Transducer with a copper-clad aluminum edge wound 1.5" voice coil and a copper-capped pole piece that improves performance by reducing voice coil inductance and distortion.
- Frequency Range (-10dB) 80 Hz -20 kHz
- Frequency Response (±3 dB) 90 Hz -18 kHz
- System Power Rating
- 225 W (AES rated)
- 150 W / 300 W / 600 W (Continuous/Program/Peak) (IEC rated)
- Impedance 16 ohms
- Coverage Pattern 90° x 90°
- Dimensions (H x W x D) 241.3 x 150.3 x 177.8mm (9.5 x 5.9 x 7.0in)
- Net Weight (each) 4.7 kg (10.5 lb)
- Crossover Modes Passive
- Maximum SPL (1m) 108 dB
- System Sensitivity (1w @ 1m) 86 dB SPL
- Nominal Section Impedances 16 ohms
- LF Driver 1 x JBL 225J, 135 mm (5.25 in) SFG™ driver with 38 mm (1.5 in) edge wound voice coil
- Nominal LF Driver Impedance 16 Ohms
- HF Driver 1 x JBL 201J, 25 mm (1 in) voice coil dome tweeter
- Enclosure 12 mm exterior grade multi-ply hardwood plywood
- Suspension Attachment 4 x M8 points; 1 top, 1 bottom, 2 rear. 2 x M6 bottom for OmniMount® 20.5 or MultiMount® MM-008-BT
- Environmental Mil-Std 810; IPx3 per IEC529
