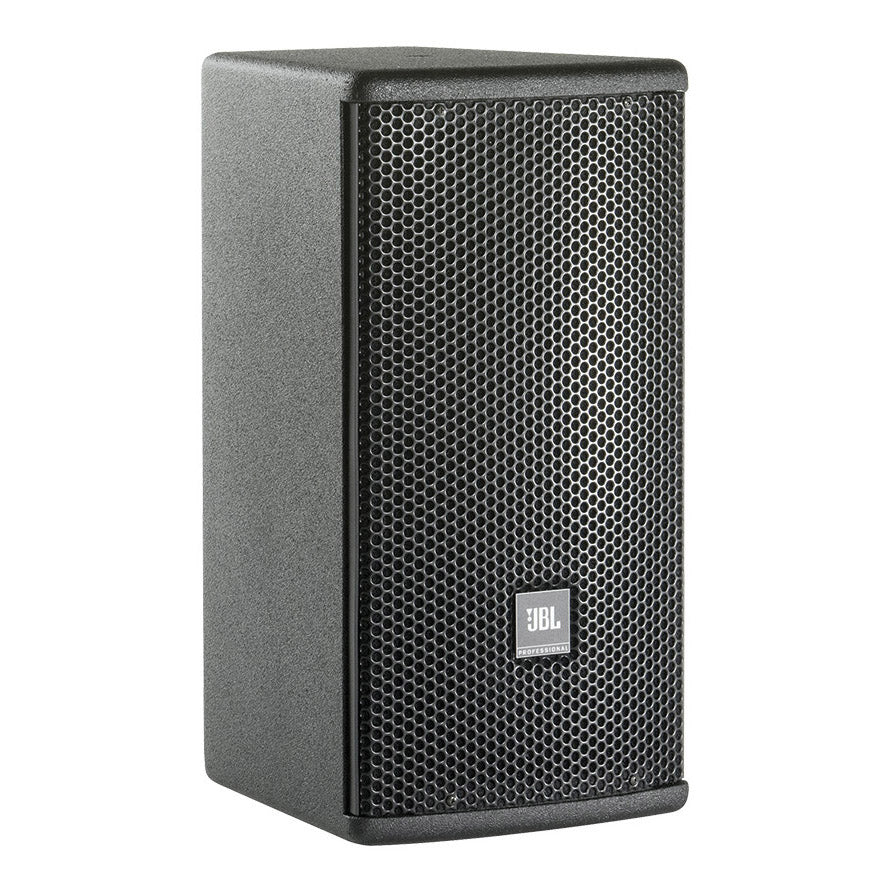

JBL AC16 6.5-Inch Surface Mount Install Speaker | Color: Black
JBL AC16 6.5-Inch Surface Mount Install Speaker | Color: Black
SoundPro Item: 46609 | Part Number: AC16
Usually ships in 5-7 business days
- 1 Exit Compression Driver with 90° x 90° Coverage PT Waveguide
- 165 mm (6.5 in) LF transducer
- Ultra compact enclosure
- 320W Program
- Dual Neutrik NL4 connectors plus screw terminal
- Attachment points for optional U-bracket, third part OmniMount® type bracket and stand mount accessory

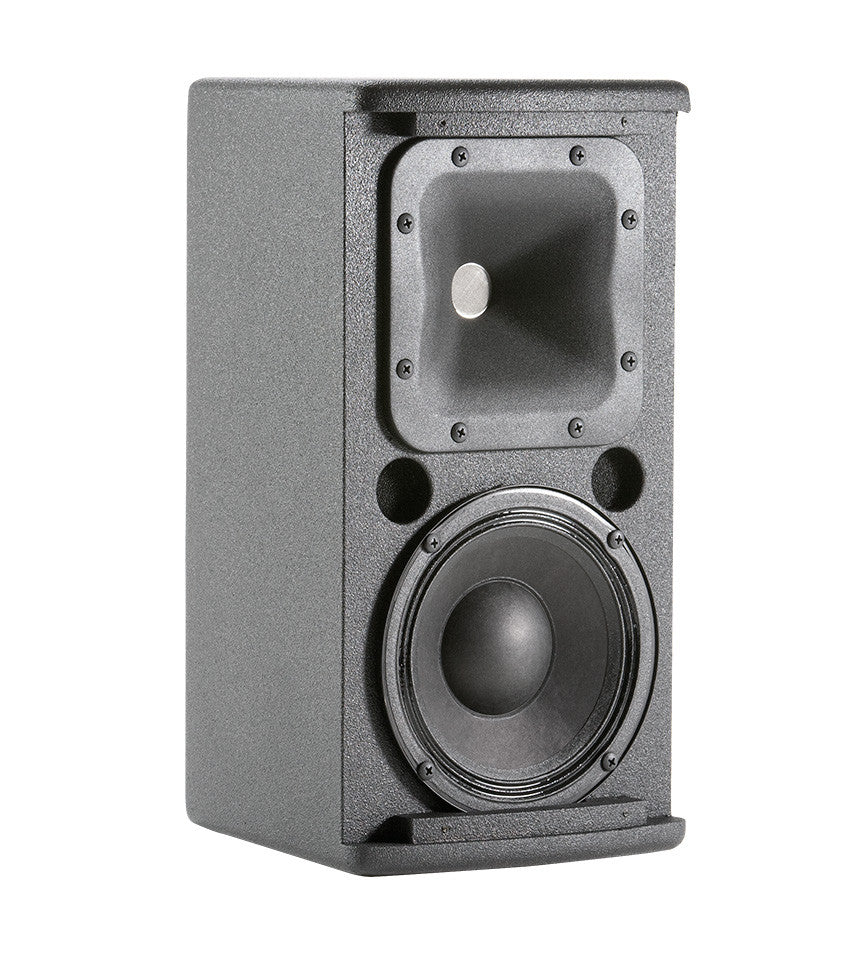

The AC16 is an ultra-compact fullrange loudspeaker system designed to provide maximum bandwidth and SPL in a single system package and yet be visually unobtrusive. The enclosure design allows for installation very close to walls and ceilings making it an ideal choice for under balcony, column, or wall mounting. The high frequency device is a 1" exit compression driver integrated into a newly designed 90° x 90° PT™ (Progressive Transition) waveguide providing even coverage throughout the intended listening area. The combination exhibits smooth power response resulting in extremely natural voicing. The AC16 utilizes a 6.5" Symmetrical Field Geometry (SFG™) LF Transducer with a copper-clad aluminum edge wound 2" voice coil and a copper-clad pole piece that improves performance by reducing voice coil inductance and distortion.
- Frequency Range (-10dB) 55 Hz -20 kHz
- Frequency Response (±3 dB) 65 Hz -18 kHz
- System Power Rating
- 250 W (AES rated)
- 160 W / 320 W / 640 W (Continuous/Program/Peak) (IEC rated)
- Nominal Impedance 16 Ohms
- Coverage Pattern 90° x 90°
- Dimensions (H x W x D) 381.0 x 199.4 x 226.1mm (15.0 x 7.8 x 8.9in)
- Net Weight (each) 7.2 kg (15.8 lb)
- Crossover Modes Passive
- Maximum SPL (1m) 110 dB
- System Sensitivity (1w @ 1m) 90 dB SPL
- LF Driver 1 x JBL 226J, 165 mm (6.5 in) SFG™ driver with 50 mm (2 in) edge wound voice coil
- Nominal LF Driver Impedance 16 Ohms
- HF Driver 1 x 2414H 25 mm (1 in) exit compression driver, 25 mm (1 in) voice coil
- Enclosure 12 mm and 15 mm exterior grade multi-ply hardwood plywood
- Suspension Attachment 5 x M8 points; 1 top, 3 bottom, 1 rear. 4 x M6 rear for OmniMount® 30.0 and MultiMount® MM-022-BT, MM-024-BT, MM-020-CM.
- Environmental Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX.
