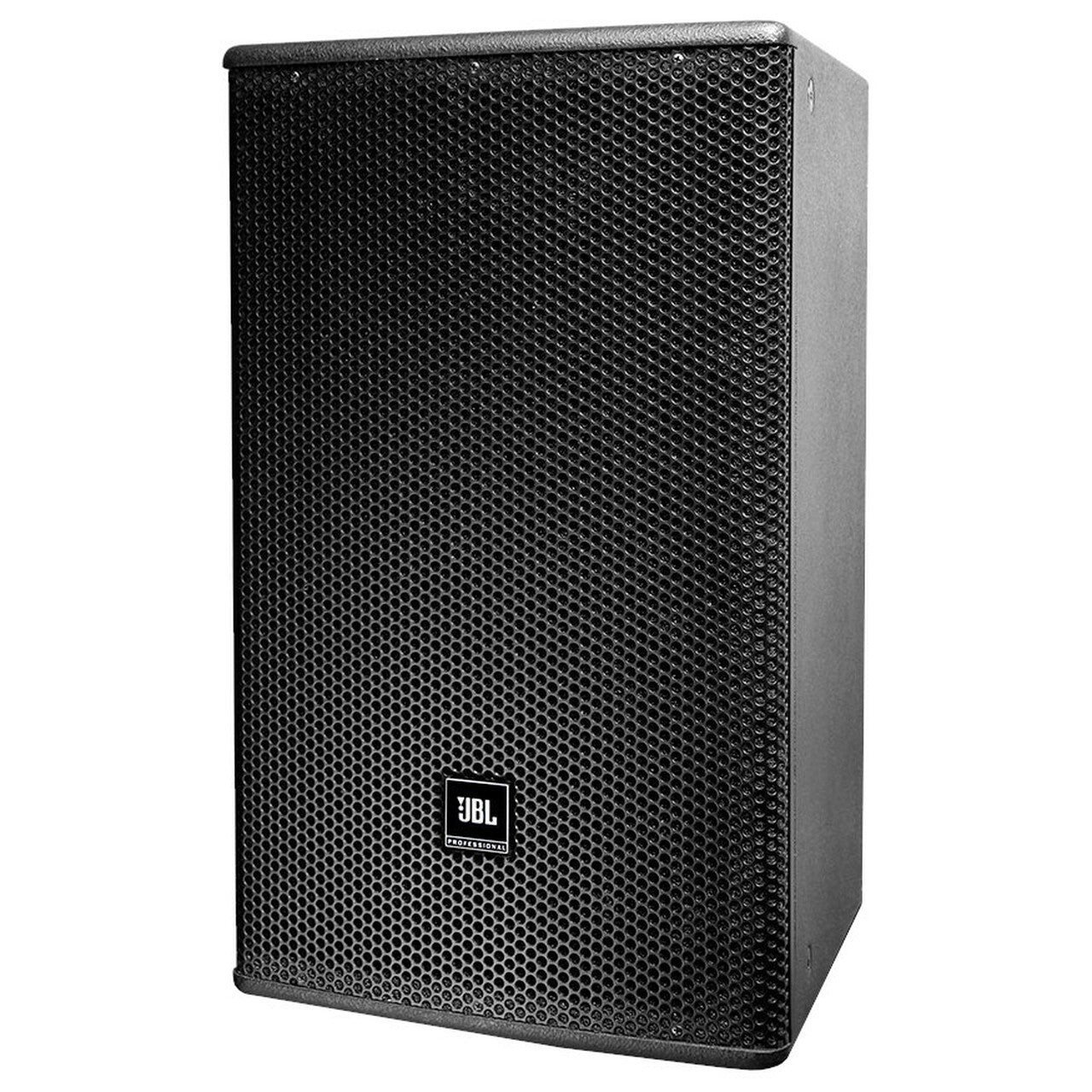

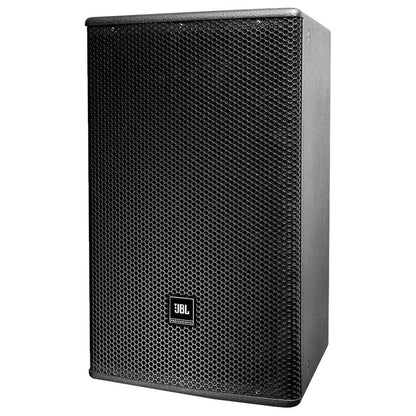

JBL AC266 12-Inch Surface Mount Install Speaker | Color: Black
JBL AC266 12-Inch Surface Mount Install Speaker | Color: Black
SoundPro Item: 97452 | Part Number: AC266
Usually ships in 5-7 business days
- Robust 15mm enclosure with black textured finish
- 310 mm (12 in) LF transducer
- 60° x 60° Waveguide with a 25 mm (1 in) exit 35mm (1.5") diaphragm compression driver
- Dual Neutrik NL4 connectors plus screw terminals
- Multiple attachment points for ultimate flexibility

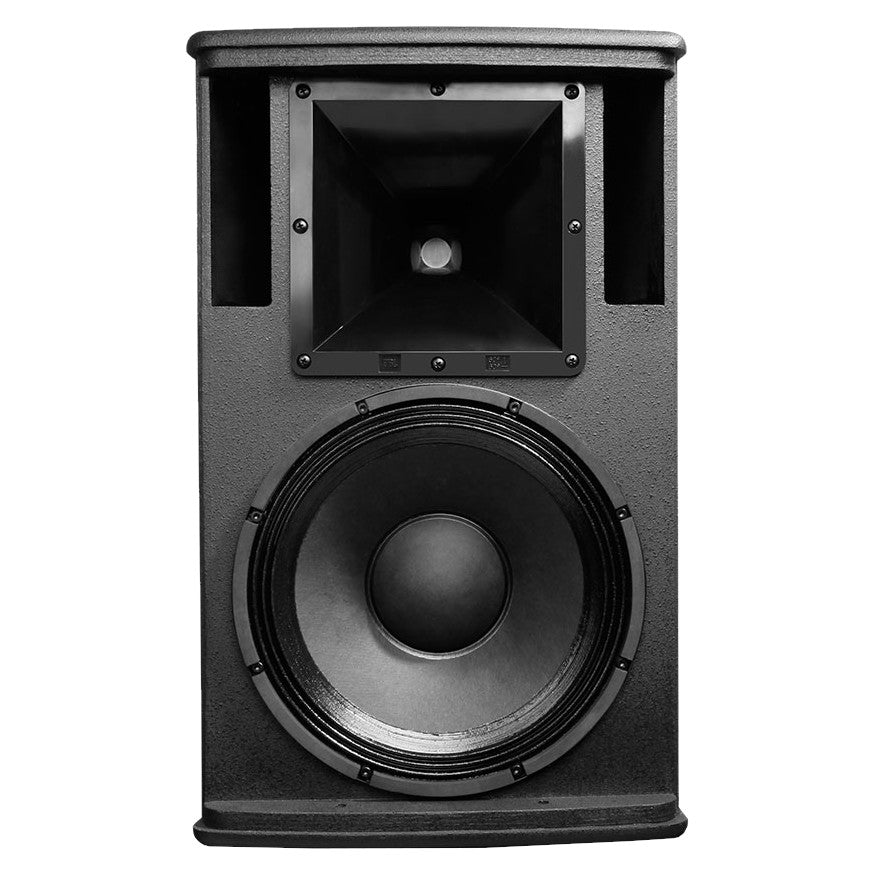

AC266 is a compact 2-way full-range loudspeaker system comprised of one 310 mm (12 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 60° by 60° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC266 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.
- Frequency Range (-10dB) 63 Hz - 20 kHz
- Frequency Response (±3 dB) 80 Hz - 18 kHz
- System Sensitivity (1w @ 1m) 97 dB
- Nominal Impedance 8 ohms
- Maximum SPL (1m) 121 dB (127 dB peak)
- System Power Rating
- 350W (1400W peak), 2 hrs (AES rated)
- 250 W/500 W/1000 W (Continuous/Program/Peak) (IEC rated)
- Coverage Pattern 60° x 60° (H x V)
- Crossover 1.5 kHz
- LF Driver 1 x 12" woofer (P/N: 5050730), 310 mm (12 in) driver with 66 mm (2.5 in) voice-coil
- HF Driver 1 x 2408H-2 driver with 25 mm (1 in) exit/35 mm (1.5 in) voice-coil
- Input Connector Dual Neutrik NL4MP connectors plus covered barrier trip terminals
- Enclosure 15 mm multi-ply hardwood plywood
- Grille Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
- Finish Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
- Suspension / Mounting 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket
- Dimensions (H x W x D) 600 mm x 370 mm x 392 mm 23.6 in x 14.5 in x 15.4 in
- Net Weight 17.4 kg (38.3lbs)
- Crossover Modes Passive
- Nominal LF Driver Impedance 8 ohms
- Nominal HF Driver Impedance 8 ohms
