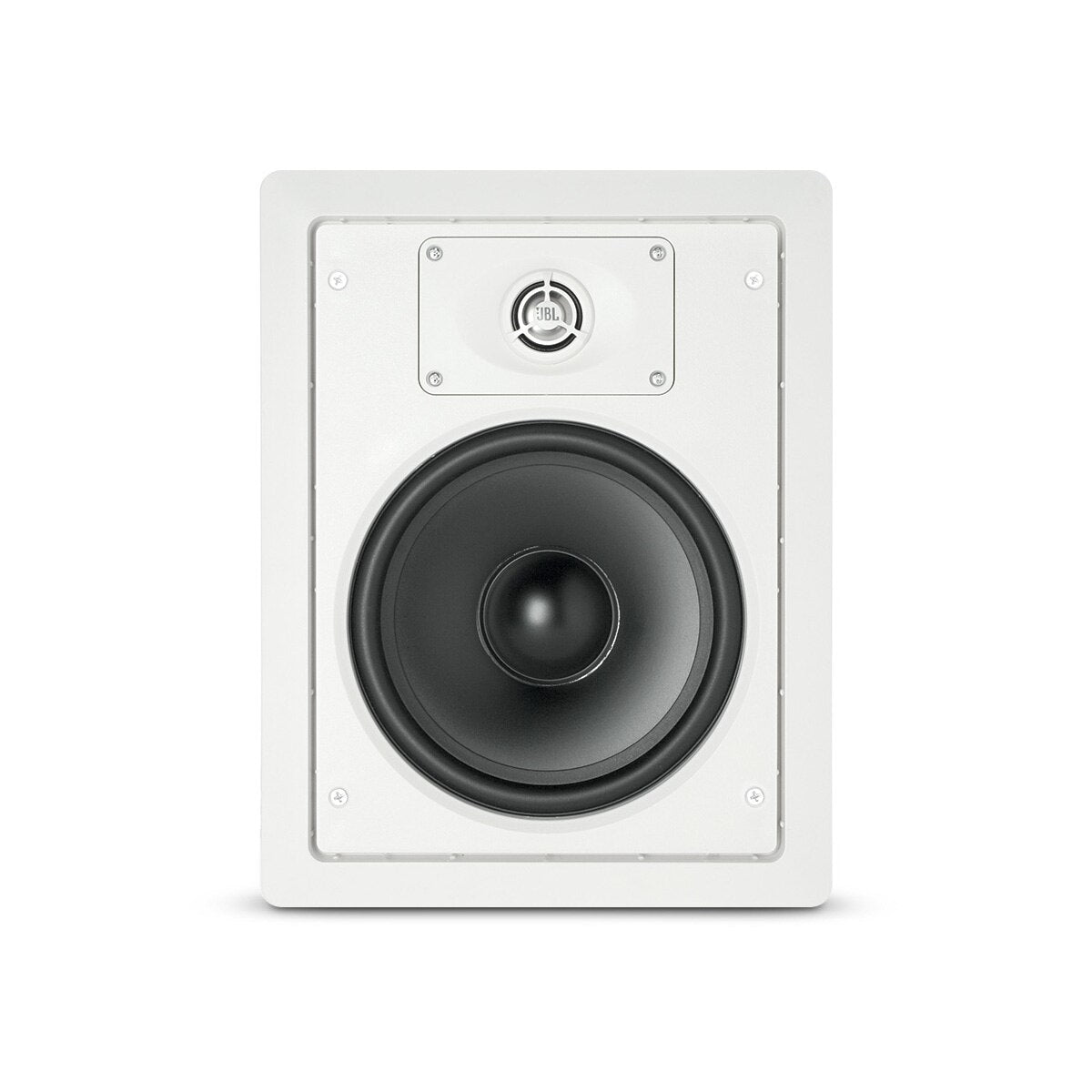

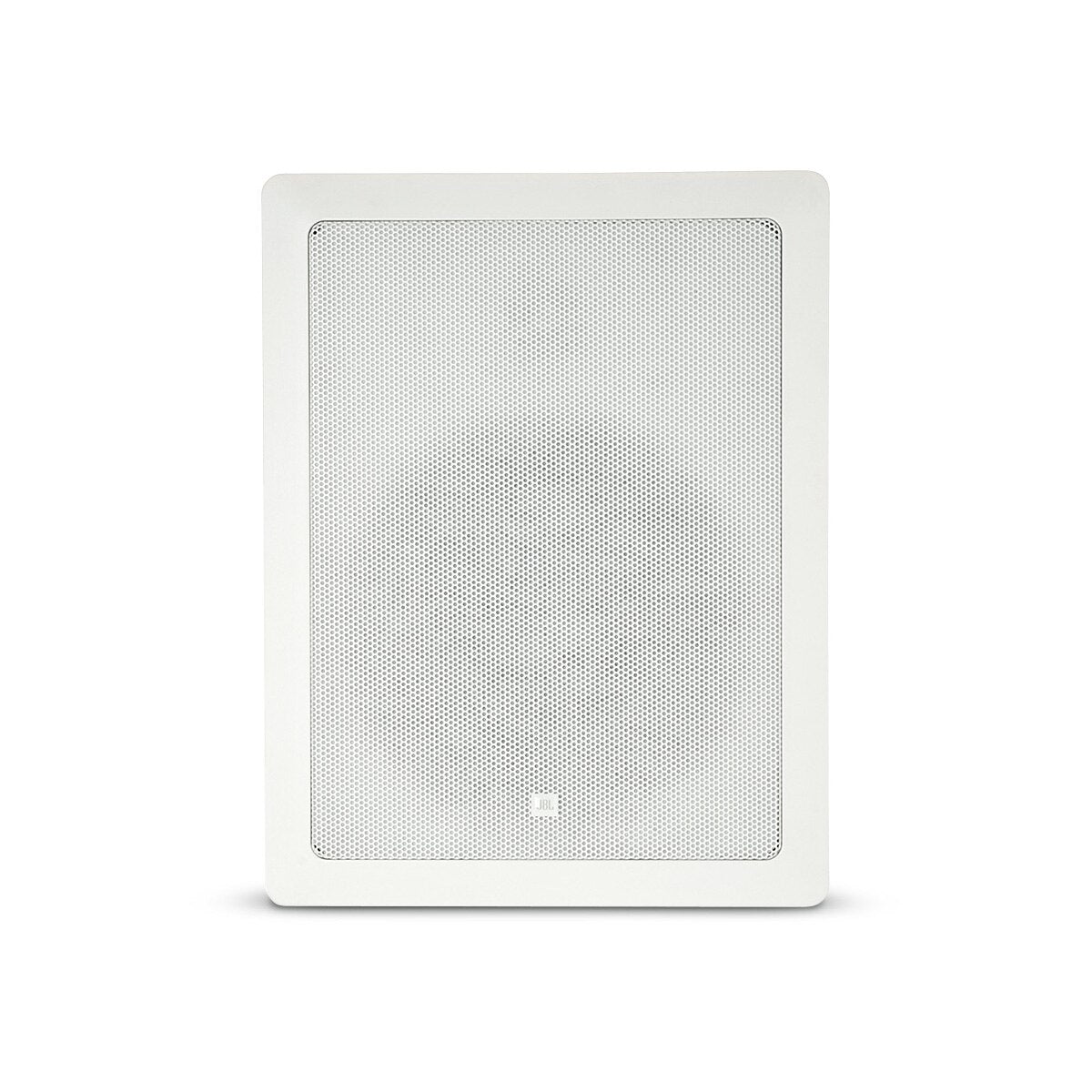

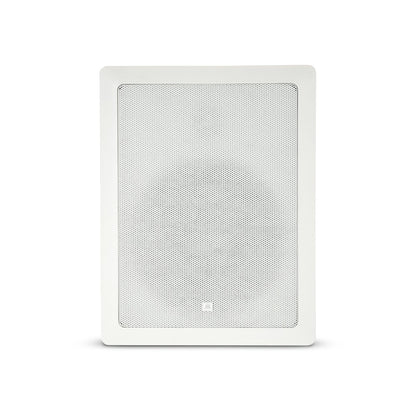

JBL Control 128 WT 8-Inch In-Wall Speaker
JBL Control 128 WT 8-Inch In-Wall Speaker
SoundPro Item: 14766 | Part Number: CONTROL 128WT
In stock and ready to ship
- Priced individually, sold in quantities of 2
- 200 mm (8 in) polymer-coated aluminum-cone woofer with pure butyl rubber surround
- 25 mm (1 in) low-diffraction, swivel-aimable, pure titanium dome tweeter
- High-slope crossover for natural midrange sound
- Extended bandwidth performance of 30 Hz - 20 kHz
The Control 128W is a premium in-wall speaker within the JBL Professional Control Contractor line designed for applications such as foreground music, boardrooms, reception areas, airports, convention centers, cruise ships, retail outlets, restaurants, museums, surround locations, or any critical listening application where top performance from a loudspeaker with minimal visual impact is required.
- Frequency Range 38 Hz - 20 kHz (-10 dB)
- Power Rating 200 W Peak 100 W Continuous Program Power 50W Continuous Pink Noise
- Transformer Taps 70 V: 50 W, 25 W, 12 W & 6 W 100 V: 50 W, 25 W, & 12 W
- Sensitivity 90 dB SPL
- Coverage 180°H x 160°V (ave. 1 kHz – 8 kHz)
- Impedance 8 ohms
- Drivers
- LF: 200 mm (8 in) polymer-coated aluminum cone, pure butyl rubber surround.
- HF: 25 mm (1 in) pure-titanium dome with cloth suspension on low-diffraction swivel-mount with -10 degree aimability.
- Input Connectors Screw-down Euroblock-type connector. Max wire size 14 AWG (1.5 mm)2
- Crossover Network 2nd order Low Pass to the woofer and 2nd order High Pass to the tweeter.
- Optimum Air Cavity Behind Speaker 40 to 80 liters (1.4 to 2.8 cu ft)
- Outside Dimensions (H x W x D) 334 x 257 x 110 mm (13.1 x 10.1 x 4.3 in), 102 mm (4.0 in) front of wall to back of speaker.
- Maximum Wall Thickness 32 mm (1.25 in)
- Cutout Size (H x W) 300 x 225 mm (11.9 x 8.9 in)Cutout template included.
- Net Weight (each) 3.3 kg (7.2 lb)
- Shipping Weight (ea) 7.8 kg (17.2 lb)
