• JBL Control 18C/T 8-Inch Ceiling Speaker black
1 1

JBL Control 18C/T 8-Inch Ceiling Speaker | Color: Black

JBL Control 18C/T 8-Inch Ceiling Speaker | Color: Black

SoundPro Item: 81632 | Part Number: CONTROL 18C/T-BK

$160.00
$160.00 $160.00
Your Price Sold out
MSRP: $160.00 | MAP: $160.00

Usually ships in 5-7 business days

  • Priced individually, sold in quantities of 2
  • 200 mm (8.0 in) high output driver with polypropylene cone and butyl rubber surround
  • 25 mm (1.0 in) soft-dome liquid-cooled tweeter
  • Blind-mount backcan for quick and easy installation
  • Dual conduit/cable clamps
  • Combined 70V/100V and low impedance direct operation
  • 58 Hz - 20 kHz bandwidth with 90° coverage
  • High 92 dB sensitivity for high maximum SPL
Log in or register for YOUR best price

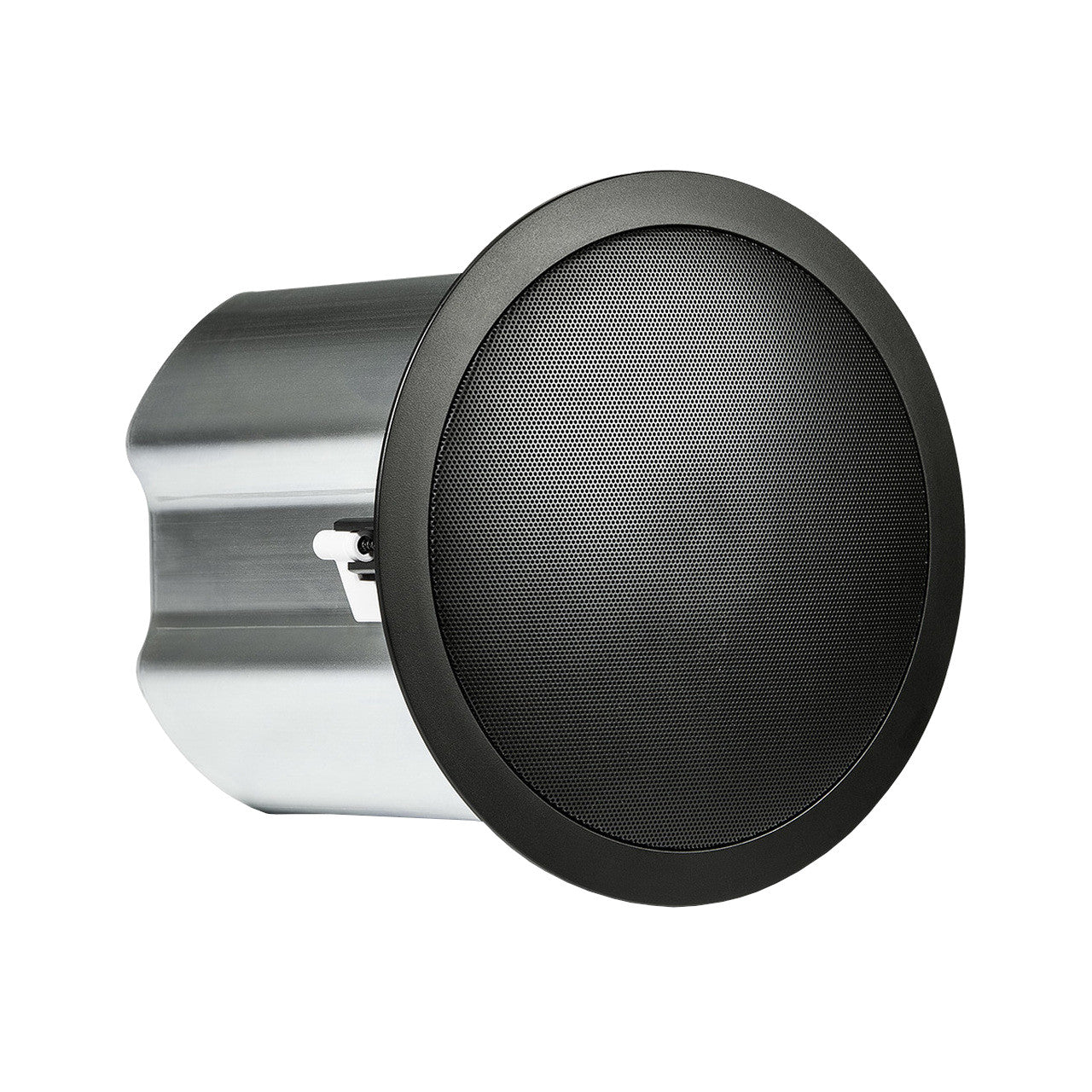

Control 18C/T is a full-range ceiling speaker consisting of a 200 mm (8.0 inch) high tech cone driver and a 25 mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5HB material, with a pre-attached blind-mount backcan for quick and easy installation. The speaker is designed to provide excellent sound quality for a wide variety of medium to high volume applications such as music cafes, business music systems, retail stores, music/paging systems, airports, reception/waiting rooms, lounges, courtrooms, convention centers, hotels, educational facilities, and more.

View full details
  • Frequency Range (-10dB) 58 Hz – 20 kHz
  • Frequency Response80 Hz – 16 kHz
  • Power Rating
    • IEC System Long-Term Ratings (low-Z direct):
    • 180 Watts Continuous Program Power
    • 90 Watts Continuous Pink Noise (360W peak), 100 hr
  • Maximum Input Voltage31.8 V RMS (2hrs), 63.6 V peak
  • Sensitivity92 dB (1kHz - 16 kHz)
  • Coverage Angle 90° conical
  • Directivity Factor (Q) 6.0
  • Directivity Index (DI) 7.8 dB
  • Maximum SPL (1m)
    • 112 dB (low-impedance, 118 dB peak)
    • 110 dB (top 70V/100V tap)
  • Impedance8 ohms (in direct/bypass setting)
  • Transformer Taps60 W, 30 W, 15 W @ 70V or 100V (plus 7.5 W @ 70V only)
  • Recommended Protective High-Pass4 45 Hz high-pass (24 dB/oct) for 8ohm operation, 60 Hz for 60 W tap, 50 Hz for 30 W, 15 W & 7.5 W tap setting
  • Crossover Network12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver
  • DriversLF Driver: 200 mm (8.0 in) HF Driver: 25 mm (1.0 in)
  • Input ConnectorRemovable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2)
  • Connector Wiring Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
  • Strain ReliefsStrain relief for two cables or two flex conduits via coupled clamping mechanism
  • MaterialsABS baffle with UL94-V0 and UL94-5VB flame class fire rating; Zinc-plated steel backcan
  • Safety Agency UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
  • Dimensions307 mm diameter x 274 mm depth from back of baffle (12.1 in diameter x 10.8 in depth)
  • Ceiling Cutout Size Circular cutout with 282 mm (11.1 in) diameter (cardboard cutout template included)
  • Ceiling Thickness Range Up to 38 mm (1.5 in) with stock dog-ears. MTC-TCD thick-ceiling dog-ears available for up to 60 mm (2.4 in) ceiling thicknesses
  • Safety Seismic Attachment One point, top surface
  • Net Weight6.4 kg (14.1 lbs, one speaker)
  • Shipping Weight17.7 kg (39.0 lbs, pair in master carton)
  • ColorWhite
  • Backcanformed steel (included "blind-mount")
  • Baffle/RimABS baffle with UL94-V0 and UL94-5VB flame class fire rating.
  • Plenum UsageYes, backcan included
