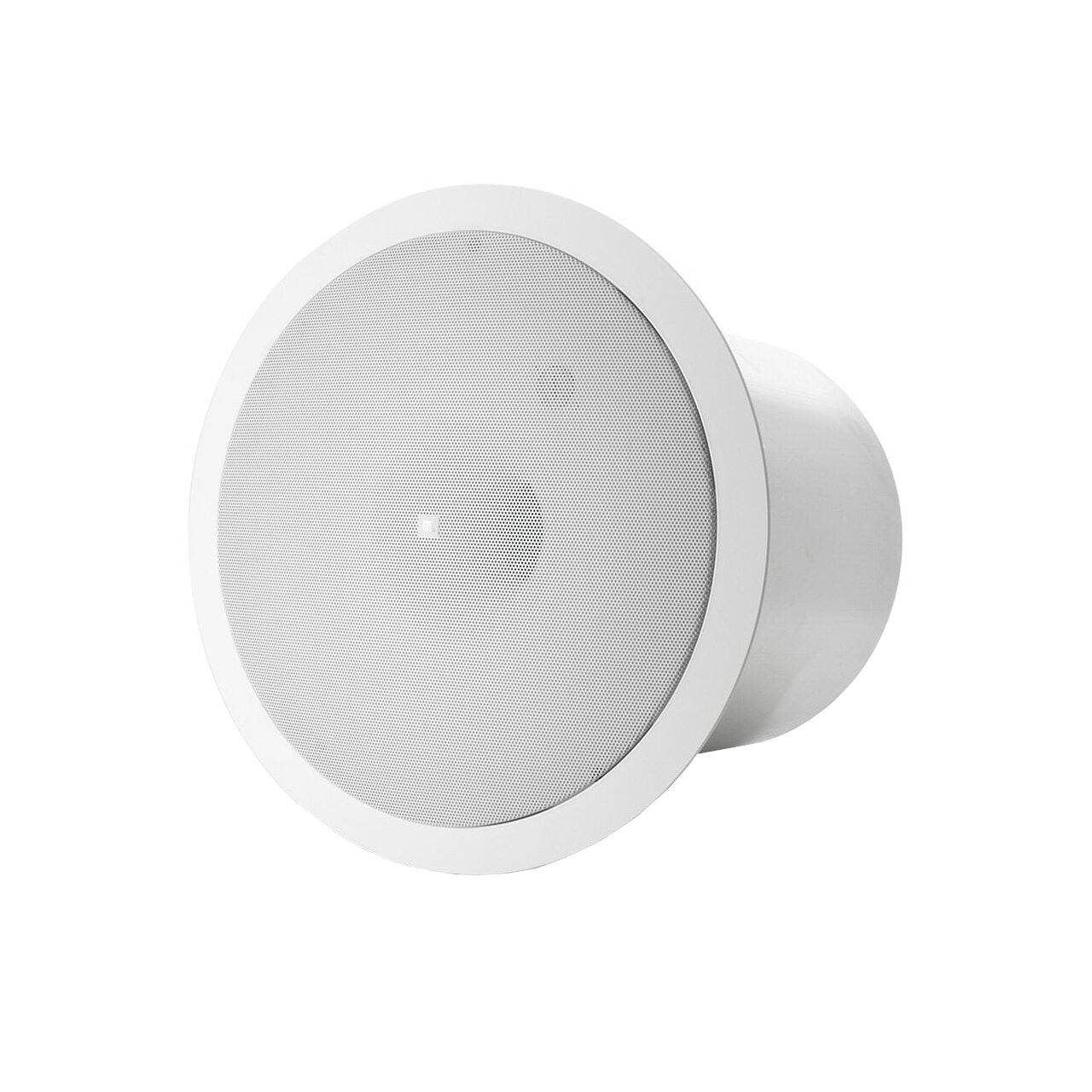

JBL Control 19CS In-Ceiling Subwoofer

JBL Control 19CS In-Ceiling Subwoofer

SoundPro Item: 46651 | Part Number: CONTROL 19CS

$305.00
$305.00 $305.00
Your Price Sold out
MSRP: $305.00 | MAP: $305.00

In stock and ready to ship

  • Priced individually, sold in quantities of 2
  • Unique Nested Chamber™ design and Linear Dynamic Aperture™ port design delivers high output from a compact enclosure
  • JBL's exclusive SonicGuard™ overload protection allows higher operational levels and improved system reliability 19CS only
  • Component: Long excursion 200 mm (8 in) driver
  • Packaged with grille, backcan and tile rails for fast installation and easy stocking
  • Simple installation and wire connection method
  • Nominal Impedance (19CS) 8 ohms
Log in or register for YOUR best price

The Control 19CS uses advanced proprietary technologies to produce powerful bass from a low profile in-ceiling design. The Control 19CS is perfectly suited to augment the low frequency output of any of the Control Contractor loudspeakers. High power handling and low distortion make the Control 19CS an ideal addition for sound systems requiring a higher fidelity sound from ceiling loudspeakers.

View full details
  • Frequency Range 42 Hz - 200 Hz
  • Power Rating
    • IEC System Long-Term Ratings (low-Z direct):
    • 200 Watts Continuous Program Power
    • 100 Watts Continuous Pink Noise (400W peak), 100 hrs
  • Sensitivity 95 dB SPL in ceiling near corner, 89 dB in center of ceiling
  • Coverage Angle 180° conical
  • Maximum SPL (1m) 109 dB (low-impedance, 115 dB peak, center of ceiling) 115 dB (low-impedance, 121 dB peak near corner)
  • Impedance 8 ohms
  • Input Connectors Removable locking connector with screw-down terminals
  • Drivers 200 mm (8.0 in) subwoofer
  • Color White
  • Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
  • Backcan formed steel (included "blind-mount")
  • Baffle/Rim Medium impact polystyrene, fire rated UL94V-0
  • Ceiling Cutout Size 305 mm (12.0 in) diameter (cardboard cutout template included)
  • Plenum Usage Yes, backcan included
  • Enclosure Material Backcan: Formed steel Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0
  • Overload Protection Full-range power limiting to protect network and transducers. (On Control 19CS, not on Control 19CST)
  • Outside Dimensions (H x Dia)345 x 345 mm (13.6 x 13.6 in) 318 mm (12.5 in) front of ceiling tile to back of backcan
  • Net Weight (each) 5.5 kg (12 lb)
  • Shipping Weight (pair) Control 19CS: T12.7 kg (28 lb)
