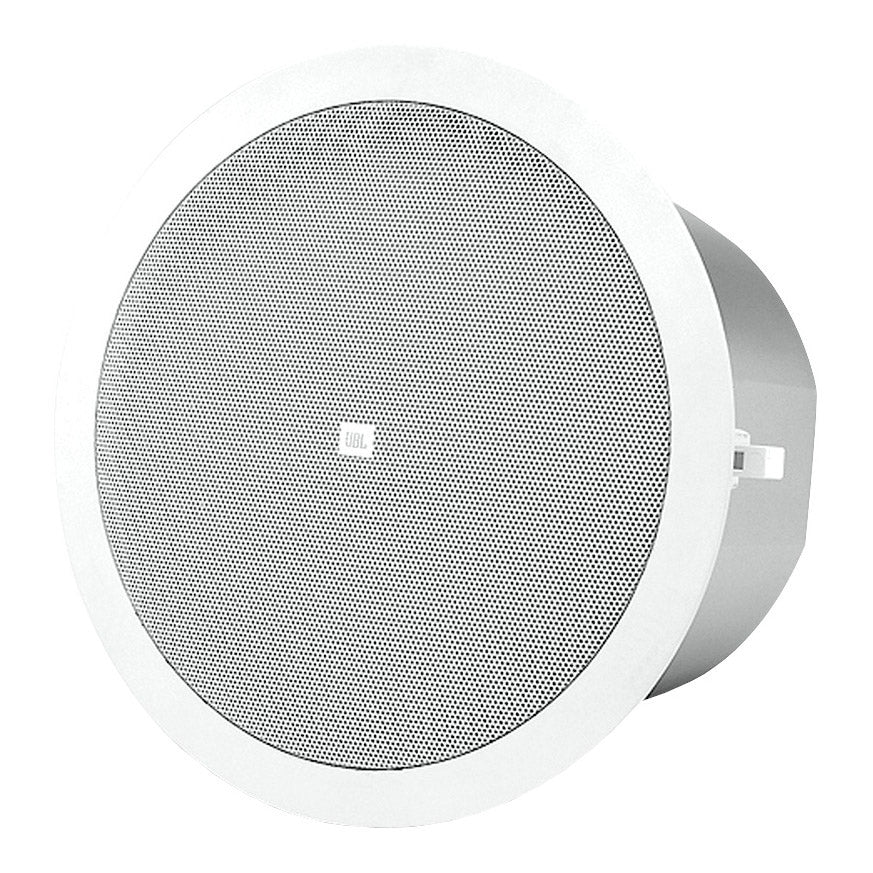

• JBL Control 24C Ceiling Speaker
1 1

JBL Control 24C 4-Inch Ceiling Speaker

JBL Control 24C 4-Inch Ceiling Speaker

SoundPro Item: 46653 | Part Number: CONTROL 24C

$155.00
$155.00 $155.00
Your Price Sold out
MSRP: $155.00 | MAP: $155.00

Usually ships in 5-7 business days

  • Priced individually, sold in quantities of 2
  • Nominal Impedance 16 ohms (Min Z 16.1 Ω @ 320 Hz)
  • Coaxially mounted 100 mm (4 in) woofer with butyl rubber surround and 19 mm (3/4 in) titanium coated diffraction-loaded tweeter
  • High power, wide frequency response and low distortion for high sound level capability
  • Wide coverage allows fewer speakers, reducing the cost of the installed sound system without sacrificing performance
  • JBL's exclusive SonicGuard™ overload protection allows higher operational levels and improved system reliability
  • Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking
Log in or register for YOUR best price

The Control 24C is a compact ceiling speaker providing premium performance in background, foreground and music-plus-paging sound systems. The Control 24C is perfectly suited for a wide variety of applications from professional offices and airports to restaurants and specialty retail stores. High power handling, wide frequency response and low distortion make the Control 24C ideal for sound systems requiring a higher fidelity sound from ceiling loudspeakers. The premium performance capability ensures excellent sound character, providing pleasant, enveloping sound throughout the listening area.

View full details
  • Frequency Range 80 Hz - 20 kHz
  • Power Rating
    • IEC System Long-Term Ratings (low-Z direct):
    • 80 Watts Continuous Program Power
    • 40 Watts Continuous Pink Noise (160W peak), 100 hrs
  • Sensitivity 86 dB SPL @ 1 m (3.3 ft)
  • Coverage Angle 130° conical
  • Directivity Factor (Q) 2.4 dB averaged 500 Hz to 4 kHz
  • Directivity Index (DI) 3.8 dB averaged 500 Hz to 4 kHz
  • Maximum SPL (1m) 102 dB (low-impedance, 108 dB peak)
  • Impedance 16 ohms
  • Input Connectors Removable 4-pin locking connector with screw-down terminals.
  • Drivers
    • LF Driver: 100 mm (4.0 in)
    • HF Driver: 19 mm (0.75 in)
  • Color White
  • Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
  • Backcan formed steel (included "blind-mount")
  • Baffle/Rim Medium impact polystyrene, fire rated UL94V-0
  • Ceiling Cutout Size 168 mm (6.6 in) diameter (cardboard cutout template included)
  • Plenum Usage Yes, backcan included
