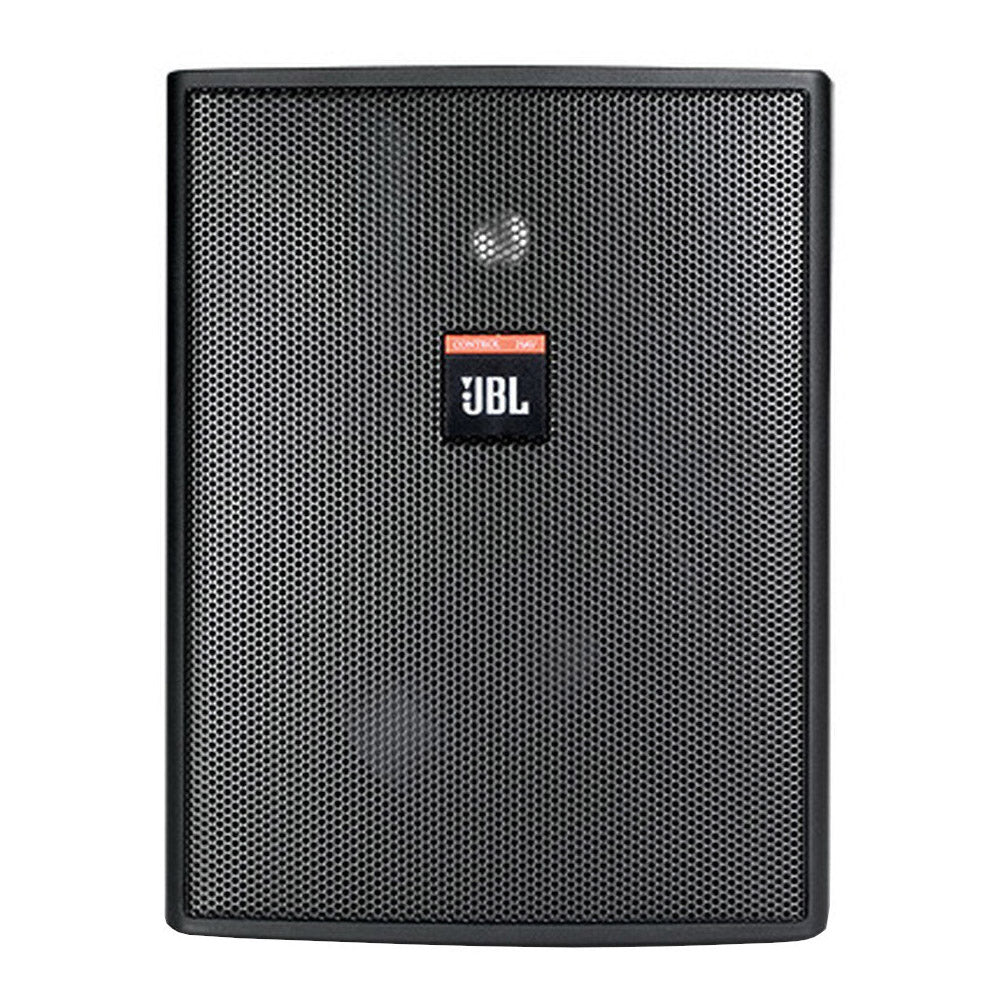

JBL Control 25AV 5.25-Inch Surface Mount Speaker | Color: Black
JBL Control 25AV 5.25-Inch Surface Mount Speaker | Color: Black
SoundPro Item: 46658 | Part Number: CONTROL 25AV
Usually ships in 5-7 business days
- Priced individually, sold in quantities of 2
- Video shielded for use near video monitors
- Extremely smooth frequency response
- Stainless steel grille for harsh environments
- 60 Watt transformer for 70V or 100V lines, with 8Ω thru
- SonicGuard™ overload protection
- 130 mm (5 ¼") polypropylene coated woofer, 10 mm (3/4") titanium
- coated horn-loaded tweeter
- Includes InvisiBall® mounting hardware and sealed input panel cover
- Screw-down input terminals
- 100° x 100° high frequency horn
The Control 25AV utilizes a deep cabinet, high power components and complex network to achieve extremely smooth high fidelity performance from a compact 2-way loudspeaker. Premium performance capability and even coverage ensures excellent sound quality throughout the listening area.
The top-quality transformer, with reduced saturation, allows use on either 70 volt or 100 volt distributed speaker lines, with similar performance fidelity. Weather resistance is maximized by a stainless steel grille, which is paintable. Coating the woofer in polypropylene and terminating its circumference in JBL's WeatherEdgeâ„¢, a seamless, butyl rubber extension of the woofer surround, protects critical transducer elements. The polycarbonate tweeter diaphragm is reinforced with a thin film of titanium for added rigidity and endurance. Nickel/zinc rust-resistant terminals ensure a secure input connection.
JBL's exclusive SonicGuard overload protection is virtually inaudible to the listener, ensuring reliability while providing full fidelity sound. The Control 25AV can be used full range or low frequencies can be further augmented with the addition of one of the Control Contractor subwoofer models.
- Frequency Range 70 Hz - 23 kHz (-10 dB)
- Power Capacity 200 W Continuous Program Power; 100 W Continuous Pink Noise
- Transformer Taps 70V: 60 W, 30 W, 15 W, 7.5 W 100V: 60 W, 30 W, 15 W
- Sensitivity 87 dB SPL, 1 W @ 1 m (3.3 ft)
- Midrange (±1.5 dB, typical) 130 Hz - 14 kHz
- Coverage Angle 100° x 100°
- Maximum SPL (1m) 113 dB continuous peak pink noise 107 dB continuous average pink noise 103 dB continuous average music or speech
- Directivity Factor (Q) 4.9 dB, averaged 500 Hz to 4 kHz
- Directivity Index (DI) 6.9 dB, averaged 500 Hz to 4 kHz
- Impedance 8 ohms
- Minimum Impedance 6.7 ohms at 230 Hz
- Crossover Network Second Order Low Pass, Second Order High Pass, Complex Optimization for Maximally Flat Response
- Drivers
- LF: 130 mm (5.25 in) polypropylene-coated paper with WeatherEdge surround, 25 mm (1 in) voicecoil on kapton former
- HF: 20 mm (.75 in) titanium coated PEI
- Enclosure High Impact polystyrene
- Grille Painted stainless steel, black or white to match cabinet, paintable
- Overload Protection Full-range power limiting to protect network and transducers. Internal fuse to protect during exceptional overload condition
- Outdoor Capability Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IEC 529 IP-X4 splashproof rating
- Input Connectors Screw-down terminal strip, zinc-plated copper base, nickel plated metal screws/washers, accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10), plus bare wire. (up to 12 AWG)
- Safety Agency Transformer is listed per UL1876
- Colors Black or white (-WH)
- Rotation Against wall on InvisiBall Base: 37° vertical 44° horizontal On bracket: 44° all directions
- Dimensions (H x W x D) 236 x 186 x 159 mm (9.3 x 7.4 x 6.3 in)
- Net Weight (each) 4 kg (9 lb)
- Shipping Weight (ea) 9 kg (20 lb) per pair
