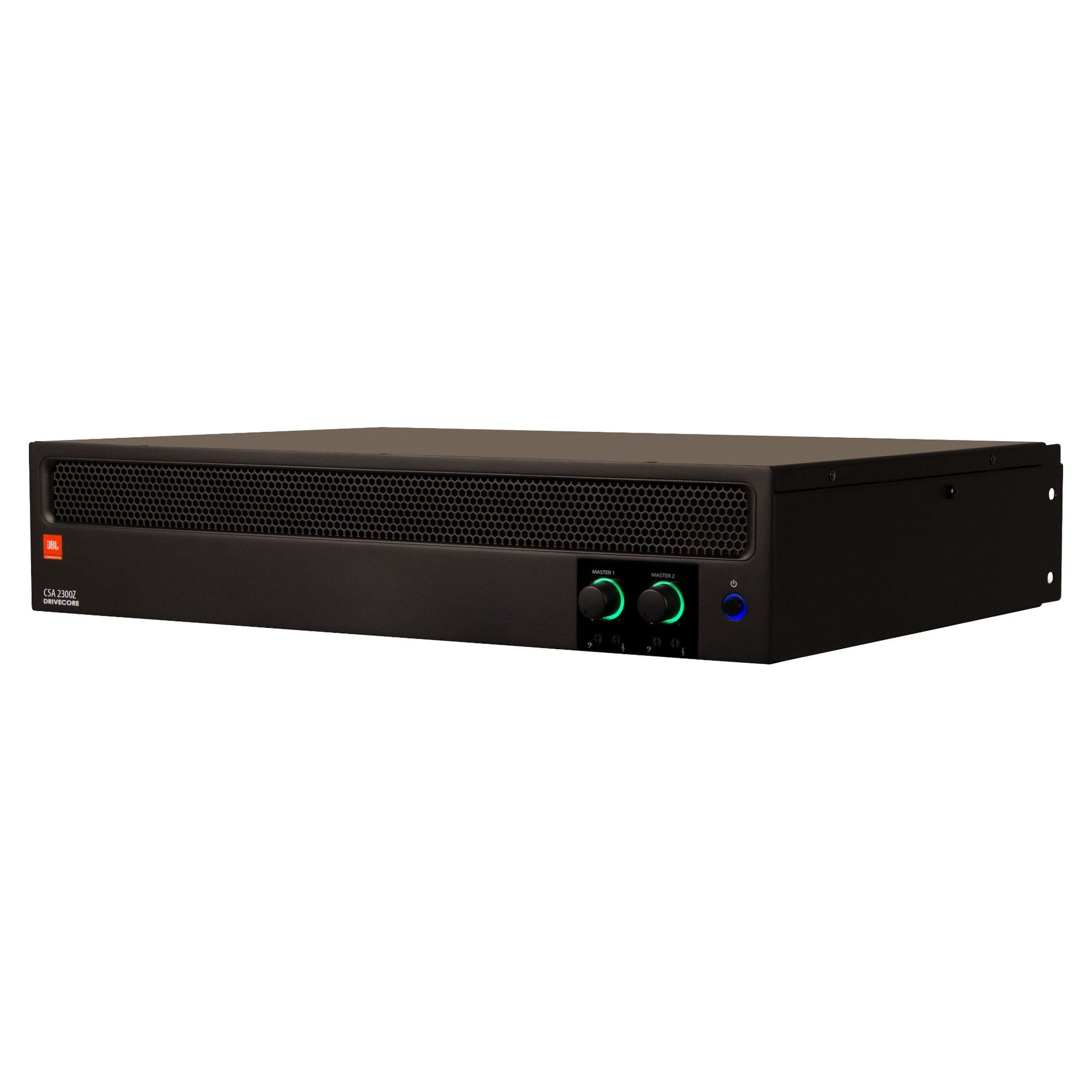

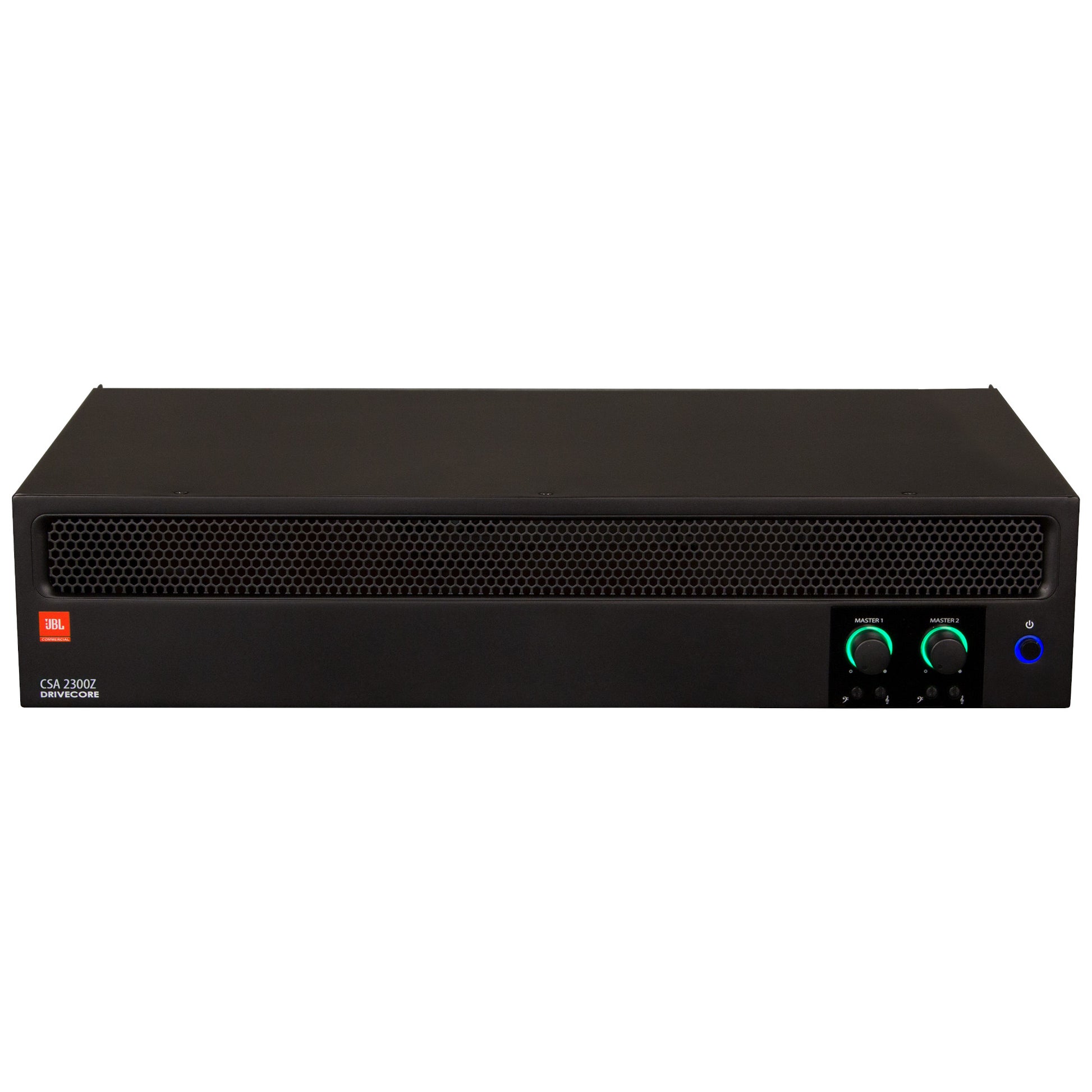

JBL CSA 2300Z Commercial Amplifier

JBL CSA 2300Z Commercial Amplifier

SoundPro Item: 81636 | Part Number: NCSA2300Z-0-US

$980.00
$980.00 $980.00
Your Price Sold out
MSRP: $980.00 | MAP: $980.00

In stock and ready to ship

  • 2 channels X 300W output
  • Built-in 70V and 100V
  • Space-saving 2 RU design
  • Sleep mode disable function
  • Energy-efficient amplifier
  • Sleek industrial look with illuminated rings making knobs easy to see and use
  • Supports JBL CSR-V wall controller via CAT5 cable with RJ45 connectors
Log in or register for YOUR best price

Simple to configure, the JBL CSA 2300Z Commercial Amplifier provides a DriveCore-based sound solution. This replaces up to 500 parts with one small chip, significantly reducing the part count and increasing reliability while maintaining superb performance.

Supporting 70V and 100V installations out of the box, Commercial Series amps include RJ45 connectors for use with JBL CSR-V in-wall volume controls. And with HARMAN's GreenEdge™ environmental initiative, Commercial Series amps quickly pay for themselves in energy savings.

View full details
  • CompatibilitySupports JBL CSR-V wall controller via CAT5 cable with RJ45 connectors
  • Performance
    • Rated Power into 4Ω or 8Ω; 1kHz, ≤0.5% THD: 300W
    • Number of Output Channels: 2
    • Insertion Loss (70V & 100V outputs): 1dB maximum
    • Input Sensitivity (8Ω Load): Balanced line input: 775mV (RMS); RCA Mono Sum input: 300vM(RMS)
    • Frequency Response (8Ω, 20Hz-20kHz, tone ctrls set to flat response) +/-1.0dB
    • Total Harmonic Distortion (THD)(@ Full rated power, 20Hz-20kHz): <0.5%
    • Signal-to-Noise Ratio (Ref. rated output, 22KHZ BW, A-weighted): >97dB
    • Input Impedance (nominal):
      • Euro Block 20kΩ (balanced);
      • RCA: 10kΩ
    • Bass +/-12Db@100Hz
    • Treble +/-12dB210kHz
  • Nominal AC Line Voltages100V, 120V, 220V, 230-240V, 50/60 Hz
  • Minimum Load Impedance:
    • Low-Z Output: 4Ω
    • 70V Output: 12Ω
    • 100V Output: 24Ω
  • Operating Temperature/Humidity0°C to 35°C @ 95% RH (non-condensing)
  • Storage Temperature-20°C to 85°C
  • Dimensions & Weight
    • Net Weight (preliminary estimate) 17.8 lbs (8.05 kg)
    • Dimensions (W x D x H): 17 x 10.8 x 3.5 inches (432 x 274 x 89 mm)
    • Shipping Weight: 20.6 lbs (9.35 kg)
