- Dimensions (W × D × H)15.6 x 30.3 x 22.5 in

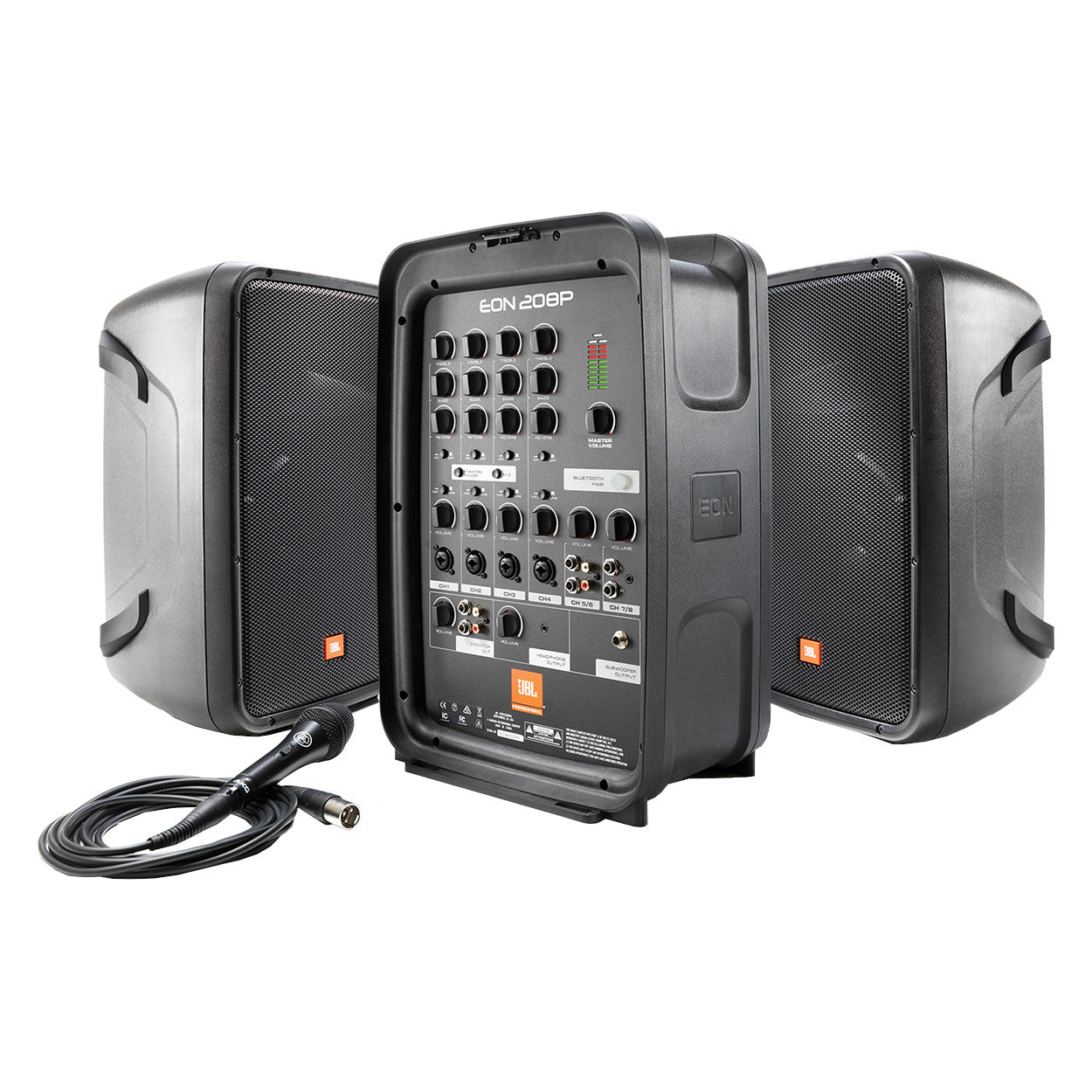

- System TypePortable 2-way full-range loudspeakers with powered mixer
- Maximum SPL Output121 dB peak
- Frequency Range (-10 dB)60 Hz - 20 kHz
- Frequency Response (+/-3 dB)70 Hz - 18 kHz
- AC Input100-120 V, 220-240 V 50/60 Hz
- Amp DesignClass D
- System Power Rating300 W (2x 150 W stereo)
- Output Connector2 x 1/4" TS (unbalanced) amplifier outputs

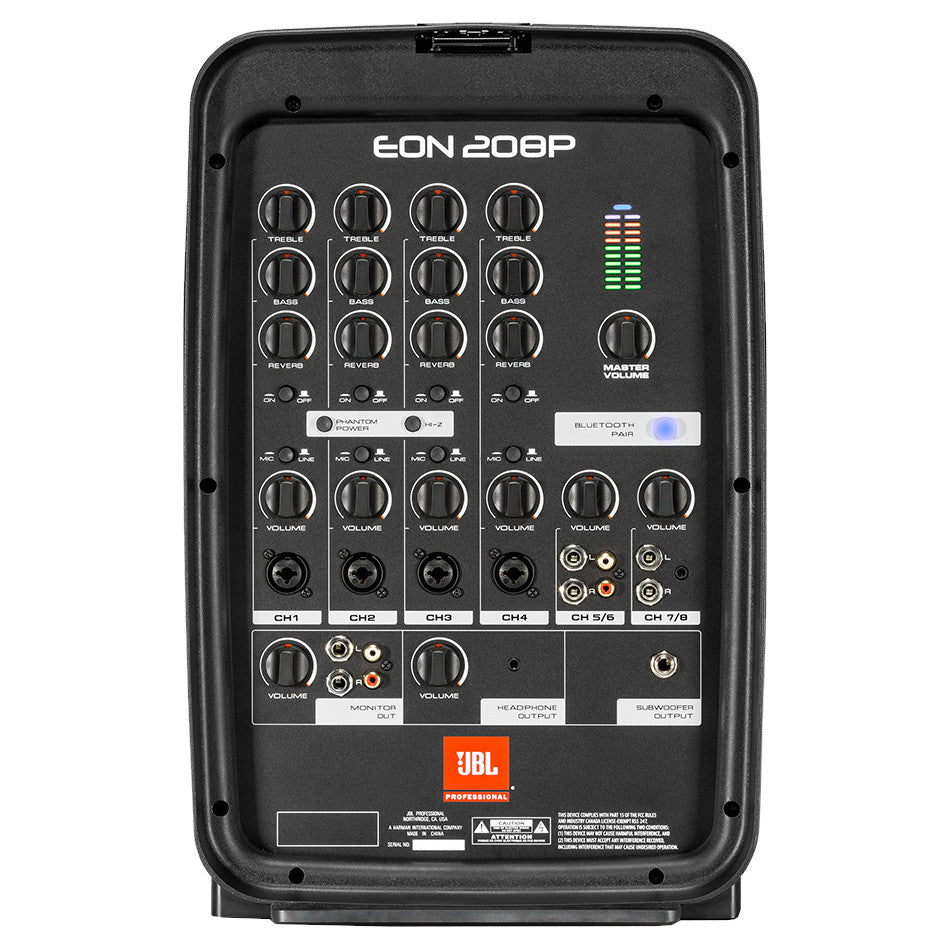

- Channels1-4 = XLR/1/4" jack combo connectors, 5-6 = one pair of 1/4" balanced TRS jacks (stereo), and one pair of RCA jacks (stereo), 7-8 = one pair of 1/4" balanced TRS jacks (stereo), and a 3.5mm stereo jack
- Phantom PowerCH1 and CH2 have phantom power control and share the same selection switch
- Hi-Z SelectionCH3 has a Hi-Z selection switch used for guitar signal input
- Treble/Bass EQPer-channel high- and low-shelf filters; +/- 12dB cut and boost
- System LimiterOn-board DSP limiting
- LF Driver1x JBL 8" (203mm) woofer
- HF Driver1x 1" Neodymuim black aluminum dome tweeter
- Coverage Pattern100° horizontal x 60° vertical
- Crossover Frequency2 kHz
- Crossover Type2-way passive network, 2nd order filters (12dB cutoff per octave)
- EnclosurePolypropylene
- Suspension/Mounting36 mm pole socket
- HandlesOne on top
- Speaker GrillePowder-coated perforated steel
- Shipping Package(HxWxD)22.6" (575 mm) x 30.5" (775 mm) x 15.7" (400 mm)
- Net Weight38.8 lbs (17.6 kg)
- Audio Specifications
- Monitor Out: one pair of RCA jacks (stereo), and one pair of 1/4" balanced TRS jacks (stereo)
- Headphone Out: 3.5mm stereo jack
- Subwoofer Out: 1/4" balanced TRS jack
