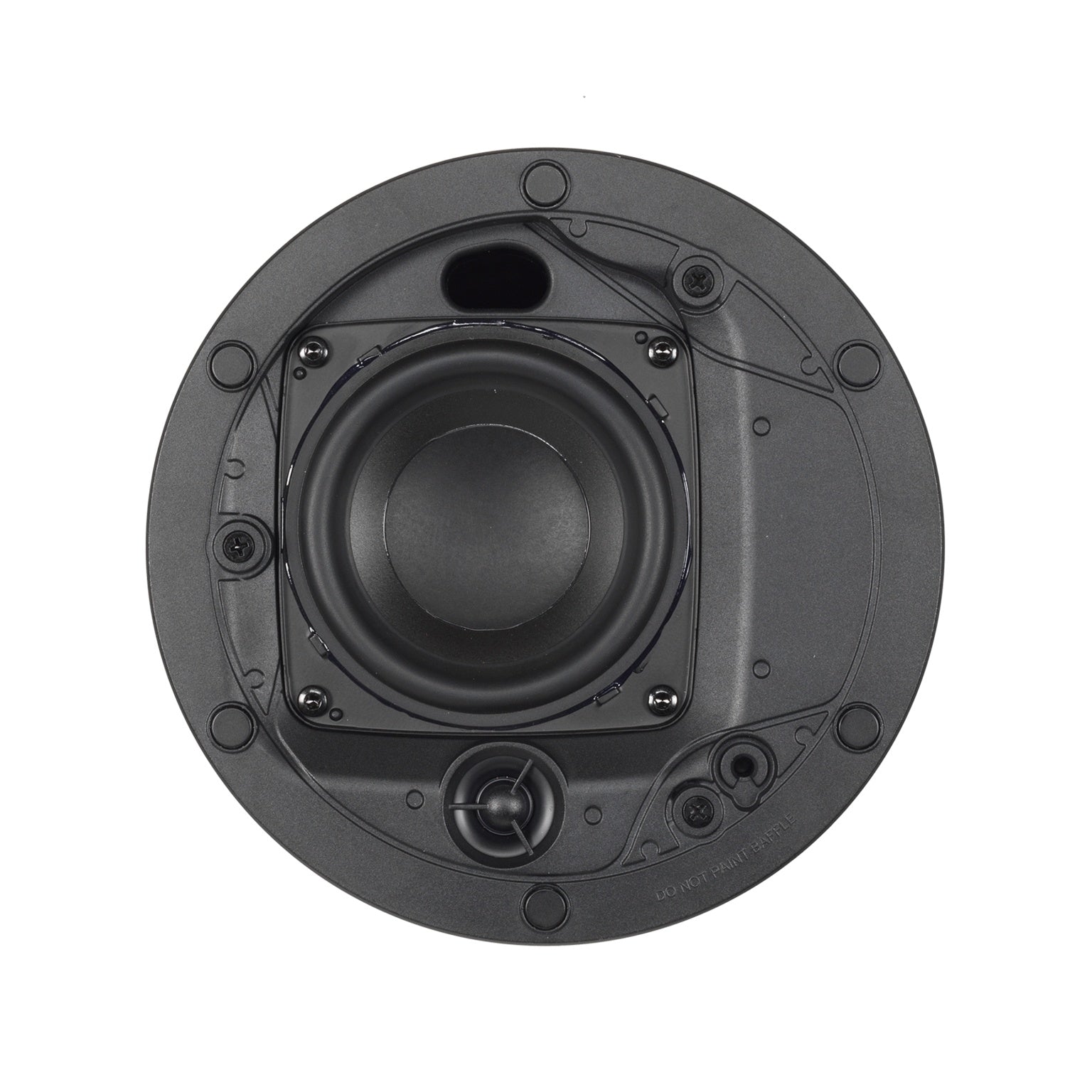

JBL Control 414C/T Micro 4" Two-Way Ceiling Loudspeaker with Low-Profile Enclosure

JBL Control 414C/T Micro 4" Two-Way Ceiling Loudspeaker with Low-Profile Enclosure

SoundPro Item: 202144 | Part Number: JBL-C414MC/T

$168.00
$168.00 $168.00
Your Price Sold out
MSRP: $168.00 | MAP: $168.00

In stock and ready to ship

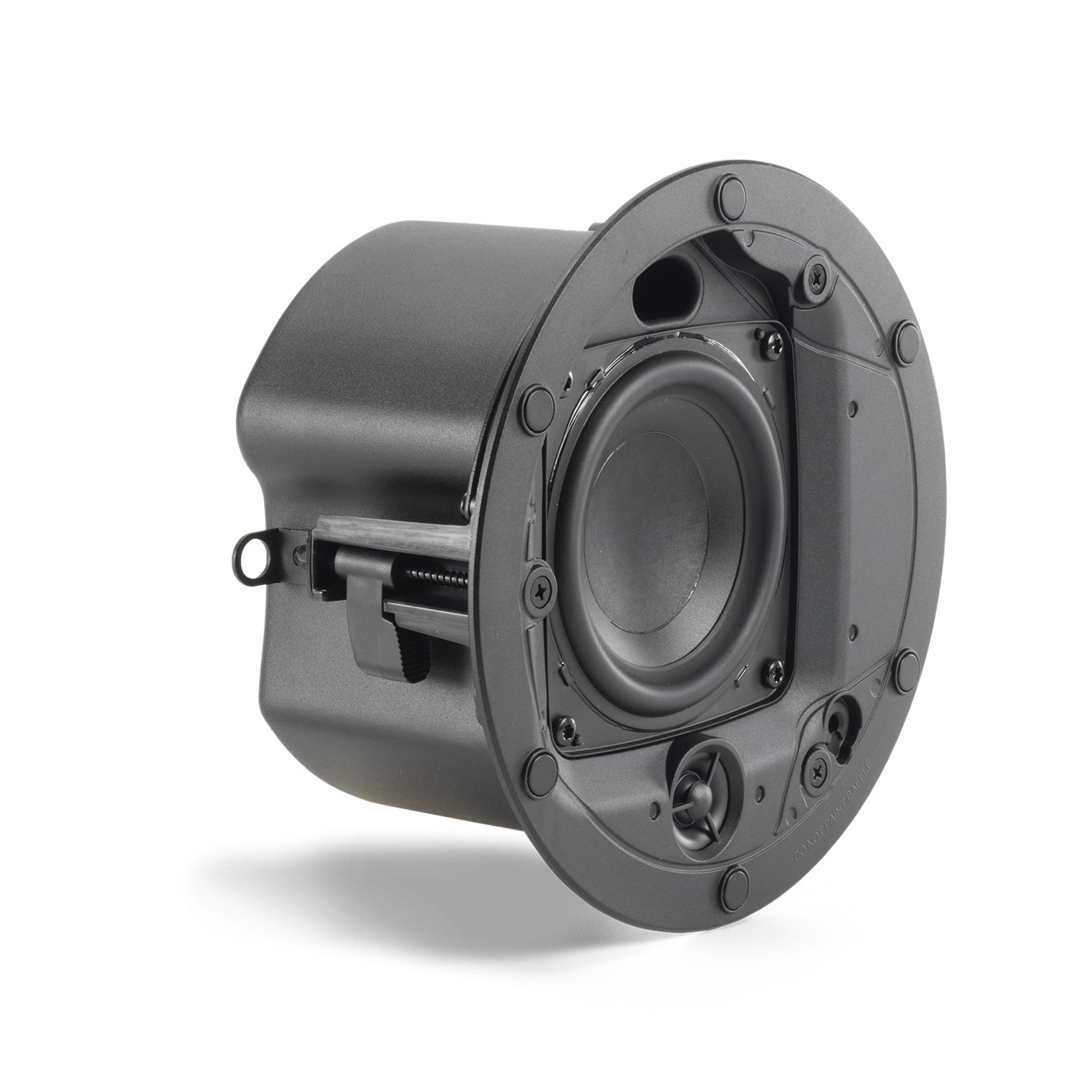

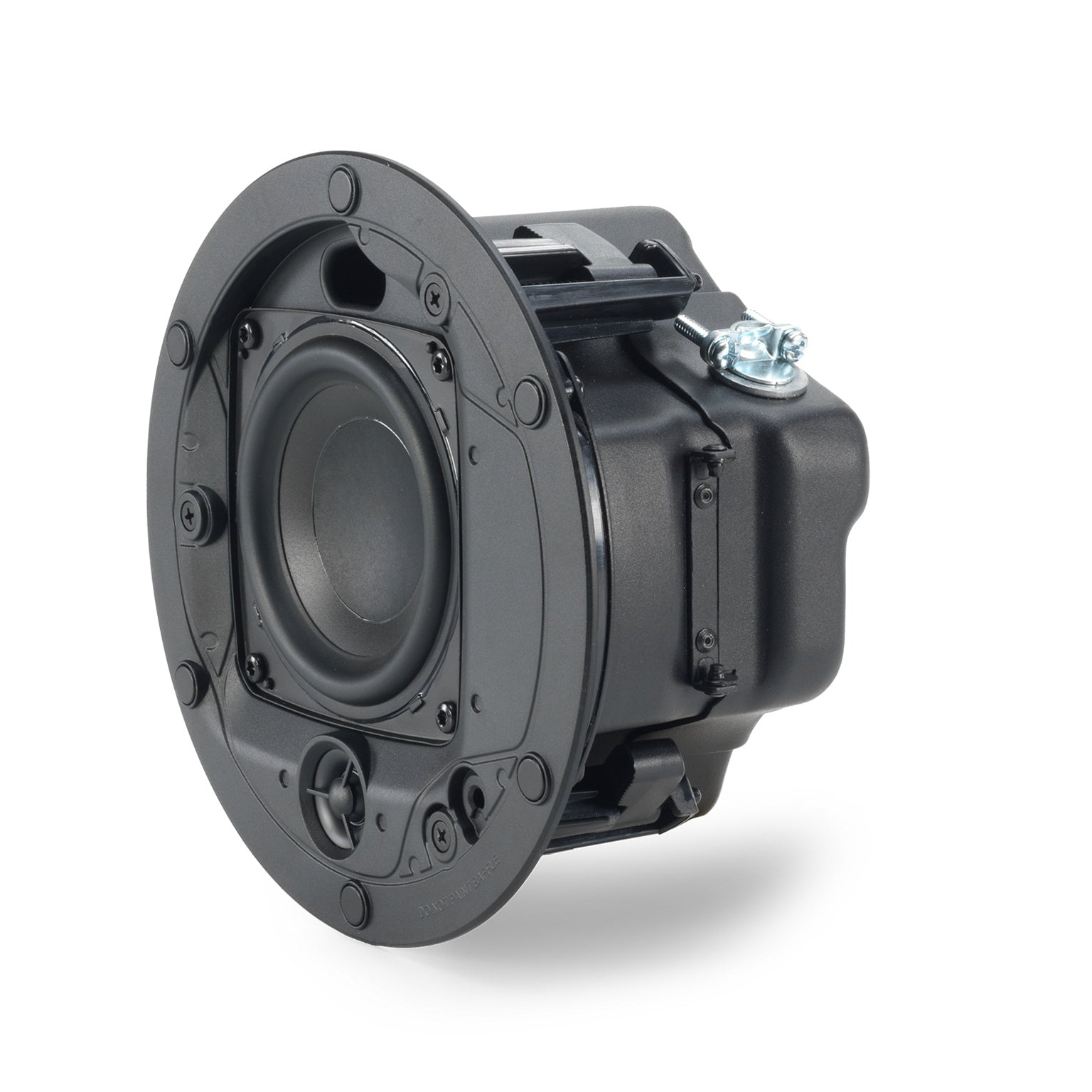

  • 100 mm (4 in) woofer and 12mm (0.5 in) PEI dome tweeter

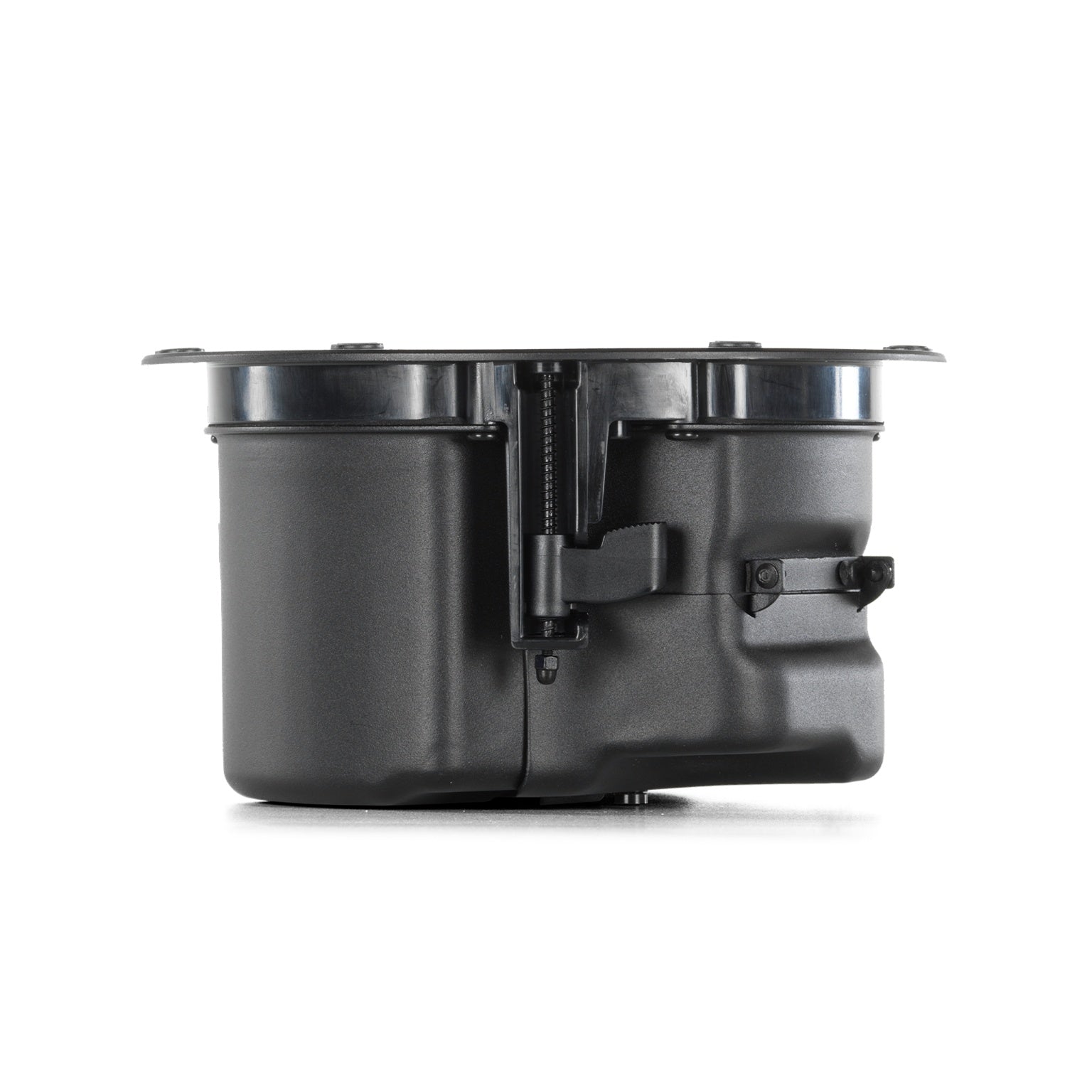

  • Shallow 105 mm (4.13 in) depth

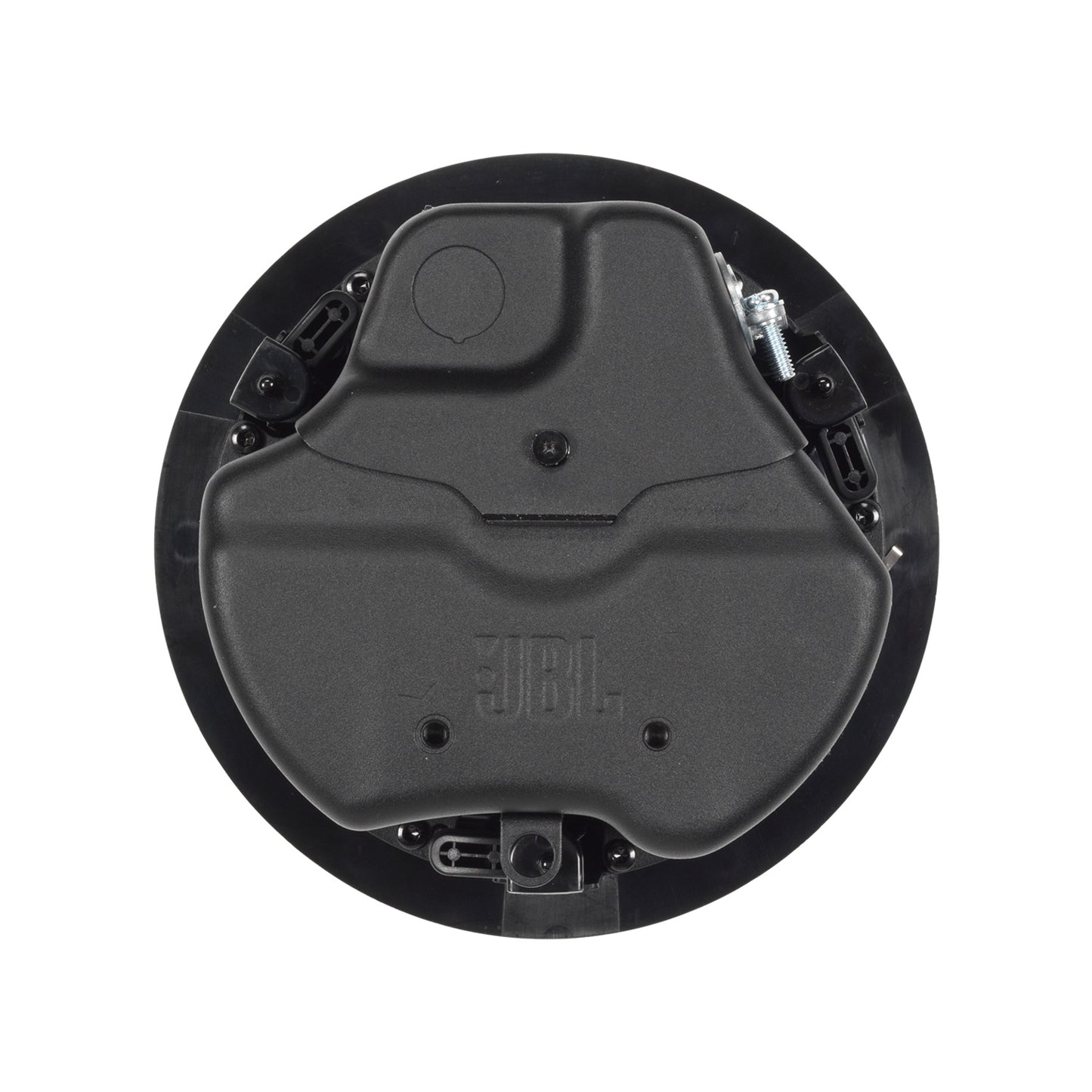

  • Integrated enclosure that is ideal for installation in most ceiling plenum spaces

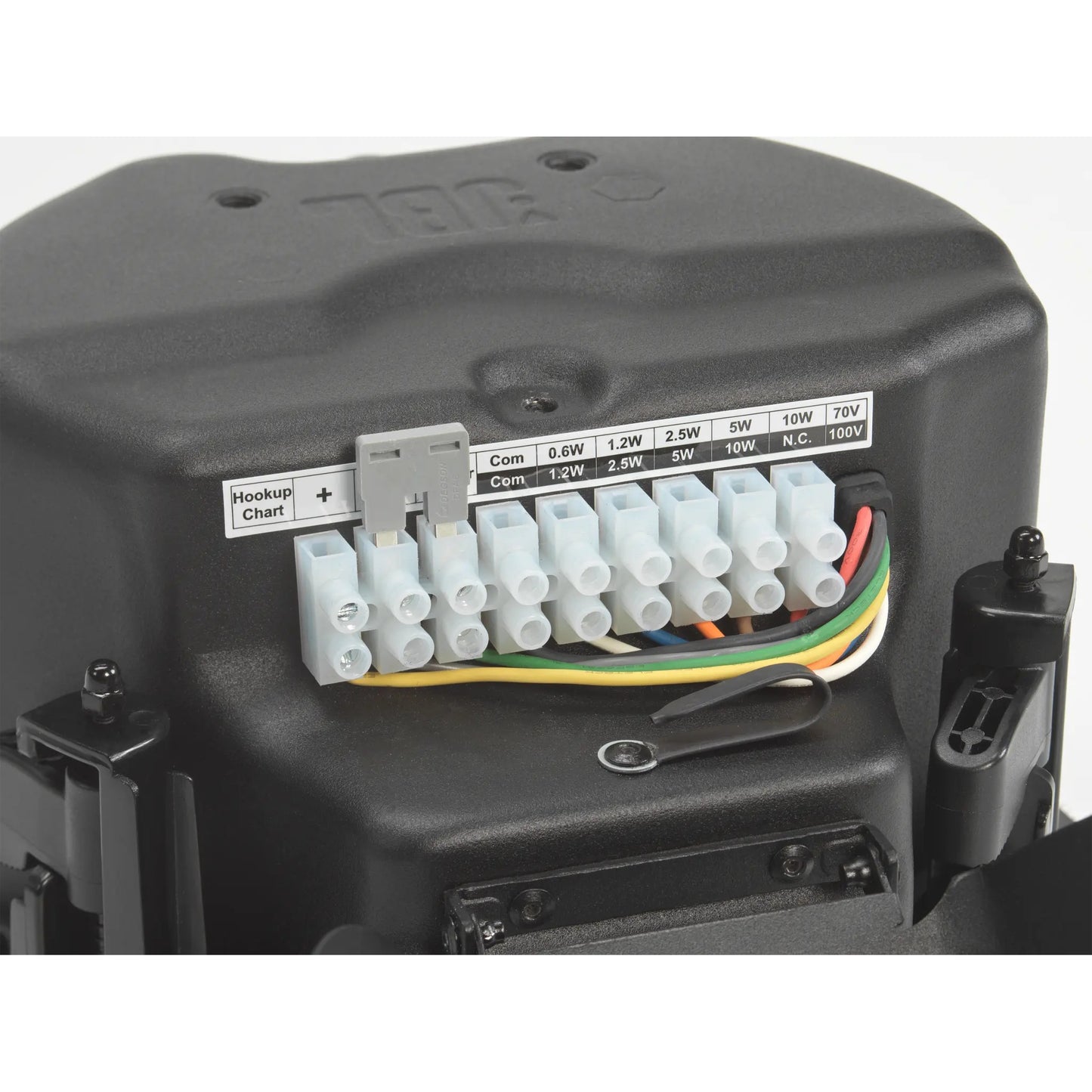

  • Built-in 70V/100V multi-tap transformer, plus 8-ohm direct input

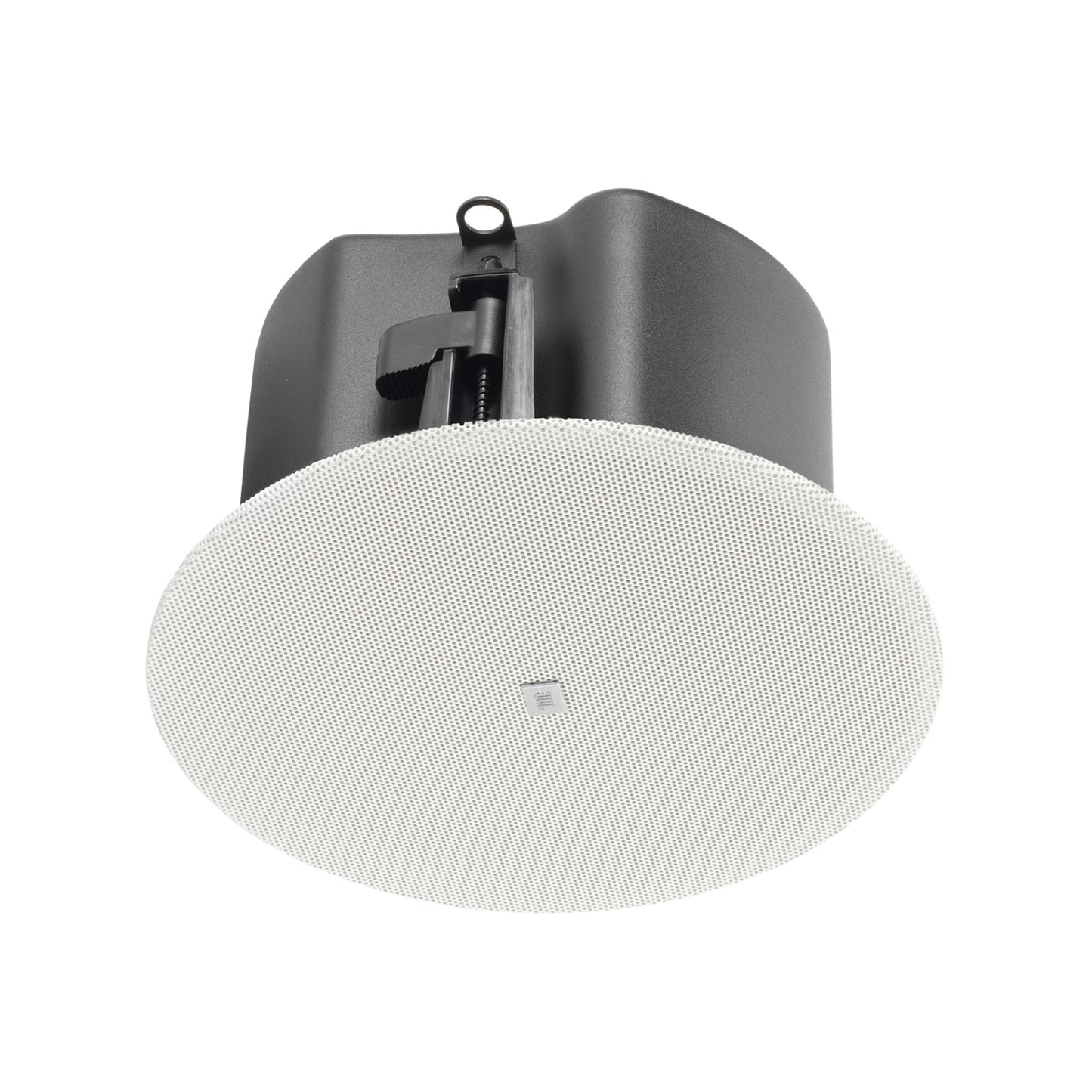

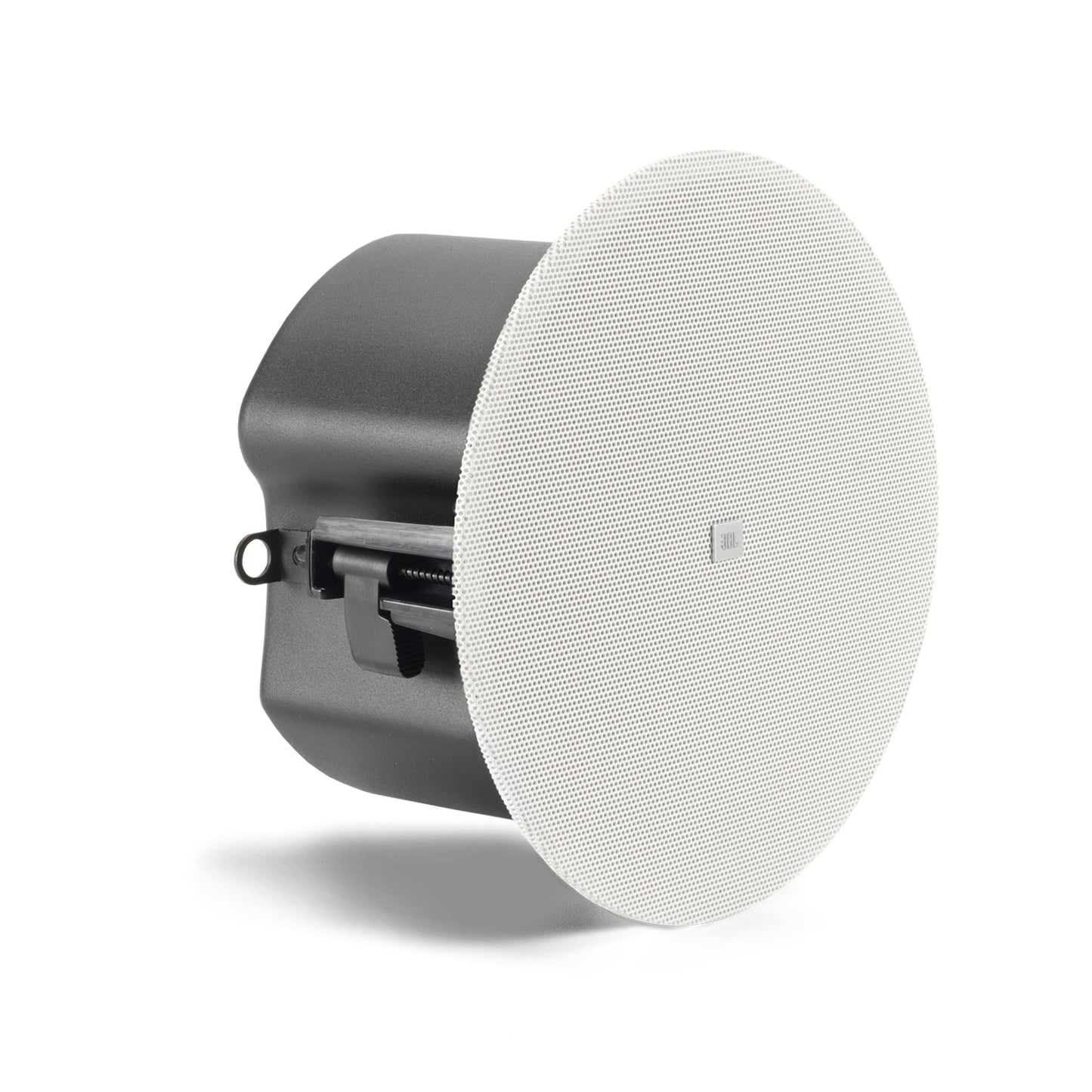

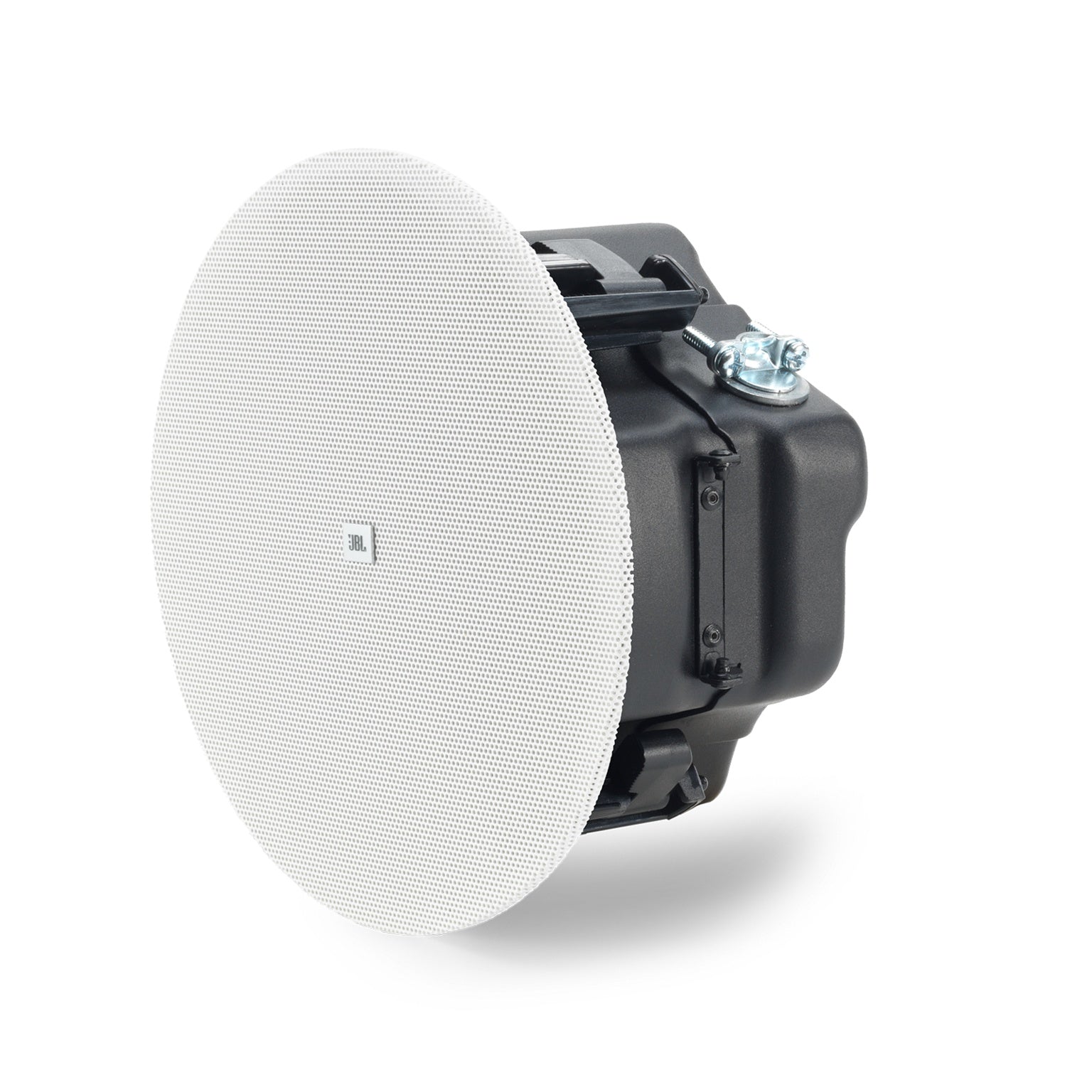

  • Full-face, easily paintable magnetic grilles
  • Top and side cable entry options
  • Robust and adaptable dogears for wide range of ceiling thicknesses
  • IP32 rated
Log in or register for YOUR best price

The JBL Control 414C/T Micro, part of the Control 400 Standard Coverage Series, is a two-way ceiling loudspeaker, featuring a 4” woofer and a low-profile enclosure that is ideal for applications where ceiling plenum space is restricted.

All Control 400 Series models are designed to blend seamlessly into modern interiors. The included full-face magnetic grille is paintable for integration into any decor, while available black round and white square grilles provide added customization.

The Control 414C/T Micro includes thoughtfully engineered installation features to enhance safety, efficiency, and repeatability. The terminal cover allows for convenient top or side cable entry and the reliable captive dogear design accommodates a variety of ceiling thicknesses, ensuring versatility for any environment. Additionally, the Control 414C/T Micro supports both 70V/100V and low impedance applications.

View full details

Specifications

Frequency Range (-10 dB)
69Hz - 25kHz
Power Capacity
22.5 W (90 W Peak), Cont. Pink Noise (2 hrs); 15 W (60 W Peak), Cont. Pink Noise (100 hrs)
Sensitivity (1m/1W)
86dB
Coverage Angle
160° conical
Maximum SPL (1m)
98 dB continuous pink noise (104 dB peak)
Nominal Impedance
8Ω
Transformer Taps
70 V: 10 W, 5 W, 2.5 W, 1.2 W & 0.6 W; 100 V: 10 W, 5 W, 2.5 W & 1.2 W
Drivers
LF: 103 mm (4 in) with PP cone and paper cup, SBR surround; HF: 13 mm (0.5 in) PEI dome
Ceiling Cutout Size
168 mm (6.6 in)
Dimensions
114 mm (4.6 in) H x 203 mm (8.1 in) dia.; 105 mm (4.2 in) from bottom of ceiling tile to top of backcan
Safety Agency Rating
Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
Environmental
IP rating: IP32 per EN/IEC 60529.; Operating temperature: 0° C to 45 °C.
Color
Stock grille is White (RAL9003), paintable
Net Weight (ea)
2.11 kg (4.65 lbs)
Shipping Weight (pair)
8.58 kg (18.92 lbs)
SKU Numbers
JBL-C414MC/T
