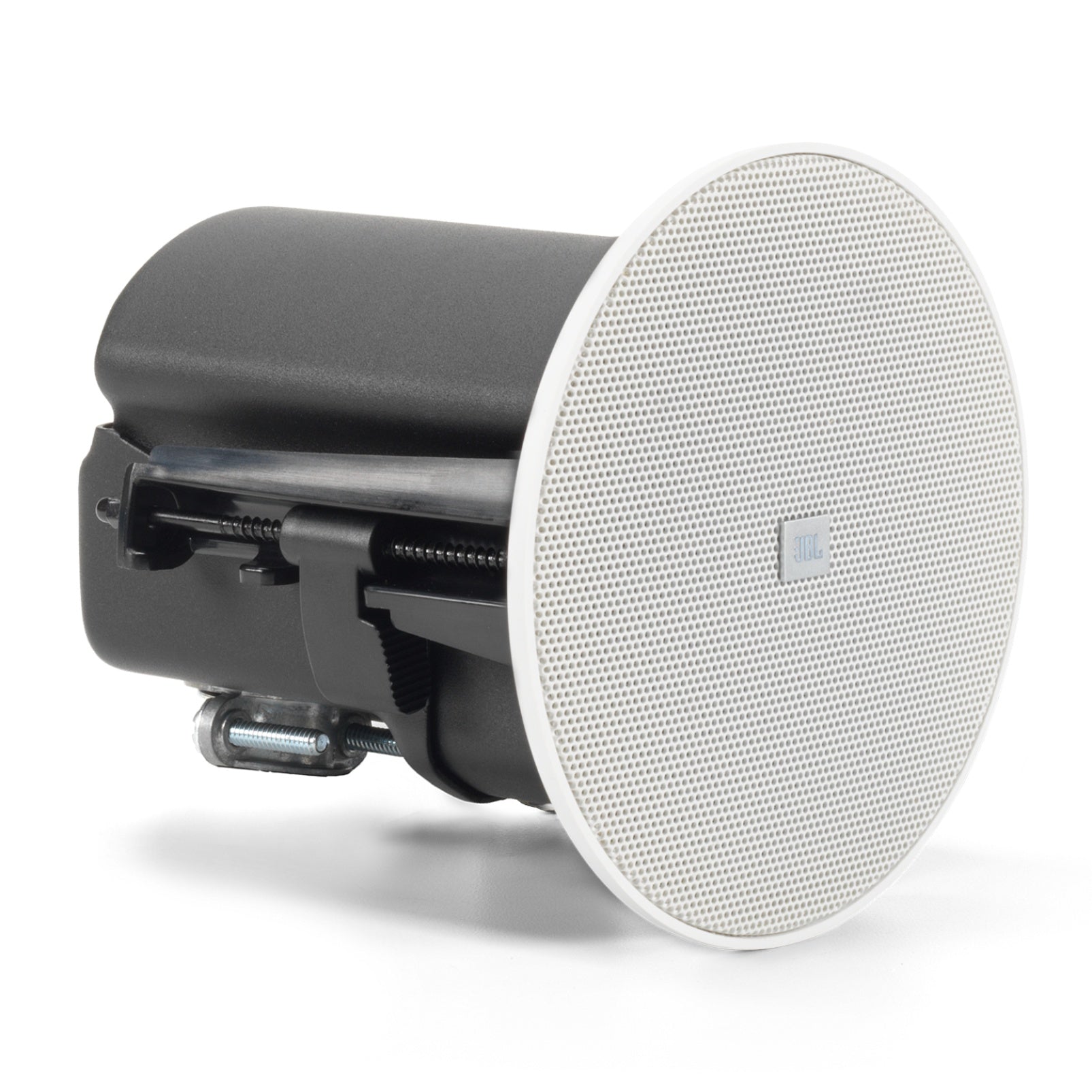

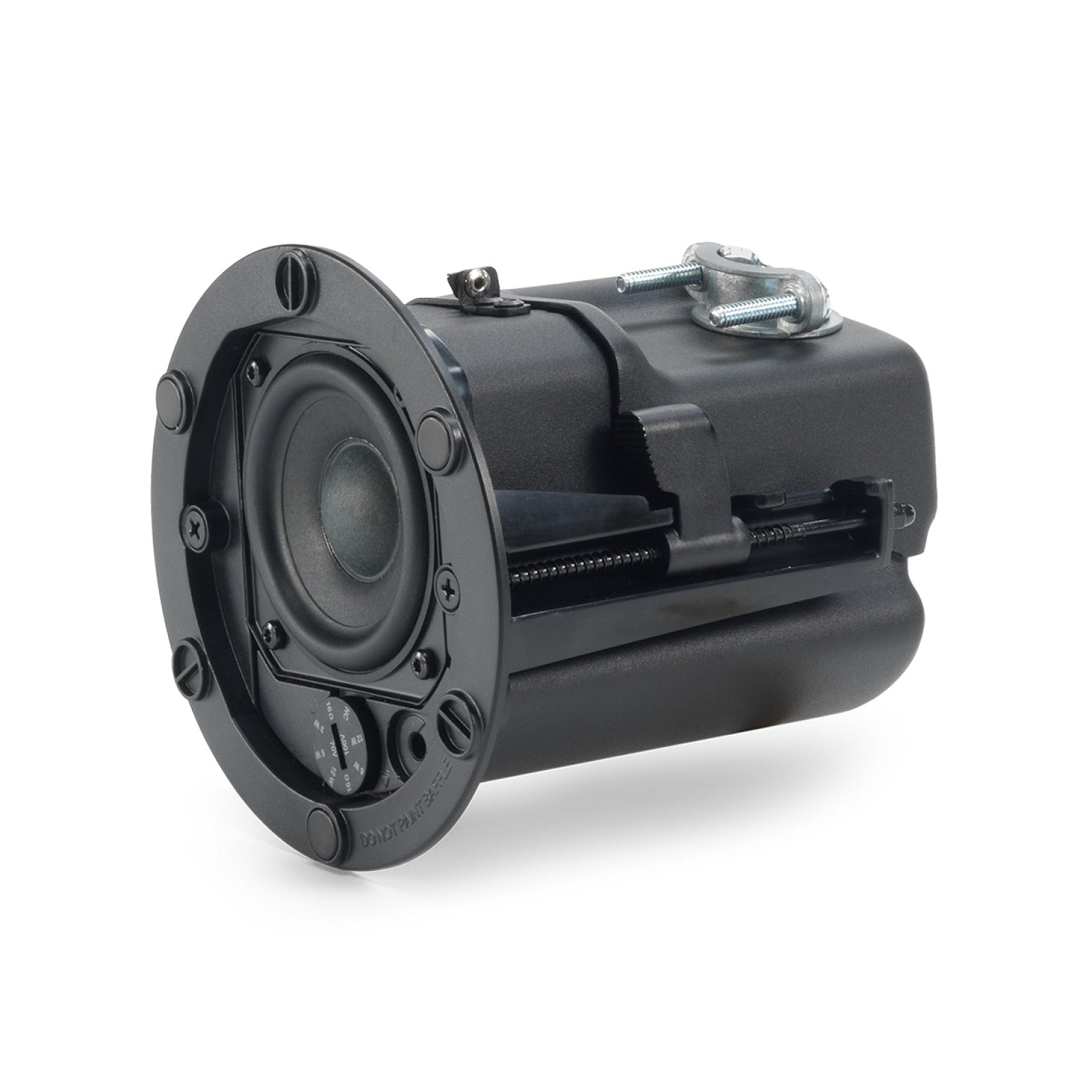

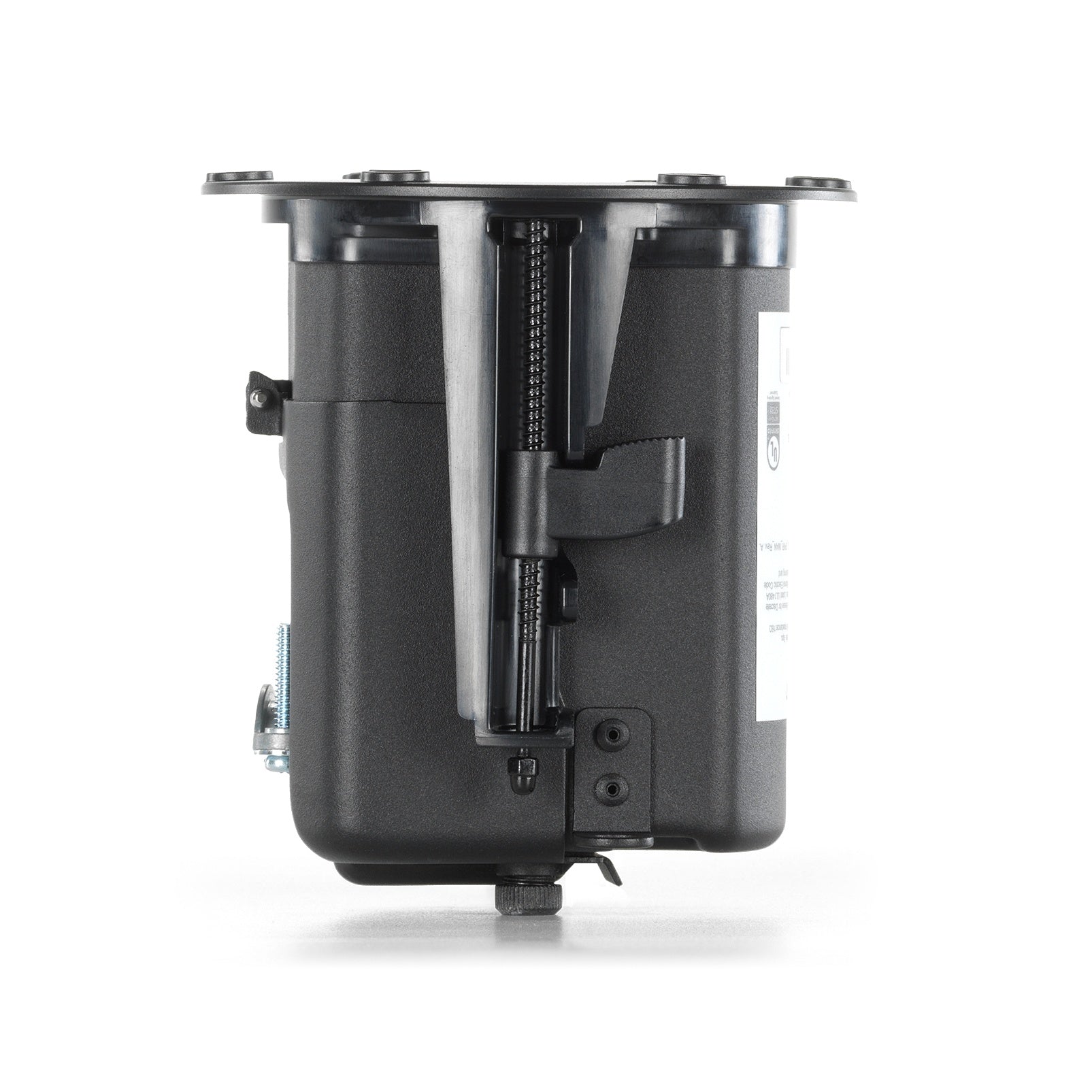

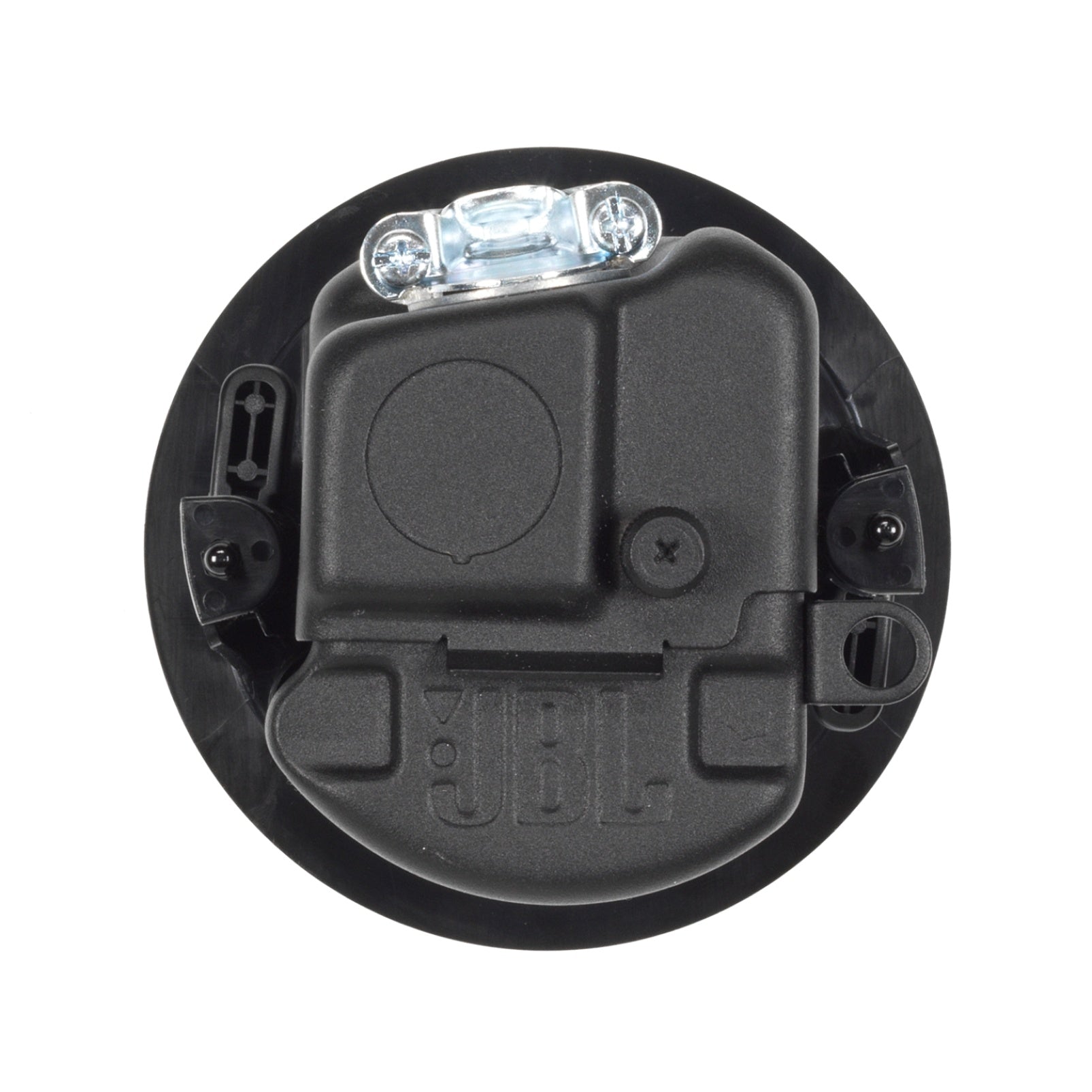

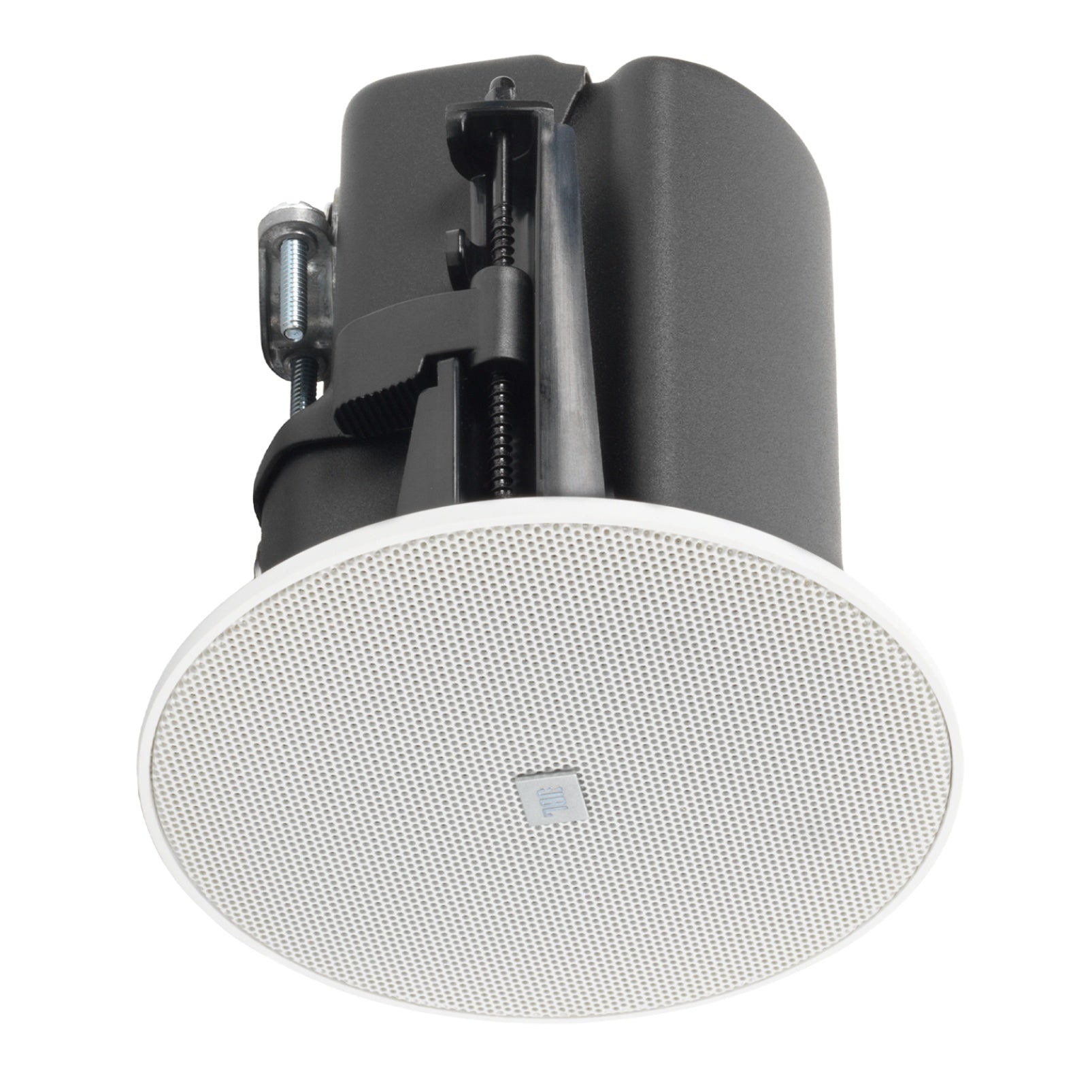

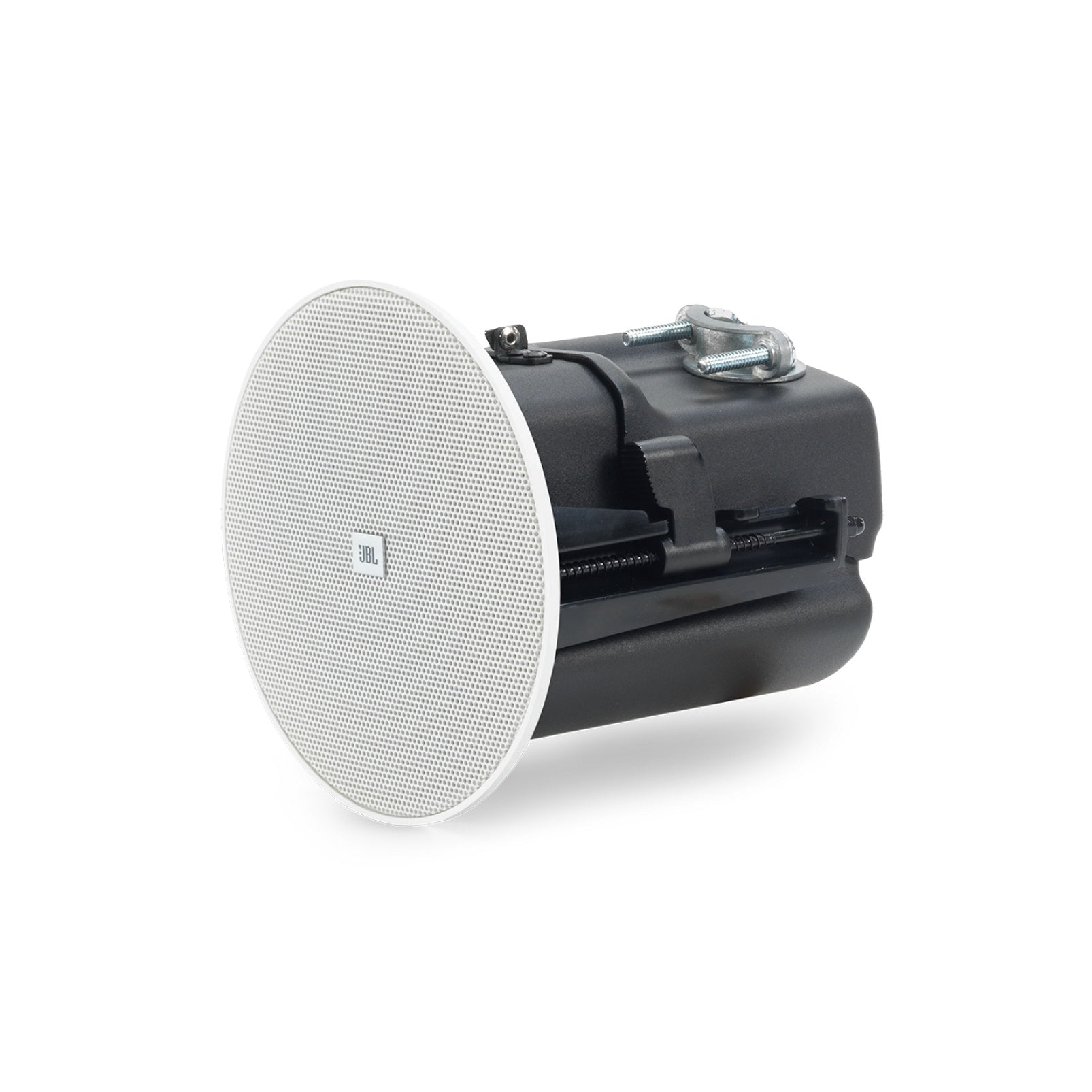

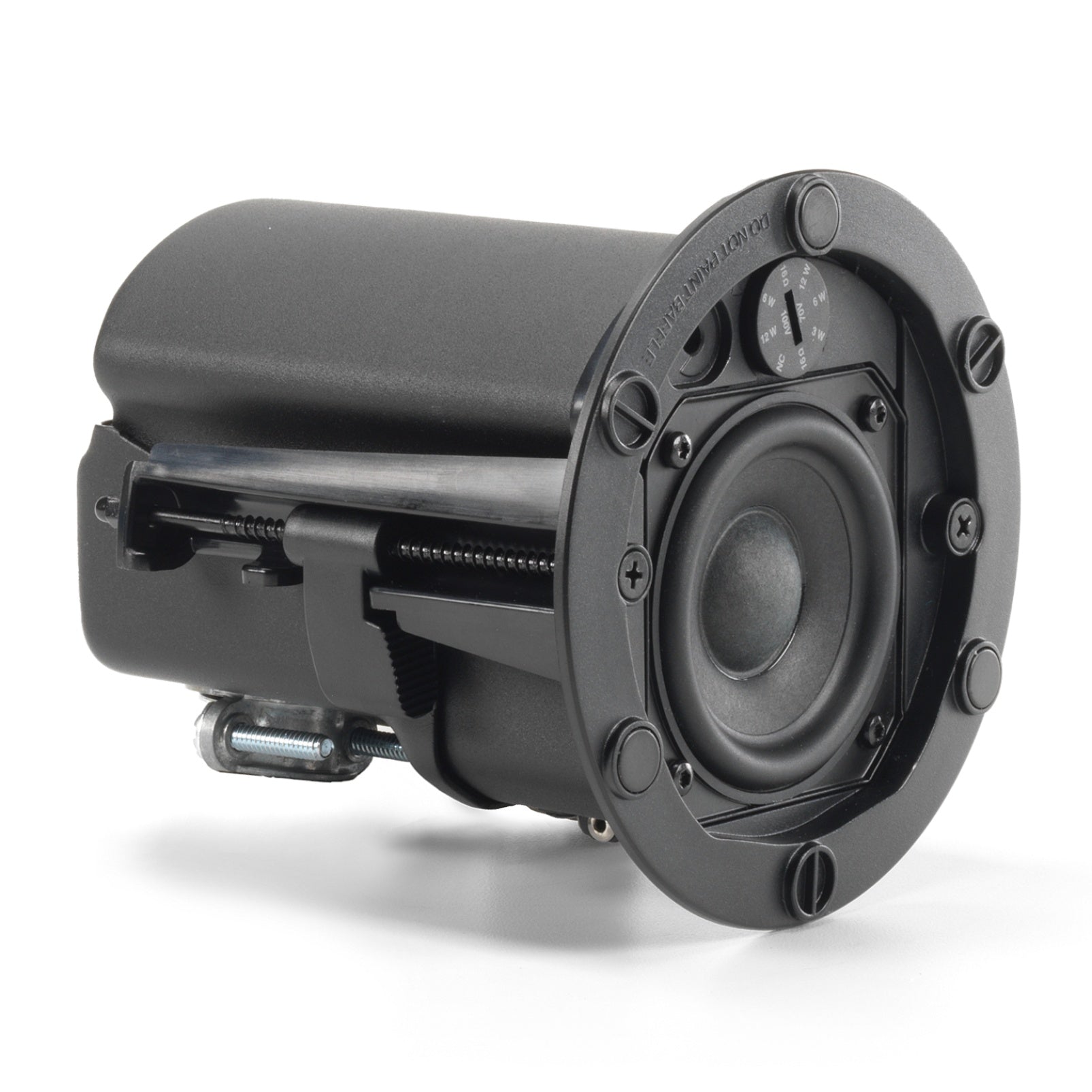

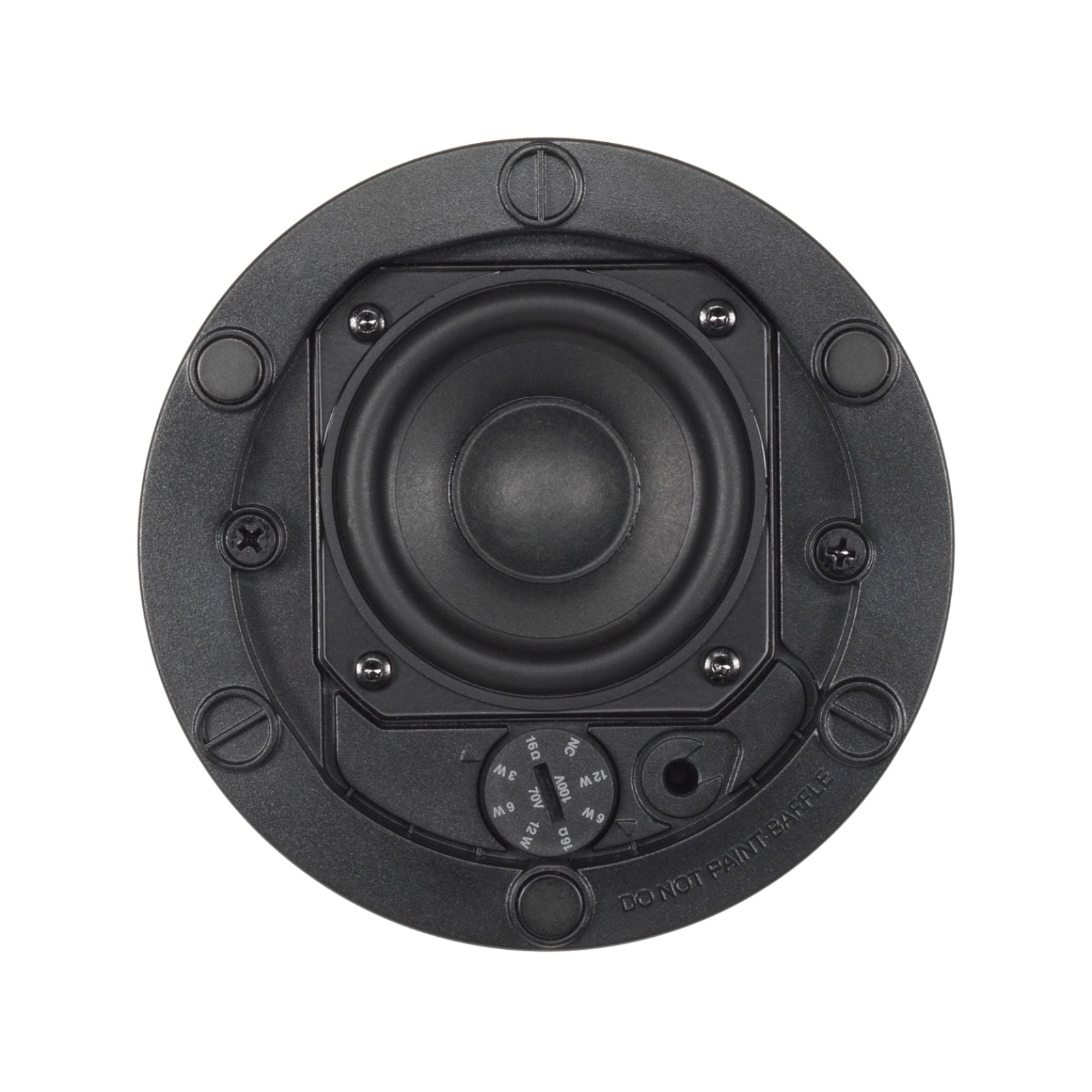

JBL Control 440CS/T-U In-Ceiling Subwoofer 70V/100V

JBL Control 440CS/T-U In-Ceiling Subwoofer 70V/100V

SoundPro Item: 201038 | Part Number: JBL-C440CS/T-U

$650.00
$650.00 $650.00
Your Price Sold out
MSRP: $650.00 | MAP: $650.00

Usually ships in 5-7 business days

  • 8 in woofer supports extended low-frequency output
  • Dual ports help deliver smooth bass performance
  • Passive crossover suits subwoofer-satellite use
  • 70V/100V taps plus 8-ohm direct connection
  • Top or side cable entry eases wire routing
  • Captive dogears fit varied ceiling thickness
  • Paintable magnetic grille blends with interiors
Log in or register for YOUR best price

The JBL Control 440CS/T is an in-ceiling subwoofer in the Control 400 Premium Coverage Series, built for distributed audio systems that require low-frequency support from a ceiling-mounted format. It uses a 200 mm (8 in) woofer with SBR surround and a built-in passive crossover network, allowing integration as part of a subwoofer-satellite configuration. Support for both 70V/100V multi-tap operation and 8-ohm direct input gives added flexibility when matching the speaker to system design requirements.

The integrated enclosure uses large, tapered dual ports to support smooth bass performance, while the reinforced construction is designed for demanding installed AV environments. Mounting details are intended to improve installation consistency, with top or side cable entry at the terminal cover and captive hand-screws for secure access. Adaptable captive dogears accommodate a range of ceiling thicknesses, helping streamline overhead installation.

For finished spaces, the full-face magnetic grille is paintable for a cleaner architectural appearance. The unit is also rated IP33 and is suitable for use in air handling spaces per the listed standards, making it appropriate for commercial and professional audio installations where placement, system voltage, and ceiling integration all matter.

View full details

Specifications

Performance
Frequency Range (-10 dB)
32Hz - 300Hz
Power Capacity
150 W (600 W Peak), Cont. Pink Noise (2 hrs.) 100 W (400 W Peak) Cont. Pink Noise Power (100 hrs.)
Sensitivity (1m/1W)
95dB in ceiling near corner (Ï€/2 loading)
Maximum SPL (1m)
117 dB Cont. pink noise (123 dB peak, π/2 loading)
Nominal Impedance
8Ω
Transformer Taps
70 V: 80 W, 40 W, 20 W & 10 W 100 V: 80 W, 40 W, 20 W
Drivers
200 mm (8 in) treated paper cone with SBR surround and high-performance magnet
Installation
Ceiling Cutout Size
307 mm (12.1 in)
Dimensions
351mm (13.8 in) H x 342 mm (13.5 in) dia. 337mm (13.3 in) from bottom of ceiling tile to top of backcan
Color
Stock grille is White (RAL9003), paintable
Net Weight (ea)
8.72 kg (19.22 lbs)
Shipping Weight (pair)
25.02 kg (55.16 lbs)
Compliance
Safety Agency Rating
Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
Environmental
IP rating: IP33 per EN/IEC 60529. Operating temperature: 0° C to 45 °C.
Optional Accessories
Optional Accessories

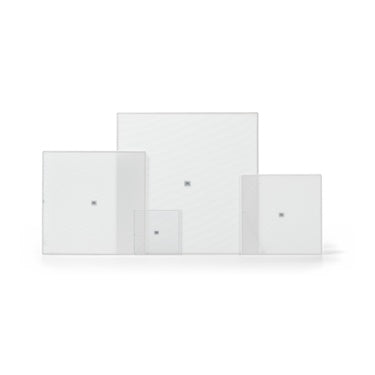

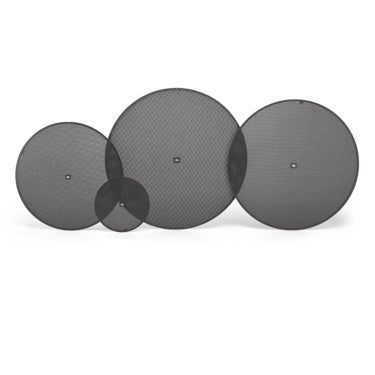

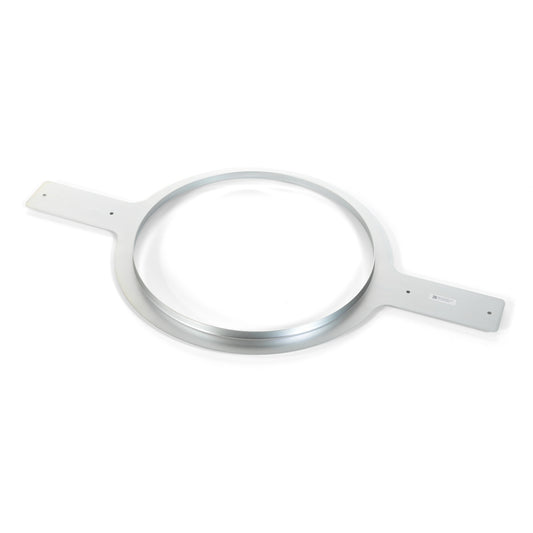

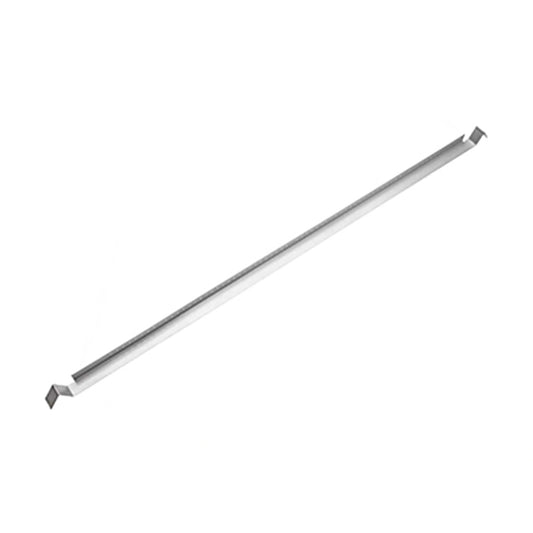

JBL-MTC-440BG black (RAL9004) round grille JBL-MTC-440SG white (RAL9003) square grille JBL-MTC-419NC new construction bracket JBL-MTC-419MR mud-ring construction bracket JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
SKU Numbers
JBL-C440CS/T
