JBL SRX906LA AF Array Frame

JBL SRX906LA AF Array Frame

SoundPro Item: 132964 | Part Number: SRX906LA AF

Regular price $889.00
Regular price $1,290.00 Sale price $889.00
Your Price Sold out
MSRP: $1,290.00 | MAP: $889.00

In stock and ready to ship

  • Compact and lightweight design
  • Precision pick-point resolution
  • Two-part collapsible design
  • Support for third-party laser inclinometers
  • Support for up to 16 SRX906LA

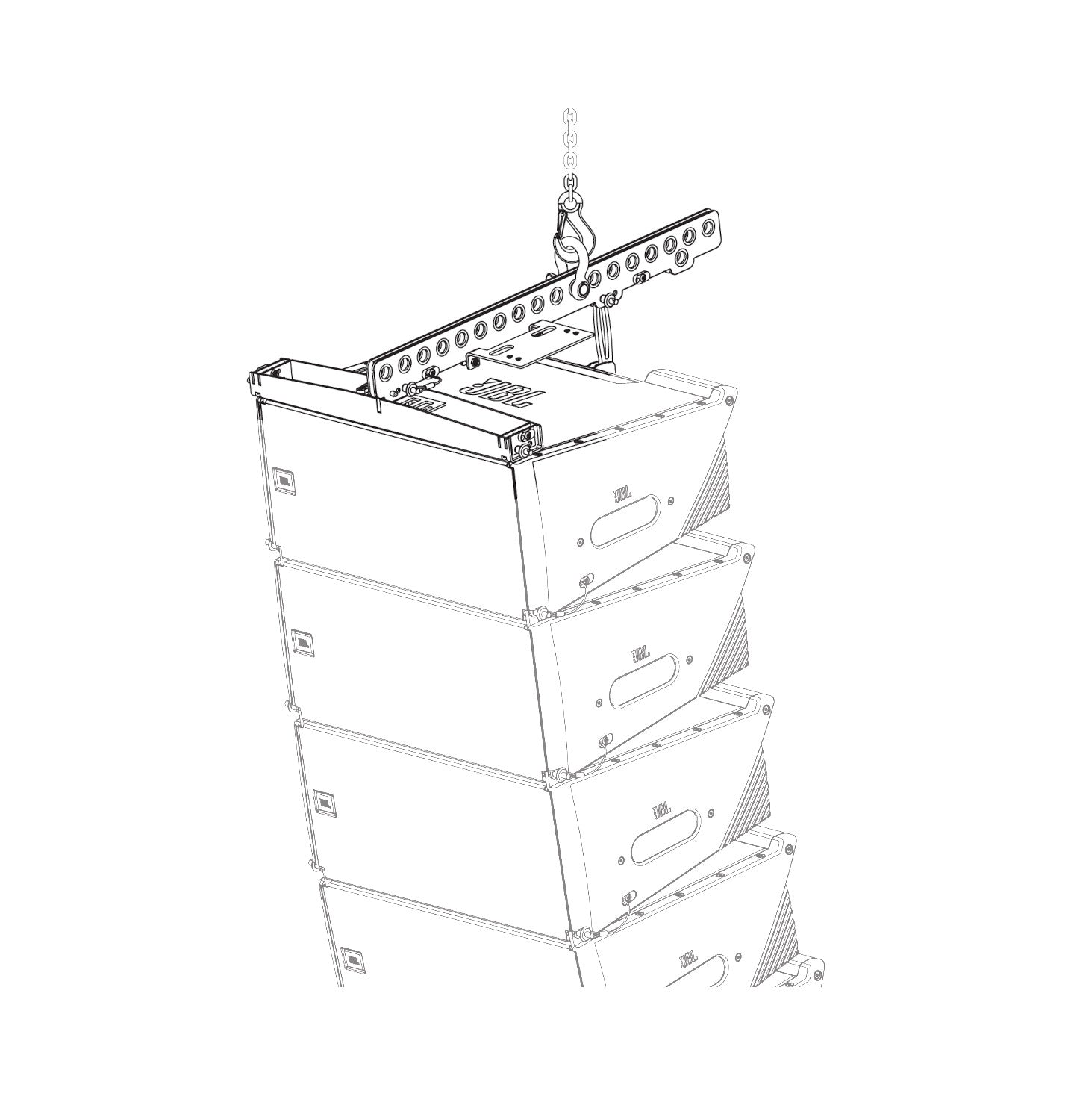

The SRX906LA AF is a lightweight and compact array frame for suspending SRX906LA arrays. The array frame was designed to work with single-point and front-back suspension methods. For single-point applications, the array frame can be used in conjunction with the VTX RC500 rotating clamp, allowing smaller SRX906LA arrays to be suspended from standard size trusses or pipes.

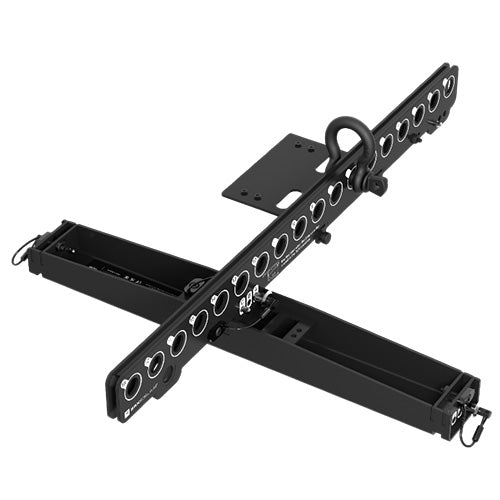

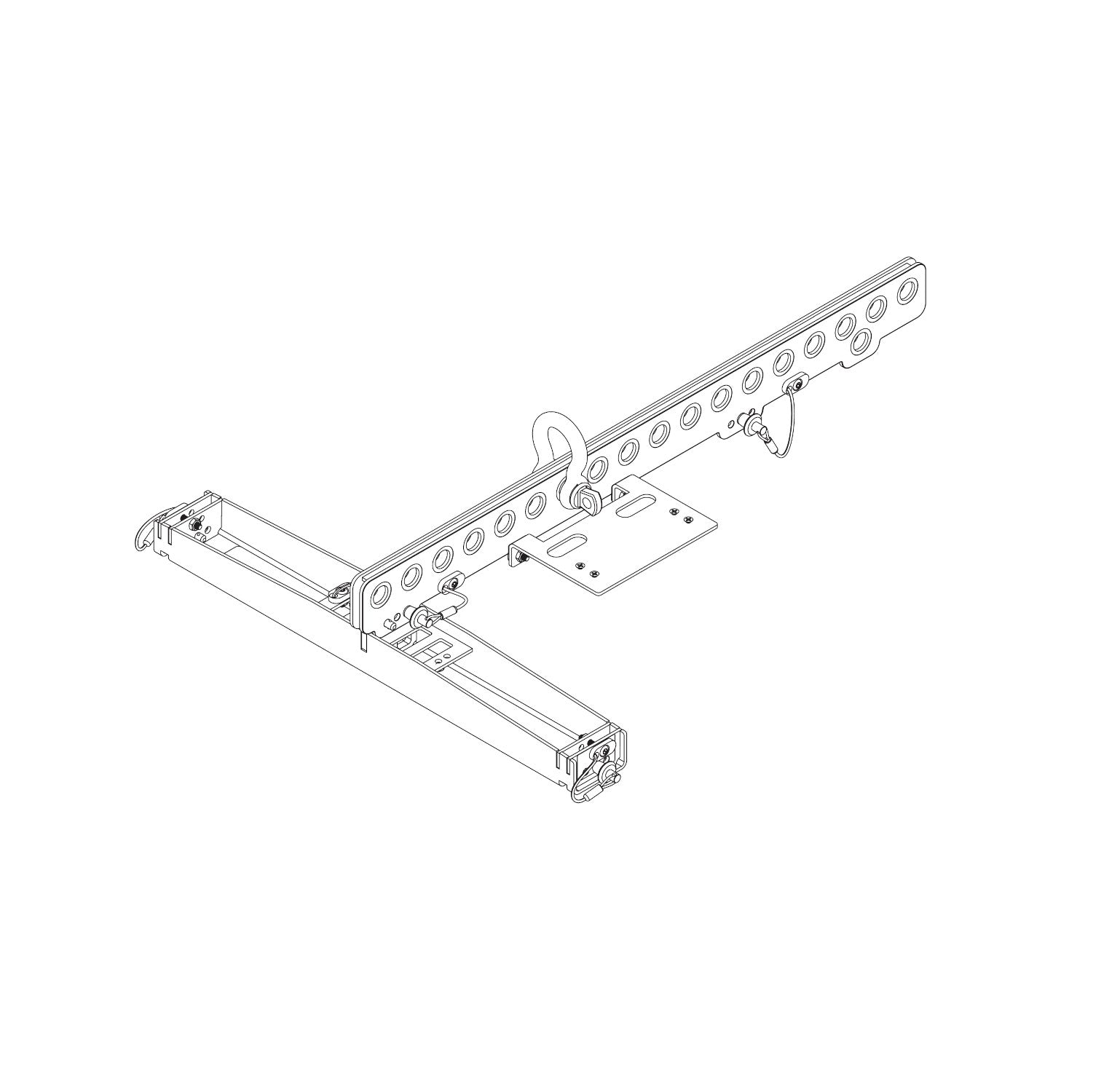

The two-piece design is comprised of one extension bar and one spreader bar. The extension bar can extend to the front or rear of the frame to accommodate both uptilt and downtilt aiming options. Three connection points are available for attaching the extension bar to the spreader bar, allowing for precise control of shackle positioning for single-point applications. Support for third-party inclinometers is available using the included laser attachment bracket. The two parts can be collapsed for easy storage.

View full details
  • Constructionhigh-grade steel with anti-corrosion coating
  • Finishblack powder coat
  • Compatible Shackle Size1/2"
  • Compatible LasersTEQ-SAS, RECLINE
  • Mechanical Limits
    • Safe Limit: 14 SRX906LA
    • Max. Limit: 16 SRX906LA
  • Dimensions (HxWxD)3.9" x 19.2" x 25.8"
  • Weight9 pounds
