- Acoustical
- Frequency Range
- (-10 dB): 53 Hz-19 kHz (array preset)
- (-3 dB): 60 Hz-18 kHz (array preset)
- Coverage Pattern (-6 dB)
- Horizontal: 105 degrees nominal (400 Hz-16 kHz)
- Vertical: Varies with array size and configuration
- Maximum Peak Output: 135 dB
- System Type: Line Array, two-way active
- Frequency Range
- Transducers
- Low Frequency: (2) JBL 261G-1, 10 in diameter, dual 2.0 in diameter voice coil, neodymium Differential Drive®
- High Frequency: (1) JBL 2432H-3, 1.5 in exit neodymium compression driver with 3 in voice coil

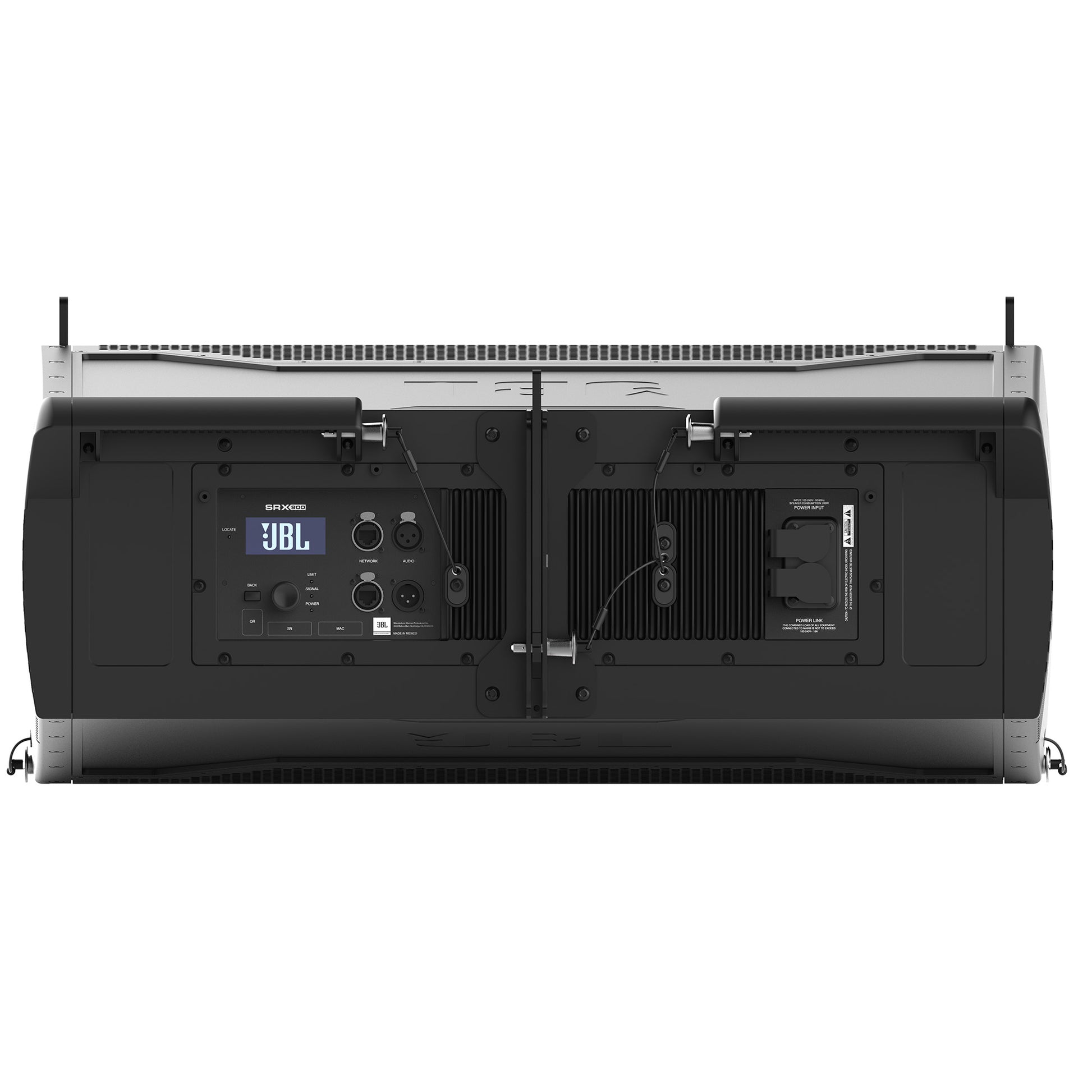

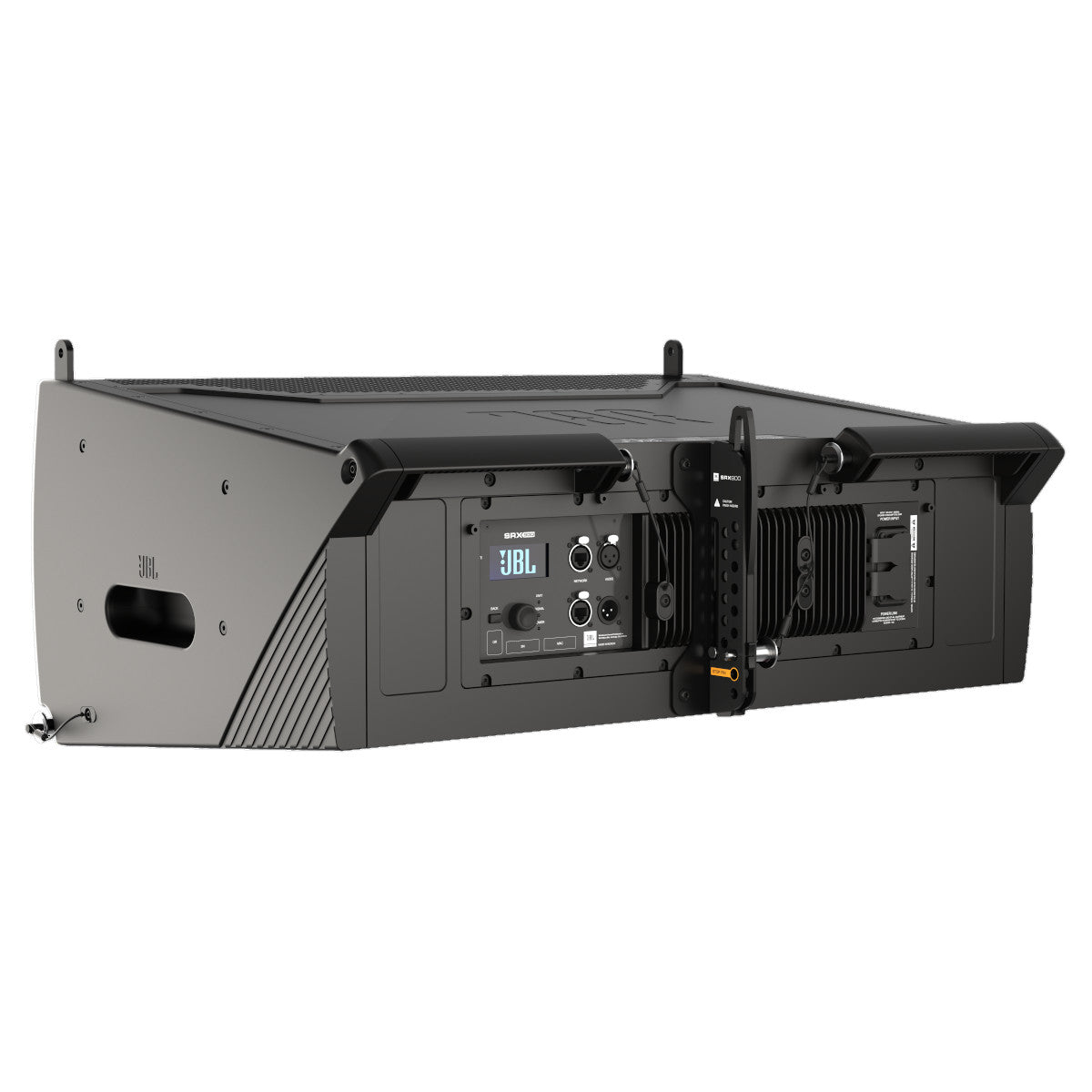

- Audio Input
- Input Type: Balanced line level
- Connectors: (2) Neutrik XLR (IN/OUT)
- Nominal Input Sensitivity: +6 dBu (system starts limiting with broadband noise and music)
- Maximum Input Level: 21 dBu
- Input Impedance: 100 kΩ
- DSP
- Sample Rate: 48 kHz
- Bit Depth: 24 bit
- Networking
- Type: TCP/IP
- Protocol: Harman HControl
- Speed: Dual 100 Mbps ports
- Connectors: (2) Neutrik etherCON®
- AC Power
- Voltage Range
- Nominal: 100-240 VAC, 50/60 Hz
- Limits: 80-260 VAC, 50/60 Hz
- Connectors: Dual (IN/OUT) Neutrik powerCON TRUE1 TOP®
- Current Draw
- 120V, 208V, 240V
- Idle: 0.3A, 0.2A, 0.2A
- Standby: 0.2A, 0.1A, 0.1A
- Continuous: 1.9A, 1.1A, 1.0A
- Maximum Instantaneous Peak [5]: 7.0A, 6.4A, 6.2A
- Peak Inrush: 2.2A, 3.6A, 4.3A
- Physical

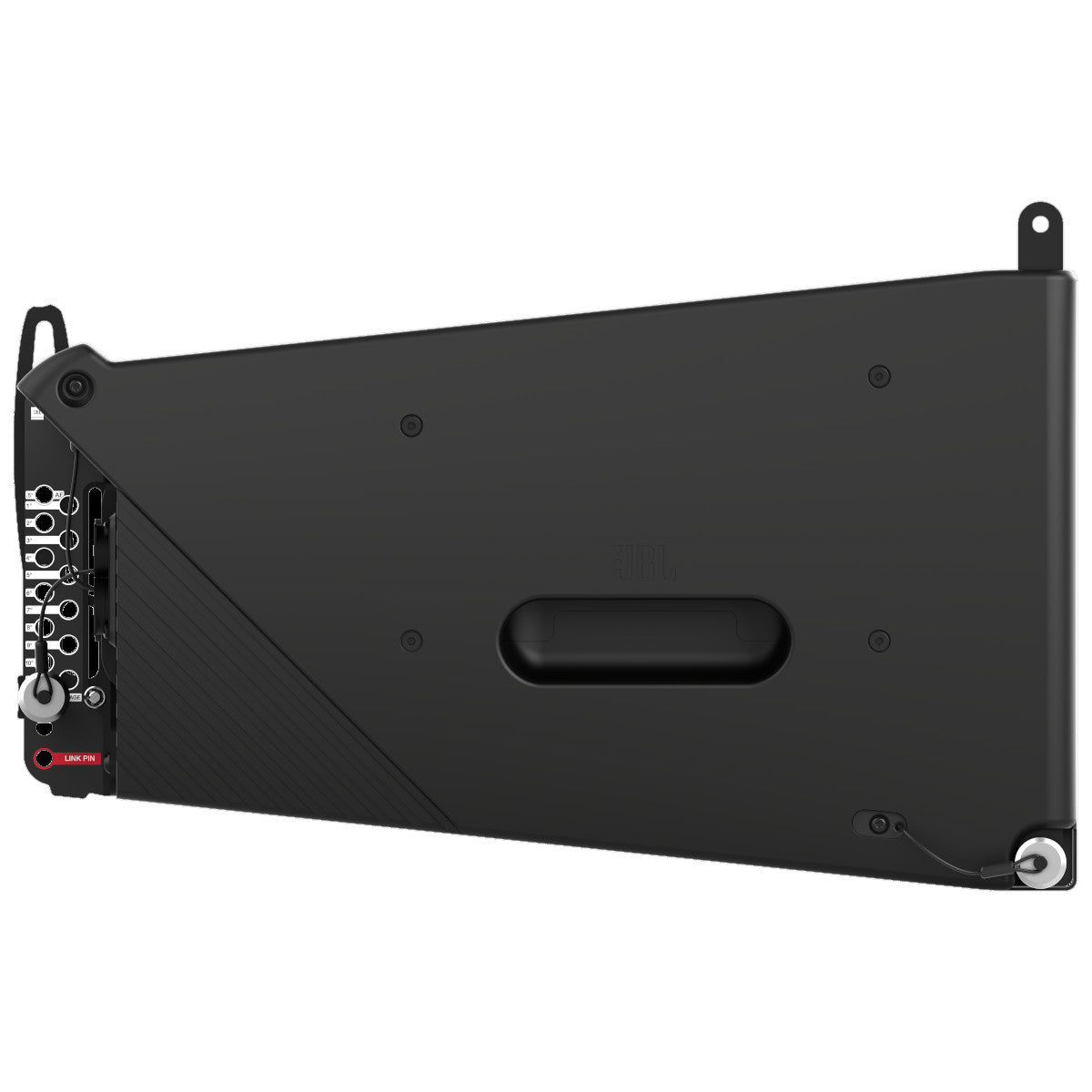

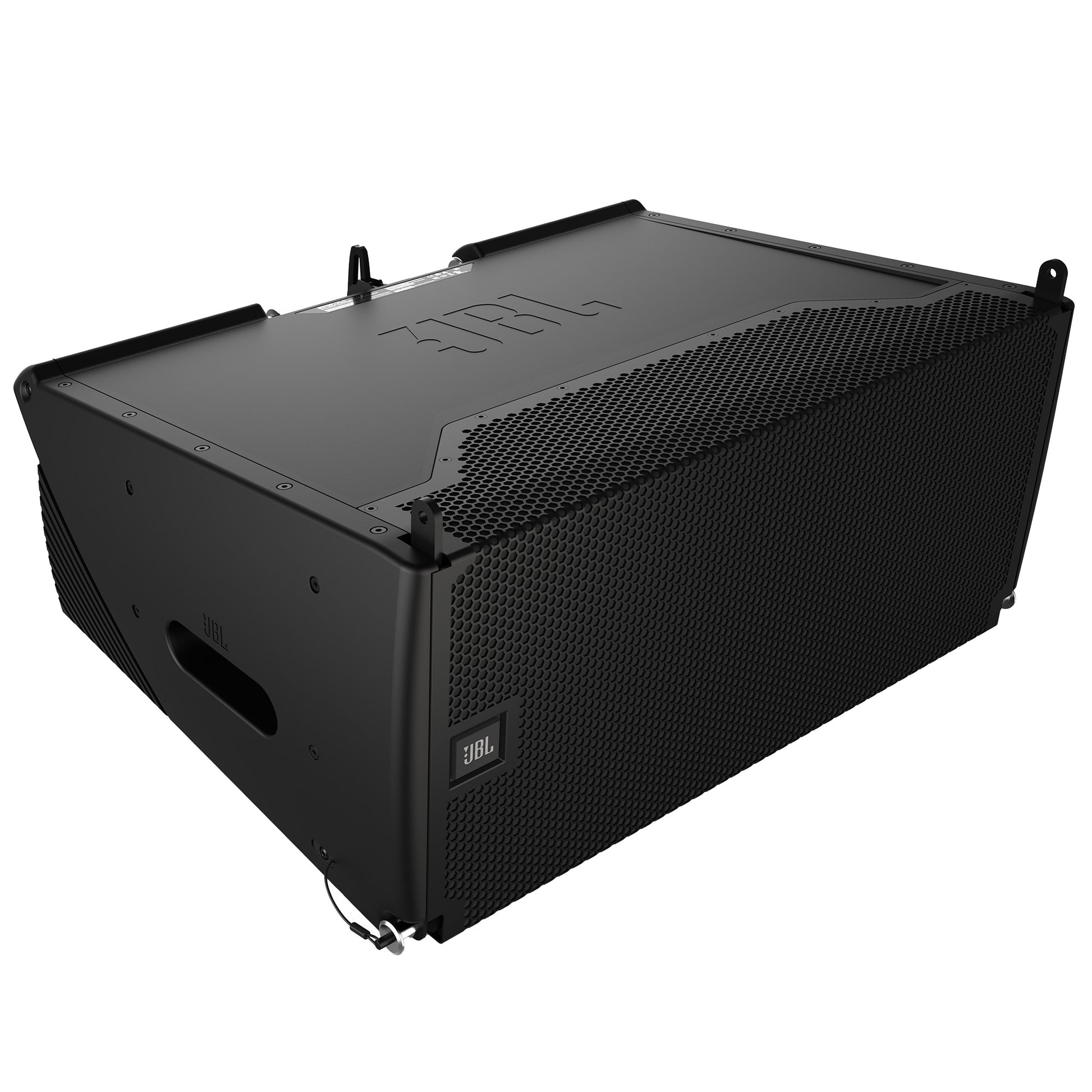

- Enclosure: Polypropylene, aluminum baffle, plywood internal bracing, four integral recessed handholds
- IP Rating: IP54
- Suspension: Three-point, captive suspension plates, quick release pins, steel with anti-corrosion coating
- Inter-enclosure Angle (deg): 0.5, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12

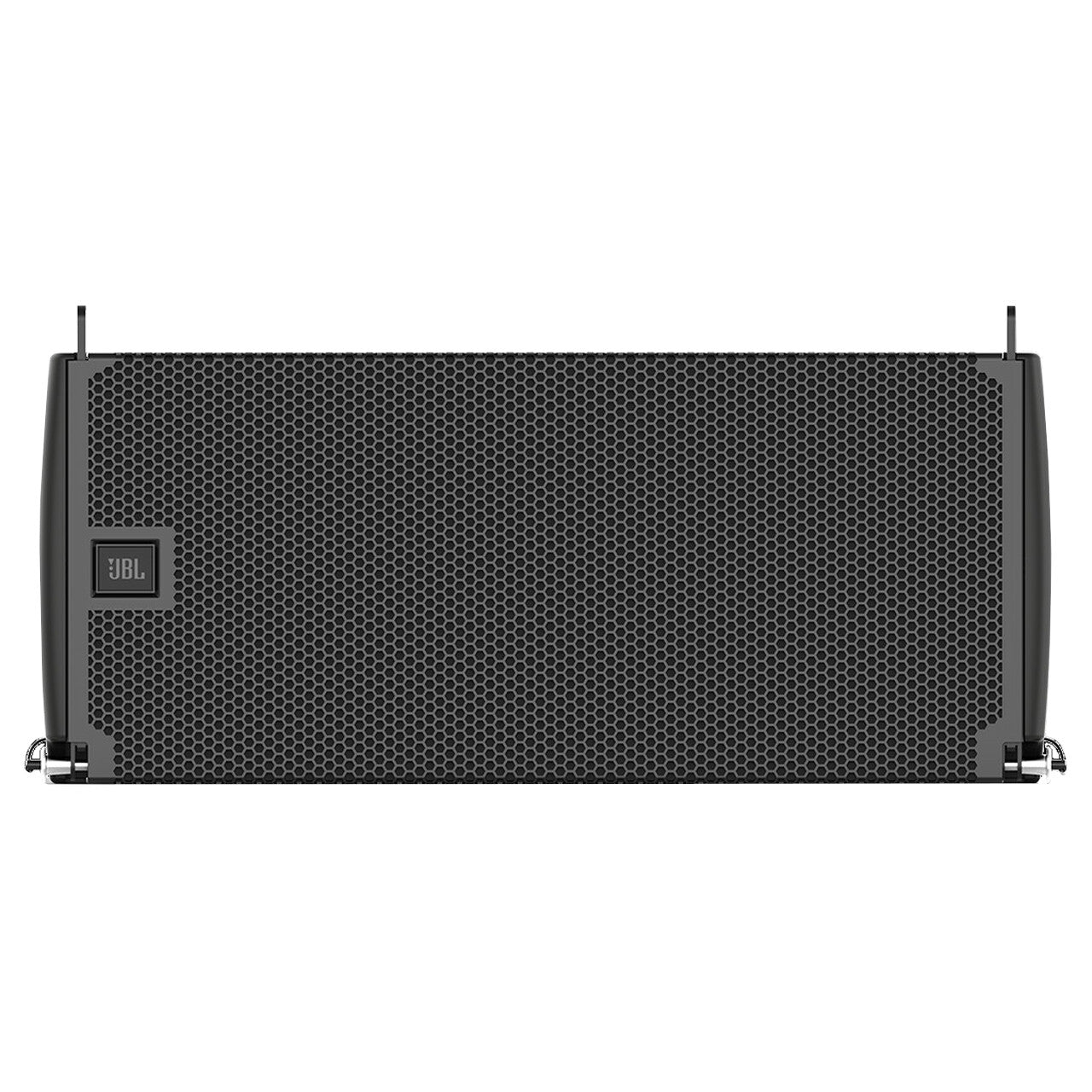

- Grille: Powder coated 1.5 mm (16-gauge) hex perforated steel with acoustically transparent black cloth backing
- Dimensions (HxWxD): 12x28.2x20.5 in (305x716x519 mm)
- Net Weight: 59 lbs (26.7 kg)
