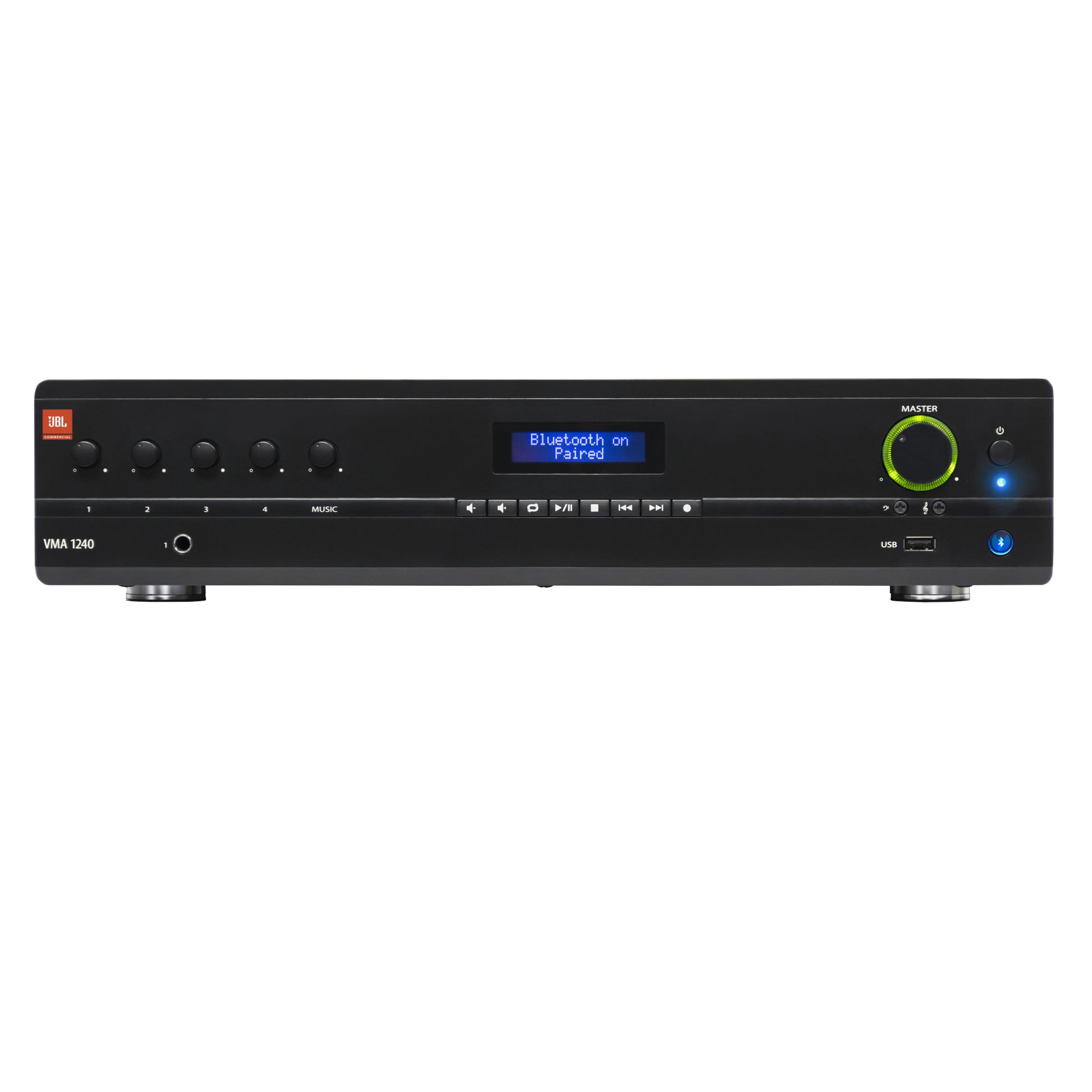

• JBL VMA 1240 Commercial Mixer Amplifier

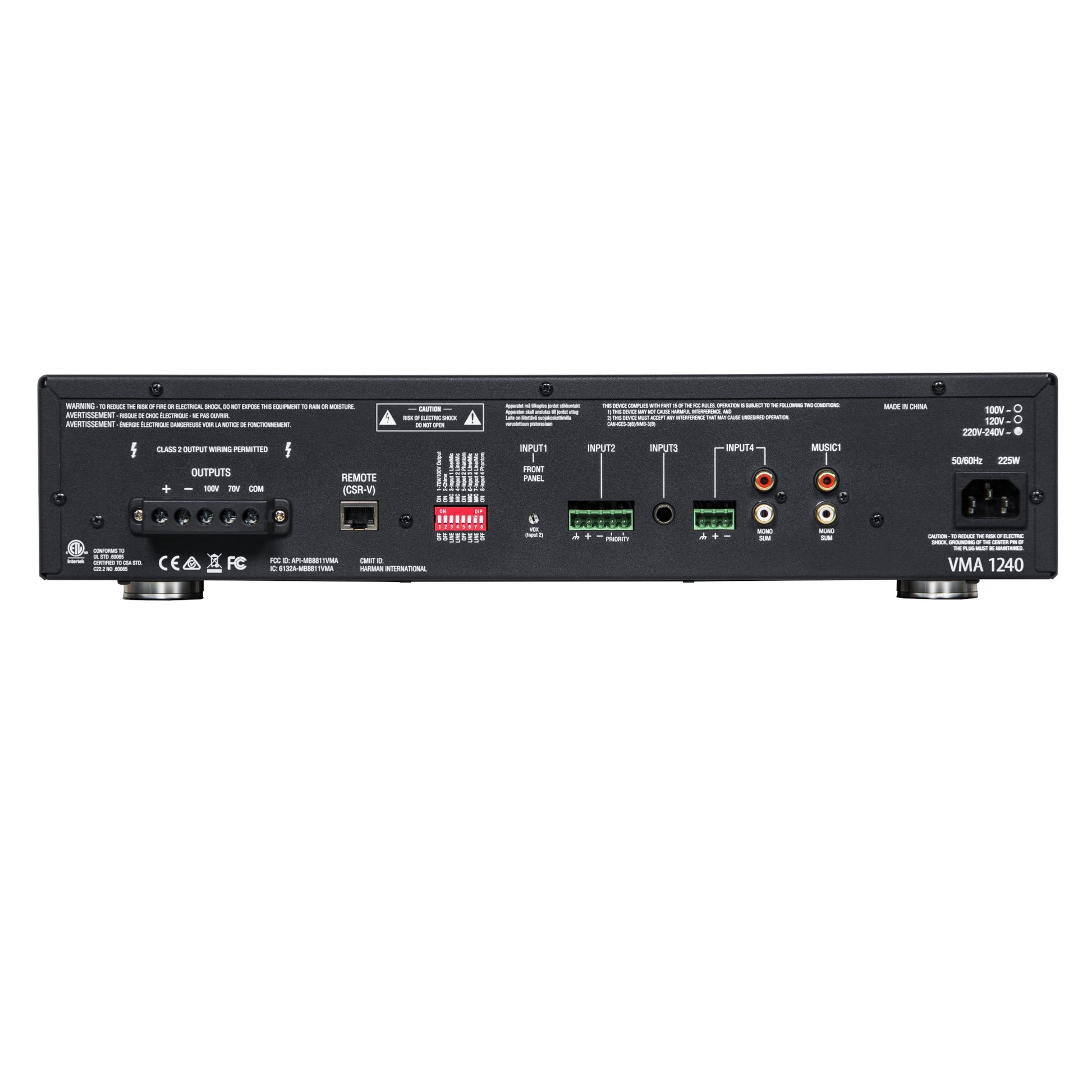

  • JBL VMA 1240 Commercial Mixer Amplifier back
1 2

JBL VMA 1240 Commercial Mixer Amplifier

JBL VMA 1240 Commercial Mixer Amplifier

Soundpro Item: 98090 | Part Number: NVMA1240-0-US

$925.16
$925.16 $925.16
Your Price Sold out
MSRP: $925.16 | MAP: $925.16

Usually ships in 5-7 business days

  • 5 inputs with 1 output of 60, 120, or 240-watts of power
  • Independent bass and treble controls for each output channel
  • 100V and 70V output, or 4Ω/8Ω
  • Paging Chime, and Priority muting
  • Works with JBL CSR-V wall controllers
  • Balanced mic/line inputs; RCA (.775V) inputs
  • Rack mounting hardware included
Log in or register for YOUR best price

The JBL VMA Series is a cost-effective line of Mixer/Amplifiers with low impedance functionality (4Ω, 8Ω) and high impedance 70V and 100V output. They are designed with convenient and flexible features to be used by commercial integrators worldwide, ideal for emerging markets.

View full details

Specifications

  • Max Output Power per Channel into 4 Ω or 8 Ω; 1kHz, ≤ 0.5% THD240W
  • Insertion Loss (70V & 100V outputs) 1dB maximum
  • Number of Inputs 5
  • Number of Outputs 1
  • Tone Controls (Bass and Treble non-detented potentiometers on each channel) Bass +/-14dB @ 50Hz; Treble +/-14dB @10kHz
  • Input Sensitivity(to obtain full rated power into 8 Ω load) Mic Input: 5.5mVRMS Line Input: 1.3VRMS RCA Input (stereo in): 130mVRMS
  • Frequency Response (measured at 2.83VRMS into rated load impedance at any output) 4/8 Ω Output: 20Hz - 20kHz, +/-2dB; 70V/100V Outputs: 80Hz - 15kHz +/-3dB
  • Total Harmonic Distortion (THD) (measured at 2.83VRMS into rated load impedance at any output) Power Amp Output: <0.5%, 20Hz - 20kHz
  • Signal to Noise Ratio (Ref. Rated Power, mixer levels @ min., master volume @ max. A-weighted) >76dB
  • Input Impedance (nominal) Mic: 400 Ω Line: 20 kΩ (balanced) RCA: 50 kΩ
  • Phantom Power 27VDC
  • Crosstalk (reference rated power, volume at mid position, 1kHz) -70 dB
  • Nominal AC Line Voltages 100V, 120V, 220V, 220-240V, 50/60 Hz
  • Minimum Load Impedance (Low Impedance Output, 70V Output, 100V Output)4 Ω, 20 Ω, 40 Ω
  • Operating Temperature/Humidity 0°C to 35°C @ 95% R.H. (non-condensing)
  • Storage Temperature -20°C to 85°C
  • Net Weight25.5 lbs (11.6 kg)
  • Dimensions (WxDxH)17x16.3x3.5" (432x415x88mm)
  • Shipping Weight30.8 lbs (14 kg)
