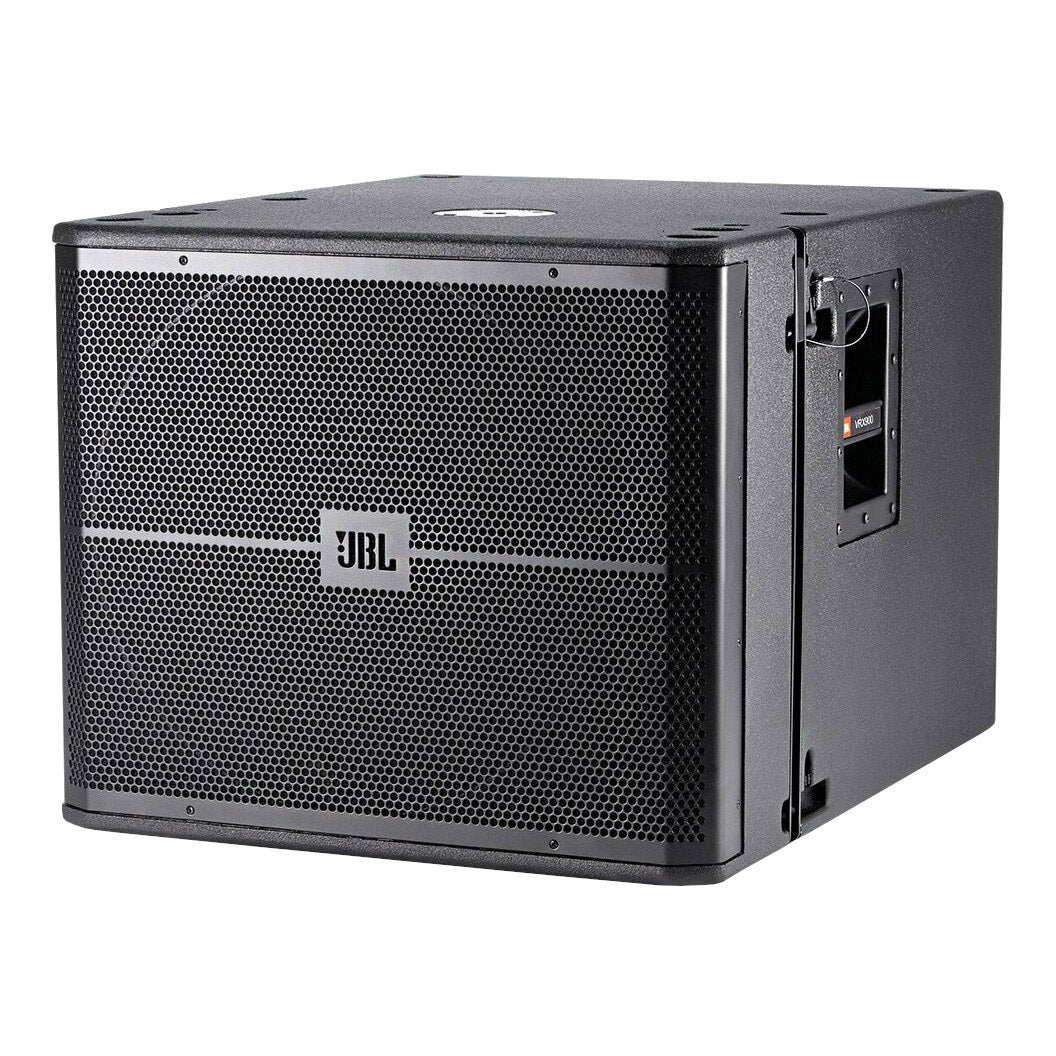

JBL VRX918SP 18-Inch Powered Flyable Subwoofer
JBL VRX918SP 18-Inch Powered Flyable Subwoofer
SoundPro Item: 41170 | Part Number: VRX918SP
Usually ships in 5-7 business days
- Built-in JBL DrivePack® DPC-2 amplifier module designed by Crown provides 1500 Watts of peak power. DSP based resident input module provides system optimization, EQ and crossover functionality.
- 18 inch, 2268FF dual voice coil, neodymium magnet Differential Drive® woofer for high-power capacity and light-weight.
- Integral rigging hardware for simple connection of enclosures and optional array frame.
- 20 mm threaded pole socket for solid, secure satellite speaker mounting.
- Large port area for reduced distortion.
The VRX918SP is a powered, suspendable subwoofer system containing a 2268FF neodymium magnet, patented Differential Drive®, 18" woofer in a front-loaded, vented enclosure. The VRX918SP was designed specifically for use in arrays with the VRX932LAP Line Array speaker and VRX-AF Array Frame. In addition it may also be used in arrays consisting entirely of VRX918SP subwoofers.
- Power Rating1500 Watts Peak
- LFDual-Bridged Technology™, Class D
- Frequency Range31 Hz – 220 Hz
- Dimensions (H x W x D)20 x 23.5 x 29.5 inches (508 x 597 x 749 mm)
- Frequency Response (-10dB)31 Hz – 220 Hz
- Maximum Peak Output126 dB SPL at 1m
- Bandpass Nominal ImpedanceLF: 2 x 2 ohms
- LF Driver1 x JBL 2268FF 457 mm (18 in) dual voice coil Differential Drive® woofer with neodymium-magnet
- InputsXLR with loop through
- User ControlsInput Attenuator (0-16 dB)Selectable 80 Hz or 120 Hz Low Pass 80 Hz
- High-Passenable/disable for XLR loop thru
- System ProcessingDSP based, resident in Input Module
- System ManagementDSP based limiters for mechanical and thermal protection
- AC PowerOperating Range 90-132 VAC or 216-264 VAC, 50/60Hz
- AC Line VoltageUser selectable: 120V/240V (-15%, +10%)
- AC Input ConnectorNeutrik PowerCon (NAC 3MPA)
- AC Loop Through ConnectorNeutrik PowerCon (NAC 3MPB)
- AC Current Requirements6A per system at 120V, 3A per system at 240V
- Enclosure18 mm birch plywood
- Suspension / MountingOptional VRX-AF line-array frame kit or 10 mm forged eyebolts
- FinishBlack DuraFlex™ finish
- GrillePowder coated, black, 16-gauge perforated steel with acoustically transparent foam
- Net Weight (each)85 lbs (38.5 kg)
- Outputs1 x XLR
- Nominal Impedance (LF)2 x 2 ohms
