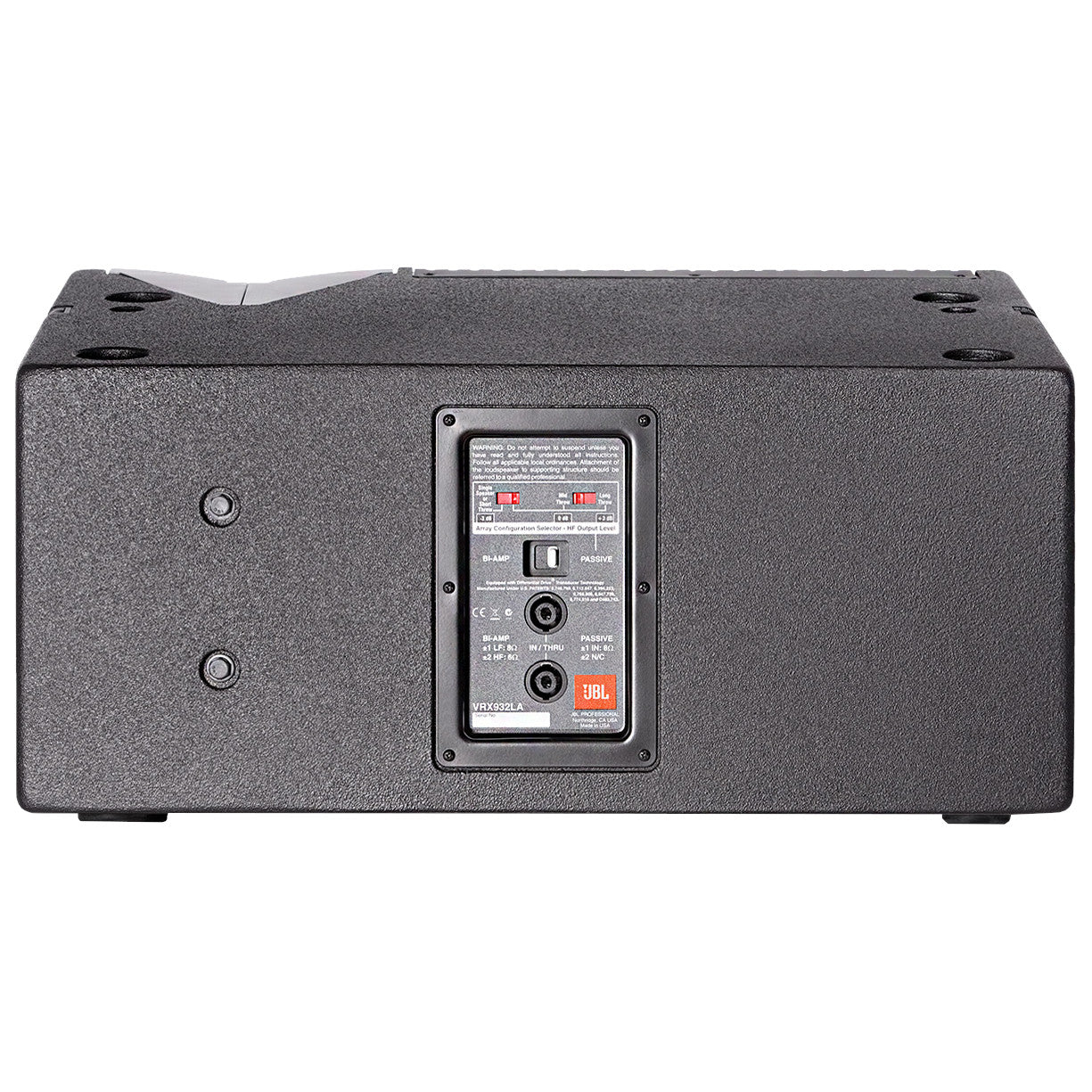

JBL VRX932LA-1 12-Inch Passive Line Array Speaker | Color: Black
JBL VRX932LA-1 12-Inch Passive Line Array Speaker | Color: Black
SoundPro Item: 47402 | Part Number: VRX932LA-1
Usually ships in 5-7 business days
- JBL's exclusive neodymium magnet Differential Drive® woofer for highpower capacity and lightweight
- VRX932LA-1 features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design
- Constant Curvature waveguide for unprecedented array coherence
- Integral rigging hardware for simple connection of enclosures and optional array frame. Arrays of up to six enclosures may be flown
- Dual angle pole socket for aiming flexibility. One or two speakers may be mounted to a 35 mm pole or tripod stand
- Array Configuration Selector permits "array shading" in passive mode
The VRX932LA-1 is a lightweight compact 12" two-way line array speaker system designed for use in arrays of up to six units. VRX932LA-1 is the ideal choice when line array performance is needed but the venue size doesn't call for the very long-throw characteristics of larger line arrays such as JBL's VERTECĀ®.
The Constant Curvature waveguide mounts three compression drivers on a continuous arc. When additional VRX932LA-1 speakers are added to the array the uninterrupted arc continues. In effect, all the drivers work together as if they were a single driver on a very long waveguide. Since there are three drivers in each VRX932LA-1, the combined power handling and acoustic output of the system is far greater than a single driver could achieve.
- Power Rating 800 W / 1600 W / 3200 W
- Frequency Range (-10dB) 57 Hz - 20 kHz
- Dimensions (H x W x D) 343 x 597 x 376mm (13.5 x 23.5 x 14.8in)
- Frequency Response (±3 dB) 75 Hz - 20 Hz
- Coverage Pattern 100 x 15 nominal
- Crossover Modes Bi-amp / passive, externally switchable
- Crossover Frequency 132 dB SPL peak 1.2 kHz
- Maximum SPL (1m)
- 130 dB SPL peak (passive mode)
- LF: 130 dB HF: 139 dB
- Sensitivity Passive: 95 dB SPL Bi-amp LF: 95 dB SPL Bi-amp HF: 114 dB SPL
- LF Driver 1 x JBL 2262H 305 mm (12 in) Differential Drive® woofer with neodymium magnet, dual voice-coils, and dual magnetic gaps.
- HF Driver 3 x JBL 2408J, 38 mm (1.5 in) voice-coil, neodymium compression driver
- Nominal Impedance
- Passive = 8 ohm
- Bi-amp LF = 8 ohm
- Bi-amp HF = 8 ohm
- Active Tunings Tunings available at www.jblpro.com
- Enclosure 18 mm, 11-ply birch plywood
- Suspension / Mounting Optional VRX932LA-AF line array frame kit
- Finish Black DuraFlex™ finish
- Grille Power coated, black, 16-guage perforated steel with with acoustically transparent foam
- Inputs Neutrik® Speakon® NL-4 (x2)
- Net Weight (each) 21 kg (46 lb)
- Outputs 1 x XLR
- System Type Constant Curvature 12" Two-Way Line Array System
