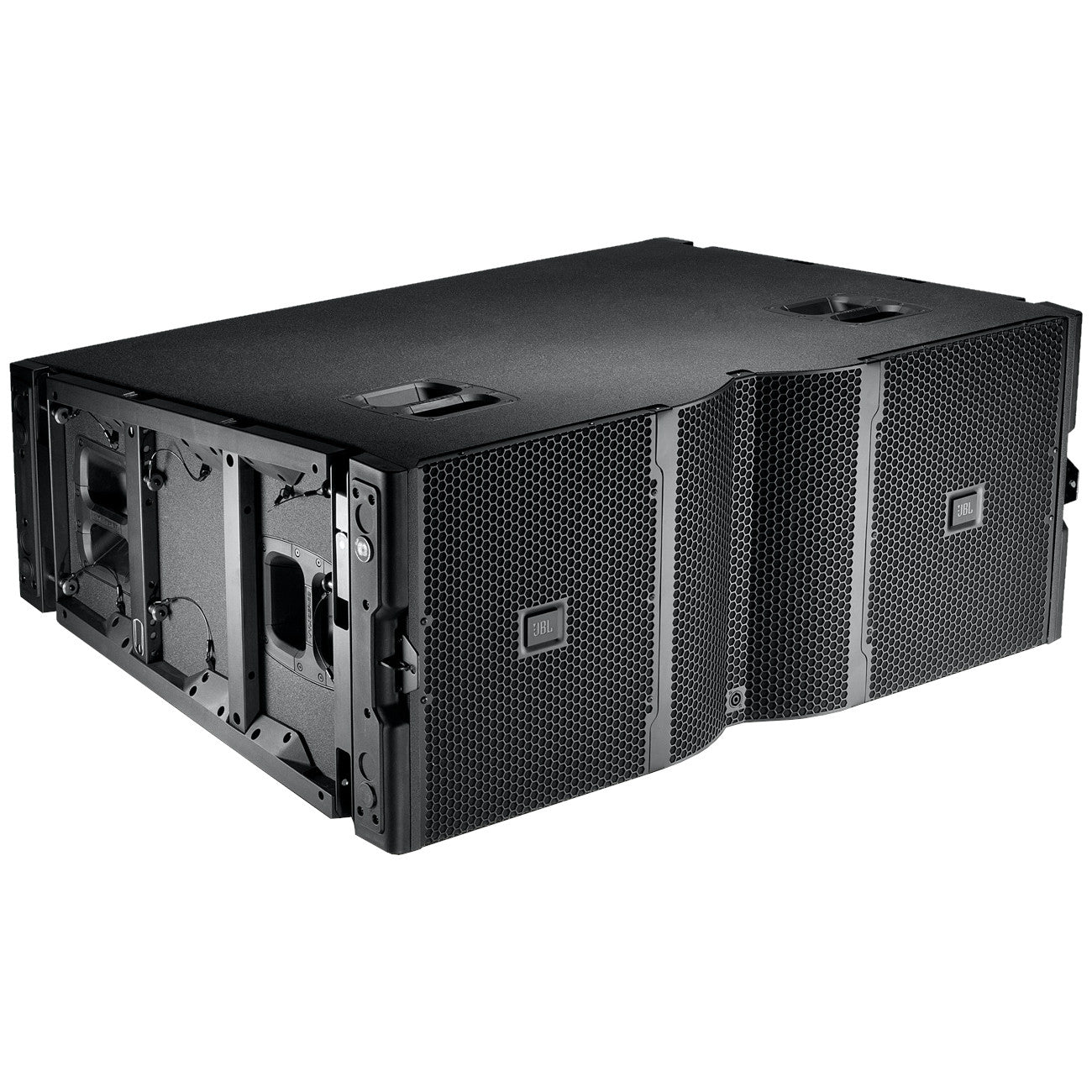

JBL VTX S28 Dual 18-Inch Flyable Subwoofer
JBL VTX S28 Dual 18-Inch Flyable Subwoofer
SoundPro Item: 66928 | Part Number: VTX S28
Pricing available upon request
Pricing available upon request
Usually ships in 5-7 business days
- 2269H Differential Drive®, Dual Neodymium Magnet, Dual Voice Coil, Direct Cooled™ dual 18” transducers
- Reverse-Cardioid Arrayable with convenient front-facing NL4 connector and OEM factory presets for cardioid operation
- Compatible with VTX V25 suspension - S28 can be suspended at the top or in the middle of V25 arrays to extend the effective low frequency line length
- BSS® Audio OmniDriveHD V5 Processing for use with Crown Audio ITechHD or VRack and control via JBL HiQnet Performance Manager™
- Companion subwoofer for VTX V20 or VTX V25-II (sold separately)
JBL VTX S28 Dual 18” Flyable Sub boasts Differential Drive with 2 voice coils, 2 neodymium magnets and heightened peak-to peak excursion.
VTX series dual 18" subwoofers employ two 2269H 18" transducers featuring Differential Drive technology with two voice coils, two neodymium magnets and extremely high peak-to peak excursion capabilities to deliver extended very low frequency performance.
The VTX S28 can be suspended or ground-stacked and is cardioid-arrayable in either configuration for improved rear rejection. Compatible with VTX V25 suspension, S28 can be suspended at the top of V25 arrays to extend the effective low frequency line length, providing improved vertical pattern control combined with improved rear rejection when used in cardioid mode.
Alternatively, S28 arrays (cardioid or front-firing) can be suspended beside or behind V25 arrays. For theatrical sound design, S28 can be suspended in the middle of flown V25 arrays to facilitate balcony and floor coverage by allowing improved underbalcony penetration. Larger cardioid configurations are also effective where S28 is suspended or ground-stacked in multiple cardioid blocks, each block consisting of 3 enclosures (2 front-firing, 1 rear-firing).
- System TypeFull Size Suspendable, Cardioid-Arrayable, Dual 18" Subwoofer with Ultra Long Excursion Transducers
- Frequency Range (-10dB)29Hz-90Hz (Preset: VTX S28 80)
- CoverageOmnidirectional or Cardioid
- Maximum Peak Output139dB (Preset: VTX S28 80)
- System AmplificationCrown Audio I-Tech HD
- System Impedance2x 8 ohms
- LF Driver(2) JBL 2269H 18-inch Neodymium Differential Drive® woofer
- EnclosureFinnish birch plywood, Black DuraFlex finish, ten integral recessed handles
- Inter-Enclosure Angles0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10
- Dimensions (HxWxD)19.4x48.1x36.5 in (493x1222x926 mm)
- Net Weight (each)183 lbs (830 kg)
