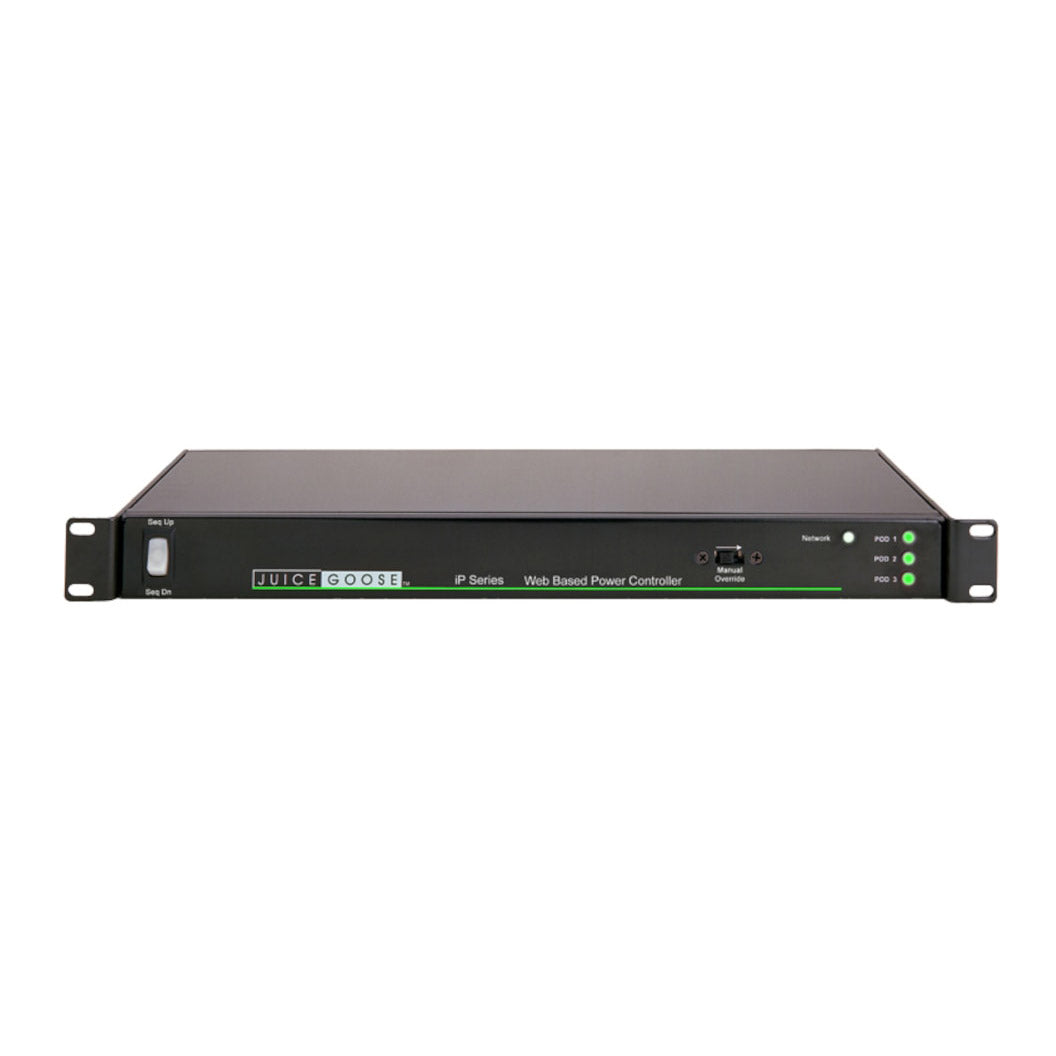

Juice Goose iP-1520-RX 20A Web-Based Power Controller

Juice Goose iP-1520-RX 20A Web-Based Power Controller

SoundPro Item: 23642 | Part Number: IP-1520-RX

$1,091.67
$1,364.58 $1,091.67
Your Price Sold out
MSRP: $1,364.58 | MAP: $1,091.67

Usually ships in 5-7 business days

  • Local, intranet and Internet power control
  • Local fail safe sequencing and manual override
  • On-board web server for easy set up, control, sequencing and monitoring
  • Front panel indicators for network connection and outlets on
  • Amperage monitoring from 0.20 to 20.0 amps per power POD
  • Administrator and User login options
  • Automatic Power Cycle to reboot a network data router if network connection is lost
  • Available Crestron control module
  • Ten volt maximum line to neutral voltage surge
  • One half volt maximum ground line voltage surge
  • Transient Energy Absorption of 1,020 Joules
  • AC line filtration of 60dB to 80dB @ 30MHz
Log in or register for YOUR best price

The iP 1520-RX combines microcontroller based power management with the proven performance of Juice Goose RX Series surge protection and filtration. This product can be accessed via internet or intranet communications using Ethernet or RS232 connection so that individual AC receptacles can be turned on and off and monitored for electrical current flow.

The iP 1520-RX provides local, intranet or Internet based power control to six receptacles grouped into three individual Power Pods. Each of these Pods can be turned on and off individually. In addition, current draw can be monitored from 0.2 to 20.0 amps per power POD.

View full details
  • Chassis16 gauge steel with 11 gauge rack mount brackets
  • Dimensions1.75”H x19”W x 7”D
  • Weight10 lbs
  • Circuit Breaker15A (iP 1515) or 20A (iP 1520) thermal on back of the chassis
  • Technical Current Rating12A (iP1515) or16A (iP1520)
  • Number of Addressable Power PodsThree
  • Power InputSeven foot power cord with NEMA 5/15P (iP1515) or NEMA 5/20P (iP1520) (NOTE: iP1520 requires a 5/20R receptacle)
  • Power OutputSix switched NEMA 5/15R (iP1515) or 5/20R (iP1520), plus one unswitched NEMA 5/15R (iP1515) or 5/20R (iP1520)
  • Input Voltage120 VAC @ 60Hz
  • Signal ConnectionsEthernet (RJ-45) RS 232 (RJ-11)
  • Network ProtocolHTML, TCP, UDP, RS232, SNMP (special model)
  • Monitor FeaturesLocal and remote, network connection and current level (Current level monitoring is not available on SNMP models)
  • Operating Temperature Range-10C to +40C
