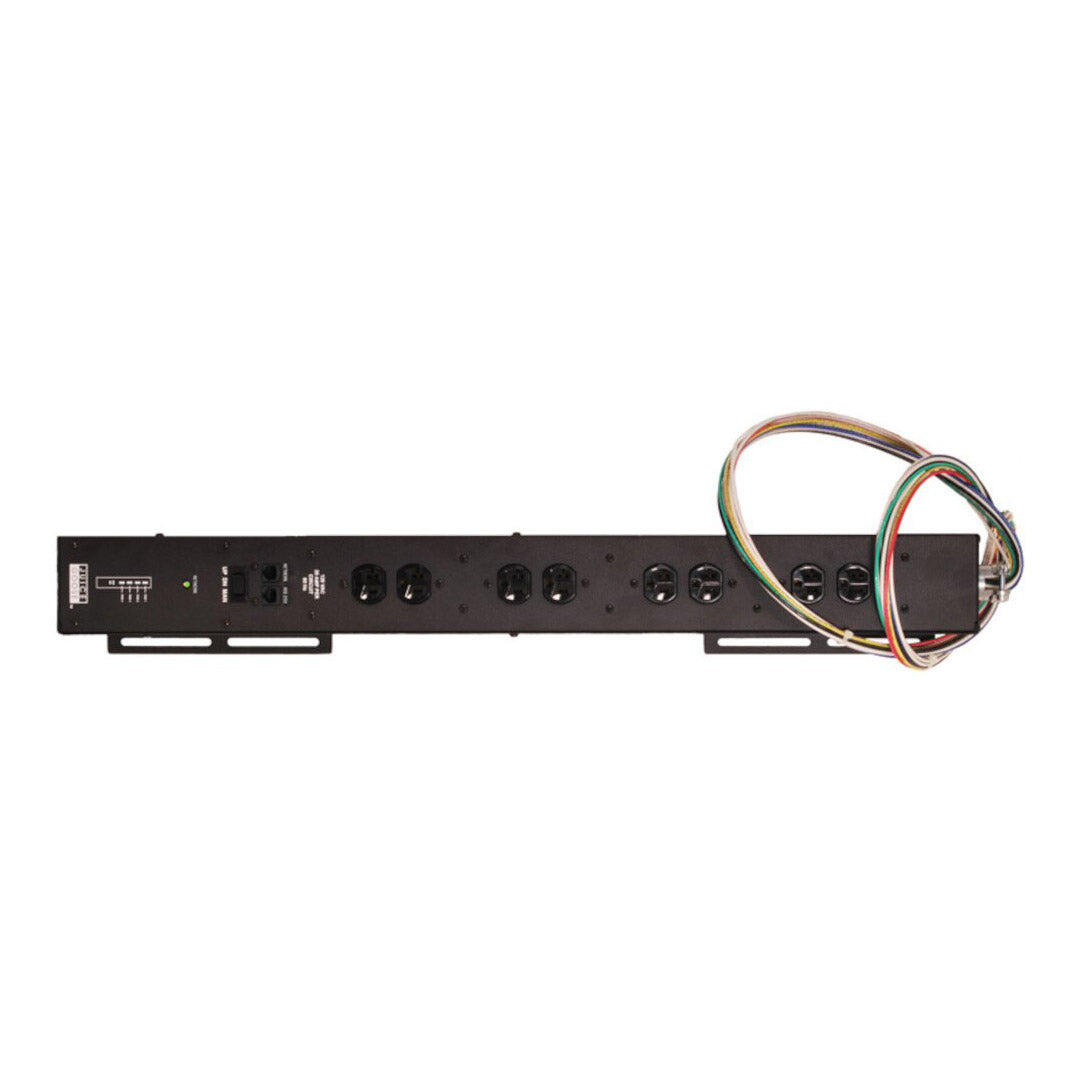

Juice Goose iP PD1-4 80A Web-Based Power Controller
Juice Goose iP PD1-4 80A Web-Based Power Controller
SoundPro Item: 23645 | Part Number: iP PD1-4
Usually ships in 5-7 business days
- Internet, intranet and RS232 remote control
- Local fail safe sequencing and manual override
- On-board web server for easy set up, control, sequencing and monitoring
- Front panel indicators for network connection and outlets on
- Amperage monitoring from 0.20 to 20.0 amps per power POD
- Administrator and User login options
- Automatic Power Cycle to reboot a network data router if network connection is lost
The Juice Goose iP PD1-4 provides web based control and monitoring for four separate twenty amp circuits (eighty amps total) in a single chassis. This microcontroller based power distribution device that can be accessed via internet or intranet communications using Ethernet based HTML, TCP or UDP communications. It also has RS232 connectivity.
With this remote access, four individual circuits can be turned on and off and monitored for electrical current (amperage). Current draw can be monitored from 0.2 to 20.0 amps per power POD.
The iP PD1-4 can be controlled by the on board web server graphic interface that can be accessed by any web browser. It can also be remote controlled by TCP, UDP or RS232 connection to commercial or proprietary control systems.
- Chassis16 gauge steel
- Dimensions32”L x 3.5”W x 2”D
- Weight13 lbs
- Circuit BreakerNone
- Relay Current RatingFour @ 30A each
- Number of CircuitsFour @ 20A each
- Number of Controlled PODsFour (one per circuit)
- Power Input4 foot external wire harness (4Line, 4Neutral, 1Ground)
- Power OutputFour NEMA 5/20R Duplex
- Input VoltageUS standard (120 VAC @60Hz)
- Communications ProtocolHTML, UDP, TCP, RS232, SNMP (special model)
- Front Panel MonitorLED indicates network connection
- Remote MonitorCurrent load per POD (0.20A to 20.0A) ) Not on SNMP model
- Front Panel ControlOverride switch to turn on in event of product or network fault
