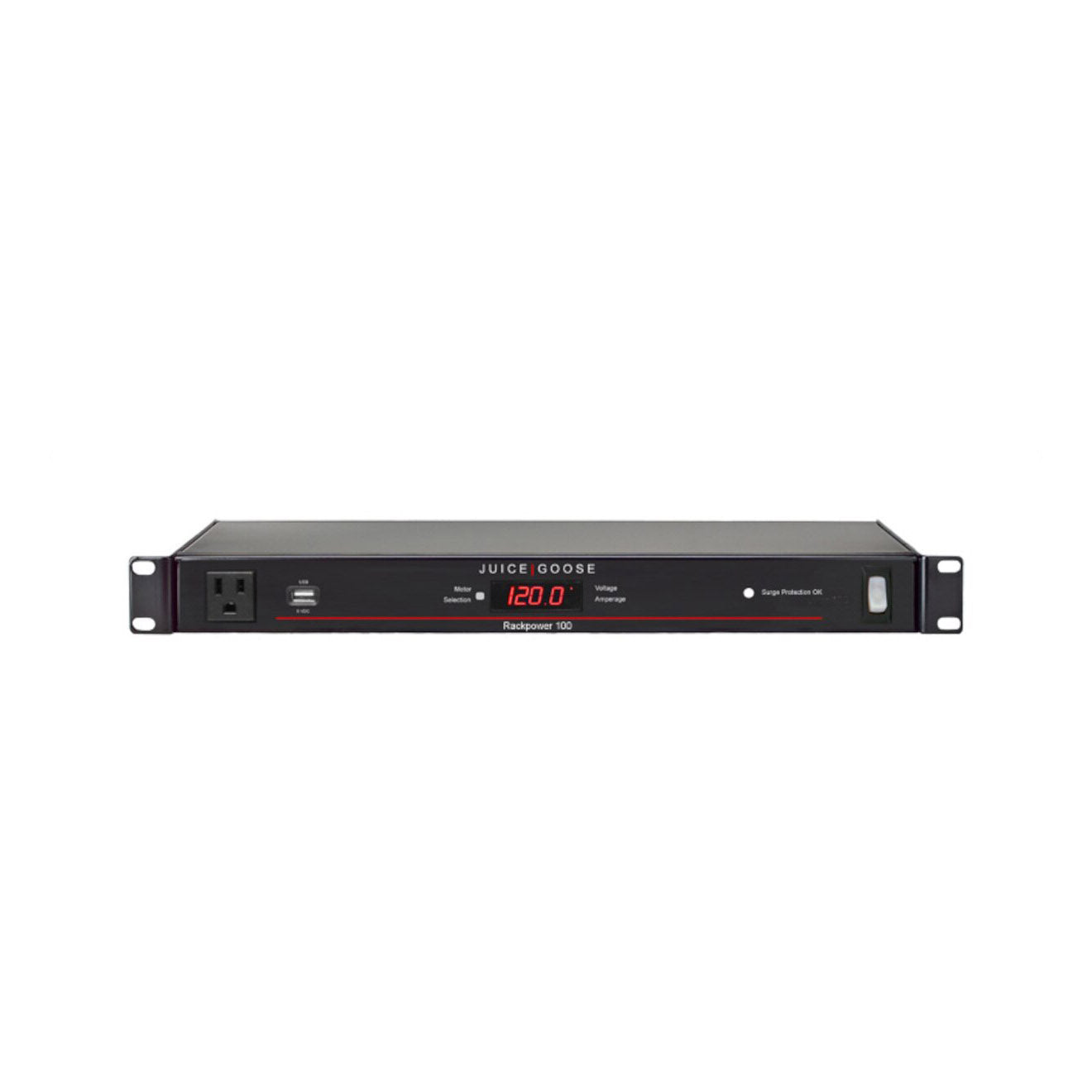

The Rackpower 100-15A from Juice Goose is a premium grade power distribution unit for musicians and audio professionals. In addition to exceptional quality, the RP100 features several valuable features:
Power Meter
The two function meter reports in easy to read LED numerals the status of your power supply and consumption. Toggle between volts and amps with a convenient push button on the front of the chassis. Voltage is measured to the nearest 0.10 VAC. Amperage is measured to the nearest 0.10 amperes in a range from 0.20A to 25.0A.
USB Ports
One USB port is provided on the front and one on the back of the chassis. These five volt DC connections are usable for utility lighting or powering accessories. Connect an inexpensive, flexible USB light fixture for lighting in the front or back of the rack. Both USB ports can also be used to charge accessories including an iPhone or iPad.
AC Power Receptacles
One AC outlet is located on the front. Nine are on the back. The rear outlets are rotated to accommodate wall warts and include extra generous spacing between four of them.
Replaceable Surge Protection
Surge protection is provided with a triple arrangement of fast response, metal oxide varistors between line and neutral. An indicator LED on the front panel shows the protection is in place and functioning. Should that LED go out, the LED package can be replaced easily at a nominal cost.
Tour Class (TM) Chassis
This professional grade, 10" deep enclosure is formed from a single piece of cold rolled steel. Reinforced mounting brackets and a flush mount top complete a package that's been used to rack mount other products weighing over 200 pounds. The extra chassis depth allows easy access to the rear receptacles while mounted in a rack.
Chassis16 gauge “unibody” steel with 11 gauge rack mount brackets
Dimensions1.75”H x19”W x 7”D
Weight12 lbs
Current Overload Protectionbreaker/power switch on the front of the chassis
RP100-15A15 amps with a technical current rating of 12 amps
Power InputSeven foot (7’), three conductor power cord
RP100-15A14/3 SJT with NEMA 5-15P
Power Output (Rotated to fit AC adapters) (All switched)
Front: One NEMA 5/15R (15 amp)
Rear RP100-15A: Nine NEMA 5/15R (15 amp)
Input Voltage120 VAC @ 60Hz
Transient Energy Absorption300 joules
Peak Surge Current (single pulse)10,000 amps
Monitor Features
Voltage: Nominal 120 VAC scale. Reports to nearest 0.10 volts
Amperage: From 0.25 to 25.0 amps. Reports to nearest 0.10 amps
Surge Protection: LED indicator on front panel
Operating Temperature Range-10C to +40C
WarrantyThree years
