Specifications
Dimensions
Width
380 mm
Depth
426 mm
Height
305 mm
Low/mid Woofer Dimensions
10 "
Woofer Dimensions (mm)
254 mm
Tweeter Dimensions
1 "
Tweeter Dimensions (mm)
25.4 mm
Electrical
Operating Voltage
SMPS
Power Consumption
150W
Audio
Max. SPL Average (Sine burst)
118 dB (100 Hz - 12 kHz, fullspace @1m, 10% THD)
Max. SPL Peak (Sine burst)
126 dB (fullspace @1m, 10% THD)
Crossover Frequency
1700 Hz
Connectivity
System Output (RMS)
300W
System Output (Peak)
1200W
Line Inputs
2
Line Input Connectors
6.3 mm jack, XLR - combo
Line Through Connector
XLR
Construction
Color
Black
Cabinet Construction
Bass Reflex
Cabinet Material
15 mm Birch Plywood, 15 mm MDF
Environmental
Operating Temperature
0 - 40°C
Humidity Range
< 80% ( non-condensing )
Shipping
Weight
15,21 kg
General
Product Type
Stage monitors
Type
Powered
Frequency Response (-3 dB)
72 - 18000 HZ
Frequency Response (-10 dB)
58 - 20000 Hz
Monitor Angle
33°
Dispersion (H X V)
50° x 90°
Features
3-band EQ (High, Mid, Low), Delay line, Notch filter
Woofer Magnet
Ferrite
Woofer Brand
Custom-made

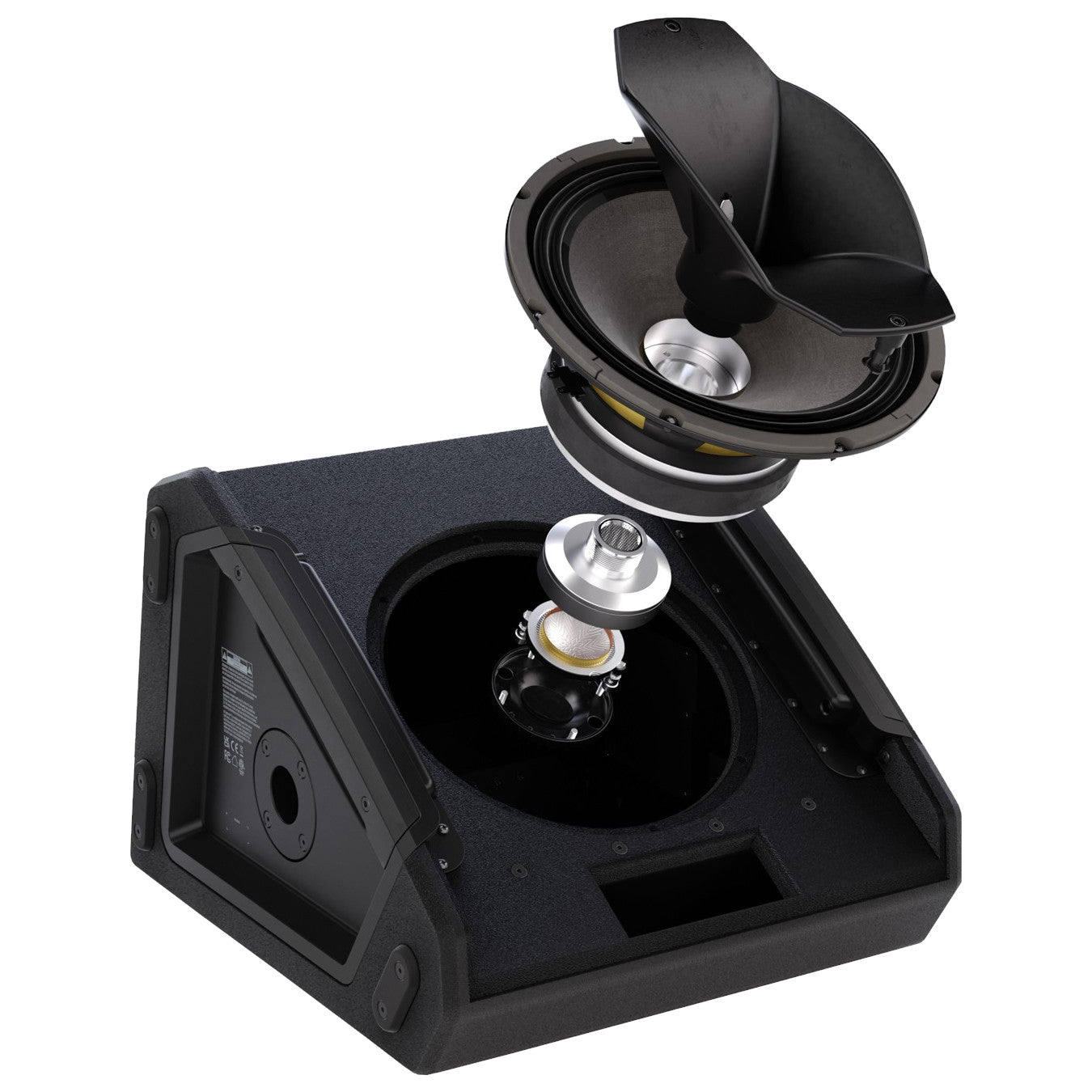

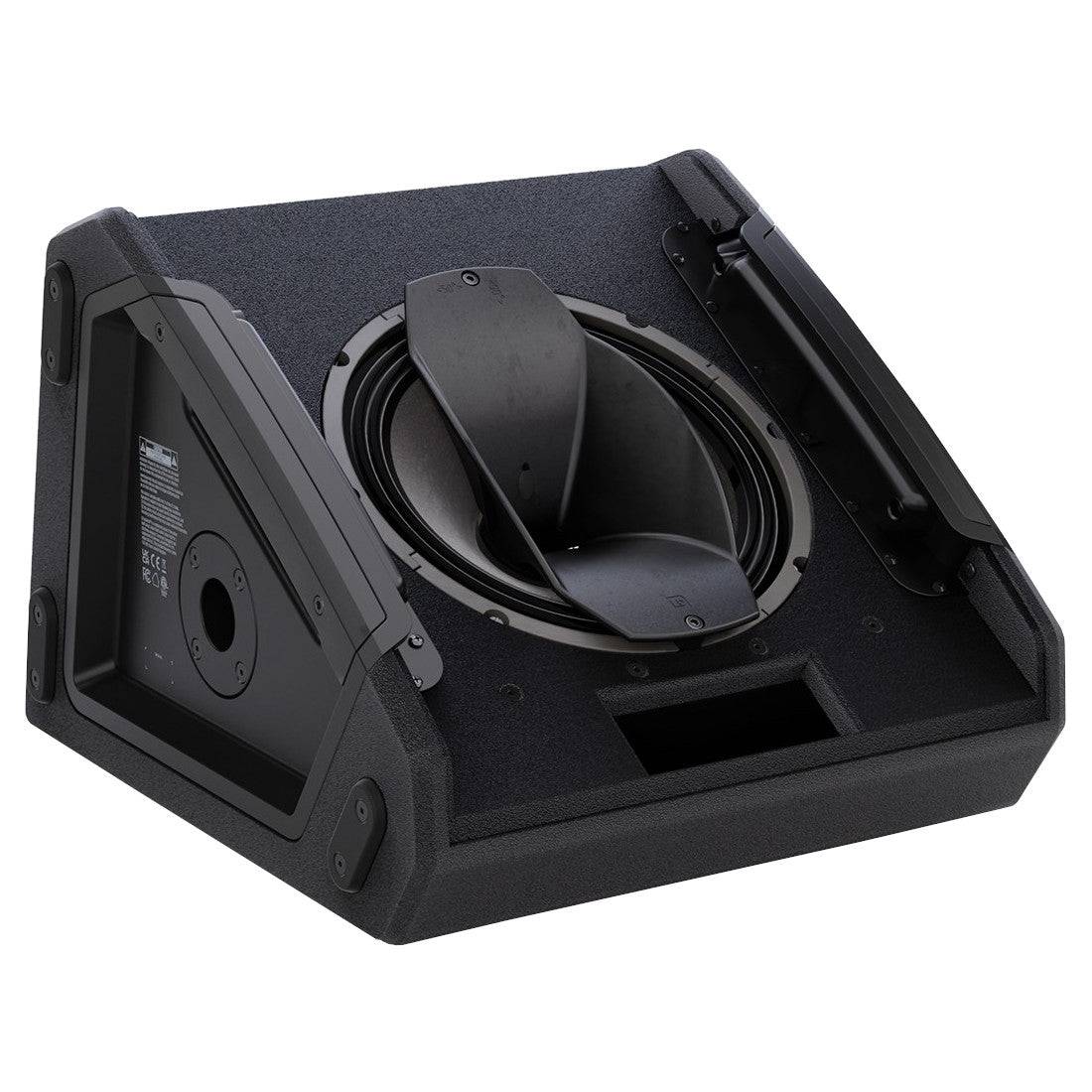

Woofer Type
Coaxial loudspeaker
Woofer Voice Coil
2.5 "
Woofer Voice Coil (mm)
65 mm
Horn
CD Horn
Tweeter Magnet
Ferrite
Tweeter Brand
Custom-made
Tweeter Voice Coil
1.75 "
Tweeter Voice Coil (mm)
44.45 mm
Amplifier
Class D
Protection Circuits
Multiband limiter, over voltage, over-current, thermal overload
Fuse
T4AL 250 V

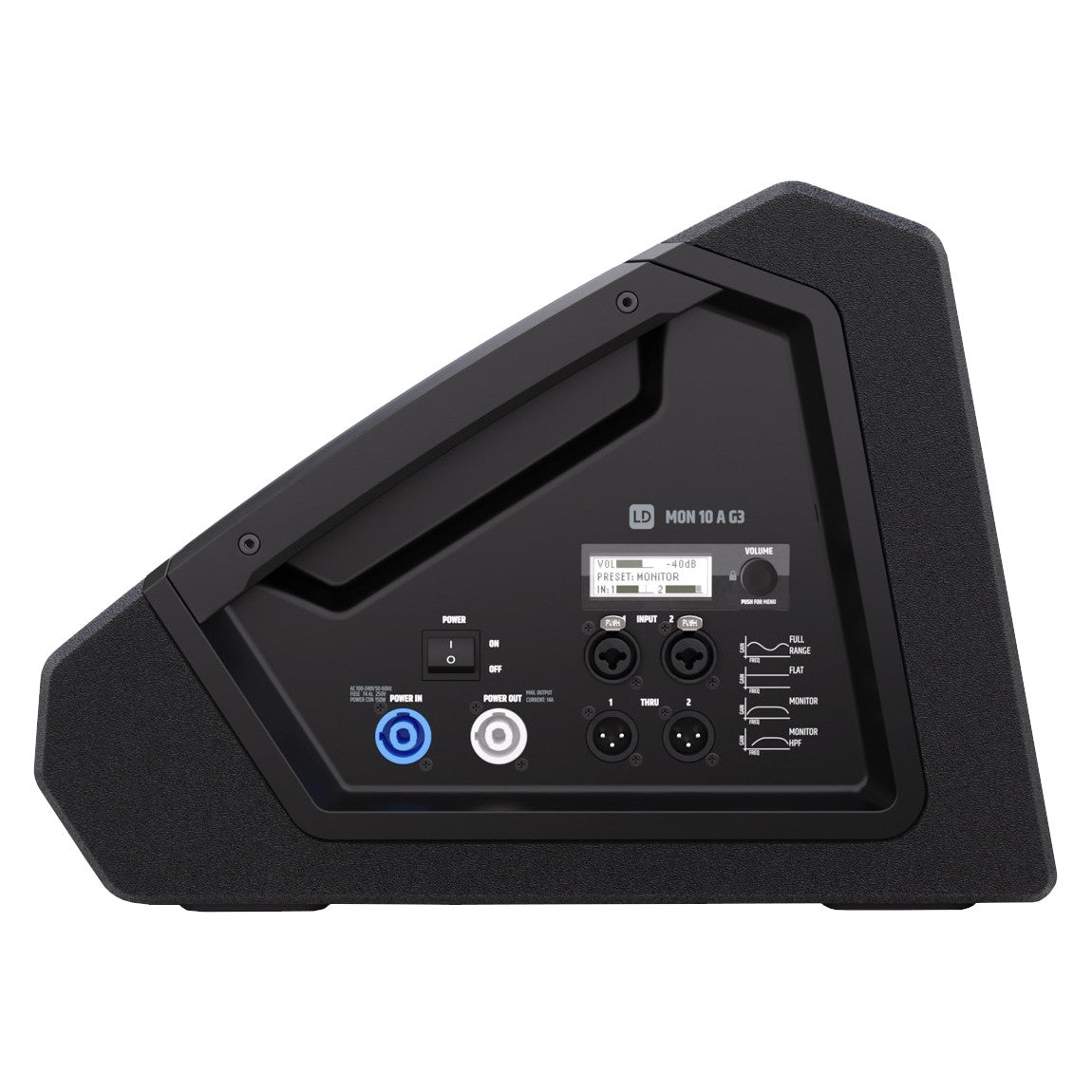

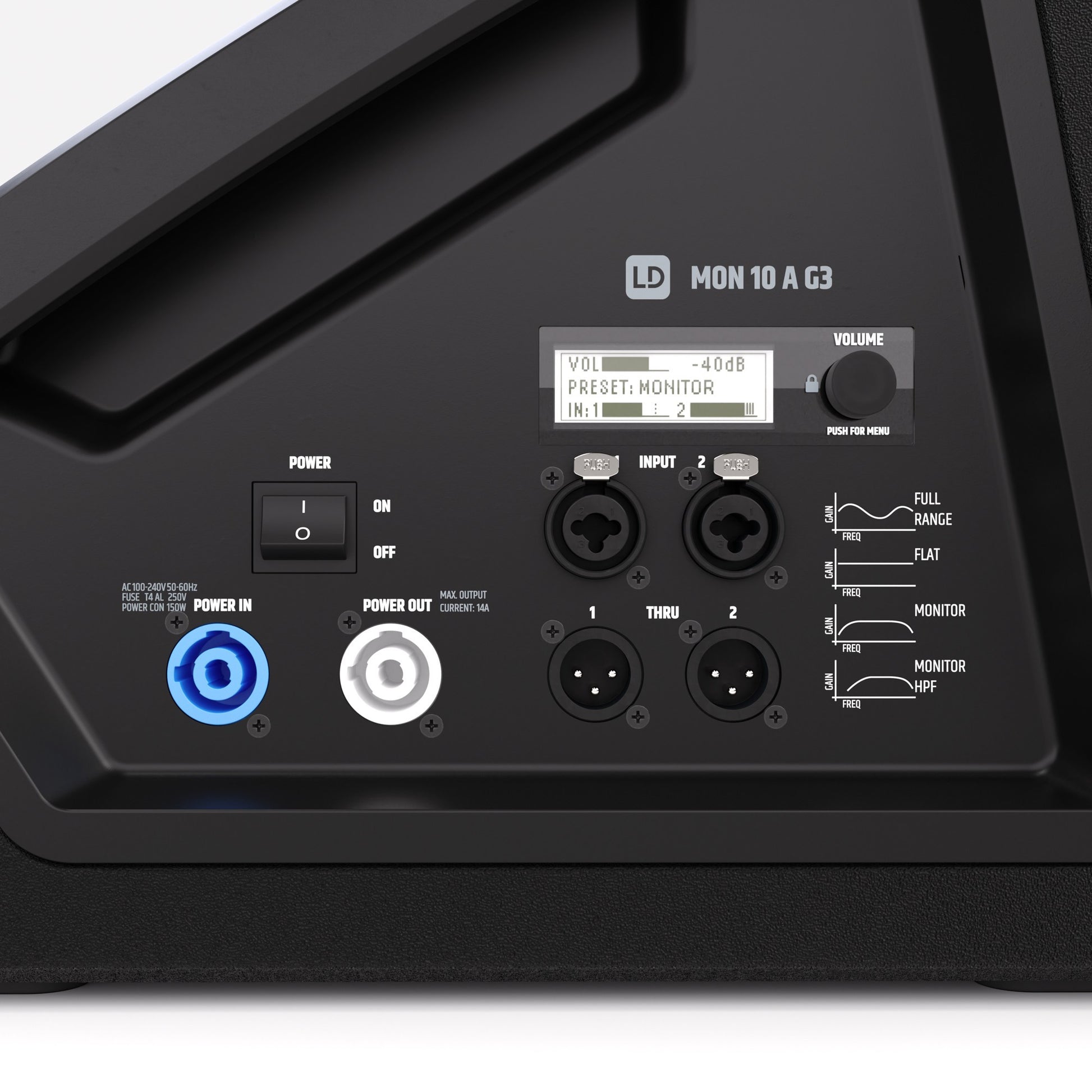

Controls
On / off switch, Rotary/push encoder
Indicators
LC display
Power in / Out
PowerCON compatible
Line Thru
2
