Specifications
Dimensions
Width
425 mm
Depth
453 mm
Height
315 mm
Low/mid Woofer Dimensions
12"
Woofer Dimensions
304.8 mm
Tweeter Dimensions
1"
Electrical
Operating Voltage
SMPS
Power Consumption
150W
Audio
Max. SPL Average (Sine burst)
120 dB (100 Hz - 12 kHz, fullspace @1m, 10% THD)
Max. SPL Peak (Sine burst)
127 dB (fullspace @1m, 10% THD)
Crossover Frequency
1400 Hz
Connectivity
System Output (RMS)
300W
System Output (Peak)
1200W
Line Inputs
2
Line Input Connectors
6.3 mm jack, XLR - combo
Line Through Connector
XLR
Construction
Color
Black
Cabinet Construction
Bass Reflex
Cabinet Material
15 mm Birch Plywood, 15 mm MDF
Environmental
Operating Temperature
0 - 40°C
Humidity Range
< 80% (non-condensing )
Shipping
Weight
17,4 kg
General
Product Type
Stage monitors
Type
Powered
Frequency Response (-3 dB)
68 - 18000 HZ
Frequency Response (-10 dB)
55 - 20000 Hz
Monitor Angle
33°
Dispersion (H X V)
50° x 90°
Features
3-band EQ (High, Mid, Low), Delay line, Notch filter
Woofer Magnet
Ferrite
Woofer Brand
Custom-made

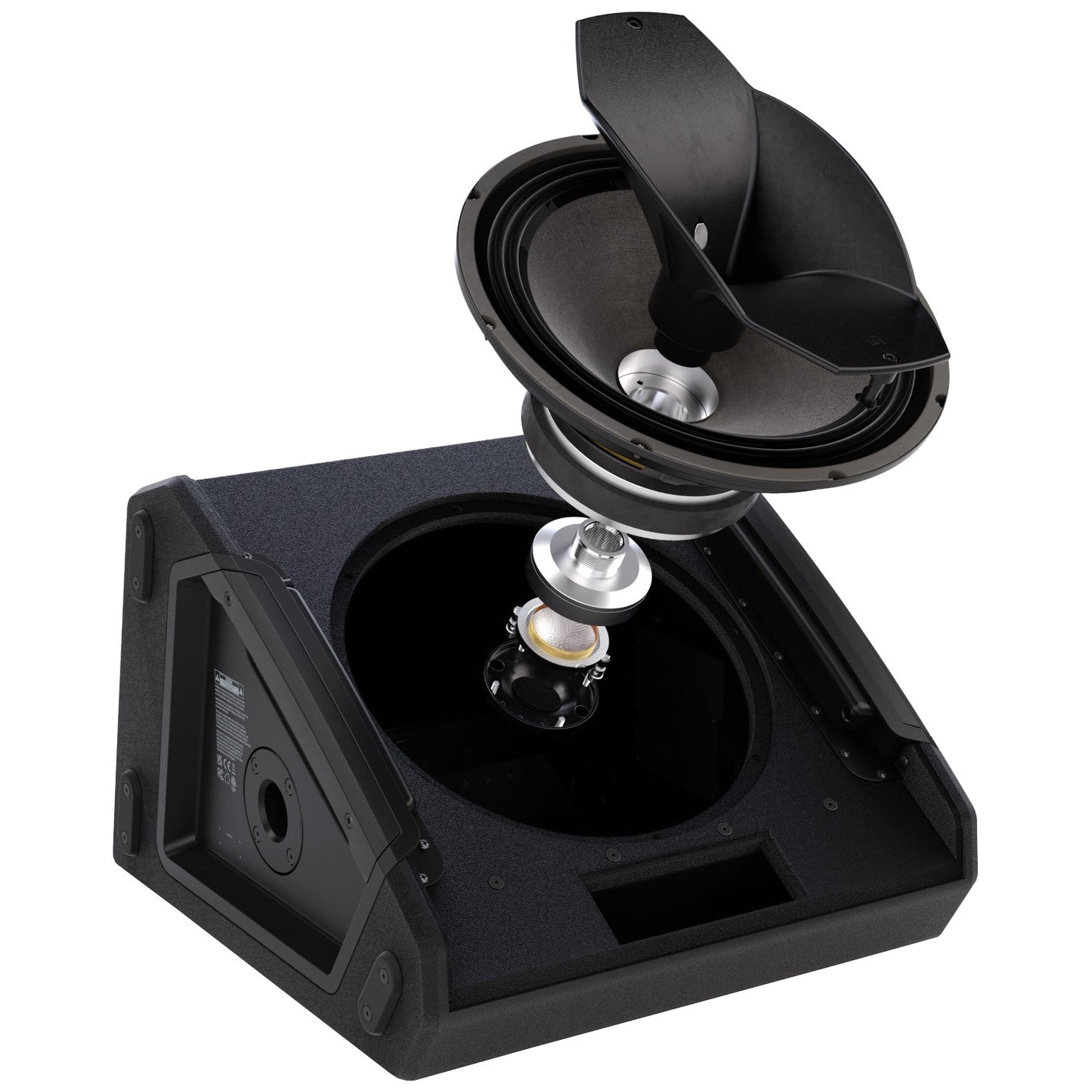

Woofer Type
Coaxial loudspeaker
Woofer Voice Coil
2.5"
Horn
CD Horn
Tweeter Magnet
Ferrite
Tweeter Brand
Custom-made
Tweeter Voice Coil
1.75"
Amplifier
Class D
Protection Circuits
Multiband limiter, over voltage, over-current, thermal overload
Fuse
T4AL 250V

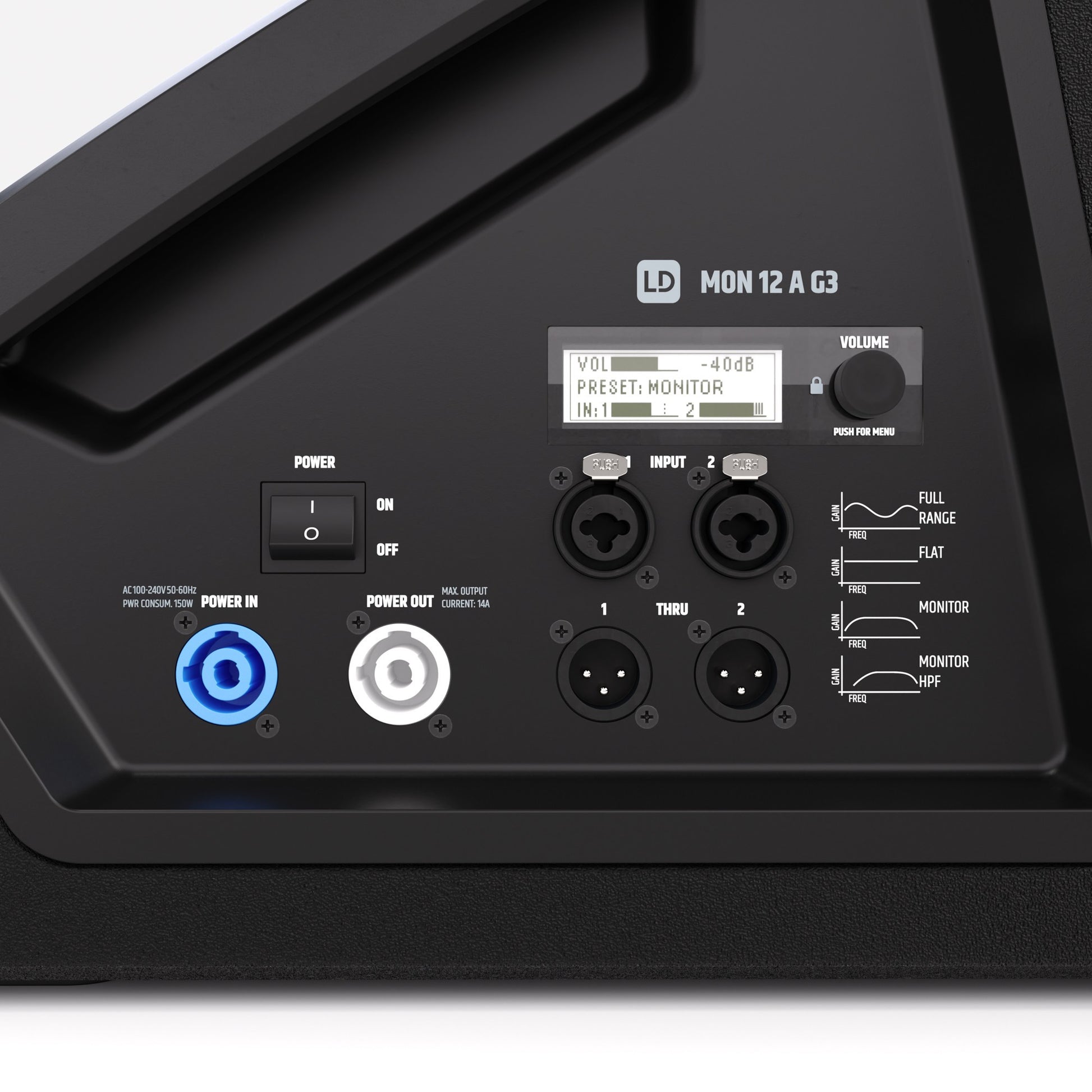

Controls
On / off switch, Rotary/push encoder
Indicators
LC display
Power in / Out
PowerCON compatible

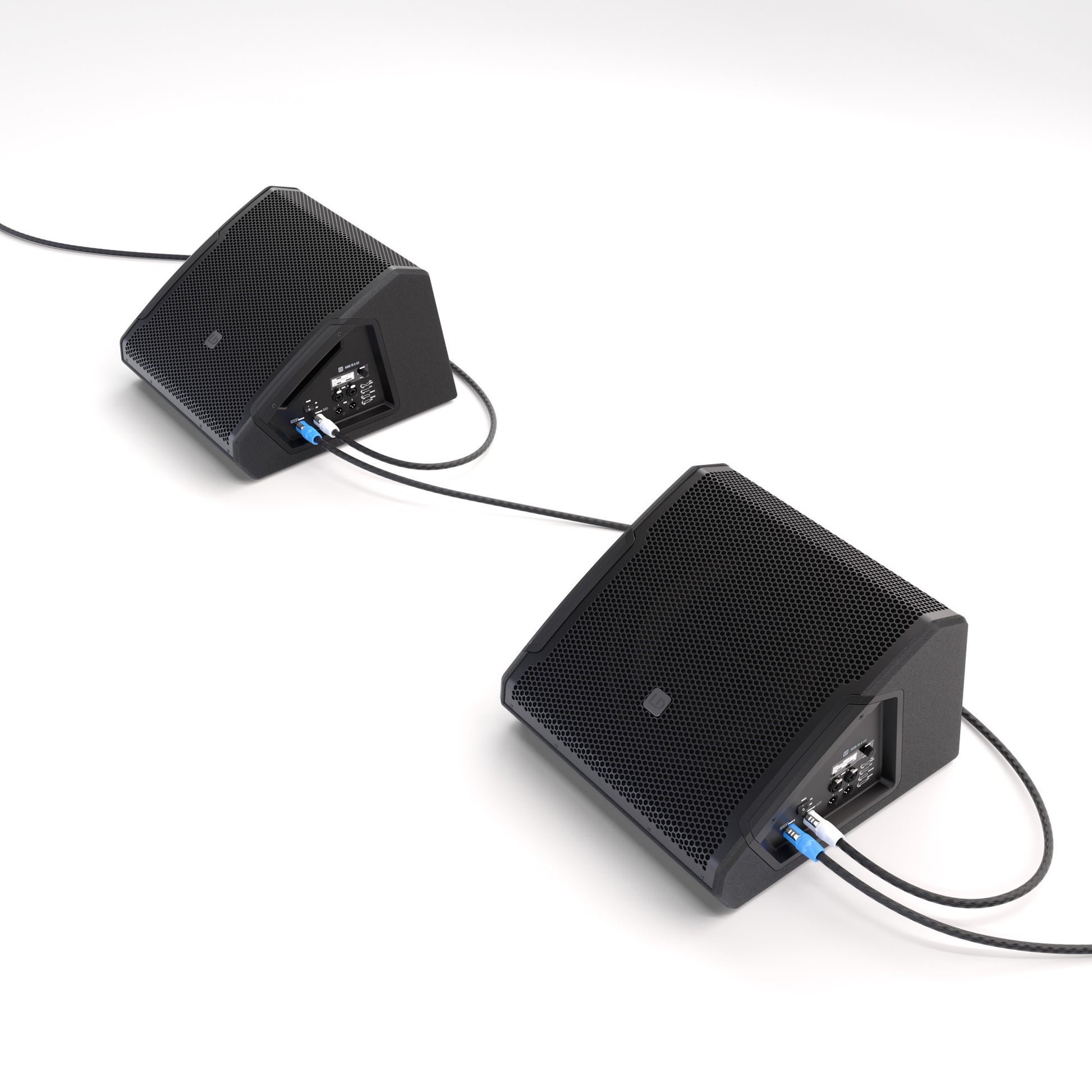

Line Thru
2
