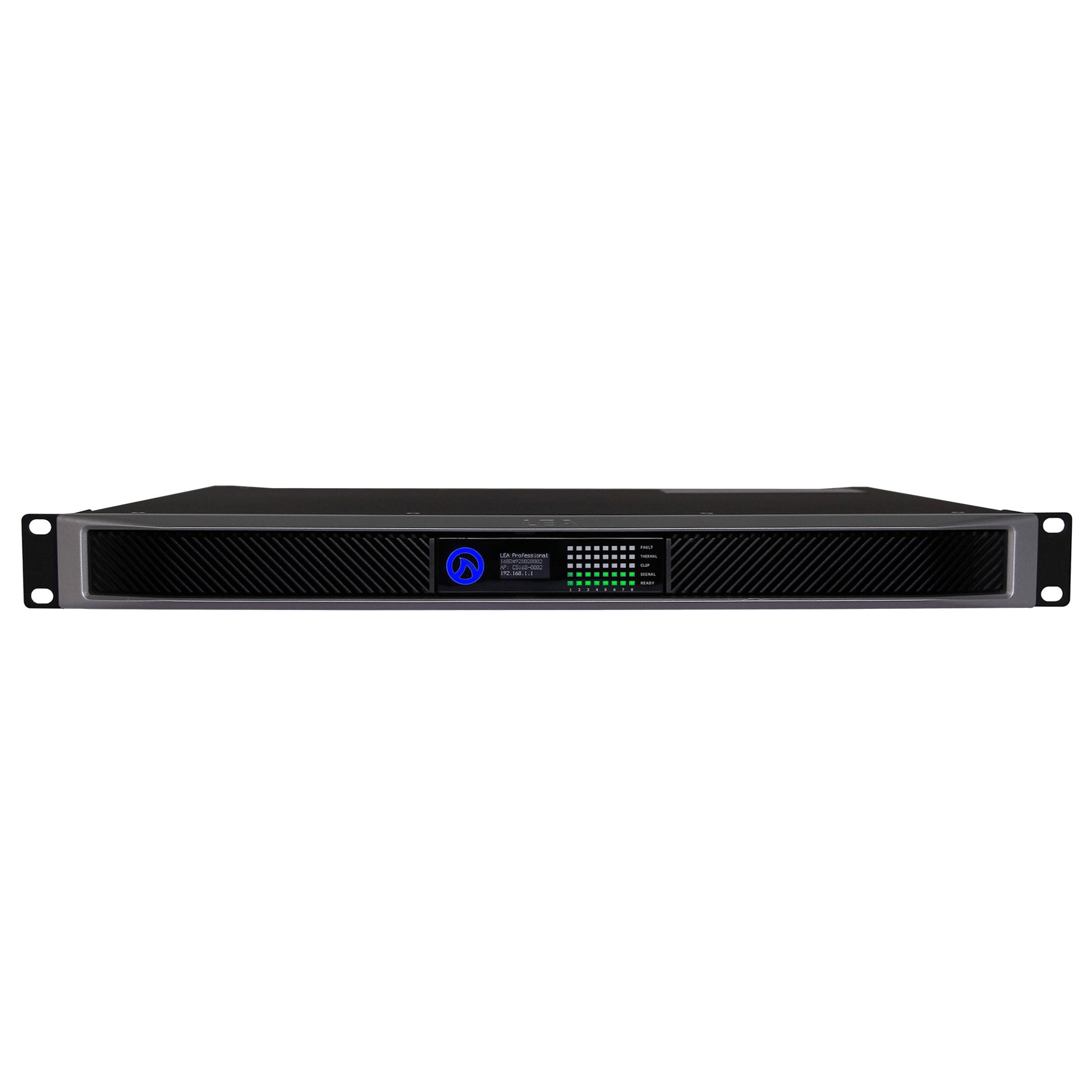

• LEA Professional CONNECT 168D 8-Channel 160W Dante Power Amplifier

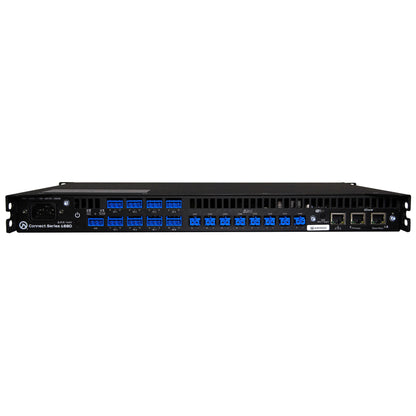

  • LEA Professional CONNECT 168D 8-Channel 160W Dante Power Amplifier back
1 2

LEA Professional CONNECT 168D 8-Channel 160W Dante Power Amplifier

LEA Professional CONNECT 168D 8-Channel 160W Dante Power Amplifier

Soundpro Item: 117928 | Part Number: CONNECT 168D

$4,380.00
$4,380.00 $4,380.00
Your Price Sold out
MSRP: $4,380.00 | MAP: $4,380.00

Usually ships in 5-7 business days

  • DANTE CONNECT 168D uses 80 watts per channel with 2Ω; 4Ω, 8Ω, and 70V / 100V use 160 watts per channel
  • Web browser-based UI – works on any device with no software to download
  • Direct LoZ and HiZ (70V or 100V) selectable per channel
  • Proprietary Smart Power Bridge allows user to bridge a channel to achieve double the power of that channel without sacrificing an amplifier channel
  • 3 ways to connect: built in WiFi access point, existing WiFi network, Local Area Network Ethernet connection
  • 96kHz analog devices DSP with input routing, multiple 48dB/Oct crossover filters, 8 parametric EQ filters, user configurable speaker limiters, and real time load monitoring
  • Universal switch mode power supply with PFC: operation from 100VAC – 240VAC +/-15%
  • Analog fully routable inputs
  • External I/O port for remote on/off and fault monitoring
  • Highly efficient Class D output stage for low AC current draw
Log in or register for YOUR best price

The 168D 8-channel 160-watt power amplifier is part of the Internet of Things- (IoT) enabled, professional-grade amplifier DANTE CONNECT SERIES. Perfectly suited for small to medium-scale installations, this eight-channel amp features direct HiZ (70V or 100V) or LoZ selectable by channel. With three ways to connect, you can engage the built-in Wi-Fi access point, connect to the venue’s Wi-Fi, or use the FAST Ethernet to connect to any local area network via Cat5 or Cat6 cable. Cloud connectivity is a popular feature. Harness the power of the Cloud for remote control, monitoring, notifications, and more from any of your devices. Just connect your amp to a network and start commanding your systems. Analog inputs, Dante inputs, and external I/O control are also featured for remote powering and fault monitoring.

View full details

Specifications

  • Audio
    • Inputs
      • Analog: Balanced Inputs with user-selectable 26 dB and 34 dB input sensitivity (8CH = 8 inputs)
      • Dante: 8 x 8 Dante at 96kHz or 48kHz, Multicast or Unicast
      • AES 67: Configurable via the Dante Controller Software
      • THD+N 0.1% (20Hz to 20kHz)
    • Frequency Response: 20Hz to 20kHz, +/- 0.5 dB @ 4Ω, 8Ω, 70V, 100V, -2.5dB @ 20kHz at 2Ω
    • Signal to Noise Level: 105dB (20Hz to 20kHz referenced to 8Ω)
    • Crosstalk: 70dB (20Hz to 20kHz)
    • Amplifier Output Classification: Class D with Proprietary Smart Power Bridge Technology allowing bridged output functionality without sacrificing an amplifier channel
  • DSP
    • DSP Architecture: Analog Devices Sigma 96kHz DSP Processor with 32-bit Core with Sample Rate Converters
    • Input Matrix: Routable matrix; any input to any output with primary and secondary input priority
    • Crossovers: Up to 48 dB/Octave IIR Filters (Linkwitz Riley and Butterworth)
    • Parametric EQ: 8 Band Parametric EQ per channel
    • Output Delay: 100ms per channel
    • Output Protection: DC, VHF, and AC Mains Protection, Overtemp and Current Limiter, fan fault detection
    • User Adjustable Limiting: Peak Voltage and RMS Voltage
    • Load Monitoring: Realtime Load Monitoring and Pilot Tone Detection from Internal or External Sources
  • Control, Monitoring, Network
    • User Interface: Web Browser User Interface, 3rd Party API control, or CLOUD control
    • External I/O
      • External I/O In: Toggles Remote On/Off
      • External I/O Out: Indicates Amplifier Health
  • Operation
    • AC Mains: 100VAC - 240VAC +/- 15% 50Hz or 60Hz
    • Power Supply: Universal Switch Mode Power Supply
  • Physical
    • Dimensions (L x W x H)
      • Product: 14.25” x 19” x 1U (362mm x 482mm x 1U) x 1U (362mm x 482mm x 1U)
      • Shipping: 20” x 22.75” x 3.75” (508mm x 578mm x 95.25mm)
      • Weight: 168D: 13.6lbs / 6.17kg | Shipping: 18lbs / 8.16kg
    • Cooling: Front to Rear Variable Fan Speed Cooling
    • Fan Noise at idle is 50dB @ 1m
    • Fan Noise at 50% is 57dB @1m
    • Fan Noise at full speed is 63dB @ 1m
