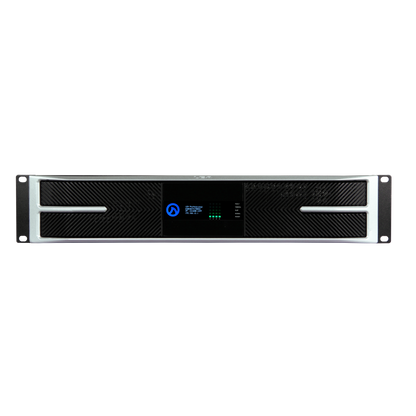

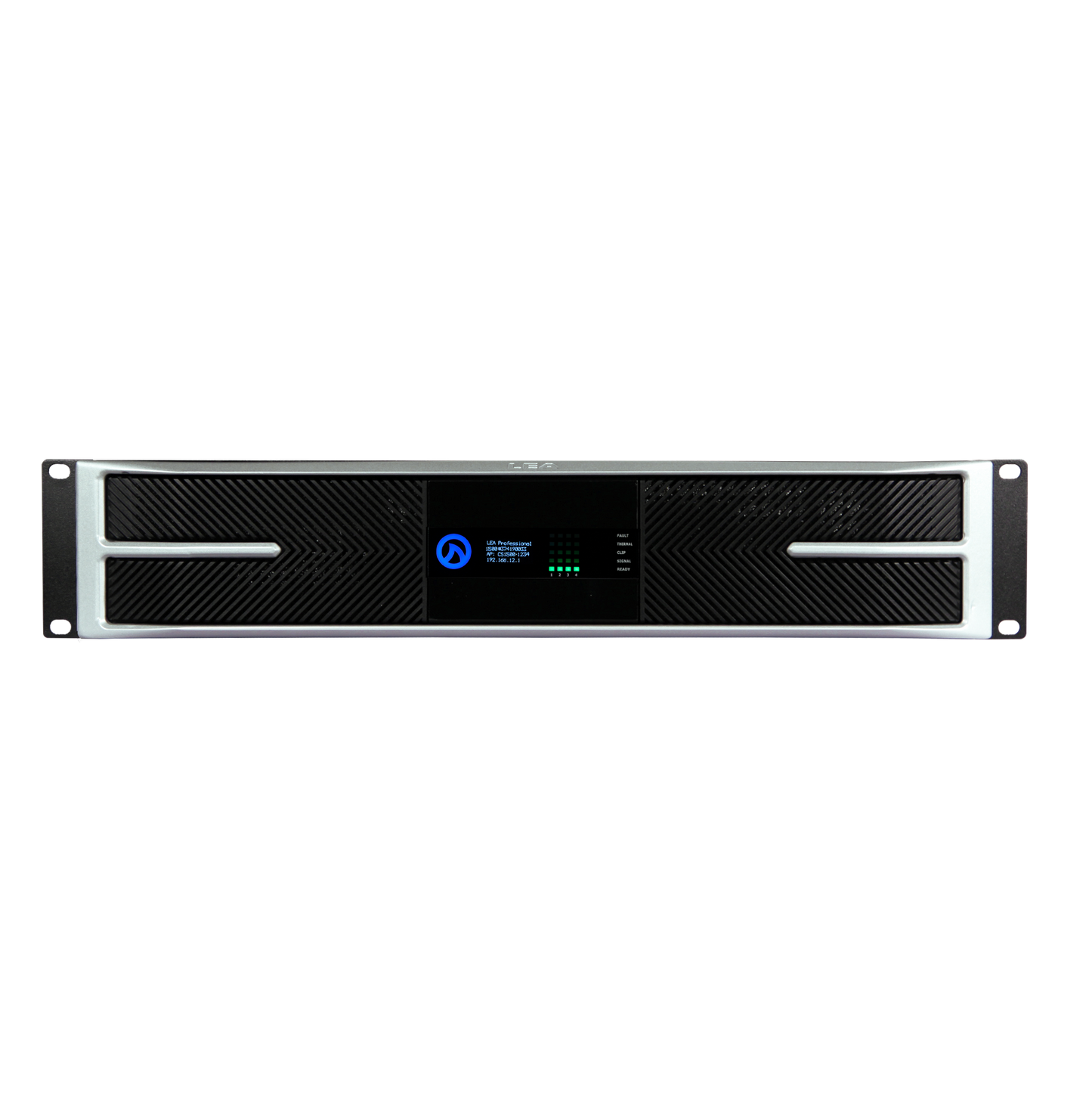

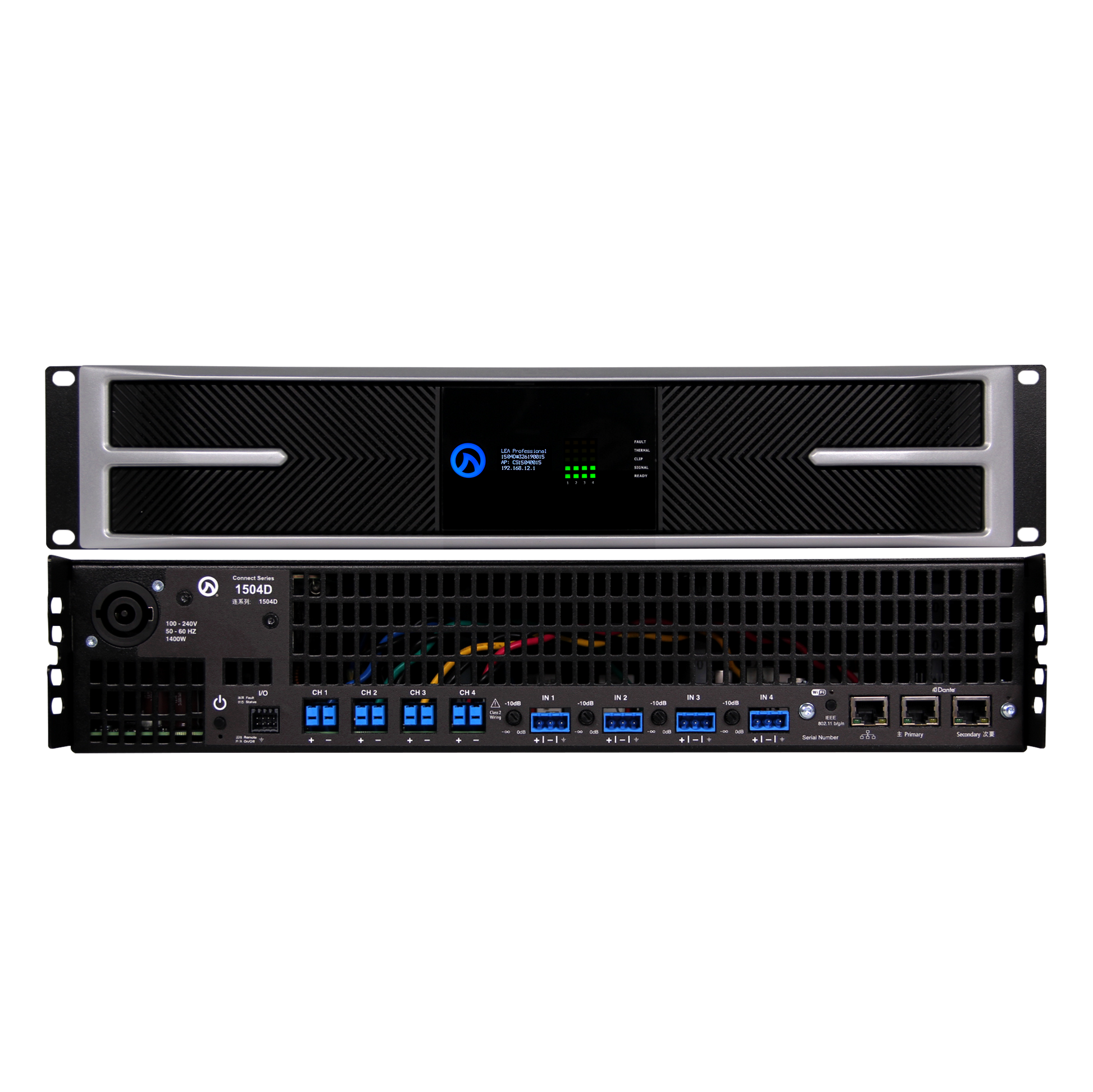

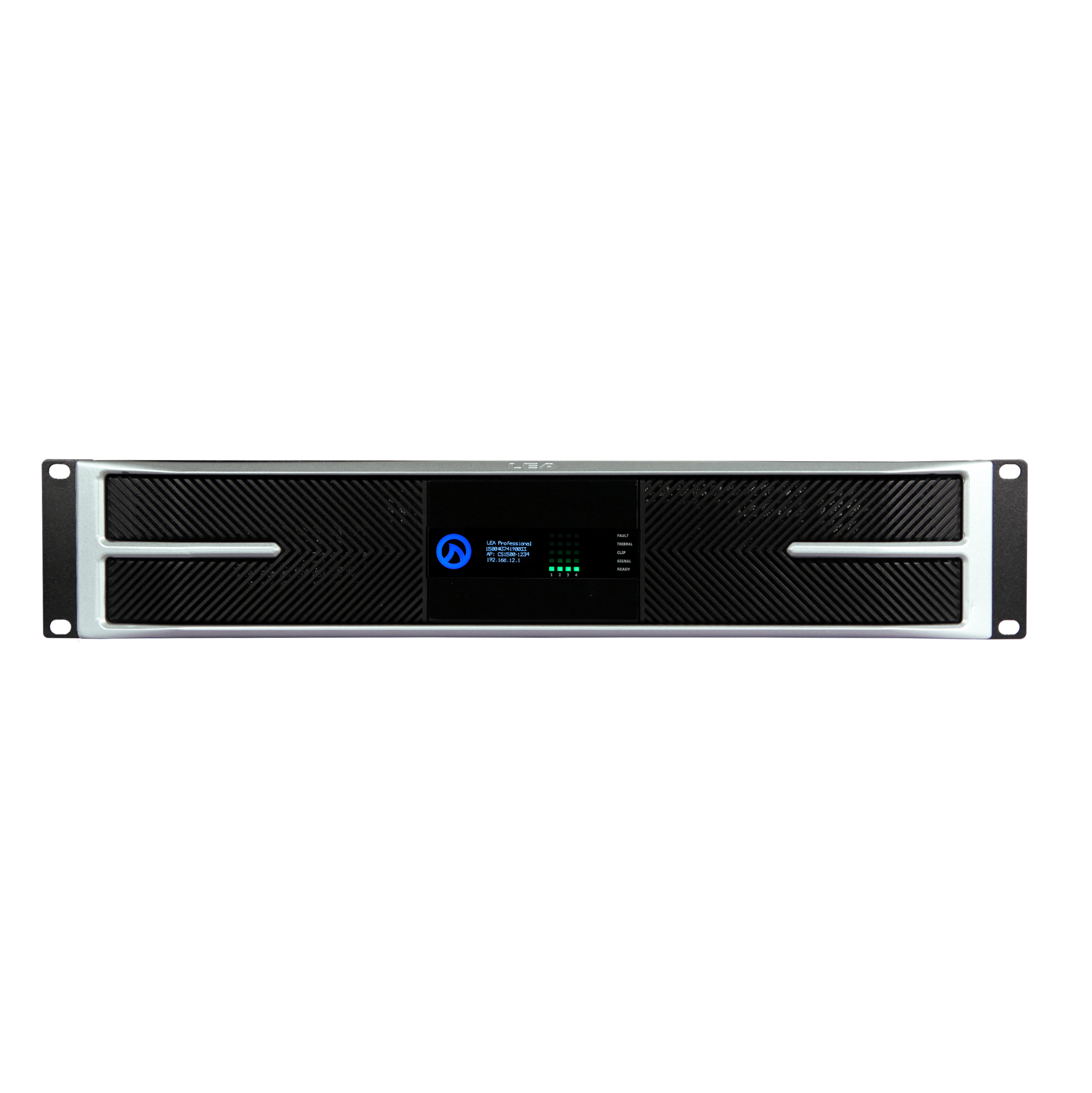

LEA Professional CS1504-G High Power Smart Amplifier

LEA Professional CS1504-G High Power Smart Amplifier

SoundPro Item: 200890 | Part Number: 200890

$5,832.00
$5,832.00 $5,832.00
Your Price Sold out
MSRP: $5,832.00 | MAP: $5,832.00

Usually ships in 5-7 business days

  • 1 WAY TO CONNECT: Local Area Network
  • Works on any web browser on any device with no software downloads
  • Remote control and monitoring from anywhere in the world -no VPN needed.
  • DIRECT LOW-Z & HI-Z: 70V or 100V selectable per channel
  • Double the power any any single channel without sacrificing other amp channels
  • Universal Switch-Mode Power Supply with PFC — Operation from 100VAC – 240VAC +/-15%
  • Fully routable via input matrix in Web UI or Cloud platform
  • 96KHZ ANALOG DEVICES DSP with linear phase FIR filters, up to 4 seconds of delay
  • Input Routing, multiple 48dB/Oct crossover filters, 8 Parametric EQ filters
  • user-configurable speaker limiters and real-time load monitoring
  • External I/O Port for Remote ON/OFF and Fault Monitoring
  • Highly Efficient Class-D Output Stage for low AC Current Draw
Log in or register for YOUR best price

Introducing the CONNECTSERIES 1504-G high-power IoT-enabled smart amp. This four-channel model drives 1,500 watts per channel (into 2, 4, and 8 ohms as well as 70Vrms and 100Vrms). Available in Network and Dante, it’s important to note that the CONNECTSERIES 1504-G is designed exclusively for wired LAN connections and do not support Wi-Fi connectivity. Then there’s the Cloud…The CONNECTSERIES G-Model is the first professional amplifier family to feature Cloud connectivity. Harness the power of the Cloud for remote control, monitoring, notifications and more from any of your personal devices. Just connect your amp to a network and start commanding your systems.

View full details

Specifications

AUDIO SPECIFICATIONS
INPUTS
Analog: 4 Balanced Inputs with user selectable 26 dB and 34 dB input sensitivity
THD+N
0.1% (20Hz to 20kHz)
FREQUENCY RESPONSE
20Hz to 20kHz, +/- 0.5 dB @ 4Ω, 8Ω, 70V, 100V, -2.5dB @ 20kHz at 2Ω
SIGNAL TO NOISE LEVEL
105dB (20Hz to 20kHz referenced to 8Ω)
CROSSTALK
70dB (20Hz to 20kHz)
AMPLIFIER OUTPUT CLASSIFICATION
Class D with Proprietary Smart Power Bridge Technology allowing bridged output functionality without sacrificing an amplifier channel
DSP
DSP ARCHITECTURE
Analog Devices Sigma 96kHz DSP Processor with 32-bit Core with Sample Rate Converters
INPUT MATRIX
Routable matrix; any input to any output with primary and secondary input priority
CROSSOVERS
Advanced DSP with Linear Phase Brickwall FIR Crossovers and up to 48dB/Octave IIR Filters (Linkwitz Riley and Butterworth)
PARAMETRIC EQ
8 Band Parametric EQ per channel
OUTPUT DELAY
4 seconds per channel
OUTPUT PROTECTION
DC, VHF, and AC Mains Protection, Overtemp and Current Limiter, fan fault detection
USER ADJUSTABLE LIMITING
Peak Voltage and RMS Voltage
LOAD MONITORING
Realtime Load Monitoring and Pilot Tone Detection from Internal or External Sources
PHYSICAL SPEC
DIMENSIONS (L X W X H)
Product: 17.88” x 19” x 2U (362mm x 482mm x 2U) (362mm x 482mm x 2U)
Shipping: TBD
WEIGHT
26lbs / 11.8kg | Shipping: 30 lbs / 13.6 kg
COOLING
Front to Rear Variable Fan Speed Cooling
Fan Noise at idle is 50dB @ 1m
Fan Noise at 50% is 57dB @1m
Fan Noise at full speed is 63dB @ 1m
