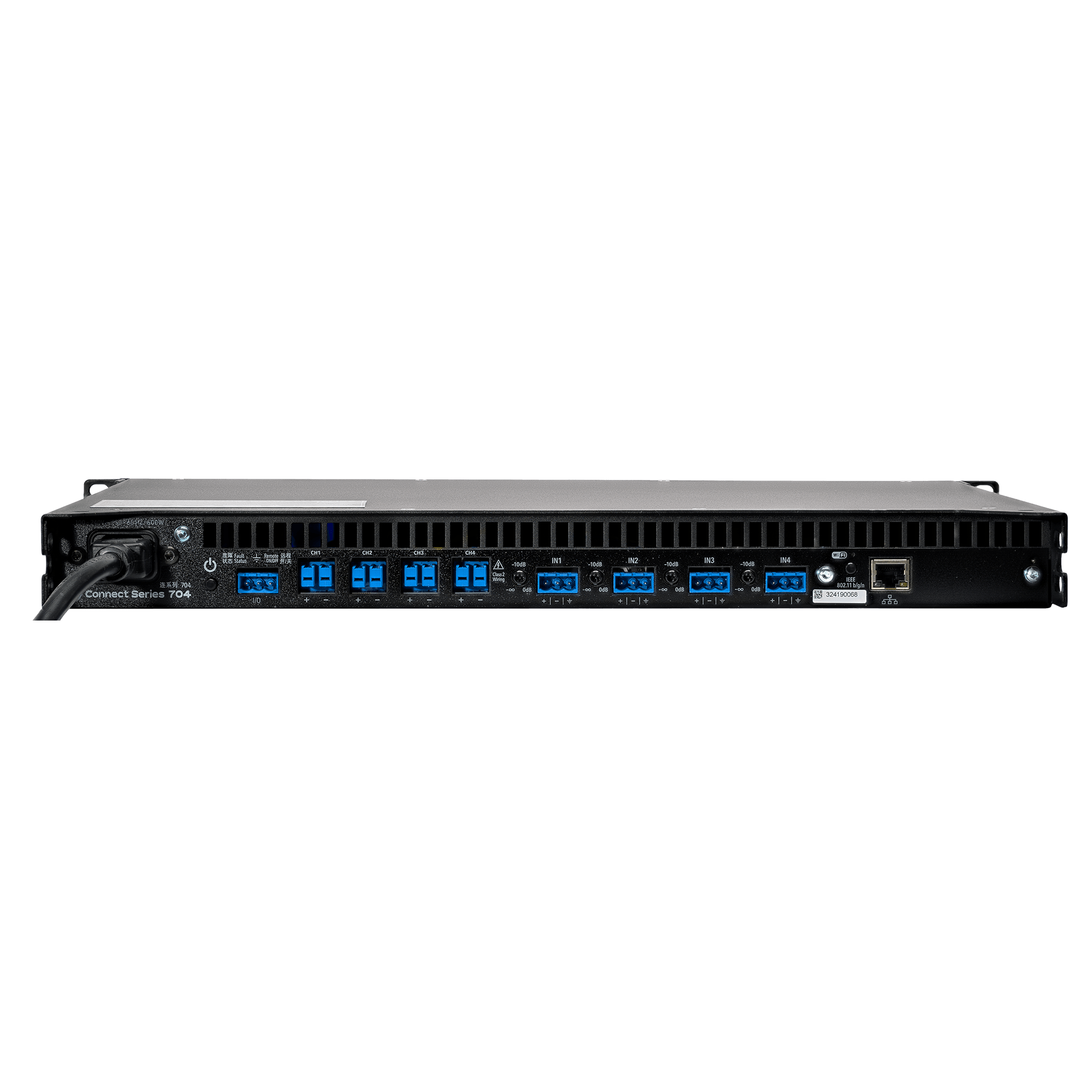

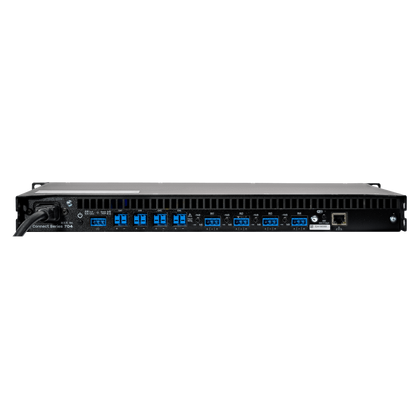

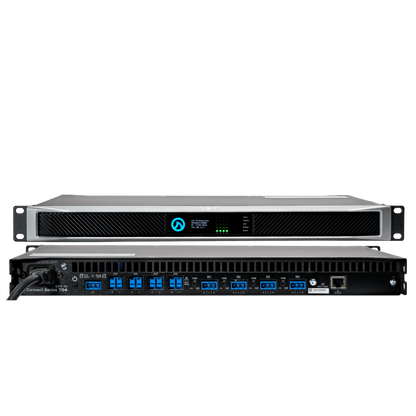

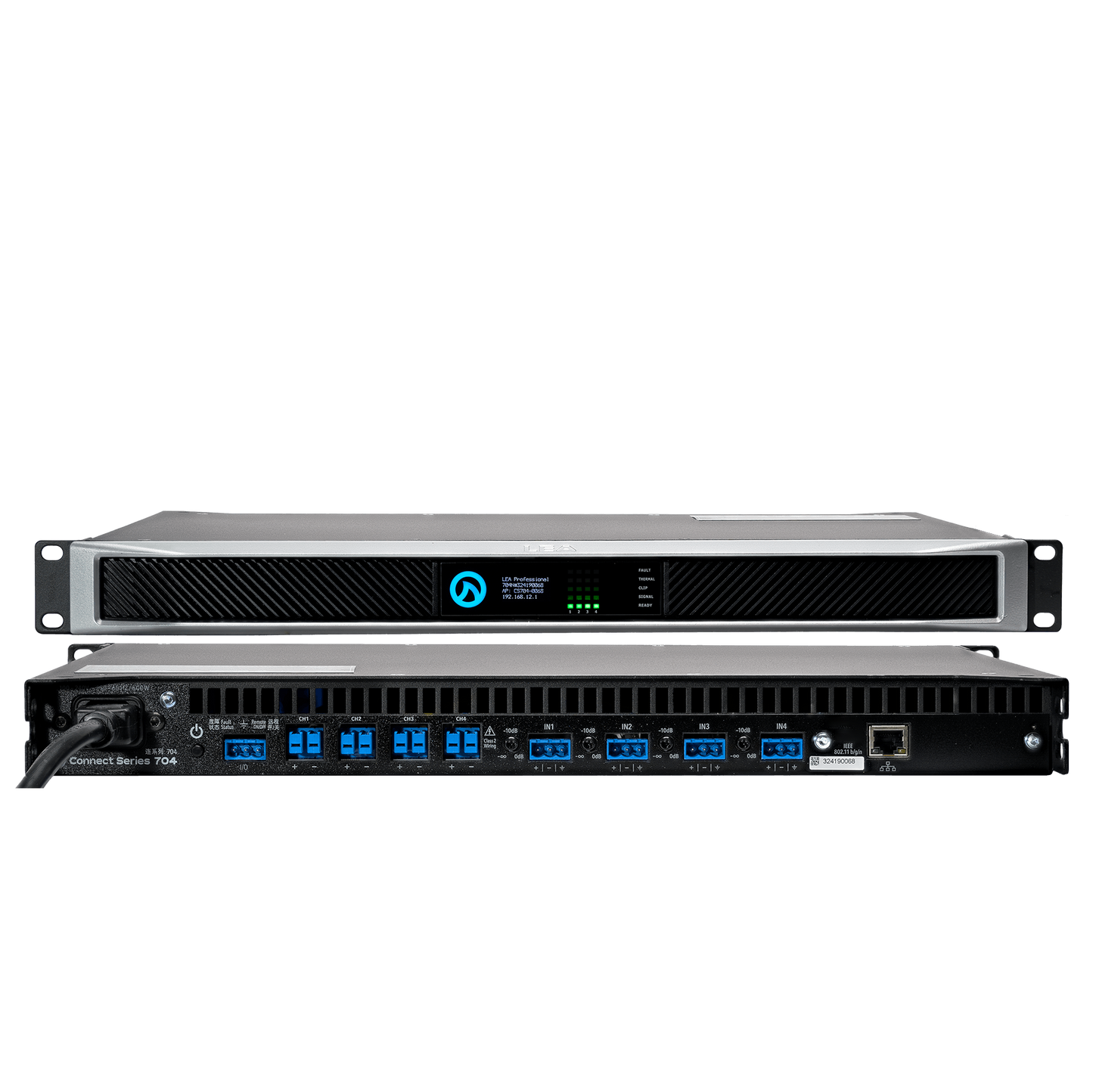

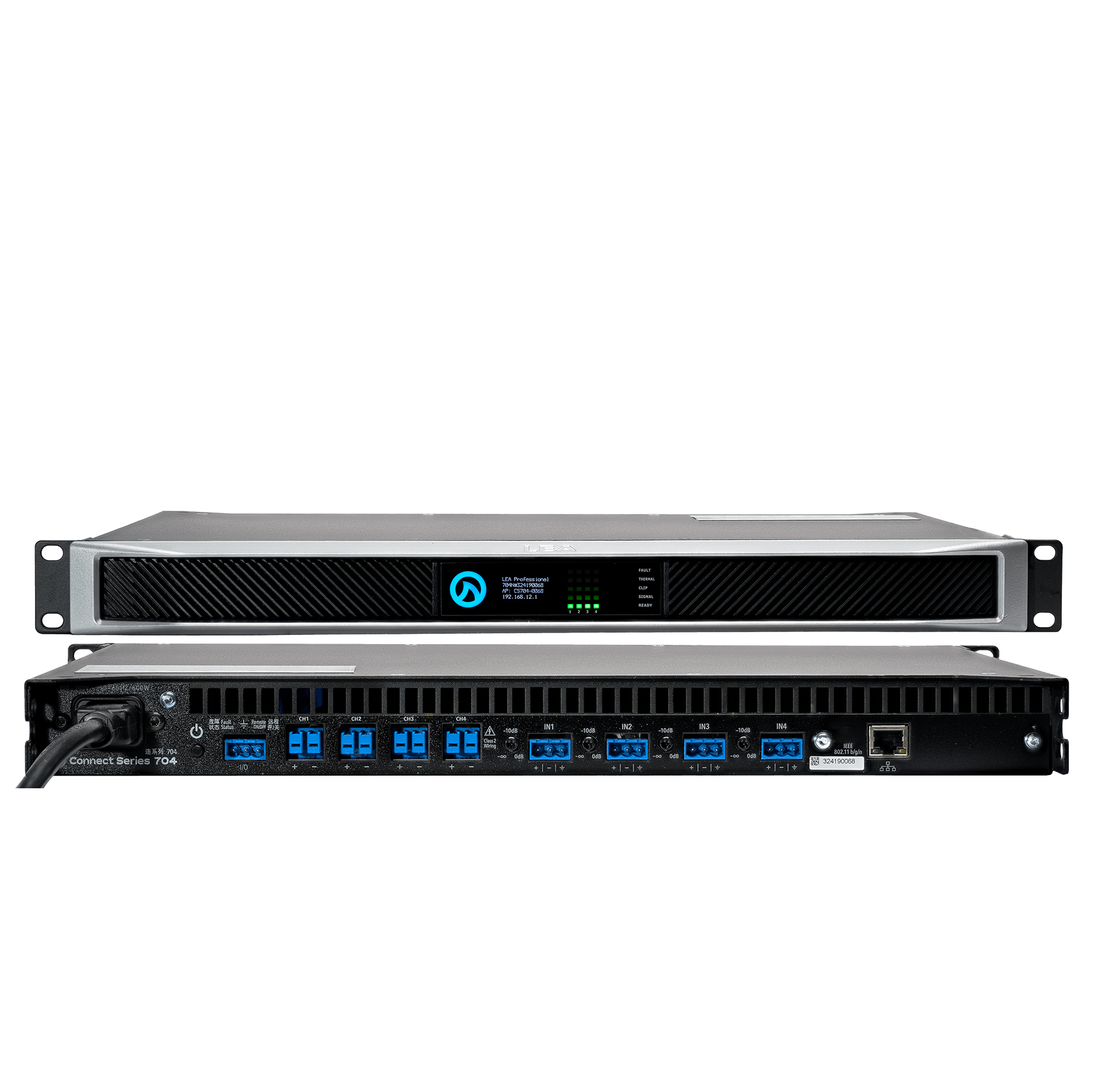

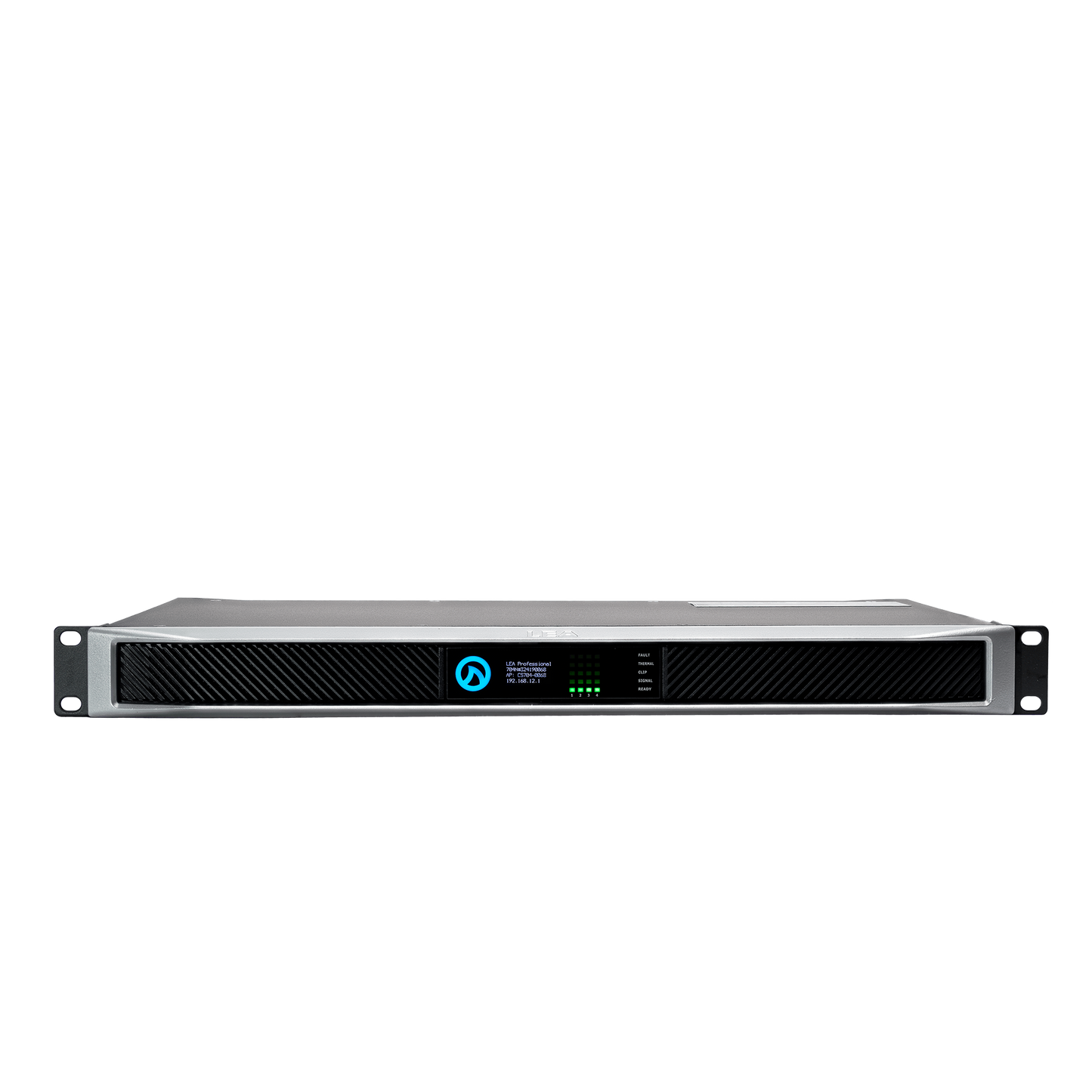

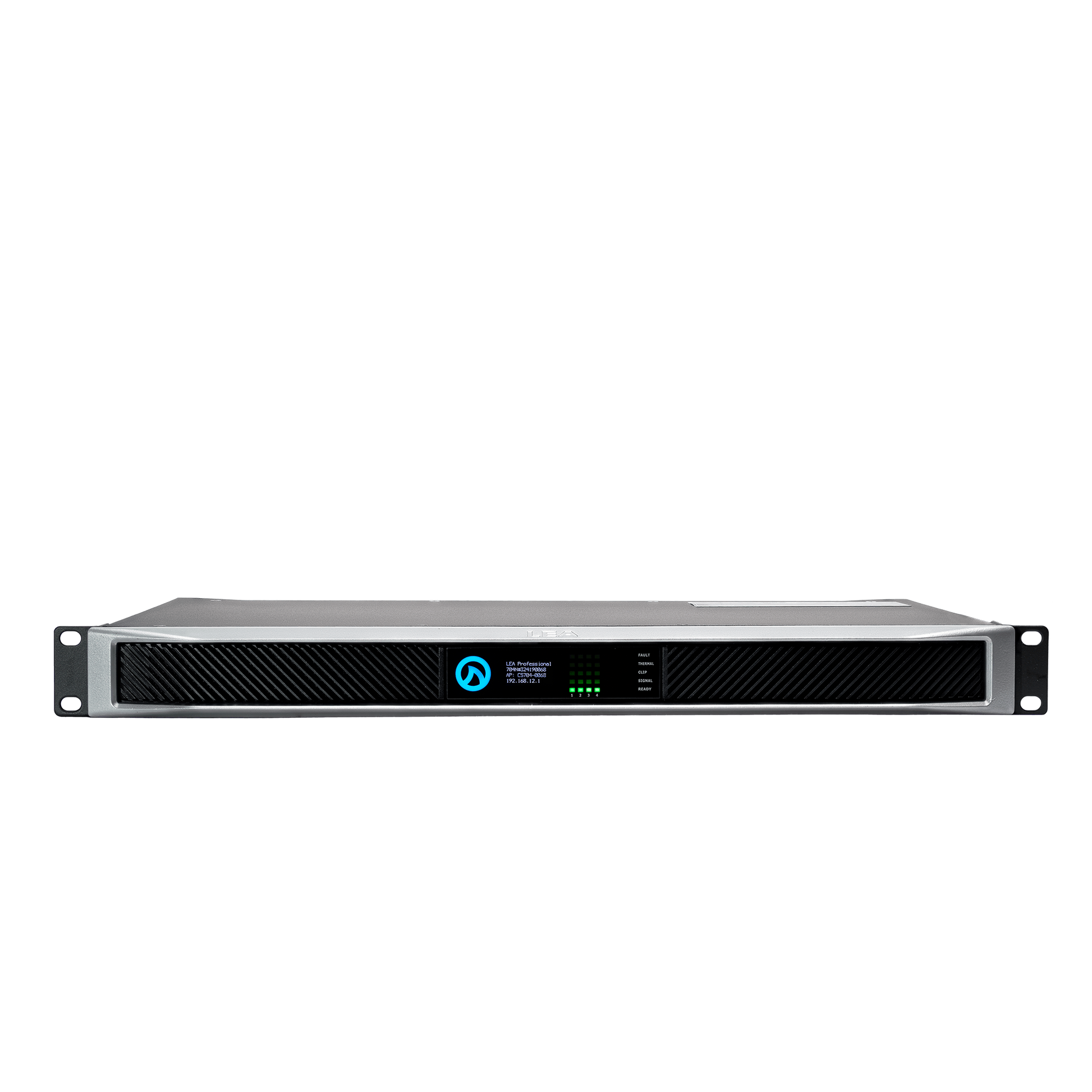

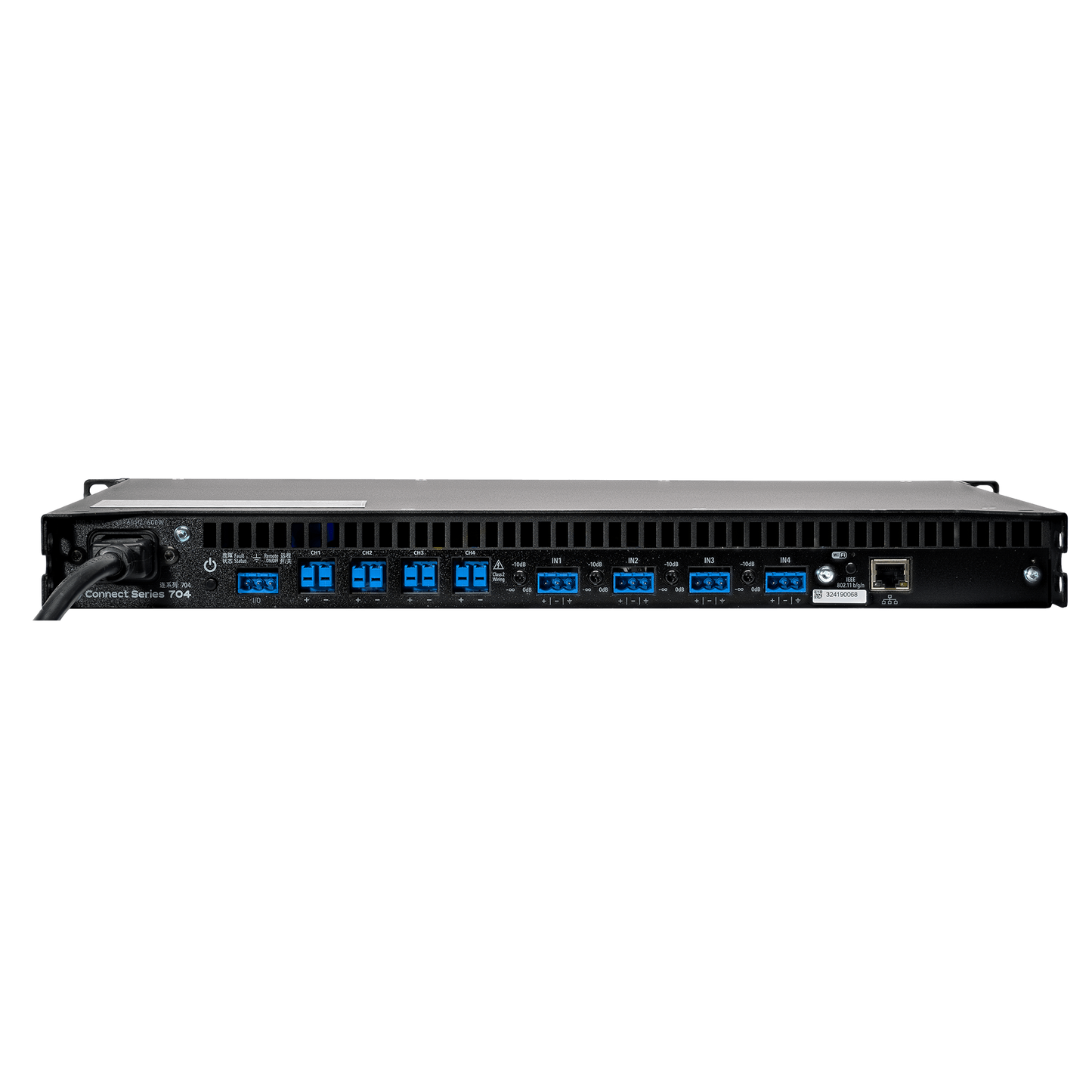

LEA Professional CS704-G Smart Amplifier

LEA Professional CS704-G Smart Amplifier

SoundPro Item: 200889 | Part Number: 200889

$3,502.00
$3,502.00 $3,502.00
Your Price Sold out
MSRP: $3,502.00 | MAP: $3,502.00

Usually ships in 5-7 business days

  • 1 WAY TO CONNECT: Local Area Network
  • Works on any web browser on any device with no software downloads
  • Remote control and monitoring from anywhere in the world - no VPN needed
  • DIRECT LOW-Z & HI-Z: 70V or 100V selectable per channel
  • Double the power any any single channel without sacrificing other amp channels
  • UNIVERSAL SWITCH-MODE POWER SUPPLY with PFC — Operation from 100VAC – 240VAC +/-15%
  • ANALOG BALANCED INPUTS Fully routable via input matrix in Web UI or Cloud platform
  • 96KHZ ANALOG DEVICES DSP, Input Routing
  • 48dB/Oct crossover filters, 8 Parametric EQ filters
  • User-adjustable speaker limiters, Real-time load monitoring
  • EXTERNAL I/O PORT For Remote ON/OFF and Fault Monitoring
  • HIGHLY EFFICIENT CLASS-D OUTPUT STAGE For low AC Current Draw
Log in or register for YOUR best price

The CONNECTSERIES 704-G is a 4-channel amplifier with 700 watts per channel. As part of the CONNECTSERIES G-Model family, the 704-G is perfectly suited for small to medium-scale installations. It’s important to note that the CONNECTSERIES 704-G is designed exclusively for wired LAN connections and does not support Wi-Fi connectivity. Then there’s the Cloud…The CONNECTSERIES 704-G is the first professional amplifier family to feature Cloud connectivity. Harness the power of the Cloud for remote control, monitoring, notifications, and more from any of your personal devices. Just connect your amp to a network and start commanding your systems. The CONNECTSERIES 704-G also features analog inputs and external I/O control for remote on/off and fault monitoring.

View full details

Specifications

AUDIO SPECIFICATIONS
INPUTS
Analog: 4 Balanced Inputs with user selectable 26 dB and 34 dB input sensitivity
THD+N
0.1% (20Hz to 20kHz)
FREQUENCY RESPONSE
20Hz to 20kHz, +/- 0.5 dB @ 4Ω, 8Ω, 70V, 100V, -2.5dB @ 20kHz at 2Ω
SIGNAL TO NOISE LEVEL
105dB (20Hz to 20kHz referenced to 8Ω)
CROSSTALK
70dB (20Hz to 20kHz)
AMPLIFIER OUTPUT CLASSIFICATION
Class D with Proprietary Smart Power Bridge Technology allowing bridged output functionality without sacrificing an amplifier channel
DSP
DSP ARCHITECTURE
Analog Devices Sigma 96kHz DSP Processor with 32-bit Core with Sample Rate Converters
INPUT MATRIX
Routable matrix; any input to any output with primary and secondary input priority
CROSSOVERS
Up to 48 dB/Octave IIR Filters (Linkwitz Riley and Butterworth)
PARAMETRIC EQ
8 Band Parametric EQ per channel
OUTPUT DELAY
100ms per channel
OUTPUT PROTECTION
DC, VHF, and AC Mains Protection, Overtemp and Current Limiter, fan fault detection
USER ADJUSTABLE LIMITING
Peak Voltage and RMS Voltage
LOAD MONITORING
Realtime Load Monitoring and Pilot Tone Detection from Internal or External Sources
PHYSICAL SPEC
DIMENSIONS (L X W X H)
Product: 14.25” x 19” x 1U (362mm x 482mm x 1U) x 1U (362mm x 482mm x 1U)
Shipping: 20” x 22.75” x 3.75” (508mm x 578mm x 95.25mm)
WEIGHT
14lbs / 4kg | Shipping: 18.7lbs / 8.5kg
COOLING
Front to Rear Variable Fan Speed Cooling
Fan Noise at idle is 50dB @ 1m
Fan Noise at 50% is 57dB @1m
Fan Noise at full speed is 63dB @ 1m
