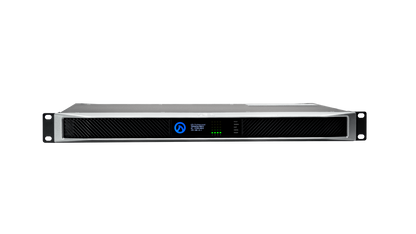

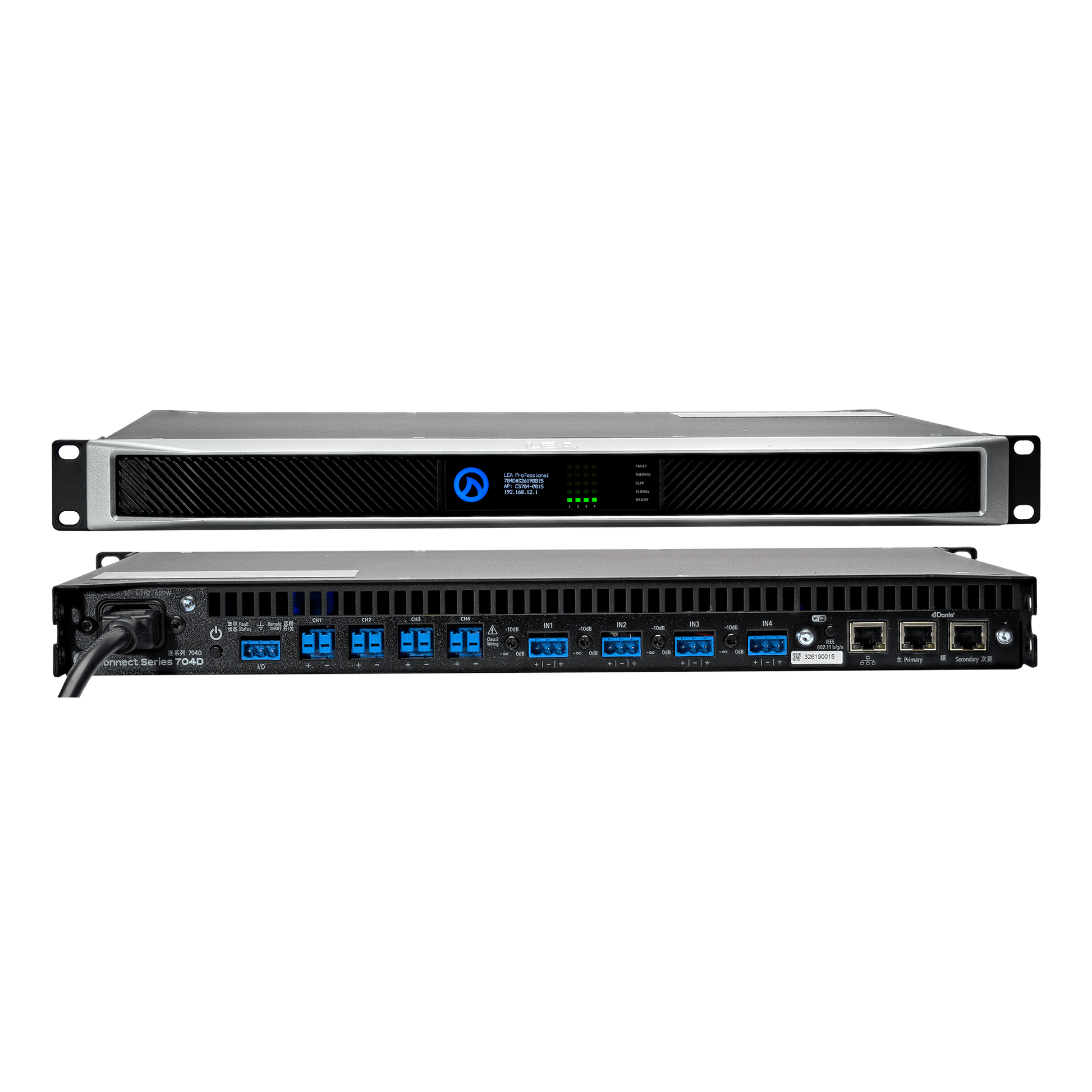

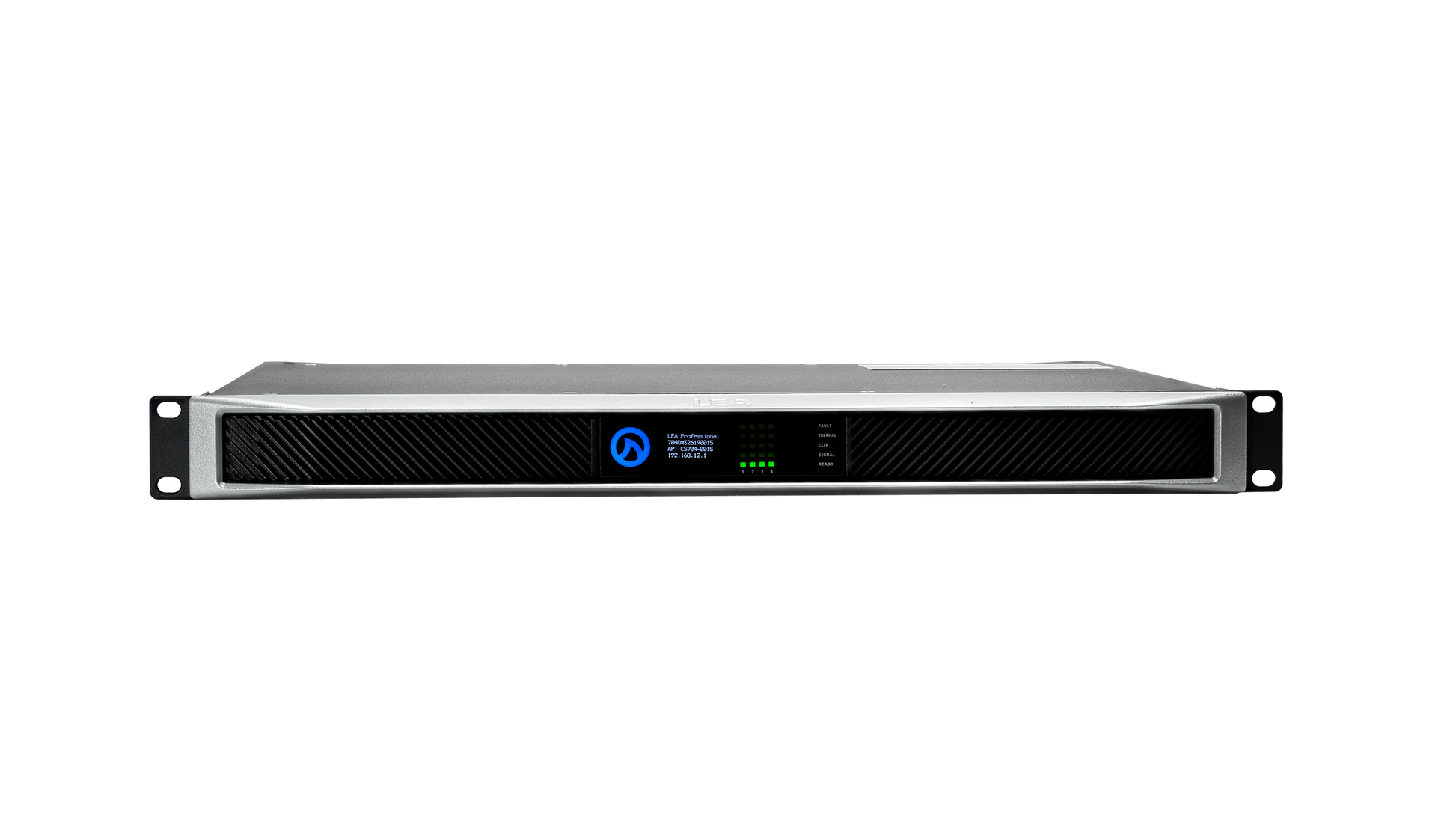

LEA Professional CS704D-G Smart Amplifier

LEA Professional CS704D-G Smart Amplifier

SoundPro Item: 200892 | Part Number: 200892

$4,514.00
$4,514.00 $4,514.00
Your Price Sold out
MSRP: $4,514.00 | MAP: $4,514.00

Usually ships in 5-7 business days

  • 3 WAYS TO CONNECT: 1. Built-in Wi-Fi Access Point, 2. Existing Wi-Fi Network and 3. Local Area Network
  • Works on any web browser on any device with no software downloads
  • Remote control and monitoring from anywhere in the world - no VPN needed
  • Direct LOW-Z & HI-Z: 70V or 100V selectable per channel
  • Double the power any any single channel without sacrificing other amp channels
  • Universal Switch Mode Power Supply with PFC - Operation from 100VAC – 240VAC +/-15%
  • Fully routable via input matrix in Web UI or Cloud platform
  • 96KHZ Analog Devices DSP and Input Routing
  • 48dB/Oct crossover filters and 8 Parametric EQ filters
  • User-adjustable speaker limiters, Real-time load monitoring
  • External I/O PORT for Remote ON/OFF and Fault Monitoring
  • Highly Efficient Class-D Output Stage for low AC Current Draw
Log in or register for YOUR best price

The CONNECTSERIES 704D is a 4-channel amplifier with 700 watts per channel. As part of the Dante CONNECTSERIES, the world’s first Internet of Things- (IoT) enabled professional-grade amplifiers, perfectly suited for small to medium-scale installations. The 704D features direct HiZ (70V or 100V) or LoZ selectable by channel. With three ways to connect, you can engage the built-in Wi-Fi access point, connect to the venue’s Wi-Fi, or use the FAST Ethernet to connect to any local area network via Cat5 or Cat6 cable. Then there’s the Cloud…DANTE CONNECTSERIES is the first professional amplifier family to feature Cloud connectivity. Harness the power of the Cloud for remote control, monitoring, notifications, and more from any of your personal devices. Just connect your amp to a network and start commanding your systems. The DANTE CONNECTSERIES also features analog inputs and Dante inputs and external I/O control for remote on/off and fault monitoring.

View full details

Specifications

AUDIO SPECIFICATIONS
INPUTS
Analog: 4 Balanced Inputs with user selectable 26 dB and 34 dB input sensitivity
Dante: 8 x 8 Dante at 96kHz or 48kHz, Multicast or Unicast
AES 67: Configurable via the Dante Controller Software
THD+N
0.1% (20Hz to 20kHz)
FREQUENCY RESPONSE
20Hz to 20kHz, +/- 0.5 dB @ 4Ω, 8Ω, 70V, 100V, -2.5dB @ 20kHz at 2Ω
SIGNAL TO NOISE LEVEL
105dB (20Hz to 20kHz referenced to 8Ω)
CROSSTALK
70dB (20Hz to 20kHz)
AMPLIFIER OUTPUT CLASSIFICATION
Class D with Proprietary Smart Power Bridge Technology allowing bridged output functionality without sacrificing an amplifier channel
DSP
DSP ARCHITECTURE
Analog Devices Sigma 96kHz DSP Processor with 32-bit Core with Sample Rate Converters
INPUT MATRIX
Routable matrix; any input to any output with primary and secondary input priority
CROSSOVERS
Up to 48 dB/Octave IIR Filters (Linkwitz Riley and Butterworth)
PARAMETRIC EQ
8 Band Parametric EQ per channel
OUTPUT DELAY
100ms per channel
OUTPUT PROTECTION
DC, VHF, and AC Mains Protection, Overtemp and Current Limiter, fan fault detection
USER ADJUSTABLE LIMITING
Peak Voltage and RMS Voltage
PHYSICAL SPEC
DIMENSIONS (L X W X H)
Product: 14.25” x 19” x 1U (362mm x 482mm x 1U) x 1U (362mm x 482mm x 1U)
Shipping: 20” x 22.75” x 3.75” (508mm x 578mm x 95.25mm)
WEIGHT
14lbs / 4kg | Shipping: 18.7lbs / 8.5kg
COOLING
Front to Rear Variable Fan Speed Cooling
Fan Noise at idle is 50dB @ 1m
Fan Noise at 50% is 57dB @1m
Fan Noise at full speed is 63dB @ 1m
LOAD MONITORING
Realtime Load Monitoring and Pilot Tone Detection from Internal or External Sources
