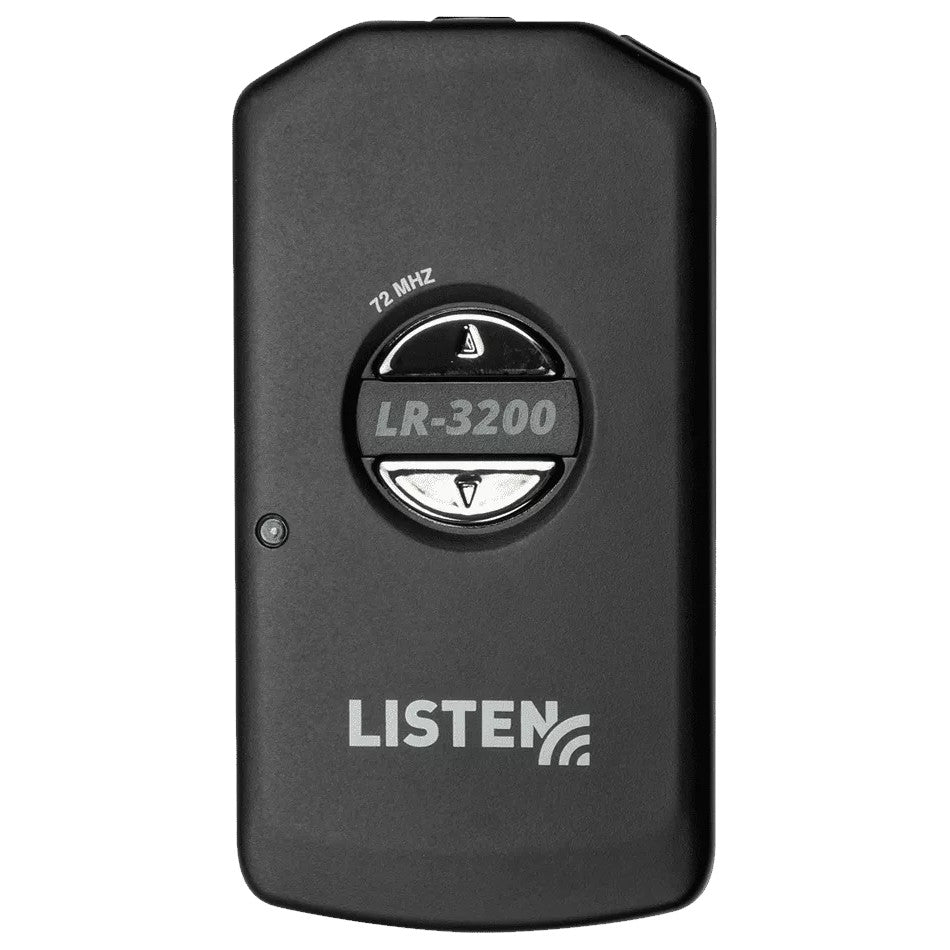

Listen Technologies LR-3200-072 Basic DSP RF Receiver

Listen Technologies LR-3200-072 Basic DSP RF Receiver

SoundPro Item: 46259 | Part Number: LR-3200-072

$146.00
$163.00 $146.00
Your Price Sold out
MSRP: $163.00 | MAP: $146.00

Usually ships in 5-7 business days

  • RF receiver offering best-in-class sensitivity and sound
  • Integrated neck loop/lanyard with DSP loop driver for an enhanced T-coil listening experience
  • Smallest device of its kind makes it easier to wear and use and for venues to dispense, store and maintain
  • Limited lifetime warranty with hassle-free support
  • Lanyard and belt clip options offer convenient and discreet choices for the end-user
  • Advanced rechargeable battery technology eliminates the costs and hassles associated with frequent battery replacement
  • Designed for single-channel applications
Log in or register for YOUR best price

The LR-3200-072 receiver from Listen Technologies offers outstanding audio clarity and quality with the best range and reception in its class.

Part of the Intelligent Digital Signal Processing (iDSP) line, the LR-3200-072 is the smallest device of its kind, resulting in a compact unit that won’t burden the end user. An integrated neck loop/lanyard makes each receiver easy to wear, and the DSP loop driver offers an improved listening experience for anyone with a T-coil-equipped hearing aid. Dual 3.5mm output jacks also allow receivers to be shared between users.

Each receiver is equipped with a micro USB connection which can be used with free iDSP software for charging, set up, programming, inventory management and firmware updates.

Extended speaking sessions, presentations and more can be challenging for other devices, but the LR-3200-072 incorporates advanced Lithium-ion rechargeable batteries that offer long life and reliable power.

View full details
  • Audio
    • System Distortion: < 1% total harmonic distortion (THD) at 80% deviation
    • Output(s): Two (2) 3.5 mm (0.14 in.) connectors, unbalanced, 0 dBu nominal output level, 50 mW maximum, impedance 32 ohm
    • System Frequency Response: 50 Hz - 15 kHz (±3 dB)
    • System Signal to Noise Ratio: SQ disabled 70 dB, SQ enabled 80 dB
  • Controls
    • User Controls: Power, up/down volume
    • Programming: Via software and USB port
    • Set-up Controls: Press and hold up/down volume buttons for 5 seconds to enter channel adjust, use up/down to select channel
  • IndicatorsLEDs: Flashes when batteries are low or to indicate charging, solid when fully charged
  • RF
    • Frequency Range: 72.0250 - 75.9500 MHz
    • Number of Channels: Basic Mode: 3 wide Band; Expand Mode: 17 wide band
    • Sensitivity: .6uV typical, 1 uV maximum for 12 dB sinad
    • Frequency Accuracy: ± .005% stability 32 to 122 ºF (0 to 50 ºC)
    • Squelch: Fixed level, automatic on loss of RF signal
    • Antenna Type: Uses ear phone/neck loop lanyard and short ear phone cable or standard earphone cable
  • Power
    • Battery Type: Lithium Ion 3.7 Vdc, 1200 mAh
    • Battery Life: 24 Hours of continuous use
    • Battery Charging Time: Fully charged in 2.5 Hours
    • Power Supply: Micro USB connector, 5 V, 500 mA
  • Physical
    • Color: Black
    • Unit Weight: 1.6 oz. (45 g); with batteries 2.4 oz. (68 g)
    • Shipping Weight: 3.2 oz. (91 g) with 1.0 lbs. (454 g) minimum
    • Dimensions (HxWxD): 3.75x2x0.64" (9.6x5x1.7 cm); with belt clip: 3.75x2x0.8" (9.6x5x2.1 cm)
  • Environmental
    • Temperature - Operation: 14 to 104 ºF (-10 to 40 ºC)
    • Temperature - Storage: (-)4 to 122 °F (-20 to 50 °C)
    • Relative Humidity: 0 to 95% relative humidity, non-condensing
  • ComplianceStandards: FCC Part 15 Class B, Industry Canada ICES-3 (B), RoHS
